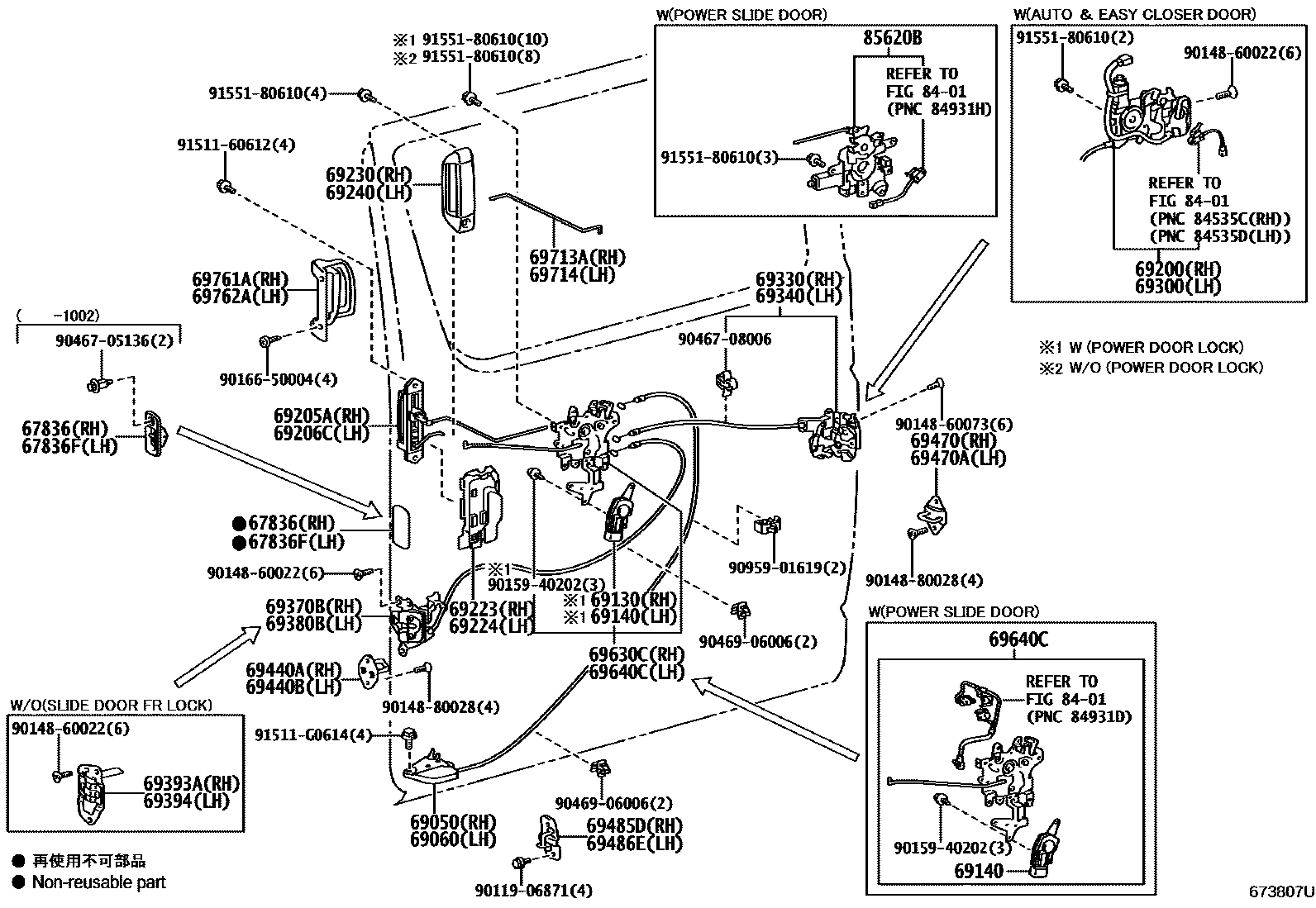

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-26010iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,212,222,LH20#,212,222,TRH203,223..LHD200501-201001
main67857-26060iTRH201,221..HRF;KDH200..LHD..4D;TRH213..GL..(GEN,TH,VN);KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03S,11S,1201002-201312
67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
main67836-26010iKDH220;TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH20#,212,221,222,223,LH20#,212,222,TRH203,213,223..RHD200501-201001
main67857-26060iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201002-201402
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
main69050-26010iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201302
sub69050-26011
main69050-26011iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03201302-201312
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
main69060-26010iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,203,220,221,223..03S,06S,14S,16S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201302
sub69060-26011
main69060-26011iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201302-201402
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-26010iKDH222,TRH223..LHD..GL;KDH201,220,221,TRH221..RHD..5D..(ARL,GEN);KDH200,212,223,TRH200,201,213..(06S,09S,10S,11S,12S)..(GEN,RUS,TH,VN)200501-201312
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69200LOCK ASSY, POWER SLIDE DOOR, RH
sub69200-26080
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69207-26010-B0iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,212,222,LH20#,212,222,TRH203,223..LHD200501-201008
GRAY,TRIM1#
main69207-26010-B1iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH,VN);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..201008-201312
DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69208-26010-B0iKDH220;TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH20#,212,221,222,223,LH20#,212,222,TRH203,213,223..RHD200501-201008
GRAY,TRIM1#
main69208-26010-B1iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201008-201402
DK.GRAY,TRIM1#
69223CASE, REAR DOOR OUTSIDE HANDLE, RH
69224CASE, REAR DOOR OUTSIDE HANDLE, LH
main69242-26030iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-26070iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D..STD;KDH200,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..4D..STD200501-201312
NO PAINT REQ.
PLATED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-26080iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH200,222,TRH223..RHD..STD;KDH201,220,221,223,TRH200..STD;KDH202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,14S,15S,16S200501-201402
NO PAINT REQ.
PLATED
69300LOCK ASSY, POWER SLIDE DOOR, LH
sub69300-26190
69330LOCK ASSY, REAR DOOR, RH
main69330-26040iTRH221;KDH200,201,220,221,LH200,TRH201..5D;KDH200,202,203,212,222,LH20#,212,222,TRH20#,213,223..LHD..4D200501-201205
sub69330-26050
main69330-26050iTRH221;TRH201..GCC,GEN;KDH200,201,220,221,LH200,TRH200..5D;KDH200,202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..4D201205
sub69330-26051
69340LOCK ASSY, REAR DOOR, LH
main69340-26040iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,203,220,221,223..03S,06S,14S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10S,12S,14S,15S,16S)200501-201205
sub69340-26050
main69340-26050iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,10S,12S,14S,15S,16S)201205-201402
sub69340-26051
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
main69370-26010iTRH213..LHD..STD;TRH213..GL..(GEN,TH,VN);KDH200,201,203,223,TRH200,201..(06S,12S)..(GCC,GEN,RUS);KDH202,212,222,LH202,212,222,TRH201,203,22#..LHD..SG..(03S,10S,11S,200501-201312
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
main69380-26010iKDH212..4FC;KDH200,201,223,TRH200,201..06S,14S,16S;KDH202,203,212,222,LH202,212,222,TRH203,213,223..RHD200501-201402
69393ACOVER, REAR DOOR LOCK, OUTER RH
69394COVER, REAR DOOR LOCK, OUTER LH
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
main69440-28050iTRH213..LHD..STD;TRH213..GL..(GEN,TH,VN);KDH200,201,203,223,TRH200,201..(06S,12S)..(GCC,GEN,RUS);KDH202,212,222,LH202,212,222,TRH201,203,22#..LHD..SG..(03S,10S,11S,200501-201312
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
main69440-28050iKDH212..4FC;KDH200,201,223,TRH200,201..06S,14S,16S;KDH202,203,212,222,LH202,212,222,TRH203,213,223..RHD200501-201402
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
main69470-28100iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D;KDH200,202,203,212,222,223,LH20#,212,222,TRH201,203,213,223..LHD..4D200501-201312
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
main69470-28100iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10S,12S,14S,15S,1200501-201402
69485DSTRIKER, SLIDE DOOR OPEN, RH
main69485-26020iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312
69486ESTRIKER, SLIDE DOOR OPEN, LH
main69486-26020iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
main69630-26210iKDH200..LHD..4D;KDH200..06S..GCC;TRH221..GCC,GEN,SA;KDH200,220,LH200..5D..03S..(GCC,GEN,SA);KDH201,202,203,212,222,LH20#,212,222,TRH20#,213,223..LHD..STD200501-201302
sub69630-26211
main69630-26211iKDH200..LHD..4D;KDH200,LH200..5D;KDH220,TRH221..GCC,GEN,SA;KDH201,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..STD201303-201312
sub69630-26212
main69630-26220iKDH200..LHD..4D;KDH200..06S..GCC;TRH221..GCC,GEN,SA;KDH200,220,LH200..5D..03S..(GCC,GEN,SA);KDH201,202,203,212,222,LH20#,212,222,TRH20#,213,223..LHD..STD200501-201302
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
sub69630-26221
main69630-26221iKDH222,TRH223..LHD..GL;KDH201,TRH201,221..RHD..5D..(ARL,GEN);KDH212,221,223,TRH200,213..(03S,06S,10S,11S,12S)..(ARL,GEN,RUS,TH)201303-201312
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
sub69630-26222
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
sub69640-26341
main69640-26341iKDH222..RHD..GEN;TRH201..06S..GCC;KDH200,201..LHD..5D;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH201,TRH223..RHD..4D..(03S,16S)..5F..(GEN,TH);KDH200,202,212,LH20#,201303-201401
sub69640-26342
main69640-26350iKDH200,TRH201..ARL;KDH222,TRH223..ARL,TH;KDH201..RHD..(ARL,GEN);KDH202,212,222,TRH213,223..RHD..GL;KDH200,212,TRH201..5D..(06S,11S)..GEN;KDH203,220,221,223,TRH221..200501-201302
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
sub69640-26351
sub69640-26351
main69640-26351iKDH212..4FC;KDH201..RHD..(ARL,GEN);KDH212,222,TRH213,223..ARL,SA,TH;KDH202,203,221,223,TRH200,201,221..RHD..(03S,06S,12S,14S,16S)..(ARL,GEN,TH)201303-201402
sub69640-26352
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-26020iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
main69714-26020iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
main69761-26010-B0iTRH221;KDH200,201,220,221,LH200,TRH201..5D;KDH200,202,212,222,LH20#,212,222,TRH20#,213,223..LHD..4D..STD200501-201008
GRAY,TRIM1#
main69761-26010-B1iTRH221;TRH201..GCC,GEN;KDH200,201,220,221,LH200,TRH200..5D;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..LHD..4D..STD201008-201312
DK.GRAY,TRIM1#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
main69762-26010-B0iKDH220;TRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD;KDH20#,212,221,223,LH20#,212,222,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S)200501-201008
GRAY,TRIM1#
main69762-26010-B1iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,1201008-201402
DK.GRAY,TRIM1#
8401
85620BMOTOR ASSY, SLIDE DOOR LOCK RELEASE
9011906871
main90119-06871
9014860022
main90148-60022
9014860073
main90148-60073
9014880028
main90148-80028
9015940202
main90159-40202
9016650004
main90166-50004
9046705136
main90467-05136
9046708006
main90467-08006
9046906006
main90469-06006
9095901619
main90959-01619
9151160612
main91511-60612
91511G0614
main91511-G0614
9155180610
main91551-80610
47 parts on this diagram · 1 diagram in section
