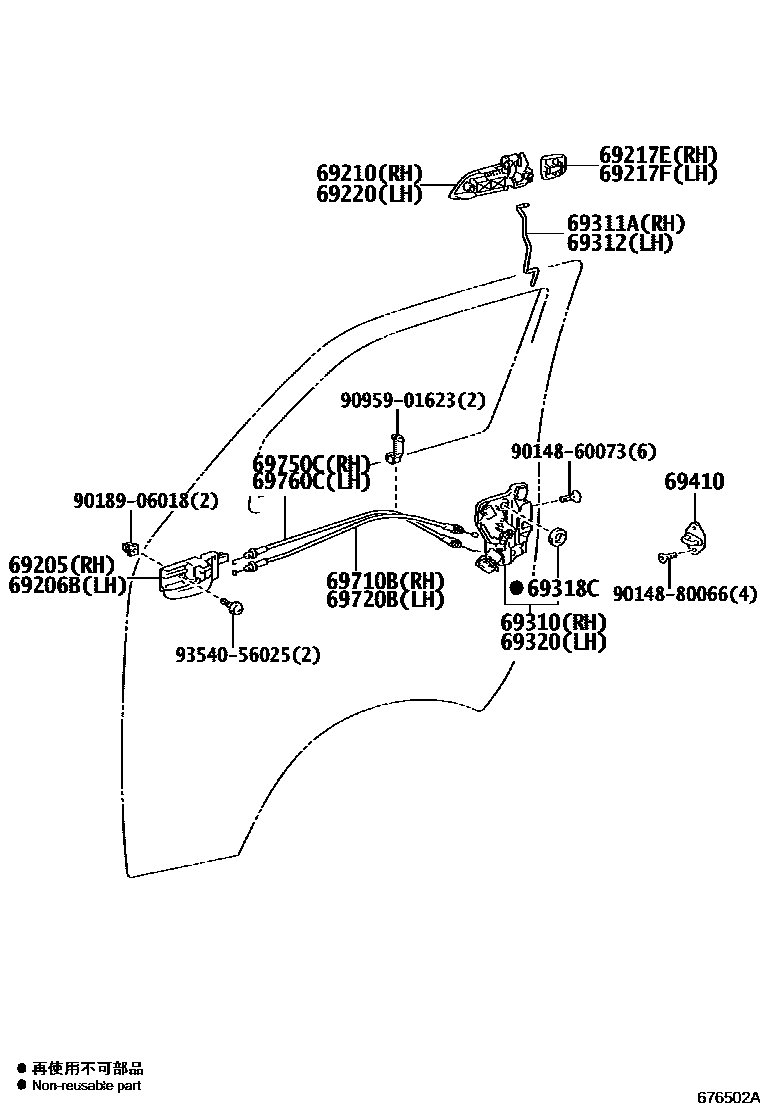

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12200-B1iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

DK.GRAY,TRIM1#

sub69205-12200

sub69205-0D070

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12200-B1iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

DK.GRAY,TRIM1#

sub69206-12200

sub69206-0D070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-26040iKDH202,203;KDH200,201,212,22#,LH20#,212,222,TRH20#,213,22#..STD200501-201402

NO PAINT REQ.

main69210-26050iKDH200,201,212,222,223,TRH213,223..GL200501-201312

PLATED

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-26010iKDH202,203;KDH200,201,212,22#,LH20#,212,222,TRH20#,213,22#..STD200501-201402

BLACK

main69217-26020iKDH200,201,212,222,223,TRH213,223..GL200501-201312

*CR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-26010iKDH202,203;KDH200,201,212,22#,LH20#,212,222,TRH20#,213,22#..STD200501-201402

BLACK

main69218-26020iKDH200,201,212,222,223,TRH213,223..GL200501-201312

*CR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-26040iKDH202,203;KDH200,201,212,22#,LH20#,212,222,TRH20#,213,22#..STD200501-201402

NO PAINT REQ.

main69220-26050iKDH200,201,212,222,223,TRH213,223..GL200501-201312

PLATED

69310LOCK ASSY, FRONT DOOR, RH

main69030-26140iTRH223..RHD..GEN;KDH201,220,TRH221..SA,TH;KDH200,202,212,LH20#,212,222,TRH201,203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH)200501-201401

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

main69030-26140iKDH222..RHD..GEN200501-201402

main69030-26150iKDH20#,212,222,LH20#,212,222,TRH20#,213,22#..LHD..STD200501-200609

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

sub69030-26151

main69030-26151iKDH212,222,223,TRH213,223..LHD..GL200610-201312

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

main69310-26050iTRH223..RHD..GEN;KDH201,220,TRH221..SA,TH;KDH200,202,212,LH20#,212,222,TRH201,203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH)200501-201401

main69310-26050iKDH200,22#,TRH201,22#..5F..ARL200501-200610

POWER DOOR LOCK-WITHOUT

main69310-26060iKDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..STD200501-201312

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69320LOCK ASSY, FRONT DOOR, LH

main69040-26130iKDH212,222,TRH213,223..LHD..GL200501-200609

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

sub69040-26131

main69040-26131iKDH212,222,223,TRH213,223..LHD..GL200610-201312

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

main69040-26140iTRH223..RHD..GEN;KDH201,220,TRH221..SA,TH;KDH200,202,212,LH20#,212,222,TRH201,203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH)200501-201401

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

main69040-26140iKDH222,TRH223..STD..SA200501-201402

main69320-26050iKDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..STD200501-201312

main69320-26060iTRH223..RHD..GEN;KDH201,220,TRH221..SA,TH;KDH200,202,212,LH20#,212,222,TRH201,203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH)200501-201401

main69320-26060iKDH200,22#,TRH201,22#..5F..ARL200501-200610

POWER DOOR LOCK-WITHOUT

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

9014860073

main90148-60073

9014880066

main90148-80066

9018906018

main90189-06018

9095901623

main90959-01623

9354056025

main93540-56025

21 parts on this diagram · 1 diagram in section
