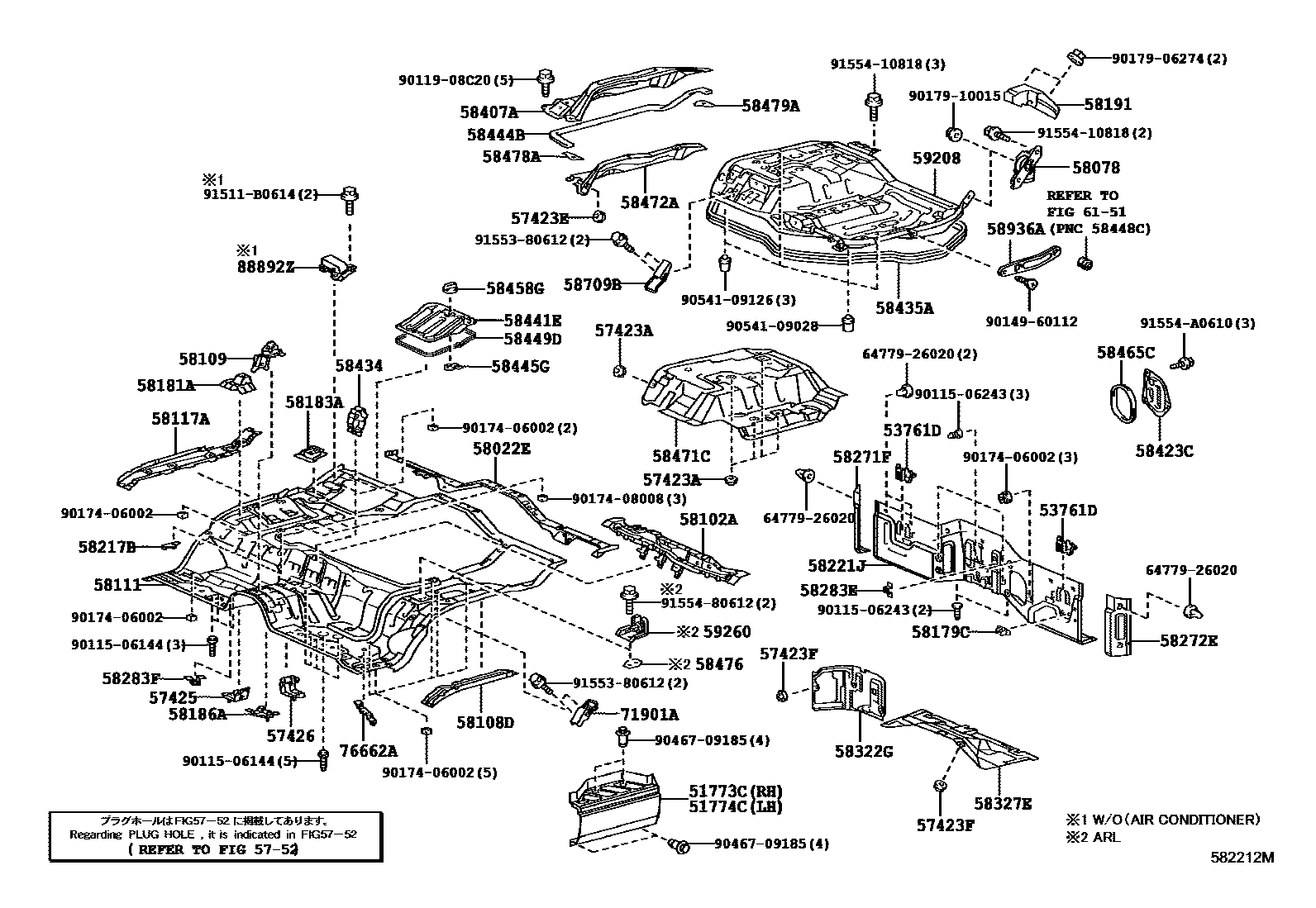

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1RH 0004 1LH 0005 1RH 0006 1LH

51773CCOVER, STEP PLATE, RH

main51773-26020iKDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH20#,212,220,LH20#,212,222,TRH20#,213,22#..STD200501-200608

NO PAINT REQ.

main51773-26021iKDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..STD..(ARL,GCC,GEN,MA,SA)200609-200709

NO PAINT REQ.

sub51773-26040

main51773-26022iKDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD200709-201008

NO PAINT REQ.

main51773-26023iKDH222,223,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,LH20#,212,222,TRH20#,213,221..STD201008-201402

NO PAINT REQ.

main51773-26030-A0iTRH213..5F..GL;KDH222..RHD..GEN;KDH20#,212,222,TRH223..GL200501-200511

WHITE,058

main51773-26030-A1iTRH213..4FC200506-200511

WHITE PM.,042

main51773-26030-B0iKDH200..GL200501-200511

GRAY ME.,2JN

main51773-26030-B1iKDH202,212,TRH213,223..(10S,11S,12S,13S,16S)..GL..GEN200501-200511

DARK GRAY M.M.,1E2

main51773-26030-B2iKDH222..RHD..GEN;KDH20#,212,222,TRH213,223..GL200501-200511

SILVER M.M.,1E7

main51773-26030-F0iKDH212,222,TRH213,223..GL200501-200511

GOLD ME.,2JM

main51773-26030-J0iKDH222..RHD..GEN;KDH200,222,TRH213,223..(06S,09S,10S,12S,16S)..GL200501-200511

DK.BLUE M.M.,8P4

main51773-26031-A0iKDH212..5F..GL;KDH222..RHD..GEN;KDH20#,222,TRH213,223..(06S,09S,10S,12S,13S,16S)..GL200512-200608

WHITE,058

sub51773-26032

main51773-26031-A1iKDH212,TRH213..4FC200512-200608

WHITE PM.,042

sub51773-26032

main51773-26031-B0iKDH200..GL200512-200608

GRAY ME.,2JN

sub51773-26032

main51773-26031-B1iKDH202,212,TRH213,223..(10S,11S,12S,13S,16S)..GL..(GEN,MA)200512-200608

DARK GRAY M.M.,1E2

sub51773-26032

main51773-26031-B2iKDH212..5F..GL;KDH222..RHD..GEN;KDH20#,222,TRH213,223..(06S,09S,10S,12S,13S,16S)..GL200512-200608

SILVER M.M.,1E7

sub51773-26032

main51773-26031-F0iKDH212,222,TRH213,223..GL200512-200608

GOLD ME.,2JM

sub51773-26032

main51773-26031-J0iKDH222..RHD..GEN;KDH200,222,TRH213,223..(06S,09S,10S,12S,16S)..GL200512-200608

DK.BLUE M.M.,8P4

sub51773-26032

main51773-26033-A0iTRH223..TH;KDH222..SA,TH;KDH212,TRH223..4D..GL;KDH201,202,222,TRH213..(06S,10S,12S,16S)..GL200709-201008

WHITE,058

main51773-26033-A2iKDH212,TRH213..4FC200709-201008

WHITE PEARL CS.,070

main51773-26033-B0iKDH201..GL200709-201008

GRAY ME.,2JN

main51773-26033-B2iTRH223..TH;KDH222..SA,TH;KDH212,TRH223..4D..GL;KDH201,202,222,TRH213..(06S,10S,12S,16S)..GL200709-201008

SILVER M.M.,1E7

main51773-26033-C0iKDH212,TRH213..11S200709-201008

BLACK MC.,209

main51773-26033-F0iTRH213..GL..VN200709-201008

GOLD ME.,2JZ ,593

main51773-26033-J0iTRH223..GL;TRH223..TH;KDH222..SA,TH;KDH201,212,222,TRH213..(06S,10S,16S)..GL200709-201008

DK.BLUE M.M.,8P4

main51773-26034-A0iKDH222..TH201008-201205

WHITE,058

main51773-26034-A2iKDH212,TRH213..4FC..GL201008-201312

WHITE PEARL CS.,070

main51773-26034-B2iKDH222..TH201008-201205

SILVER M.M.,1E7

main51773-26034-C0iKDH201,212,TRH213..(06S,11S)..GL201008-201312

BLACK MC.,209

main51773-26034-F0iKDH222..TH201212-201401

GOLD ME.,593

main51773-26034-J0iKDH222..TH201008-201205

DK.BLUE M.M.,8P4

main51773-26901iKDH222..RHD..(GEN,SA);TRH223..(12S,13S,14S,15S)..(CIS,GEN,SA,TH);KDH200,201,202,212,222,TRH213,223..(06S,09S,10S,11S,12S,16S)..GL..(GCC,GEN,MA,SA)200609-200709

NO PAINT REQ.

51774CCOVER, STEP PLATE, LH

main51774-26020iKDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH20#,212,220,LH20#,212,222,TRH20#,213,22#..STD200501-200608

main51774-26021iKDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..STD..(ARL,GCC,GEN,MA,SA)200609-200709

sub51774-26040

main51774-26022iKDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD200709-201008

main51774-26023iKDH222,223,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,LH20#,212,222,TRH20#,213,221..STD201008-201402

main51774-26030-A0iTRH213..5F..GL;KDH222..RHD..GEN;KDH20#,212,222,TRH223..GL200501-200511

WHITE,058

main51774-26030-A1iTRH213..4FC200506-200511

WHITE PM.,042

main51774-26030-B0iKDH200..GL200501-200511

GRAY ME.,2JN

main51774-26030-B1iKDH202,212,TRH213,223..(10S,11S,12S,13S,16S)..GL..GEN200501-200511

DARK GRAY M.M.,1E2

main51774-26030-B2iKDH222..RHD..GEN;KDH20#,212,222,TRH213,223..GL200501-200511

SILVER M.M.,1E7

main51774-26030-F0iKDH212,222,TRH213,223..GL200501-200511

GOLD ME.,2JM

main51774-26030-J0iKDH222..RHD..GEN;KDH200,222,TRH213,223..(06S,09S,10S,12S,16S)..GL200501-200511

DK.BLUE M.M.,8P4

main51774-26031-A0iKDH212..5F..GL;KDH222..RHD..GEN;KDH20#,222,TRH213,223..(06S,09S,10S,12S,13S,16S)..GL200512-200608

WHITE,058

sub51774-26032

main51774-26031-A1iKDH212,TRH213..4FC200512-200608

WHITE PM.,042

sub51774-26032

main51774-26031-B0iKDH200..GL200512-200608

GRAY ME.,2JN

sub51774-26032

main51774-26031-B1iKDH202,212,TRH213,223..(10S,11S,12S,13S,16S)..GL..(GEN,MA)200512-200608

DARK GRAY M.M.,1E2

sub51774-26032

main51774-26031-B2iKDH212..5F..GL;KDH222..RHD..GEN;KDH20#,222,TRH213,223..(06S,09S,10S,12S,13S,16S)..GL200512-200608

SILVER M.M.,1E7

sub51774-26032

main51774-26031-F0iKDH212,222,TRH213,223..GL200512-200608

GOLD ME.,2JM

sub51774-26032

main51774-26031-J0iKDH222..RHD..GEN;KDH200,222,TRH213,223..(06S,09S,10S,12S,16S)..GL200512-200608

DK.BLUE M.M.,8P4

sub51774-26032

main51774-26033-A0iTRH223..TH;KDH222..SA,TH;KDH212,TRH223..4D..GL;KDH201,202,222,TRH213..(06S,10S,12S,16S)..GL200709-201008

WHITE,058

main51774-26033-A2iKDH212,TRH213..4FC200709-201008

WHITE PEARL CS.,070

main51774-26033-B0iKDH201..GL200709-201008

GRAY ME.,2JN

main51774-26033-B2iTRH223..TH;KDH222..SA,TH;KDH212,TRH223..4D..GL;KDH201,202,222,TRH213..(06S,10S,12S,16S)..GL200709-201008

SILVER M.M.,1E7

main51774-26033-C0iKDH212,TRH213..11S200709-201008

BLACK MC.,209

main51774-26033-F0iTRH213..GL..VN200709-201008

GOLD ME.,2JZ ,593

main51774-26033-J0iTRH223..GL;TRH223..TH;KDH222..SA,TH;KDH201,212,222,TRH213..(06S,10S,16S)..GL200709-201008

DK.BLUE M.M.,8P4

main51774-26034-A0iKDH222..TH201008-201205

WHITE,058

main51774-26034-A2iKDH212,TRH213..4FC..GL201008-201312

WHITE PEARL CS.,070

main51774-26034-B2iKDH222..TH201212-201401

SILVER M.M.,1E7

main51774-26034-C0iKDH201,212,TRH213..(06S,11S)..GL201008-201312

BLACK MC.,209

main51774-26034-F0iKDH212..4FC;KDH212,222,223,TRH213,223..(10S,12S,13S,14S,16S)..GL..(CIS,GCC,GEN,RUS,SA)201008-201312

GOLD ME.,2JZ ,593

main51774-26034-J0iKDH222..TH201212-201401

DK.BLUE M.M.,8P4

main51774-26901iKDH222..RHD..(GEN,SA);TRH223..(12S,13S,14S,15S)..(CIS,GEN,SA,TH);KDH200,201,202,212,222,TRH213,223..(06S,09S,10S,11S,12S,16S)..GL..(GCC,GEN,MA,SA)200609-200709

NO PAINT REQ.

53761DBRACKET, BATTERY CLAMP

main53761-26020supersedes 53761-26020iKDH212..LHD..STD..GEN200512-201008

BATTERY-80D26R X 2(55AH X 2)

main53761-26021supersedes 53761-26021iKDH223..TH;KDH221..5D..GEN;KDH222..STD..SA;KDH20#,LH20#,TRH20#;TRH213,223..4FC..GCC201007-201402

57423ACLAMP, FRONT FLOOR

main57423-26010×6iKDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN200912-201402

57423ECLAMP, FRONT FLOOR, NO.2

main57423-26010×4iKDH222..TH201212-201402

57423FCLAMP, FRONT FLOOR, NO.3

main57423-26010×5iKDH222..GL;KDH221..ARL;TRH213,223..5F..GCC;TRH213..GEN,SA,TH,VN;KDH201,203,223..RHD..(ARL,GEN);KDH222,TRH203..5F..STD..(GCC,GEN,MA);KDH221,TRH223..4D..(ARL,CIS,GEN,201002-201402

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-26020iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-26010iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

5752

58022EREINFORCEMENT SUB-ASSY, HEADER PANEL

main58022-26260iTRH20#200501-201401

main58022-26270iKDH20#,LH20#200501-201401

main58022-26280iTRH213,221;TRH223..GL..SA;TRH223..ARL,CIS,GCC,GEN,TH200501-201401

sub58022-26320

main58022-26290iKDH223;KDH212,220,221,222,LH212,222..ARL,GCC,GEN,SA,VN200501-201402

sub58022-26330

58078BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER

main58078-26020iKDH222..TH200501-201205

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-26200iKDH20#,LH20#,TRH20#200501-201401

main58102-26210iKDH222..TH201212-201402

sub58102-26280

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-26030iKDH20#,LH20#,TRH20#200501-201401

main58108-26040iKDH222..TH200501-201205

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-26010iKDH222..TH201212-201402

main58109-26020iKDH20#,LH20#,TRH201,203..LHD200501-201312

main58193-26030iKDH212,220,222,223,LH212,222,TRH213,22#..LHD200501-201312

58111PAN, FRONT FLOOR

main58111-26A10iKDH20#..4FC..GEN200501-200505

main58111-26A11iKDH200,201,202..4FC..GEN200505-201312

main58111-26A30iKDH200..4FC..ARL200501-200505

main58111-26A31iKDH200,201..4FC..ARL200505-201312

main58111-26A50iKDH220..4FC..GEN200501-200505

main58111-26A51iKDH212,220,221..4FC..GEN200505-201312

main58111-26A70iKDH22#..4FC..ARL200501-200505

main58111-26A71iKDH22#..4FC..ARL200505-201312

main58111-26A90iTRH201..GCC,GEN;KDH20#,LH20#,TRH203..5F..(GCC,GEN)200501-200505

main58111-26A91iKDH202..RHD..12S;KDH200,TRH203..MA200811-201401

sub90333-15002

main58111-26B00iTRH201..ARL;KDH200..5F..ARL200501-200505

main58111-26B01iTRH201..ARL;KDH200,201..5F..ARL200505-201312

sub90333-15002

main58111-26B10iKDH220..5F..GEN;KDH222,LH212,222,TRH213,22#..CIS,GCC,GEN200501-200505

main58111-26B11iKDH212,TRH213..VN200811-201402

sub90333-15002

main58111-26B20iTRH22#..ARL;KDH22#..5F..ARL200501-200505

main58111-26B21iTRH22#..ARL;KDH22#..5F..ARL200505-201312

sub90333-15002

main58111-26B31iKDH200..MA;TRH203..HRF;KDH202..MA,TH;KDH202..HRF..GEN200602-200811

main58111-26B41iKDH212,TRH213..VN200508-200811

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-26020iKDH222..TH201212-201402

58179CBRACKET, CLAMP FLOOR

main58179-26080iKDH222..TH200501-201205

58181ARETAINER, SEAT RAIL, FRONT

main58181-26080iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

58183ARETAINER, SEAT RAIL, REAR RH

main58105-26020iKDH222..TH200501-201205

58186ABRACKET, BRAKE TUBE SET

main58186-26010iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

58191FOOTREST, FRONT FLOOR

main58191-26050iKDH20#,LH20#,TRH20#..RHD200501-201401

main58191-26060iKDH222..TH201212-201402

main58191-26070iKDH20#,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD200501-201204

main58191-26071iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD201205-201312

58217BPLATE, FRONT FLOOR

main58217-26040iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

58221JPANEL, HEADER

main58221-26720iKDH20#,LH20#,TRH20#..03S,06S,12S,15S200501-201401

sub58221-26721

main58221-26740iTRH223..15S,16S;KDH212,220,221,222,LH212,222,TRH213,221..03S,09S,16S200501-201007

SAUDI ARABIA SPEC&AMBURANCE BASE

main58221-26741iKDH222..TH201212-201401

sub58221-26742

main58221-26760iKDH203..14S200610-201312

sub58221-26761

main58221-26770iKDH212,222..STD..GCC200501-201007

REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)&BATTERY-80D26R X 2(55AH X 2)

main58221-26771iKDH212,222,223,TRH213,223..10S,11S,12S,13S,14S201008-201402

sub58221-26772

58271FPLATE, FLOOR SIDE, REAR RH

main58271-26010iKDH222..TH200501-201205

58272EPLATE, FLOOR SIDE, REAR LH

main58272-26020iKDH222..TH200501-201205

58283EBRACKET, PARKING CABLE CLAMP, NO.5

main58283-95D00iLH20#,212,222..03S,12S,15S,16S200501

58283FBRACKET, PARKING CABLE CLAMP, NO.6

main55731-26060iKDH222..TH200607-201205

main58283-95D00iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200606

58322GINSULATOR, HEADER PANEL, NO.1

main58322-26020iKDH20#,LH20#,TRH20#200501-201401

main58322-26030iKDH222..TH201212-201402

58327EINSULATOR, TRANSMISSION SERVICE HOLE COVER

main58327-26070iTRH201..5F;KDH202..GCC,TH;TRH203..GCC,MA;TRH201..SG..4FC;KDH202..HRF..MA;KDH202..15S..GEN;TRH201..4FC..ARL;KDH202..LHD..12S..5F;KDH200..03S..(GCC,GEN,MA,SA,TH);KDH2200501-200912

main58327-26080iKDH222..GL;KDH221..ARL;TRH213,223..5F..GCC;KDH221,222..4D..STD..(GCC,GEN);TRH213,223..ARL,CIS,GEN,SA,TH,VN;KDH212,220,223,LH212,222,TRH221..ARL,GCC,GEN,SA,VN201002-201402

sub58327-26130

58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58407-26140iKDH20#,LH20#,TRH20#200501-200511

main58407-26141iKDH20#,LH20#,TRH20#200512-201401

main58407-26150iKDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN200501-201402

58423CCOVER, ENGINE SERVICE HOLE, NO.2

main58423-26040iTRH213..10S,16S;KDH220..SP..(GEN,SA);KDH221,223,TRH213..ARL,TH;LH212,TRH22#..03S,12S,13S,14S,15S,16S;KDH212,222,LH222..(10S,11S,14S,16S)..(GCC,GEN,SA,TH,VN)200501-201008

58434HOOK, ENGINE SERVICE HOLE COVER

main58434-26020iKDH222..TH201212-201402

58435APACKING, ENGINE MAIN COVER

main58435-26020iKDH20#,LH20#,TRH20#200501-201401

main58435-26030iKDH222..TH200501-201205

58441ECOVER, BATTERY SERVICE HOLE

main58209-26010iKDH222..TH200501-201205

58444BPACKING, ENGINE SUB COVER

main58444-26010iKDH20#,LH20#,TRH20#200501-201401

main58444-26020iKDH222..TH200501-201205

58445GLOCK, BATTERY SERVICE HOLE COVER

main58445-26010iKDH222..TH201212-201402

58449DPACKING, BATTERY SERVICE HOLE COVER

main58449-26020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200605

main58449-26021iKDH222..TH200606-201205

58458GKNOB, BATTERY SERVICE HOLE COVER

main58458-26010iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

58465CPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-26040iTRH213..10S,16S;KDH220..SP..(GEN,SA);KDH221,223,TRH213..ARL,TH;LH212,TRH22#..03S,12S,13S,14S,15S,16S;KDH212,222,LH222..(10S,11S,14S,16S)..(GCC,GEN,SA,TH,VN)200501-201008

58471CSILENCER, ENGINE MAIN COVER

main58471-26040iKDH20#,LH20#,TRH20#200501-201008

sub58471-26070

main58471-26041iKDH20#,LH20#,TRH20#201008-201401

sub58471-26070

main58471-26050iKDH212,22#,LH212,222,TRH213,22#200501-200912

main58471-26051iKDH212,22#200912-201008

main58471-26060iKDH222..TH201008-201205

58472ASILENCER, ENGINE SUB COVER

main58472-26040iKDH20#,LH20#,TRH20#200501-201008

sub58472-26060

main58472-26041iKDH20#,LH20#,TRH20#201008-201401

sub58472-26060

main58472-26050iKDH212,22#,LH212,222,TRH213,22#200501-201008

sub58472-26080

main58472-26051iKDH222..TH201212-201402

sub58472-26080

58476RETAINER, ENGINE SERVICE HOLE COVER CATCH

main58476-26020iKDH200,22#..ARL200501-200610

58478APACKING, ENGINE SUB COVER, NO.2

main58478-26010iKDH222..TH200501-201205

58479APACKING, ENGINE SUB COVER, NO.3

main58479-26030iKDH222..TH201212-201402

sub58479-26050

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-26020iKDH222..TH201212-201402

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58936-26010-B1iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200708

MD.GRAY,TRIM1#

main58936-26011-B1iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200709-201008

MD.GRAY,TRIM1#

sub58936-26012

main58936-26011-B2iKDH222..TH201008-201205

DK.GRAY,TRIM1#

sub58936-26012

59208COVER SUB-ASSY, ENGINE SERVIS HOLE MAIN

main59208-26130iKDH20#,LH20#,TRH20#..RHD..(03S,06S,12S,15S)..(GEN,MA,SA,TH)200501-201401

main59208-26140iKDH203..14S200610-201312

main59208-26150iKDH200,201,TRH201..ARL200501-201312

main59208-26170iKDH20#,LH20#,TRH201,203..LHD200501-201312

main59208-26190supersedes 59208-26200iKDH220..SA;KDH212,221,222..RHD..(GEN,TH)200501-200912

main59208-26200supersedes 59208-26190iKDH223..TH201310-201401

main59208-26210iTRH213..GL..VN;TRH213,223..RHD..GL200501-201312

main59208-26220iKDH221..ARL200501-200912

main59208-26230iKDH222,TRH223..ARL200501-200610

sub90333-20001

main59208-26240iKDH212,222,LH212,TRH213,223..(10S,14S,15S)..STD..(GEN,SA)200501-201402

main59208-26250iKDH222..STD..GCC201008-201312

SAUDI ARABIA SPEC&AMBURANCE BASE

main59208-26260supersedes 59208-26280iKDH221,TRH221..ARL201008-201312

NEW ZEALAND SPEC

main59208-26280iTRH223..ARL200610-201312

main59208-26320iKDH212,222..GL..(GEN,SA)200912-201008

main59208-26350iKDH222..STD..GCC200912-201008

SAUDI ARABIA SPEC&AMBURANCE BASE

main59208-26290iKDH202..12S..GEN201008-201312

TUNISIA SPEC

main59208-26310supersedes 59208-26300iKDH212,220,221,222..RHD..STD..(GEN,SA,TH)200912-201008

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

main59208-26340iKDH222..GL..GCC200912-201008

SAUDI ARABIA SPEC&REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)

main59208-26360supersedes 59208-26370iKDH223200912-201008

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

59260LOCK ASSY, ENGINE COVER

main59260-26010iKDH201,221,223,TRH201,22#..ARL200501

6151

71901ACATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT

main71902-26010iKDH222..TH201212-201402

76662ABRACE, FRONT MUDGUARD, FRONT LH

main76661-26010iKDH222..TH201212-201402

88892ZCOVER, COOLER

main88891-26260supersedes 88891-26260iKDH202..4FC;KDH200..06S..GCC200501-200709

AIR CONDITIONER-DUAL AIR CONDITIONER

6477926020TRAY, SPARE WHEEL COVER

main64779-26020

9011506144

main90115-06144

9011506243

main90115-06243

9011908C20

main90119-08C20

9014960112

main90149-60112

9017406002

main90174-06002

9017408008

main90174-08008

9017906274

main90179-06274

9017910015

main90179-10015

9046709185

main90467-09185

9054109028

main90541-09028

9054109126

main90541-09126

91511B0614

main91511-B0614

9155380612

main91553-80612

9155410818

main91554-10818

9155480612

main91554-80612

91554A0610

main91554-A0610

69 parts on this diagram · 6 diagrams in section
