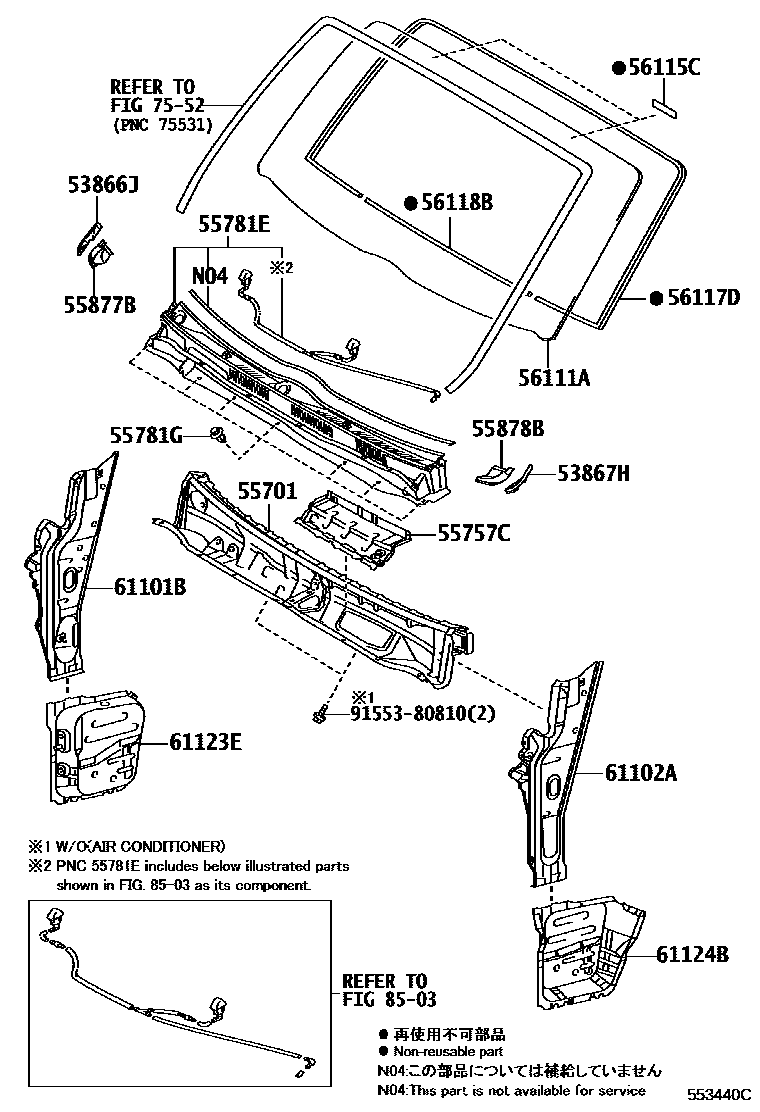

COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200903

sub53866-26011

main53866-26011iKDH222..TH200904-201402

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200903

sub53867-26011

main53867-26011iKDH222..TH200904-201402

55701PANEL SUB-ASSY, COWL

main55700-26440iKDH20#,LH20#,TRH20#..RHD200501-201401

main55700-26450iKDH20#,LH20#,TRH20#..LHD200501-201210

sub55700-26451

main55700-26451iKDH20#,LH20#,TRH201,203..LHD201211-201312

main55700-26470iKDH222..TH200501-201401

main55700-26480iKDH212,220,222,223,LH212,222,TRH213,22#..LHD200501-201211

sub55700-26481

main55700-26481iKDH212,220,222,223,LH212,222,TRH213,22#..LHD201212-201312

main55700-26490iKDH212,220,222,TRH213,22#..SA200904-201402

55757CPLATE, HEATER AIR DUCT SUB

main55757-26040iKDH20#,LH20#,TRH20#..RHD200501-201401

main55757-26050iKDH20#,LH20#,TRH201,203..LHD200501-201312

main55757-26060iKDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..RHD200501-201402

main55757-26070iKDH212,220,222,223,LH212,222,TRH213,22#..LHD200501-201312

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-26080iKDH20#,LH20#,TRH20#..RHD200501-200510

sub55708-26090

main55708-26090iKDH20#,LH20#,TRH20#..RHD200510-201401

main55708-26100iKDH20#,LH20#,TRH20#..LHD200501-200510

sub55708-26110

main55708-26110iKDH20#,LH20#,TRH201,203..LHD200510-201312

main55708-26120iKDH22#,LH222,TRH213,22#..RHD200501-200510

sub55708-26130

main55708-26130iKDH222..TH200510-201402

main55708-26140iTRH213..10S200501-200510

VIETNAM SPEC

sub55708-26150

main55708-26150iLH212..10S;KDH222,LH222,TRH22#..LHD..5F..(GCC,GEN);KDH212,TRH213..LHD..(09S,11S,16S)..5F..GEN200501-201312

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-06168iKDH222..TH200501-201402

55877BCOVER, COWL VENT, RH

main55877-26010iKDH20#,LH20#,TRH20#200501-201401

main55877-26020iKDH222..TH200501-201402

55878BCOVER, COWL VENT, LH

main55878-26010iKDH20#,LH20#,TRH20#200501-201401

main55878-26020iKDH222..TH200501-201402

56111AGLASS, WINDSHIELD

main56101-0L020iKDH222,TRH223..STD..SA201205-201402

*TL,T=4.76,GREEN

sub56101-0L021

main56101-26011iKDH20#,LH20#,TRH20#200501-201401

*LAM,T=4.56,GREEN

main56101-26021iKDH212,22#,LH212,222,TRH213,22#200501-201202

*TL,T=4.76,GREEN

sub56101-26022

main56101-26022iTRH213;KDH222..GL;TRH223..GL..SA;KDH222..STD..(GCC,GEN);TRH223..ARL,CIS,GCC,GEN;KDH212,220,221,223,LH212,222,TRH221..ARL,GCC,GEN,RUS,SA201203-201312

*TL,T=4.76,GREEN

main56101-26023iKDH223..TH201212-201401

*TL,T=4.76,GREEN

56115CSTOPPER, WINDSHIELD GLASS

main56115-26060iKDH202,203..GCC,GEN;KDH200,201,212,22#,LH20#,212,222,TRH20#,213,22#..ARL,CIS,GCC,GEN,RUS,SA,TH,VN200806-201402

main56116-35050iKDH202..4FC;KDH200..ARL,MA;TRH201..SP..4FC..GEN;KDH203,212..RHD..(12S,15S);KDH200,TRH213..(06S,09S,11S,15S)..(GCC,GEN,SA);KDH202,220,222,TRH203..RHD..(03S,12S,14S).200501-201401

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-26060iKDH20#,LH20#,TRH20#200501-201401

*D,L=3129

main56117-26060iKDH212,22#,LH212,222,TRH213,22#200501-201402

L=3308

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-26020iKDH212,22#,LH212,222,TRH213,22#200501-201402

L=945

main56118-26020iKDH20#,LH20#,TRH20#200501-201401

*D,L=759

61101BPANEL SUB-ASSY, COWL SIDE, RH

main61101-26030iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201307

sub61101-26040

main61101-26040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#201308-201402

61102APANEL SUB-ASSY, COWL SIDE, LH

main61102-26030iKDH222..TH200501-201402

61123EPANEL, COWL SIDE, LOWER RH

main61123-26010iKDH222..TH;TRH213,223..(10S,13S)..GEN200501-201402

main61123-26020iTRH201..SP..06S200610-201401

main61123-26020iTRH213..GL..GEN201008-201110

MEXICO SPEC

61124BPANEL, COWL SIDE, LWR LH

main61124-26010iKDH222..TH200501-201402

7552

8503

9155380810

main91553-80810

19 parts on this diagram · 1 diagram in section
