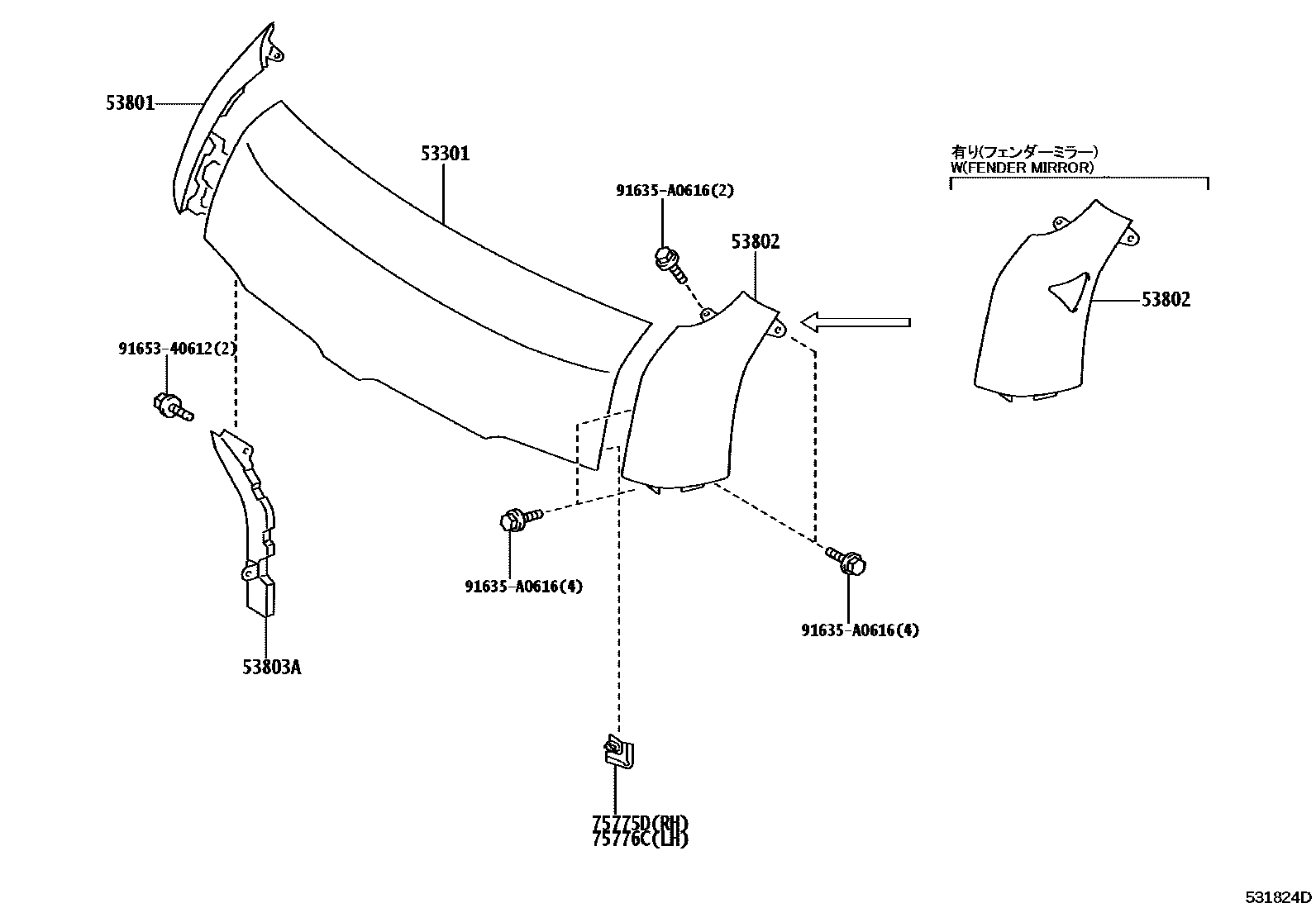

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-26080iKDH20#,LH20#,TRH20#200501-201401

main53301-26090iKDH222..TH200501-201402

53801FENDER SUB-ASSY, FRONT RH

main53801-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200708

sub53801-26011

main53801-26011iKDH222..TH200709-201402

53802FENDER SUB-ASSY, FRONT LH

main53802-26020iTRH201..SP..03S;KDH200,201,TRH201..SG;KDH20#,212,22#,LH20#,212,222,TRH203,213,22#..03S,09S,10S,11S,12S,13S,14S,15S,16S200501-200708

sub53802-26021

main53802-26021iTRH201..SP..03S;KDH201,222,TRH201..SG..(GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH203,213,22#..03S,10S,11S,12S,13S,14S,15S,16S200709-201402

main53802-26030iKDH200,201,TRH201..SP..06S200501-200708

sub53802-26031

main53802-26031iKDH201,TRH200,201..SP..06S200709-201312

53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200708

sub53803-26011

main53803-26011iKDH222..TH200709-201402

75775DCOVER, HOOD FRONT MOULDING END, RH

main75775-26010iKDH222..TH200501-201402

75776CCOVER, HOOD FRONT MOULDING END, LH

main75776-26010iKDH222..TH200501-201402

91635A0616

main91635-A0616

9165340612

main91653-40612

8 parts on this diagram · 1 diagram in section
