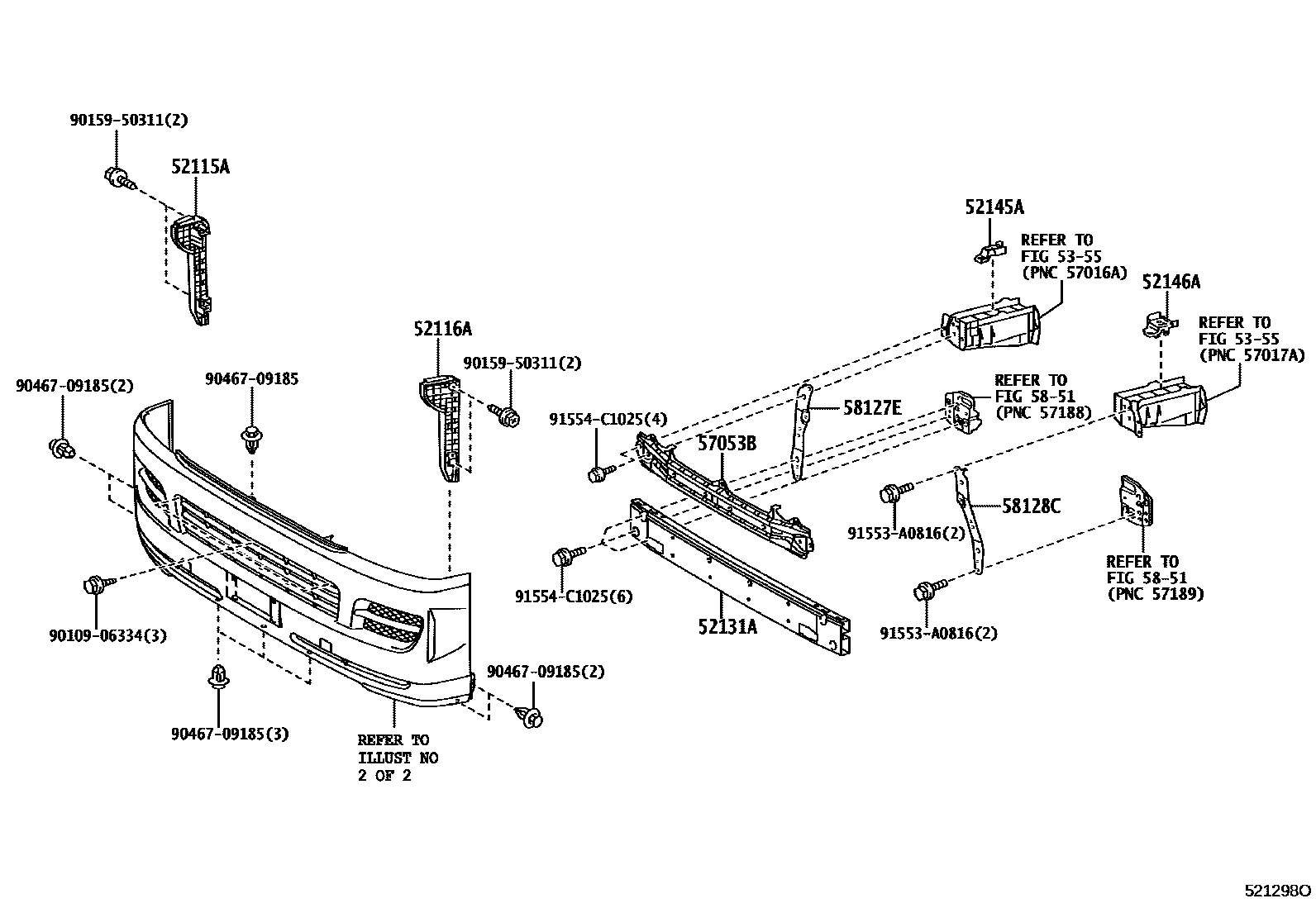

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26100iTRH213..09S,11S,16S;KDH20#,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,15S,16S)..(GCC,GEN,MA)200501-200607

sub52115-26101

main52115-26101iTRH213..RHD;TRH213..LHD..(09S,16S);KDH20#,212,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH)200608-200709

VIETNAM SPEC&DUST PROTECTION DEVICE-STANDARD

main52115-26102iTRH213..GL..GEN200911-201008

MEXICO SPEC

main52115-26102iTRH213..GL..GEN200911-201008

VENEZUERA SPEC

main52115-26102iTRH213..RHD;TRH213..GL..VN;TRH213..LHD..STD;KDH20#,212,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH,VN)200709-201008

main52115-26110iTRH213..09S,11S,16S;KDH20#,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,15S,16S)..(GCC,GEN,MA)200601-200606

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

sub52115-26111

main52115-26111iTRH213..RHD;TRH213..LHD..(09S,16S);KDH20#,212,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH)200607-200709

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

main52115-26112iKDH201,221,223,TRH201,22#..ARL200709-200911

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

main52115-26112iTRH213,223..(10S,12S,13S)..(CIS,GEN)200709-201008

main52115-26120iTRH213..RHD;TRH213..GL..VN;TRH213..LHD..STD;KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,S201008-201402

main52115-26130iKDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS)201008-201312

COLD AREA SPEC

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-26090iTRH213..09S,11S,16S;KDH20#,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,15S,16S)..(GCC,GEN,MA)200501-200607

sub52116-26091

main52116-26091iTRH213..RHD;TRH213..LHD..(09S,16S);KDH20#,212,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH)200608-200709

VIETNAM SPEC&DUST PROTECTION DEVICE-STANDARD

main52116-26092iTRH213..GL..GEN200911-201008

VENEZUERA SPEC

main52116-26092iTRH213..RHD;TRH213..GL..VN;TRH213..LHD..STD;KDH20#,212,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH,VN)200709-201008

main52116-26092iKDH201,221,223,TRH201,22#..ARL200911-201008

MEXICO SPEC

main52116-26100iTRH213..09S,11S,16S;KDH20#,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,15S,16S)..(GCC,GEN,MA)200601-200606

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

sub52116-26101

main52116-26101iKDH200,201,22#,TRH201,221..ARL;TRH213,223..(10S,12S,13S,14S)..(ARL,CIS,GEN)200607-200709

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

main52116-26102iTRH213..RHD;TRH213..GL..VN;TRH213..LHD..STD;KDH20#,212,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH,VN)200709-200911

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

main52116-26102iTRH213,223..(10S,12S,13S)..(CIS,GEN)200709-201008

main52116-26120iKDH222..TH201008-201402

main52116-26130iTRH221..SP..GEN;TRH223..5F..GEN;KDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN201008-201312

COLD AREA SPEC

52131AREINFORCEMENT, FRONT BUMPER

main52131-26020iKDH20#,LH20#,TRH20#200501-201401

main52131-26030iKDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN200501-201310

main52131-26060iKDH212,22#,LH212,222,TRH213,22#201310-201402

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-26070iKDH20#,LH20#,TRH20#200501-201008

main52145-26080iKDH212,22#,LH212,222,TRH213,22#200501-201008

main52145-26090iKDH20#,LH20#,TRH20#201008-201401

main52145-26100iKDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN201008-201402

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-26070iKDH20#,LH20#,TRH20#200501-201008

main52146-26080iKDH212,22#,LH212,222,TRH213,22#200501-201008

main52146-26090iKDH20#,LH20#,TRH20#201008-201401

main52146-26100iKDH222..TH201008-201402

5355

57053BREINFORCE SUB-ASSY, FRONT FLOOR CROSSMEMBER

main57053-26010iKDH20#,LH20#,TRH20#200501-201401

main57053-26020iKDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN200501-201402

58127EREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-26040iKDH222..TH200501-201402

58128CREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-26020iKDH222..TH200501-201402

5851

9010906334

main90109-06334

9015950311

main90159-50311

9046709185

main90467-09185

91553A0816

main91553-A0816

91554C1025

main91554-C1025

15 parts on this diagram · 4 diagrams in section
