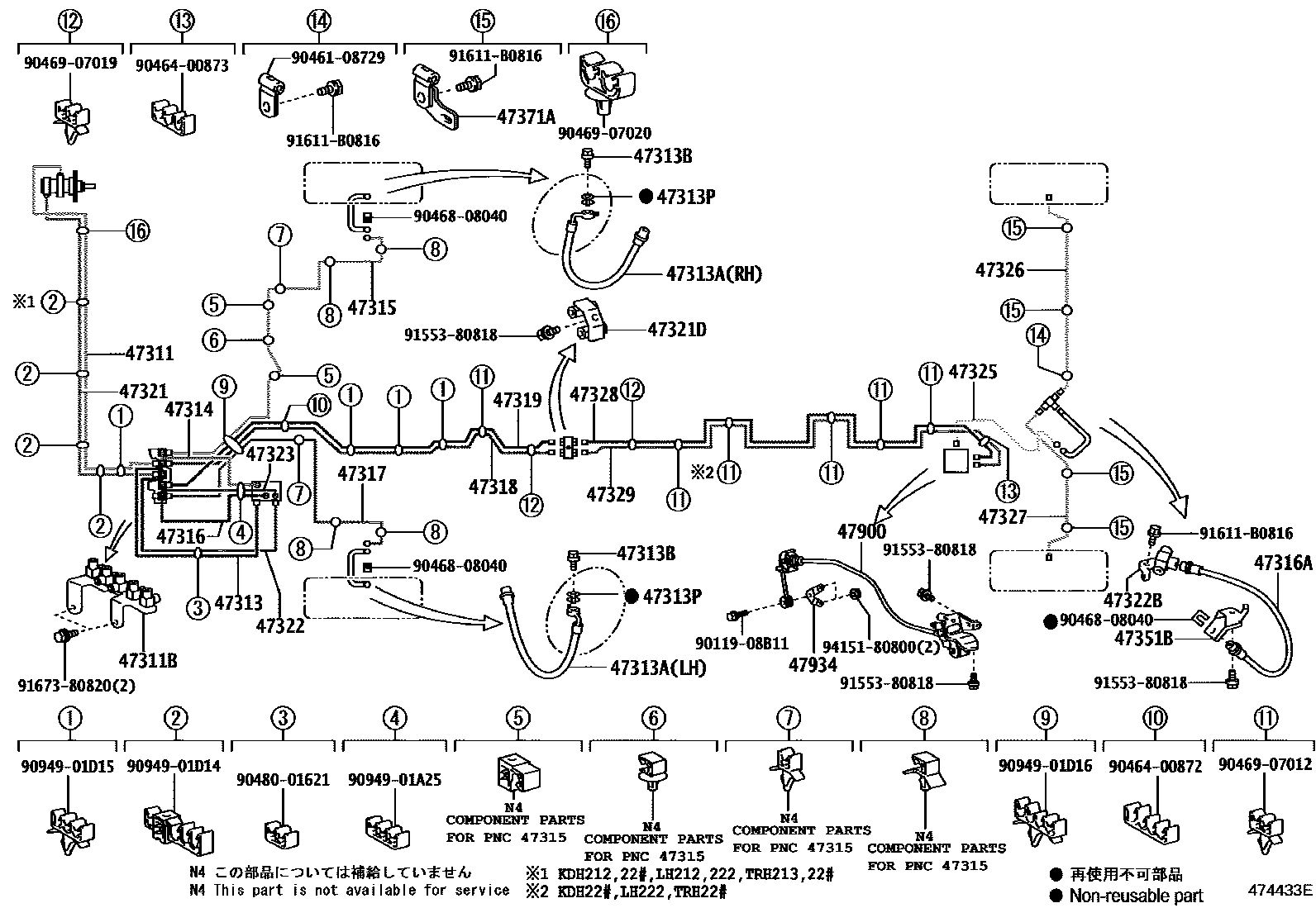

BRAKE TUBE & CLAMP

0001 1W(ABS) 0002 1 0003 1W(ABS) 0004 1 0005 1W(ABS) 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26A00iKDH20#,LH20#,TRH20#..RHD200501-201401

main47311-26A10iKDH212..STD..SA200501-201402

main47311-26A20iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10305iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

main90413-10305iKDH212..STD..SA200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main90413-10305iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main90413-10306iTRH213..GL..GEN201008-201312

ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90413-10306iKDH222..SA,TH;TRH213,223..(10S,13S,14S)..(GEN,SA);KDH200,212,220,TRH201,221..(03S,10S)..SA200501-201401

47313TUBE, FRONT BRAKE, NO.3

main47313-26320iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47313-26320iTRH201..SG;KDH221..4D..5F;TRH213..GL..VN;KDH202..STD..TH;KDH221..4FC..GEN;LH212,TRH221..LHD;TRH201..SP..4FC..GEN;KDH201..RHD..03S..GEN;TRH201..SP..03S..(GCC,GEN);KD200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47313-26320iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D93iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200701

RH

sub90947-02F53

main90947-02D94iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200701

LH

sub90947-02F54

main90947-02F53iTRH203..5F;KDH221..ARL;KDH222..GL..SA;TRH213,223..5F..GCC;TRH213..GEN,SA,TH,VN;KDH201,203,223..RHD..(ARL,GEN);KDH221,TRH223..4D..(ARL,CIS,GEN,SA,TH);KDH200,202,212,200701-201402

RH

main90947-02F54iKDH221..5D..GEN;KDH201,223..RUS,TH;TRH201..SP..4FC..GEN;KDH201,LH212..LHD..(03S,10S);KDH202..RHD..SRF..12S..(GEN,MA);TRH213..(09S,11S,15S)..(GEN,SA);KDH200,203,212,200701-201402

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47314TUBE, FRONT BRAKE, NO.4

main47314-26370iKDH221..5D..5F..GEN200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47314-26370iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47314-26370iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

main47314-26380iKDH201..SP..06S;TRH201..SP..06S..5F;KDH201,221,223,TRH201,22#..ARL200501-201401

main47314-26380iTRH213..GL..GEN201008-201312

ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT

47315TUBE, FRONT BRAKE, NO.5

main47315-26290iKDH20#,LH20#,TRH20#200501-201401

main47315-26300iKDH212,22#,LH212,222,TRH213,22#200501-200512

main47315-26301iKDH212..STD..SA200512-201402

47316TUBE, FRONT BRAKE, NO.6

main47316-26470iKDH222..SA,TH;TRH213,223..(10S,13S,14S)..(GEN,SA);KDH200,212,220,TRH201,221..(03S,10S)..SA200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47316-26470iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47316-26470iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

main47316-26480iTRH213..GL..VN;KDH221..4FC..GEN;TRH213..09S,15S,16S;TRH201..SP..4FC..GEN;TRH201..SP..03S..(GCC,GEN);KDH212,221..4D..5F..(GCC,GEN,VN);KDH201,222,TRH201..SG..(ARL,GCC200501-201401

main47316-26480iTRH213..GL..GEN201008-201312

ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02D97iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200701

sub90947-02F56

main90947-02F56iTRH203..GCC,MA;TRH201..SG..4FC;KDH202..HRF..MA;KDH202..15S..GEN;TRH201..4FC..ARL;TRH203..SRF..GEN;KDH202..LHD..12S..5F;TRH201,213..(03S,06S,10S,16S)..5F;KDH202,TRH2200701-201402

47317TUBE, FRONT BRAKE, NO.7

main47317-26340iKDH212..STD..SA200501-201402

47318TUBE, FRONT BRAKE, NO.8

main47318-26280iKDH212..10S,11S,16S;KDH20#,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47319TUBE, FRONT BRAKE, NO.9

main47324-26550iKDH212..STD..SA200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47324-26550iKDH222..TH;KDH222,TRH213..GL..(GEN,SA);TRH223..(13S,14S)..(GEN,SA);KDH200,212,220,TRH201,221..SA200501-201402

main47324-26550iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47324-26560iTRH213..GL..GEN201008-201312

ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47324-26560iKDH212..STD..SA200501-201401

47321TUBE, REAR BRAKE, NO.1

main47321-26750iKDH20#,LH20#,TRH20#..RHD200501-201401

main47321-26760iKDH212..RHD..(10S,16S);KDH22#,LH212,222,TRH213,22#..RHD200501-201402

main47321-26770iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10166iKDH212..STD..SA200501-201402

47322TUBE, REAR BRAKE, NO.2

main47322-26420iTRH201..SG;KDH221..4D..5F;TRH213..GL..VN;KDH202..STD..TH;KDH221..4FC..GEN;LH212,TRH221..LHD;TRH201..SP..4FC..GEN;KDH201..RHD..03S..GEN;TRH201..SP..03S..(GCC,GEN);KD200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47322-26420iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

main47322-26420iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10307iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47323TUBE, REAR BRAKE, NO.3

main47323-26410iKDH221..5D..5F..GEN200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47323-26410iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47323-26410iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

47325TUBE, REAR BRAKE, NO.5

main47325-26400iKDH20#,LH20#,TRH20#200501-201401

main47325-26410iTRH213,223;KDH212,22#,LH212,222,TRH221..03S,10S,11S,12S,14S,16S200501-201402

47326TUBE, REAR BRAKE, NO.6

main47326-26470iKDH20#,LH20#,TRH20#200501-201401

main47326-26480iTRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47326-26480iKDH212..STD..SA200501-201312

main47326-26490iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main47326-26490iKDH222,TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

47327TUBE, REAR BRAKE, NO.7

main47327-26320iKDH20#,LH20#,TRH20#200501-201401

main47327-26330iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201312

main47327-26330iTRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47327-26340iKDH222,TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

main47327-26340iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

47328TUBE, REAR BRAKE, NO.8

main47328-26150iKDH212..STD..SA200501-201401

main47328-26160iKDH22#,LH222,TRH22#200501-201402

47329TUBE, REAR BRAKE, NO.9

main47319-26350iKDH212..STD..SA200501-201401

main47319-26360iKDH22#,LH222,TRH22#200501-201402

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-26210iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47371ACLAMP, BRAKE TUBE, NO.1

main47371-26200iKDH221..5D..5F..GEN200501-201401

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47371-26200iTRH223..TH201210-201309

WITHOUT(CKD PACKAGE)&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47371-26200iTRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main47371-26200iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-26510iKDH20#,LH20#,TRH20#200501-201401

main47900-26550iTRH213;TRH223..4FC..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH212,220,221,223,LH212,TRH221..ARL,GCC,GEN,RUS,SA,VN200501-201312

main47900-26550iTRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC

main47900-26570iKDH222..STD..SA;KDH223,TRH223..(14S,16S)..STD..(SA,TH)201204-201402

47934BRACKET, LOAD SENSING

main47934-26110iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

9011908B11

main90119-08B11

9046108729

main90461-08729

9046400872

main90464-00872

9046400873

main90464-00873

9046808040

main90468-08040

9046907012

main90469-07012

9046907019

main90469-07019

9046907020

main90469-07020

9048001621

main90480-01621

9094901A25

main90949-01A25

9094901D14

main90949-01D14

9094901D15

main90949-01D15

9094901D16

main90949-01D16

9155380818

main91553-80818

91611B0816

main91611-B0816

9167380820

main91673-80820

9415180800

main94151-80800
