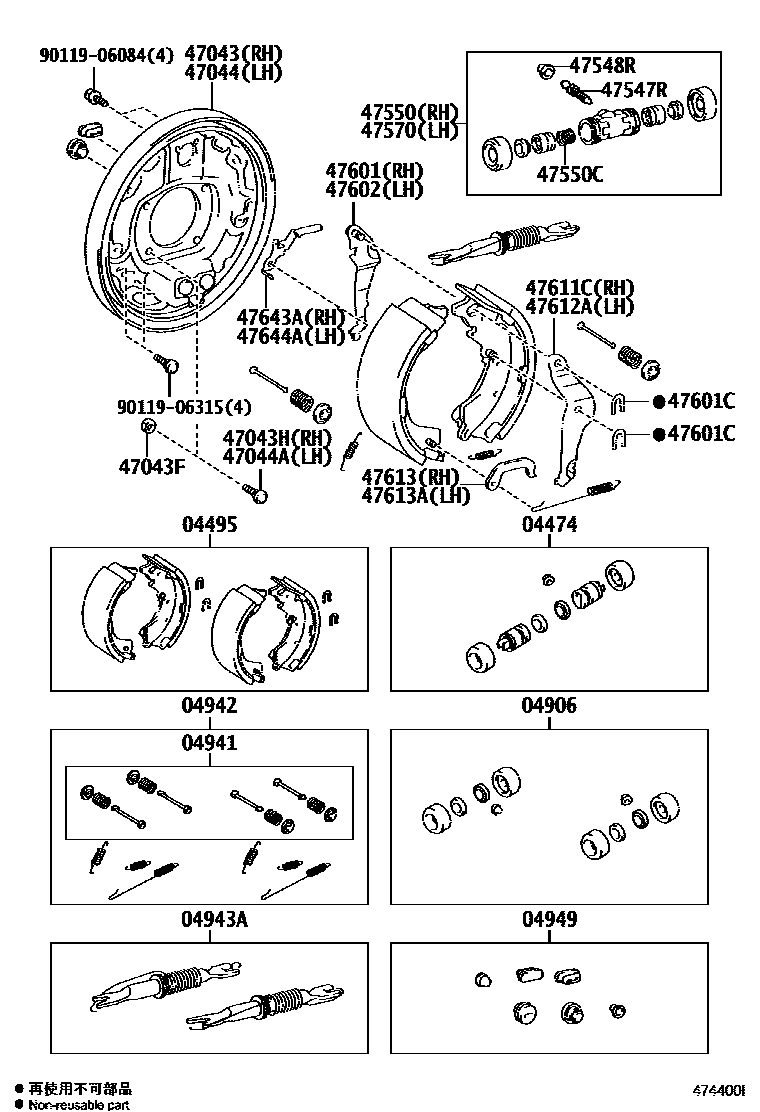

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1SOUTH AFRICA SPEC

04474CYLINDER KIT, REAR WHEEL

main04474-26070×2iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

main04474-35100×2iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

04495SHOE KIT, REAR BRAKE

main04495-26240iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

MARK NBK D9033

main04495-35230iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26080iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

main04906-35130iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-25040iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main04941-26010iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

04942SPRING KIT, REAR BRAKE

main04942-25070iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main04942-26010iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

04943ASTRUT KIT, REAR BRAKE

main04943-08030iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

main04943-25020iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

04949PLUG KIT, REAR BRAKE

main04949-13010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26150iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main47043-26530iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041×8iKDH202..15S;KDH202..HRF..MA;KDH221..5D..4FC;TRH213..10S,16S;TRH203..15S..GEN;TRH201,223..4D..SG;KDH202..LHD..12S..5F;KDH202,TRH213..GL..TH;KDH223,TRH201..SG..4FC;TR200501-201112

main90179-10088×8supersedes 90179-10088iKDH223..RUS,TH;KDH221,223..4FC;KDH20#,212,220,222,LH20#,212,222,TRH20#,213,22#201201-201402

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10002×4iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26150iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main47044-26530iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10002×4iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26140iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

main47550-26150iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60009×2iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main90029-60011×2iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26140iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

main47550-26150iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-26530iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

main47612-35040iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-26530iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

main47611-35040iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

47611CLEVER, PARKING BRAKE SHOE, RH

main47681-26530iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

47612ALEVER, PARKING BRAKE SHOE, LH

main47682-26530iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47683-26530iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

47613ASTRUT, PARKING BRAKE SHOE, NO.2(FOR REAR BRAKE)

main47684-26530iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-45010iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201205

sub47643-0K110

main47644-60010iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main47644-45010iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,CIS,GCC,RUS;KDH20#,212,220,221,LH20#,212,TRH20#,213,221200501-201401

sub47644-0K110

9011906084

main90119-06084

9011906315

main90119-06315
