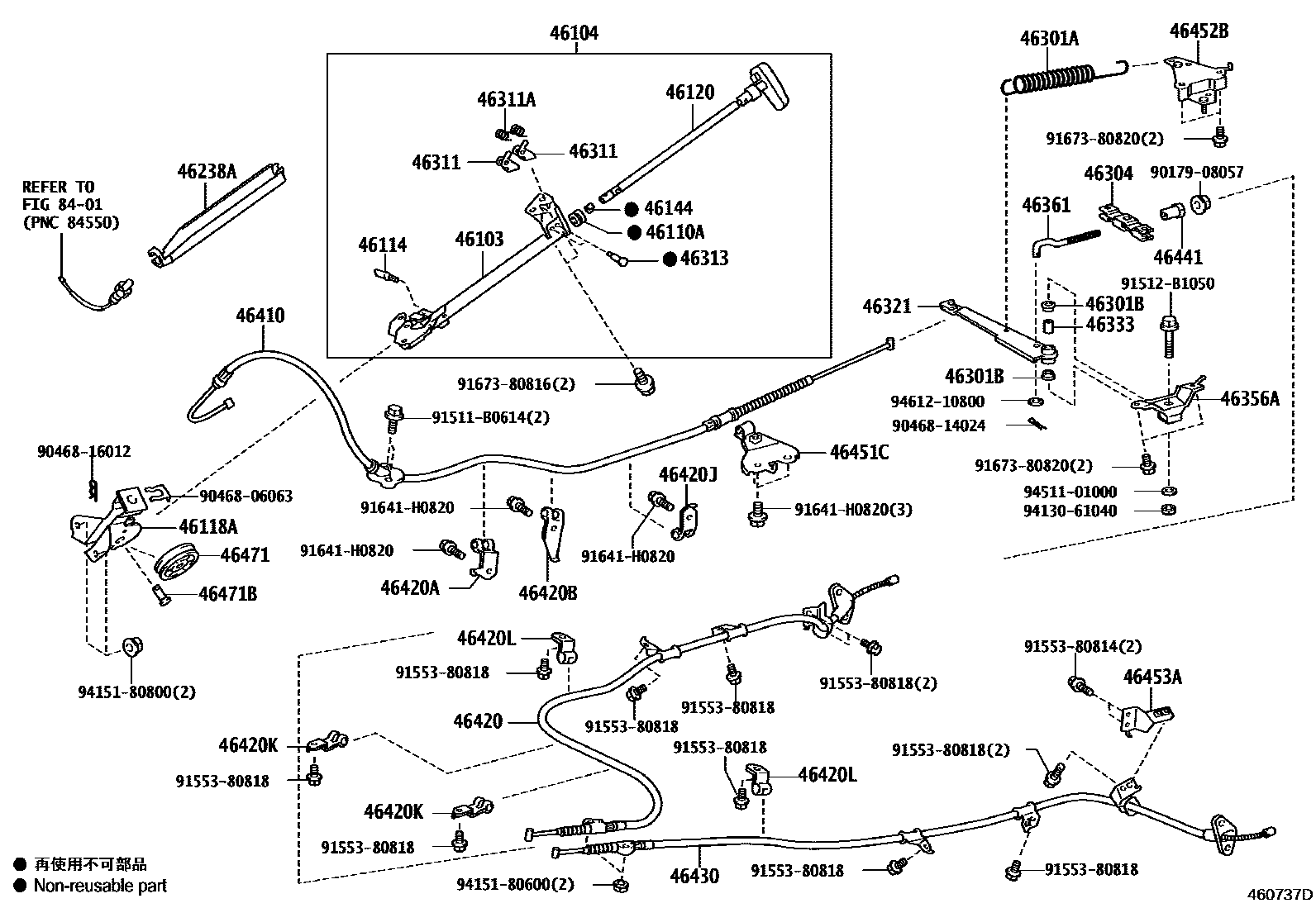

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26200iKDH20#,LH20#,TRH20#..RHD200501-200910

sub46103-26201

main46103-26201iKDH20#,LH20#,TRH20#..RHD200911-201401

main46103-26210iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

main46103-26220iKDH212,22#,LH212,222,TRH213,22#..RHD200501-200910

sub46103-26221

main46103-26221iKDH212,22#,LH212,222,TRH213,22#..RHD200911-201402

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-26190iKDH20#,LH20#,TRH20#..RHD200501-200910

sub46104-26191

main46104-26191iKDH20#,LH20#,TRH20#..RHD200911-201401

main46104-26220iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

main46104-26230iKDH212,22#,LH212,222,TRH213,22#..RHD200501-200910

sub46104-26231

main46104-26231iKDH212,22#,LH212,222,TRH213,22#..RHD200911-201402

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46118ABRACKET, PLUNGER GUIDE SUPPORT

main46118-26110iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD200501-201402

main46118-26120iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

46120PLUNGER ASSY, PARKING BRAKE

main46120-26170iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD200501-201402

main46120-26210iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46238PROTECTOR, PLUNGER LOCK PIN

main4623A-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD200911-201402

46238APROTECTOR, PARKING BRAKE PLUNGER

main46238-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD200501-201402

main46238-26020iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main46295-26011iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-16009iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46311PAWL, PARKING BRAKE

main46311-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46313PIN, PARKING BRAKE PAWL

main46313-40010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26200iTRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC

main46321-26200iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201401

main46321-26210iKDH222,TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

main46321-26210iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

46333PIPE, INTERMEDIATE LEVER

main46333-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26170iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46361ROD, PARKING BRAKE PULL

main46361-26070iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26480iKDH20#,LH20#,TRH20#..RHD200501-201401

main46410-26490iKDH212,22#,LH212,222,TRH213,22#..RHD200501-201402

main46410-26500iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26610iTRH20#200501-200709

main46420-26611iKDH20#,LH20#,TRH20#200709-201401

main46420-26620iKDH212,LH212,TRH213200501-200709

main46420-26621iKDH212,LH212,TRH213200709-201312

main46420-26630iTRH22#200501-200709

main46420-26631iTRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC

main46420-26631iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200709-201312

main46420-26640iKDH20#,LH20#200501-200709

sub46420-26610

main46420-26650iKDH22#,LH222200501-200709

sub46420-26630

main46420-26661iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

main46420-26661iKDH222,TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200606

sub46411-26011

main46411-26011iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200607-201402

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-26020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200606

sub46411-26021

main46411-26021iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200607-201402

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-26030iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200606

sub46411-26031

main46411-26031iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200607-201402

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200606

sub46421-26011

main46421-26011iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200607-201402

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-26020iKDH22#,LH222,TRH22#200501-201402

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26440iKDH20#,212,LH20#,212,TRH20#,213200501-201401

main46430-26450iTRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC

main46430-26450iKDH222,LH222,TRH223..5F..(GEN,SA,TH)200501-201312

main46430-26460iKDH222,TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

main46430-26460iKDH222,223,LH222,TRH223..5F..(GEN,SA,TH)201205-201402

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-26230iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-26210iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-26080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46471PULLEY, WIRE

main46471-30010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08156iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

8401

9017908057

main90179-08057

9046806063

main90468-06063

9046814024

main90468-14024

9046816012

main90468-16012

91511B0614

main91511-B0614

91512B1050

main91512-B1050

9155380814

main91553-80814

9155380818

main91553-80818

91641H0820

main91641-H0820

9167380816

main91673-80816

9167380820

main91673-80820

9413061040

main94130-61040

9415180600

main94151-80600

9415180800

main94151-80800

9451101000

main94511-01000

9461210800

main94612-10800

50 parts on this diagram · 8 diagrams in section
