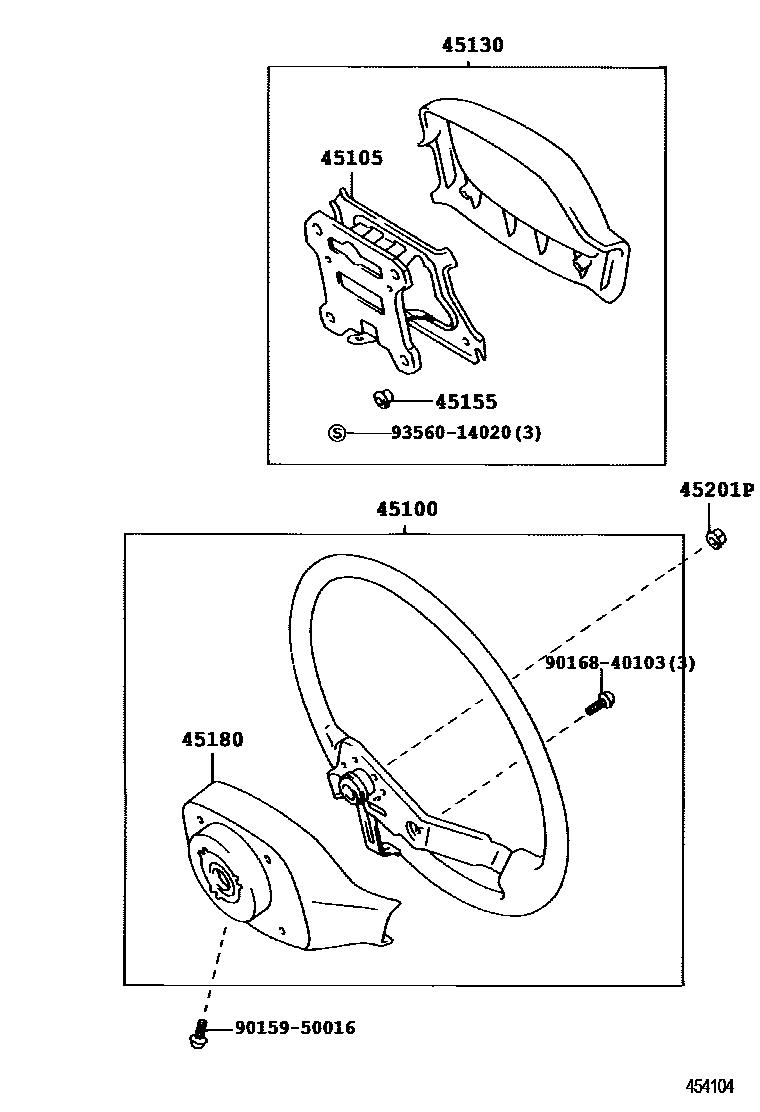

STEERING WHEEL
45100WHEEL ASSY, STEERING
2-SPOKE,URETHANE,DK.GRAY,TRIM1#
sub45100-26220
2-SPOKE,URETHANE,SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#
sub45100-26220
main45100-58010-B0iKDH201,212..5D..SG;KDH203,221,TRH200,213..RHD..(03S,06S,10S,11S,12S);KDH200,201,212,220,222,223,TRH201,22#..(03S,10S,12S,14S)..(ARL,RUS,SA)200501-201402
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
sub45100-58010
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
SRS AIR BAG-WITHOUT
45130BUTTON ASSY, HORN
SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#
sub45130-26240
DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
main45130-58011-B0iTRH213..RHD..GL;KDH212,221,TRH200..5D..GEN;KDH203,212,222,223,TRH223..(10S,12S,14S)..(RUS,SA,TH)200501-201402
DK.GRAY,TRIM1#
45155SPACER, HORN BUTTON CONTACT PLATE
SRS AIR BAG-WITHOUT
45180COVER SUB-ASSY, STEERING WHEEL
SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#
sub45180-26030
45201PNUT, STEERING WHEEL SET
9015950016
main90159-50016
9016840103
main90168-40103
9356014020
main93560-14020
9 parts on this diagram · 2 diagrams in section
