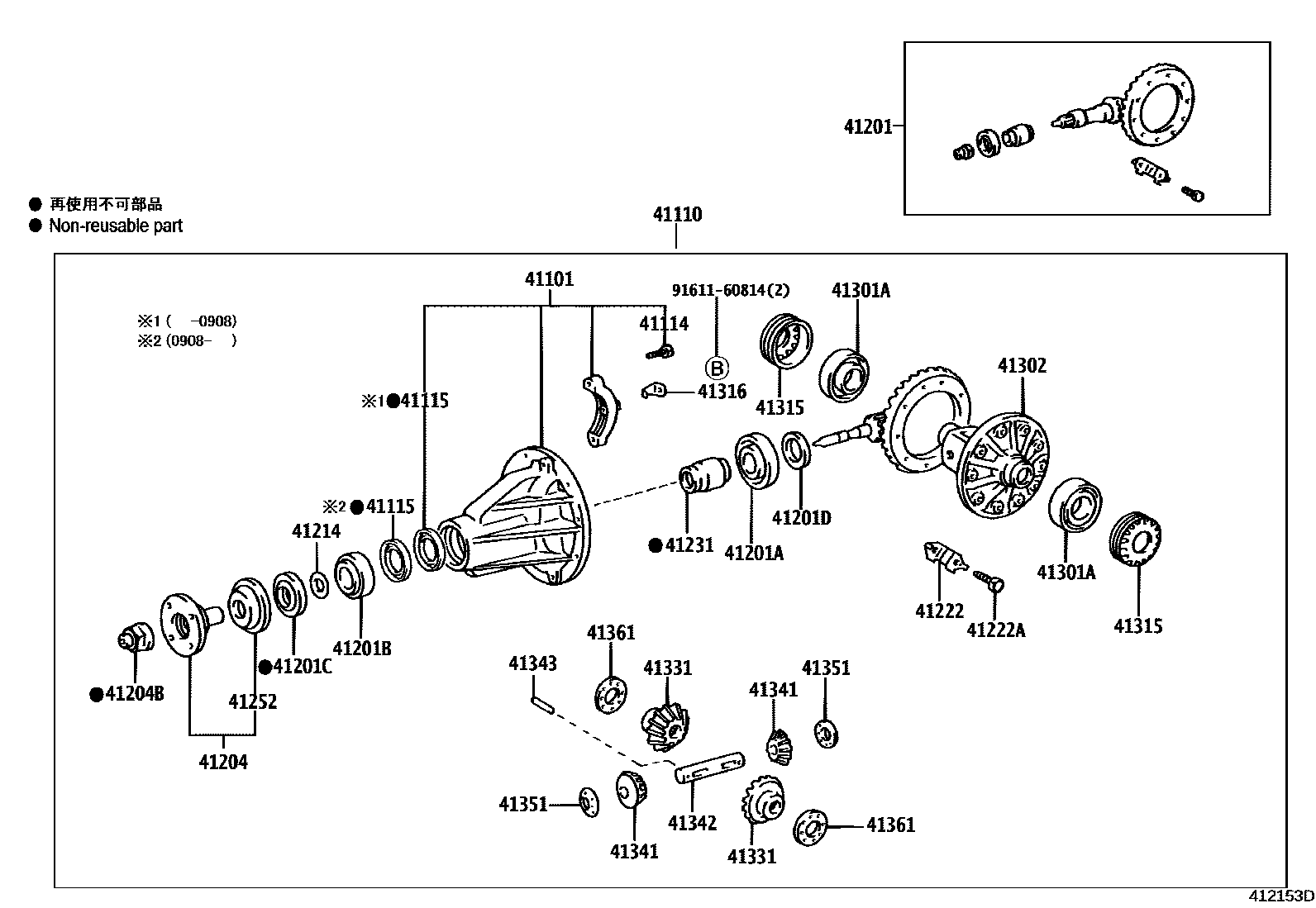

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35170iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200908

sub41101-35171

sub41115-35010

main41101-35171iKDH202..GL200908-201402

sub41101-35172

main41101-60161iTRH200201308-201312

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26430iKDH201,221,223..4FC;KDH200,202,212,220,222200501-201101

*FGR=41:10=4.100

sub41110-26431

main41110-26431iKDH212,222;KDH201,221,223..4FC;KDH200,202,220..STD201101-201402

*FGR=41:10=4.100

sub41110-26432

main41110-26440iLH20#,212,222,TRH20#,213,22#..5F200501-201104

*FGR=43:10=4.300

sub41110-26441

main41110-26441iLH20#,212,222,TRH201,203,213,22#..5F201104-201402

*FGR=43:10=4.300

sub41110-26442

main41110-26650iTRH200201308-201312

*FGR=41:8=5.125

sub41110-26651

main41110-35870iKDH201,203,221,223..5F201008-201401

*FGR=41:11=3.727

sub41110-35871

main41110-35880iKDH201,203,221,223..5F200610-201008

*FGR=43:11=3.909

sub41110-25520

main41110-3D260iTRH201,213,22#..4FC200501-201101

*FGR=41:9=4.555

sub41110-3D261

main41110-3D261iTRH201,203,213,22#..4FC201101-201312

*FGR=41:9=4.555

sub41110-3D262

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iKDH202..GL..TH200501-201402

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iKDH202..GL..TH200501-201402

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80177iKDH201,203,221,223..5F200610-201008

*FGR=43:11=3.909

sub41201-80723

main41201-80179iKDH201,221,223..4FC;KDH200,202,212,220,222200501-201101

*FGR=41:10=4.100

sub41201-80724

main41201-80181iLH20#,212,222,TRH20#,213,22#..5F200501-201104

*FGR=43:10=4.300

sub41201-80747

main41201-80182iTRH201,213,22#..4FC200501-201101

*FGR=41:9=4.556

sub41201-80732

main41201-80300iTRH200201308-201312

*FGR=41:8=5.125

main41201-80564iKDH201,203,221,223..5F201008-201401

*FGR=41:11=3.727

main41201-80724iKDH202..TH201101-201402

*FGR=41:10=4.100

main41201-80732iTRH201,203,213,22#..4FC201101-201312

*FGR=41:9=4.555

main41201-80747iLH20#,212,222,TRH201,203,213,22#..5F201104-201402

*FGR=43:10=4.300

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35087iKDH202..GL..TH200501-201402

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30067iTRH201..5D..5F;TRH203..15S..GEN;TRH201,213..SG..(03S,10S,16S);TRH20#..4D..5F..(ARL,GCC,MA,SA);LH20#,212,222,TRH22#..(03S,12S,14S,15S,16S)..5F200501-201203

main90366-30105iKDH202..TH201104-201402

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-41009iKDH202..GL..TH200501-201402

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.70

main90201-35498iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.73

main90201-35499iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.76

main90201-35500iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.79

main90201-35501iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.82

main90201-35502iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.85

main90201-35503iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.88

main90201-35504iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.91

main90201-35505iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.94

main90201-35506iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=1.97

main90201-35507iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.00

main90201-35508iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.03

main90201-35509iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.06

main90201-35510iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.09

main90201-35511iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.12

main90201-35512iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.15

main90201-35513iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.18

main90201-35514iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.21

main90201-35515iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.24,MARK 01

main90201-35516iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.27,MARK 02

main90201-35517iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.30,MARK 03

main90201-35518iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35082iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iKDH202..TH200501-201402

OD=39.5

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26011iKDH202..GL..TH200501-201402

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iKDH202..GL..TH200501-201402

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iKDH202..GL..TH200501-201402

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKDH202..GL..TH200501-201402

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35041iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iKDH201,203,221,223..5F200610-201401

sub41302-26010

main41311-60060iKDH202..TH200501-201402

sub41311-60061

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35020iKDH202..GL..TH200501-201402

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010iKDH202..GL..TH200501-201402

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34080iKDH201,203,221,223..5F200610-201401

main41331-35011iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402

41341PINION, REAR DIFFERENTIAL

main41341-35020iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iKDH202..GL..TH200501-201402

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iKDH202..GL..TH200501-201402

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iKDH202..TH200501-201402

main41351-30060iKDH201,203,221,223..5F200610-201401

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35310iKDH201,203,221,223..5F200610-201401

T=0.9

main41361-35320iKDH201,203,221,223..5F200610-201401

T=1.0

main41361-35330iKDH201,203,221,223..5F200610-201401

T=1.1

main41361-35340iKDH201,203,221,223..5F200610-201401

T=1.2

main41361-35350iKDH201,203,221,223..5F200610-201401

T=1.3

main41361-40021iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402

T=1.6

main41362-40021iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402

T=1.7

main41363-40021iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402

T=1.8

9161160814

main91611-60814
