TRANSMISSION GEAR (MTM)

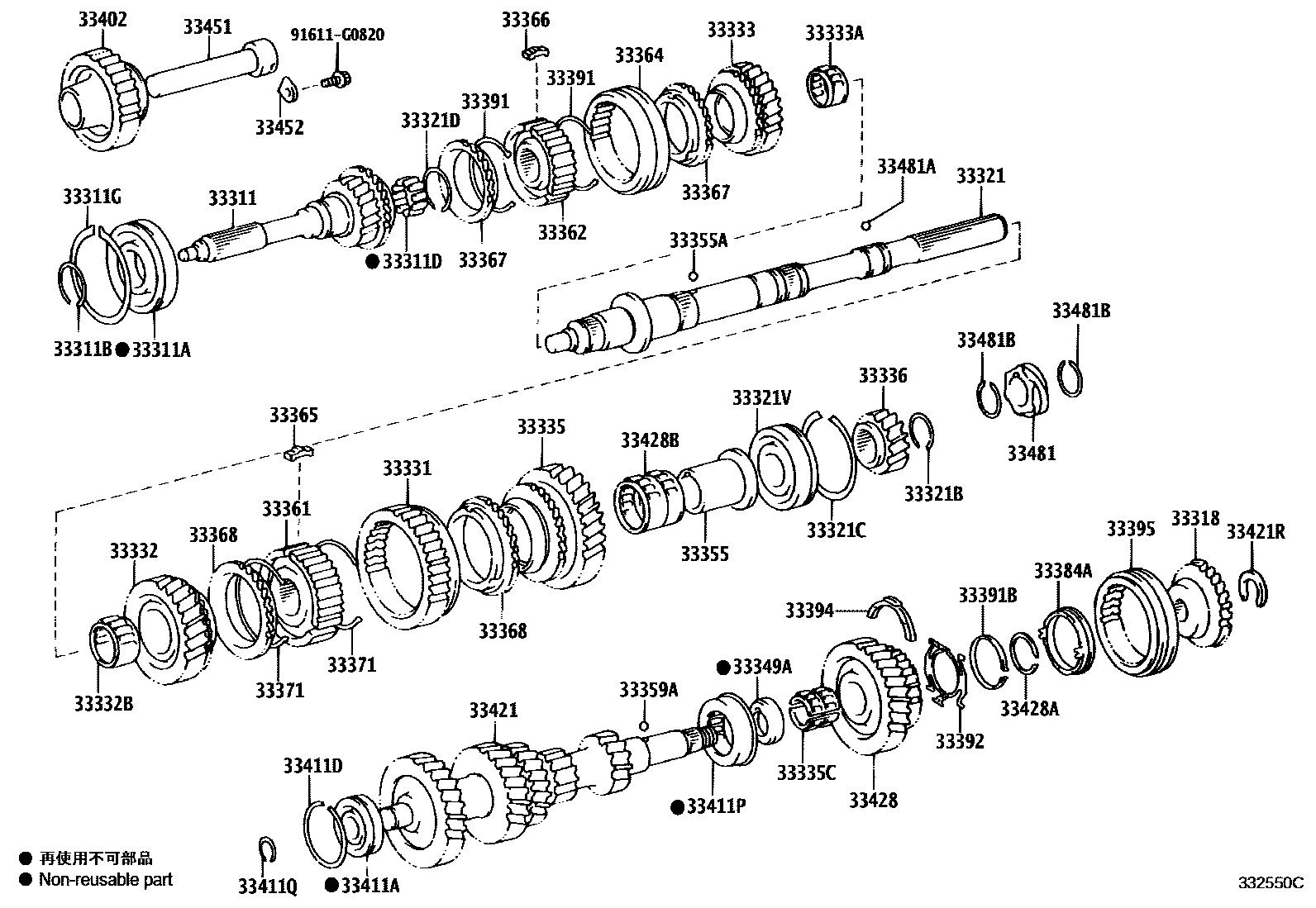

Parts diagram
33311SHAFT, INPUT
main33301-0W030i200501-201312
sub33301-35071
main33301-60050i200501-201402
sub33301-26050
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-32024i200501-201312
main90363-40050i200501-201402
sub90363-40092
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-30214i200501-201312
T=2.05,MARK 0
main90520-30215i200501-201312
T=2.10,MARK 1
main90520-30216i200501-201312
T=2.15,MARK 2
main90520-30217i200501-201312
T=2.20,MARK 3
main90520-30218i200501-201312
T=2.25,MARK 4
main90520-30219i200501-201312
T=2.30,MARK 5
main90520-38008i200501-201402
T=2.10,MARK A
main90520-38009i200501-201402
T=2.15,MARK B
main90520-38010i200501-201402
T=2.20,MARK C
main90520-38011i200501-201402
T=2.25,MARK D
main90520-38012i200501-201402
T=2.30,MARK E
main90520-38013i200501-201402
T=2.35,MARK F
main90520-38014i200501-201402
T=2.40,MARK G
33311DBEARING, INPUT SHAFT
main90361-06002i200501-201312
main90364-25012i200501-201402
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-76002i200501-201312
main90520-88001i200501-201402
33318PIECE, GEAR SPLINE, NO.5
main33318-0K020i200501-201312
sub33318-71010
main33318-60030i200501-201402
33321SHAFT, OUTPUT
main33321-0B010i200501-201312
sub33321-26050
main33321-35190i200501-201312
sub33321-35191
main33321-35191i201312-201402
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-25005i200501-201312
T=2.67-2.72,MARK A
main90520-25006i200501-201312
T=2.73-2.78,MARK B
main90520-25009i200501-201312
T=2.79-2.84,MARK C
main90520-25010i200501-201312
T=2.85-2.90,MARK D
main90520-25011i200501-201312
T=2.91-2.96,MARK E
main90520-25012i200501-201312
T=2.97-3.02,MARK F
main90520-25013i200501-201312
T=3.03-3.08,MARK G
main90520-25014i200501-201312
T=3.09-3.14,MARK H
main90520-25015i200501-201312
T=3.15-3.20,MARK J
main90520-25016i200501-201312
T=3.21-3.26,MARK K
main90520-25017i200501-201312
T=3.27-3.32,MARK L
main90520-28031i200501-201402
T=2.65,MARK A
main90520-28032i200501-201402
T=2.70,MARK B
main90520-28033i200501-201402
T=2.75,MARK C
main90520-28034i200501-201402
T=2.80,MARK D
main90520-28035i200501-201402
T=2.85,MARK E
main90520-28037i200501-201402
T=2.90,MARK F
main90520-28039i200501-201402
T=2.95,MARK G
main90520-28042i200501-201402
T=3.00,MARK H
main90520-28043i200501-201402
T=3.05,MARK J
main90520-28045i200501-201402
T=3.10,MARK K
main90520-28046i200501-201402
T=3.15,MARK L
main90520-28047i200501-201402
T=3.20,MARK M
main90520-28048i200501-201402
T=3.25,MARK N
main90520-28049i200501-201402
T=3.30,MARK P
main90520-28050i200501-201402
T=3.35,MARK Q
main90520-28051i200501-201402
T=3.40,MARK R
main90520-28052i200501-201402
T=3.45,MARK S
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-71221i200501-201312
T=1.65,ID=71.1
main90520-81001i200501-201402
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-28010i200501-201312
T=1.85-1.90,MARK D-1
main90520-28011i200501-201312
T=1.95-2.00,MARK E-1
main90520-28012i200501-201312
T=1.75-1.80,MARK C-1
main90520-28013i200501-201312
T=2.05-2.10,MARK F-1
main90520-28245i200501-201312
T=1.80-1.85,MARK D
main90520-28246i200501-201312
T=1.90-1.95,MARK E
main90520-28248i200501-201312
T=2.00-2.05,MARK F
main90520-30014i200501-201402
T=1.80,MARK A
main90520-30015i200501-201402
T=1.85,MARK B
main90520-30016i200501-201402
T=1.90,MARK C
main90520-30017i200501-201402
T=1.95,MARK D
main90520-30018i200501-201402
T=2.00,MARK E
main90520-30019i200501-201402
T=2.05,MARK F
main90520-30020i200501-201402
T=2.10,MARK G
33321VBEARING (FOR OUTPUT SHAFT CENTER)
main90363-30059i200501-201312
main90363-35039i200501-201402
sub90363-35078
33331GEAR, REVERSE
main33331-0K020i200501-201312
sub33331-71010
main33331-60040i200501-201301
sub33331-60H00
sub33331-60H01
main33331-60041i201203-201402
33332GEAR, 2ND
main33033-0W030i200501-201312
sub33033-26011
main33033-60050i200501-201402
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-47003i200501-201402
sub90364-47014
main90364-T0016i200501-201312
sub90364-38002
33333GEAR, 3RD
main33034-0K020i200501-201312
sub33034-26060
main33034-60030i200501-201402
sub33034-60090
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-38011i200501-201402
main90364-T0017i200501-201312
sub90364-35005
33335GEAR, 1ST
main33032-0W040i200501-201312
sub33032-26030
main33032-60080i200501-201106
sub33032-60081
main33032-60081i201106-201402
main33032-60110i200501-201106
sub33032-60111
main33032-60111i201106-201402
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-39005i200501-201402
sub90364-39016
main90364-T0018i200501-201312
sub90364-26002
33336GEAR, 5TH
main33336-0W020i200501-201312
sub33336-26010
main33336-35100i200501-201312
sub33336-35101
main33336-35101i201312-201402
sub33336-26020
33349WASHER, 5TH GEAR THRUST
main33346-35020i200501-200712
sub33346-71010
main33346-71010i200712-201402
33349AWASHER, 4TH GEAR
main33349-0K010i200501-200810
T=8.0
33355RACE, 1ST GEAR BEARING INNER
main33355-0W010i200501-200810
sub33355-35020
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
main90360-06004i200501-200810
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
main90360-06004i200501-200810
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-0W010i200501-201312
sub33361-35020
main33361-35040i200501-201205
sub33361-71010
main33361-60050i200501-201301
sub33361-71020
main33361-71010i201205-201402
main33361-71020i201205-201402
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-0K010i200501-200510
sub33362-0W010
main33362-0W010i200510-201312
sub33362-35040
main33362-60030i200501-201402
sub33362-60031
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-0W010i200501-201312
sub33364-26020
main33364-60070i200501-201402
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-35021i200501-201312
main33365-35060i200501-201402
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33366-35041i200501-201312
main33366-35050i200501-201402
33367RING, SYNCHRONIZER, NO.1
main33367-14010i200501-201312
main33367-35080i200501-201402
33368RING, SYNCHRONIZER, NO.2
main33368-20012i200501-201312
main33368-35050i200501-201402
NO.1
sub33368-35080
main33368-35070i200501-201402
NO.2
sub33368-35090
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-14031i200501-200810
33384ARING, SYNCHRONIZER, OUTER NO.3
main33384-60090i200501-201402
sub33384-60091
main33384-71010i200501-201312
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
main33371-14010i200501-200810
33391BSPRING, SYNCHROMESH SHIFTING KEY, NO.4
main33392-71010i200501-200810
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33392-60020i200501-201201
NO.1
main33392-60030i200501-201201
NO.2
main33392-60040i201110-201402
NO.2
main33392-71020i200501-201312
33394KEY, SYNCHROMESH SHIFTING, NO.3
main33394-71010i200501-200810
33395SLEEVE, TRANSMISSION HUB, NO.3
main33395-0K020i200501-201312
sub33395-71010
main33395-60050i200501-201402
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-0K020i200501-201312
sub33402-71010
main33402-35060i200501-201402
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90365-25019i200501-201402
main90365-25023i200501-201312
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
main90520-49222i200501-201312
T=1.07,OD=55.6
main90520-56002i200501-201402
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
main90365-31006i200501-201312
main90365-34005i200501-201402
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
main90520-23057i200501-201402
T=2.10,MARK A
main90520-23058i200501-201402
T=2.15,MARK B
main90520-23059i200501-201402
T=2.20,MARK C
main90520-23060i200501-201402
T=2.25,MARK D
main90520-23061i200501-201402
T=2.30,MARK E
main90520-23062i200501-201402
T=2.35,MARK F
main90520-23089i200501-201312
T=2.10-2.15
main90520-23090i200501-201312
T=2.20-2.25
main90520-23115i200501-201312
T=2.05-2.10
main90520-23143i200501-201312
T=2.15-2.20
main90520-23144i200501-201312
T=2.25-2.30
main90520-23145i200501-201312
T=2.30-2.35
33421GEAR, COUNTER
main33421-0K040i200501-201312
sub33421-71040
main33421-60170i200501-201304
sub33421-71010
main33421-71010i201204-201305
sub33421-71011
main33421-71011i201305-201402
sub33421-26110
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
main90520-19008i200501-201312
T=2.85
main90520-19009i200501-201312
T=2.90
main90520-19010i200501-201312
T=2.95
main90520-19011i200501-201312
T=3.00
main90520-19012i200501-201312
T=3.05
main90520-19013i200501-201312
T=3.10
main90520-19014i200501-201312
T=3.15
main90520-22016i200501-201402
T=2.85,MARK A
main90520-22017i200501-201402
T=2.90,MARK B
main90520-22018i200501-201402
T=2.95,MARK C
main90520-22019i200501-201402
T=3.00,MARK D
main90520-22020i200501-201402
T=3.05,MARK E
main90520-22021i200501-201402
T=3.10,MARK F
main90520-22022i200501-201402
T=3.15,MARK G
main90520-33021i200501-201402
T=1.00
33428GEAR, COUNTERSHAFT 5TH
main33428-0K030i200501-201312
sub33428-71020
main33428-60040i200501-201305
sub33428-60041
main33428-60041i201305-201402
sub33428-26020
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
main90520-34029i200501-200810
33428BBEARING (FOR COUNTER 5TH GEAR)
main90364-30009i200501-201402
main90364-T0015i200501-201312
sub90364-39011
33451SHAFT, REVERSE IDLER GEAR
main33451-0K020i200501-201312
sub33451-28011
main33451-35030i200501-201402
33452STOPPER, REVERSE IDLER GEAR SHAFT
main33452-36030i200501-200810
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-22010i200501-201312
N=6,MARK 6X18-20
main33481-35130i200501-201402
N=10,MARK 10X31-33
main33481-35190i200501-201402
N=11,MARK 11X31-33
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
main90360-06004i200501-201402
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
main90520-26061i200501-201312
T=1.50,OD=31.3
main90520-28030i200501-201402
T=1.5
91611G0820
main91611-G0820
