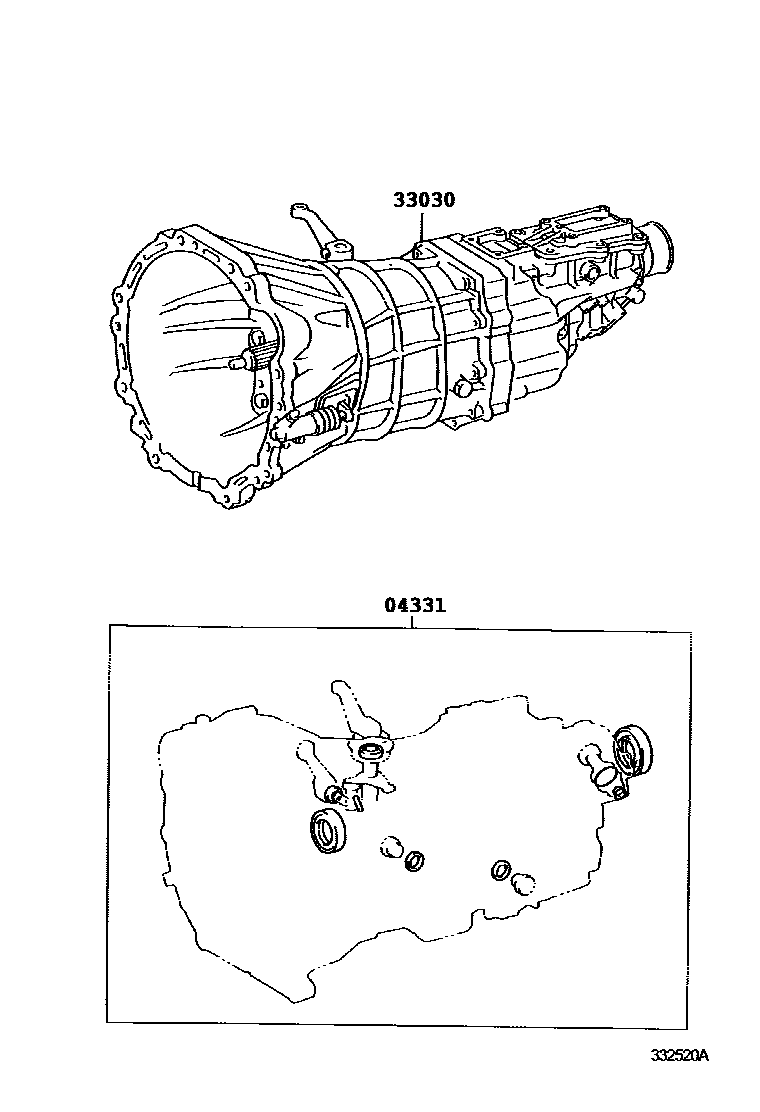

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1R351 0002 1G55

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26060iKDH200..06S..GCC;KDH200..03S..5F..(GCC,GEN,MA,SA,TH);KDH201,202,203,212,22#,TRH20#,213,22#..5F200501-201012

sub04331-26200

main04331-26200iKDH20#,212,22#,TRH201,203,213,22#..5F201101-201402

sub04331-26201

main04331-28070iLH20#,212,222200501-201205

sub04331-28071

main04331-28071iLH20#,212,222201205-201312

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0L010iLH20#,212,222200501-201312

G55

sub33030-26B30

main33030-26A00iKDH200,220,222..5F200501-201108

R351

sub33030-26A01

main33030-26A01iKDH200,220,222201108-201305

R351

sub33030-26A02

main33030-26A03iKDH200,220,222201305-201310

R351

sub33030-26A04

main33030-26A04iKDH200,220,222201310-201402

R351

main33030-26A20iTRH20#,213,22#..5F200501-201108

R351

sub33030-26A21

main33030-26A21iTRH20#,213,22#..5F201108-201305

R351

sub33030-26A22

main33030-26A23iTRH201,203,213,22#..5F201305-201309

R351

sub33030-26A24

main33030-26A24iTRH201,203,213,22#..5F201309-201402

R351

main33030-26A40iKDH202,212..5F200501-201108

R351

sub33030-26A41

main33030-26A41iKDH202,212..5F201108-201305

R351

sub33030-26A42

main33030-26A43iKDH202,212..5F201305-201309

R351

sub33030-26A44

main33030-26A44iKDH202,212..5F201309-201401

R351

main33030-26A70iKDH201,221,223..5F200610-201102

R351

sub33030-26A71

main33030-26A71iKDH201..SP..06S..5F201102-201305

R351

sub33030-26A72

main33030-26A73iKDH221,223..5F;KDH201..SG..5F;KDH201..RHD..03S..5F201305-201310

R351

sub33030-26A74

main33030-26A74iKDH221,223..5F;KDH201..SG..5F;KDH201..RHD..03S..5F201310-201401

R351

main33030-26A80iKDH203200610-201102

R351

sub33030-26A81

main33030-26A81iKDH203..14S201102-201305

R351

sub33030-26A82

main33030-26A83iKDH203..RHD201305-201310

R351

sub33030-26A84

main33030-26A84iKDH203..RHD201310-201401

R351

main33030-26B10iKDH201..SP..06S..5F201110-201305

R351

sub33030-26B11

main33030-26B12iKDH201..LHD;KDH201..SP..06S..5F201305-201310

R351

sub33030-26B13

main33030-26B13iKDH201..LHD;KDH201..SP..06S..5F201310-201312

R351

main33030-26B20iKDH203..12S201211-201305

R351

sub33030-26B22

main33030-26B22iKDH203..12S..GEN201305-201310

R351

sub33030-26B23

main33030-26B23iKDH203..12S..GEN201310-201312

R351

2 parts on this diagram · 2 diagrams in section
