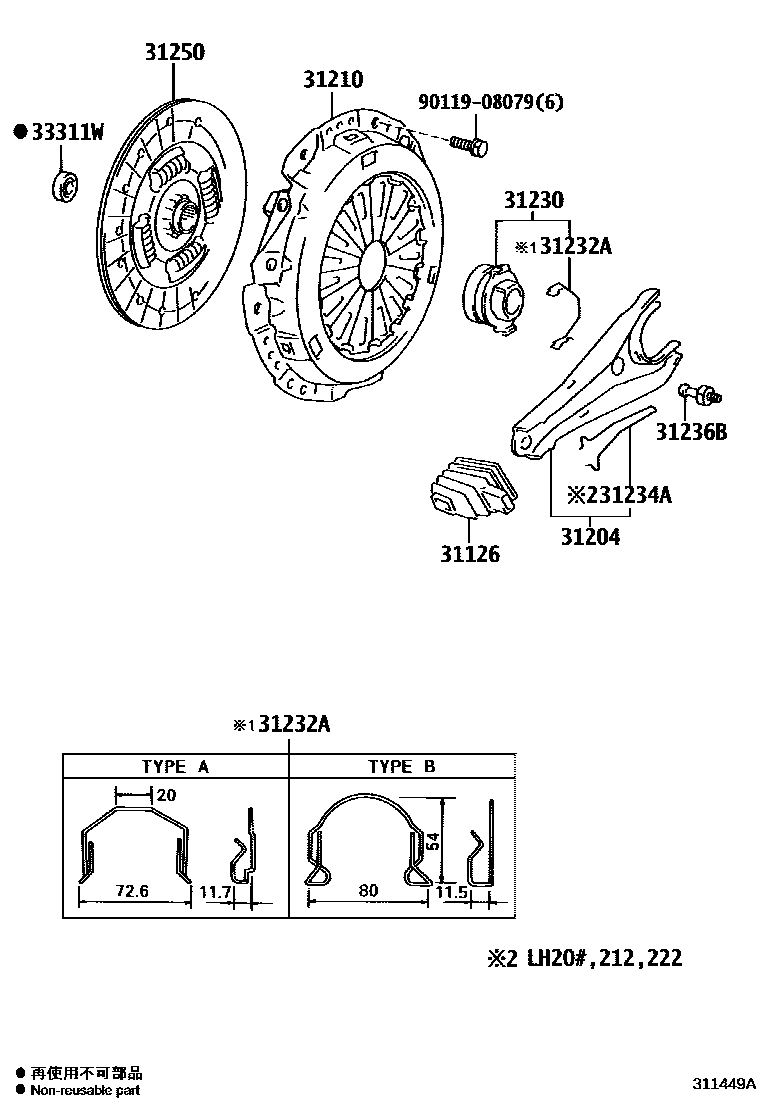

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K060iLH20#,212,222200501-201312

main31126-36080iTRH201,203,213,22#..5F¥630200501-201402

main31126-60081iKDH20#,212,22#..5F¥770200501-201402

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K030iLH20#,212,222¥2,470200501-201312

(L)

sub31204-20071¥1,420

main31204-20071iLH20#,212,222¥1,420200501-201312

(J)

main31204-35031iTRH201,203,213,22#..5F¥1,440200501-201402

main31204-35070iKDH20#,212,22#..5F¥4,590200811-201402

sub31204-35071¥3,460

main31204-60090iKDH20#,212,22#..5F¥3,810200501-200811

31210COVER ASSY, CLUTCH

main31210-26130iKDH20#,212,22#..5F¥21,100200501-200602

sub31210-26131¥16,600

main31210-26131iKDH200,202,212,220,222..5F¥16,600200602-201402

main31210-26160iLH20#,212,222¥16,900200501-200602

sub31210-26161¥16,900

main31210-26161iLH20#,212,222¥16,900200603-200702

sub31210-26162¥16,900

main31210-26162iLH20#,212,222¥16,900200703-200705

sub31210-26163¥16,900

main31210-26163iLH20#,212,222¥16,900200706-200902

sub31210-26164¥13,300

main31210-26164iLH20#,212,222¥13,300200903-201312

main31210-26170iTRH20#,213,22#..5F¥16,900200501-200603

sub31210-26171¥16,900

main31210-26171iTRH20#,213,22#..5F¥16,900200603-200707

sub31210-26172¥13,300

main31210-26172iTRH201,203,213,22#..5F¥13,300200708-201402

main31210-36350iKDH201,203,221,223..5F¥17,700200610-201401

31230BEARING ASSY, CLUTCH RELEASE

main31230-35061iLH20#,212,222¥3,300200501-201312

main31230-35070iTRH20#,213,22#..5F¥4,180200501-200805

sub31230-35071¥3,300

main31230-35071iTRH201,203,213,22#..5F¥3,300200805-201402

main31230-60170iKDH200,202,212,220,222..5F¥1,880200501-201402

main31230-60220iKDH201,203,221,223..5F¥7,400200610-200803

sub31230-60221¥5,800

main31230-60221iKDH201,203,221,223..5F¥5,800200803-201401

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLH20#,212,222,TRH201,203,213,22#..5F¥190200501-201402

TYPE A:REFER ILLUST.

main31232-35030iLH20#,212,222,TRH201,203,213,22#..5F¥190200501-201402

TYPE B:REFER ILLUST.

main31232-36030iKDH200,202,212,220,222..5F¥110200501-201402

TYPE A:REFER ILLUST.

main31232-60030iKDH202..GCC,TH;KDH202..HRF..MA;KDH202..15S..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH200,212,222..(03S,10S,11S,14S,16S)..5F..(GCC,GEN,MA,SA,TH,VN)¥200200501-201401

TYPE B:REFER ILLUST.

main31232-71010iKDH200,202,212,220,222..5F¥140200905-201402

TYPE B:REFER ILLUST.

31234ASPRING, RELEASE FORK SUPPORT

main31234-35020iLH212..10S¥70200501-200810

31236BSUPPORT, RELEASE FORK

main31236-26010iLH20#,212,222¥460200501-201312

main31236-35030iTRH201,203,213,22#..5F¥330200501-201402

main31236-60060iKDH20#,212,22#..5F¥580200501-200811

main31236-71011iKDH20#,212,22#..5F¥850200811-201402

31250DISC ASSY, CLUTCH

main31250-26210iKDH200,202,212,220,222..5F¥19,900200501-200904

sub31250-26260¥15,700

main31250-26220iLH20#,212,222¥7,900200501-201012

sub31250-26221¥6,100

main31250-26221iLH20#,212,222¥6,100201101

sub31250-26222¥6,100

main31250-26230iTRH20#,213,22#..5F¥19,700200501-201010

sub31250-26231¥15,500

main31250-26231iTRH213..VN¥15,500201011-201205

sub31250-26232¥15,500

main31250-26250iKDH201,203,221,223..5F¥20,700200610-200902

sub31250-26251¥20,700

main31250-26251iKDH201,203,221,223..5F¥20,700200902-200903

sub31250-26252¥16,300

main31250-26252iKDH223..5F;KDH201,203,221..5F..STD¥16,300200903

sub31250-26253¥16,300

main31250-26260iKDH200,202,212,220,222..5F¥15,700200905

sub31250-26261¥15,700

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKDH20#,212,22#,LH20#,212,222..5F¥520200501-201402

NACHI

sub90363-12024¥520

main90363-12018iTRH201,203,213,22#..5F¥1,050200501-201402

NSK

main90363-T0006iKDH20#,212,22#,LH20#,212,222..5F¥1,050200501-201402

NSK

9011908079

main90119-08079¥120

10 parts on this diagram · 2 diagrams in section
