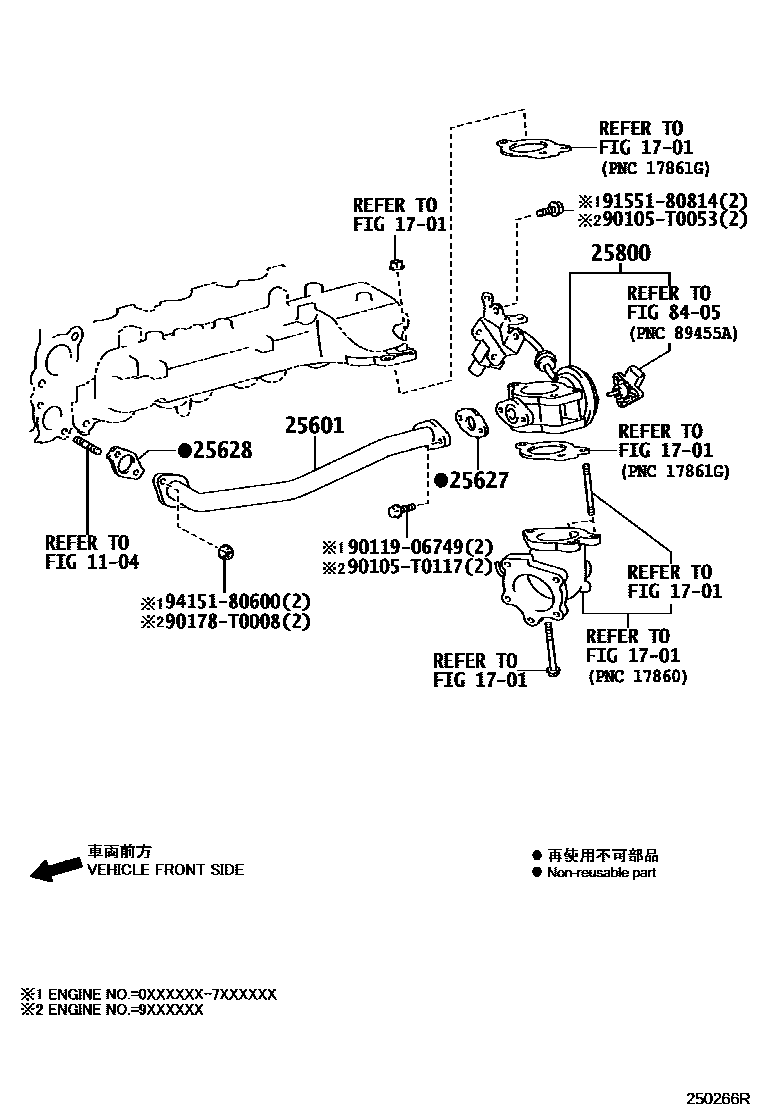

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0006 1

1104

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-30050i2KDFTV..KDH20#..LHD..(03S,15S)..GEN200501-201312

PERU SPEC

main25601-30050i2KDFTV..KDH200..LHD..GEN200501-201008

CHILI SPEC

main25601-30050i2KDFTV..KDH200..LHD..GEN200501-200512

ECUADOR SPEC

main25601-30050i2KDFTV..KDH202..RHD..15S;2KDFTV..KDH200..RHD..5D..03S200501-200610

SINGAPORE SPEC

main25601-30050i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main25601-30050i2KDFTV..KDH200..RHD..4D..5F..GEN200602-201309

CKD PACKAGE(THAILAND)

main25601-30050i2KDFTV..KDH222..RHD..GEN200501-200709

THAILAND SPEC

main25601-30050i2KDFTV..KDH212..LHD..STD..GEN200512-201312

VIETNAM SPEC

main25601-30050i2KDFTV..KDH222..LHD..GEN201205-201312

INDONESIA SPEC

main25601-30050i2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH202,220,222..RHD..(03S,12S,14S);2KDFTV..KDH200,212..(06S,10S,11S,15S)..(GEN,SA);2KDFTV..KDH200,212..(03S,16S)..5F..(ARL,MA,SA200501-201402

main25601-30050i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main25601-30050i2KDFTV..KDH222..TH201205-201309

WITHOUT(CKD PACKAGE)

main25601-30050i2KDFTV..KDH202..LHD..15S..GEN200501-201312

PHILIPPINE SPEC

main25601-30090i1KDFTV..KDH201,203,221,223201008-201102

sub25601-30091

main25601-30091i1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S201102-201201

sub25601-30092

sub16282-30021

sub16283-30011

sub16295-30011

sub90179-06298

main25601-30092i1KDFTV..KDH223..TH201201-201312

main25601-30140i1KDFTV..KDH203..TH201309-201401

25627GASKET, EGR VALVE

main25627-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-201205

CKD PACKAGE(THAILAND)

main25627-30010i2KDFTV..KDH212..STD200501-201008

CHILI SPEC

main25627-30010i2KDFTV..KDH212..STD200501-200512

PERU SPEC

main25627-30010i2KDFTV..KDH212..STD200501-200512

ECUADOR SPEC

main25627-30010i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200501-200610

SINGAPORE SPEC

main25627-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main25627-30010i2KDFTV..KDH222..RHD..GEN200501-200709

THAILAND SPEC

main25627-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

main25627-30010i2KDFTV..KDH212..STD..SA200501-201309

main25627-30010i2KDFTV..KDH202..STD..TH200709-201309

WITHOUT(CKD PACKAGE)

main25627-30010i2KDFTV..KDH212..GL;2KDFTV..KDH200,220,222..SA,TH200501-201011

PHILIPPINE SPEC

main25627-30010i2KDFTV..KDH220,222..STD..SA200910-201011

CKD PACKAGE(SOUTH AFRICA)

main25627-30060i2KDFTV..KDH222..RHD..GEN201205

VIETNAM SPEC

main25627-30060i2KDFTV..KDH200..TH201011-201309

CKD PACKAGE(THAILAND)

main25627-30060i2KDFTV..KDH222..TH201011-201309

WITHOUT(CKD PACKAGE)

main25627-30060i2KDFTV..KDH222..RHD..GEN201205

INDONESIA SPEC

main25627-30060i2KDFTV..KDH212..GL;2KDFTV..KDH200,220,222..SA201011

PHILIPPINE SPEC

main25627-30060i2KDFTV..KDH212..GL;2KDFTV..KDH200,220,222..SA201011

CKD PACKAGE(SOUTH AFRICA)

main25627-30060i2KDFTV..KDH202..12S..GEN;2KDFTV..KDH200..LHD..5D..GEN201101

PERU SPEC

main25627-30060i2KDFTV..KDH222..TH201011-201205

main25627-30070i1KDFTV..KDH201,203..LHD201110

25628GASKET, EGR INLET

main25628-30010i2KDFTV..KDH20#..LHD..(03S,15S)..GEN200501-200512

ECUADOR SPEC

main25628-30010i2KDFTV..KDH212..STD200501-200910

CHILI SPEC

main25628-30010i2KDFTV..KDH212..STD200501-200512

PERU SPEC

main25628-30010i2KDFTV..KDH202..RHD..15S;2KDFTV..KDH200..RHD..5D..03S200501-200610

SINGAPORE SPEC

main25628-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main25628-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200602-201204

CKD PACKAGE(THAILAND)

main25628-30010i2KDFTV..KDH222..RHD..GEN200501-200709

THAILAND SPEC

main25628-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

main25628-30010i2KDFTV..KDH212..GL;2KDFTV..KDH200,220,222..SA,TH;2KDFTV..KDH200..03S..4FC..GEN200501-200910

PHILIPPINE SPEC

main25628-30010i1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223200501-201204

main25628-30010i2KDFTV..KDH202..TH201203-201204

WITHOUT(CKD PACKAGE)

main25628-30030i2KDFTV..KDH212..GL;2KDFTV..KDH200..4FC;2KDFTV..KDH200,220,222..SA,TH200910-201105

WITHOUT(CKD PACKAGE)

sub25628-30031

main25628-30030i2KDFTV..KDH202..LHD..15S..GEN200910-201105

PHILIPPINE SPEC

sub25628-30031

main25628-30030i2KDFTV..KDH202..LHD..15S..GEN200910-201105

CKD PACKAGE(THAILAND)

sub25628-30031

main25628-30030i2KDFTV..KDH202..LHD..15S..GEN200910-201105

CKD PACKAGE(SOUTH AFRICA)

sub25628-30031

main25628-30030i2KDFTV..KDH202..12S..GEN;2KDFTV..KDH200..LHD..5D..GEN201101-201105

PERU SPEC

sub25628-30031

main25628-30030i2KDFTV..KDH200,202..LHD..(03S,12S)..GEN200910-201008

CHILI SPEC

sub25628-30031

main25628-30031i2KDFTV..KDH212..GL;2KDFTV..KDH200,220,222..(03S,14S)..(SA,TH)201105-201402

CKD PACKAGE(SOUTH AFRICA)

main25628-30031i2KDFTV..KDH222..TH201105-201402

main25628-30031i2KDFTV..KDH200..TH201205-201309

CKD PACKAGE(THAILAND)

main25628-30031i2KDFTV..KDH200..TH201105-201309

WITHOUT(CKD PACKAGE)

main25628-30031i2KDFTV..KDH202..12S..GEN;2KDFTV..KDH200..LHD..5D..GEN201105-201312

PERU SPEC

main25628-30031i2KDFTV..KDH202..12S..GEN;2KDFTV..KDH200..LHD..5D..GEN201105-201312

PHILIPPINE SPEC

main25628-30031i2KDFTV..KDH222..LHD..GEN201205-201312

VIETNAM SPEC

main25628-30031i2KDFTV..KDH222..LHD..GEN201205-201312

INDONESIA SPEC

main25628-30060i1KDFTV..KDH201,203..LHD201111-201312

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0L030i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main25800-0L030i2KDFTV..KDH200..RHD..4D..5F..GEN200602-201205

CKD PACKAGE(THAILAND)

main25800-0L030i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

main25800-0L030i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201401

main25800-0L030i2KDFTV..KDH202..TH200709-201309

WITHOUT(CKD PACKAGE)

main25800-30080i2KDFTV..KDH20#,222..LHD..5F..GEN200501-201312

PERU SPEC

main25800-30080i2KDFTV..KDH20#,222..LHD..5F..GEN200501-200512

ECUADOR SPEC

main25800-30080i2KDFTV..KDH202..RHD..15S;2KDFTV..KDH200..RHD..5D..03S200501-200610

SINGAPORE SPEC

main25800-30080i2KDFTV..KDH222..RHD..GEN200501-200709

THAILAND SPEC

main25800-30080i2KDFTV..KDH200..LHD..GEN200501-201008

CHILI SPEC

main25800-30080i2KDFTV..KDH222..TH200501-201402

main25800-30080i2KDFTV..KDH202..GL200709-201309

WITHOUT(CKD PACKAGE)

main25800-30080i2KDFTV..KDH200..TH;2KDFTV..KDH202..RHD..SRF..12S..GEN200501-201309

CKD PACKAGE(THAILAND)

main25800-30080i2KDFTV..KDH222..RHD..GEN201205-201312

VIETNAM SPEC

main25800-30080i2KDFTV..KDH222..LHD..GEN201205-201312

INDONESIA SPEC

main25800-30080i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main25800-30080i2KDFTV..KDH202..LHD..15S..GEN200501-201312

PHILIPPINE SPEC

main25800-30140i1KDFTV..KDH201,203,221,223200610-201008

main25800-30150i1KDFTV..KDH201,203..LHD201008-201401

main25800-30200i1KDFTV..KDH201,203..LHD201110-201312

8405

90105T0053

main90105-T0053

90105T0117

main90105-T0117

9011906749

main90119-06749

90178T0008

main90178-T0008

9155180814

main91551-80814

9415180600

main94151-80600

13 parts on this diagram · 4 diagrams in section
