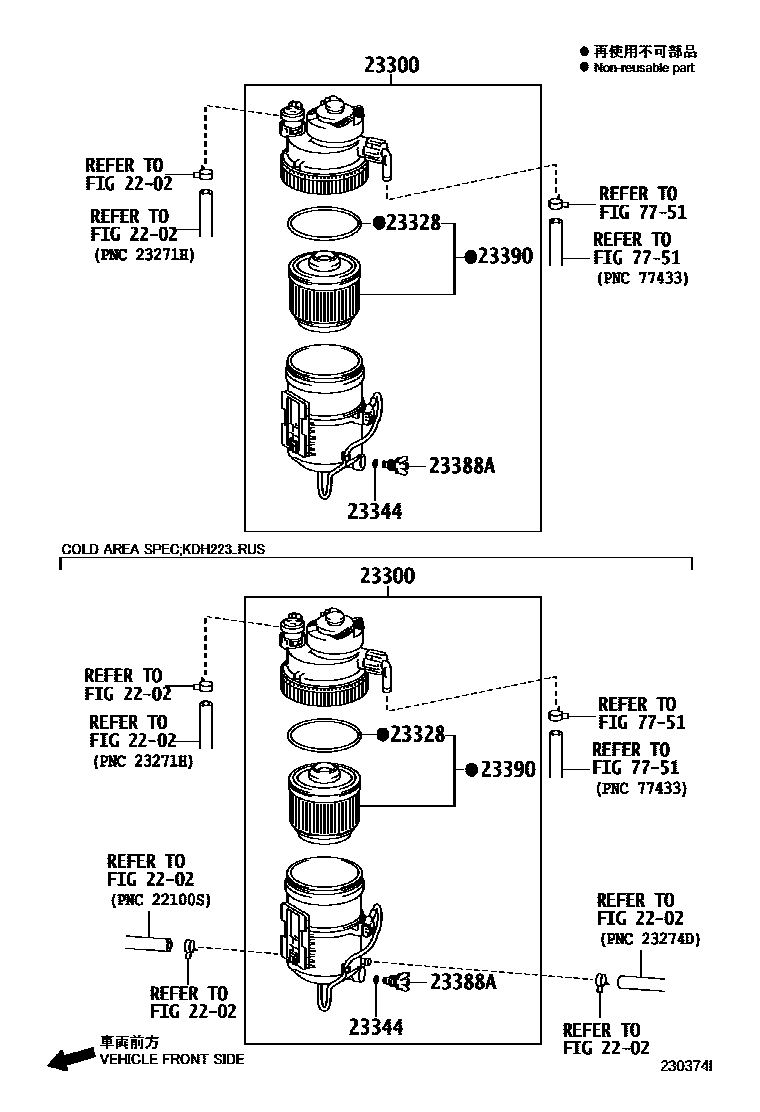

FUEL FILTER

0001 1 0002 1

2202

23300FILTER ASSY, FUEL

main23300-30200i2KDFTV..KDH20#,22#200501-200502

sub23300-30201

main23300-30201i1KDFTV,2KDFTV..KDH20#,212,22#200503-201004

sub23300-30202

main23300-30202i1KDFTV,2KDFTV..KDH20#,212,22#201005-201107

sub23300-30203

main23300-30203i5LE..LH20#,212,222201108-201310

sub23300-30204

main23300-30204i5LE..LH20#,212,222201310-201402

sub23300-30205

main23300-30215i1KDFTV..KDH223..RUS201205-201210

sub23300-30216

main23300-30216i1KDFTV..KDH201..LHD;1KDFTV,2KDFTV..KDH200,202,203..(03S,12S,15S)..GEN201211-201310

COLD AREA SPEC

sub23300-30217

main23300-30217i1KDFTV..KDH223..RUS201310-201312

COLD AREA SPEC

sub23300-30218

23328GASKET(FOR FUEL FILTER)

main23344-0L010i5LE..LH20#,212,222200501-201402

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i5LE..LH20#,212,222200501-201402

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i5LE..LH20#,212,222200501-201402

23390ELEMENT ASSY, FUEL FILTER

main23390-0L010i5LE..LH20#,212,222200501-201005

sub23390-0L041

main23390-0L041i5LE..LH20#,212,222201005-201402

7751

7 parts on this diagram · 2 diagrams in section
