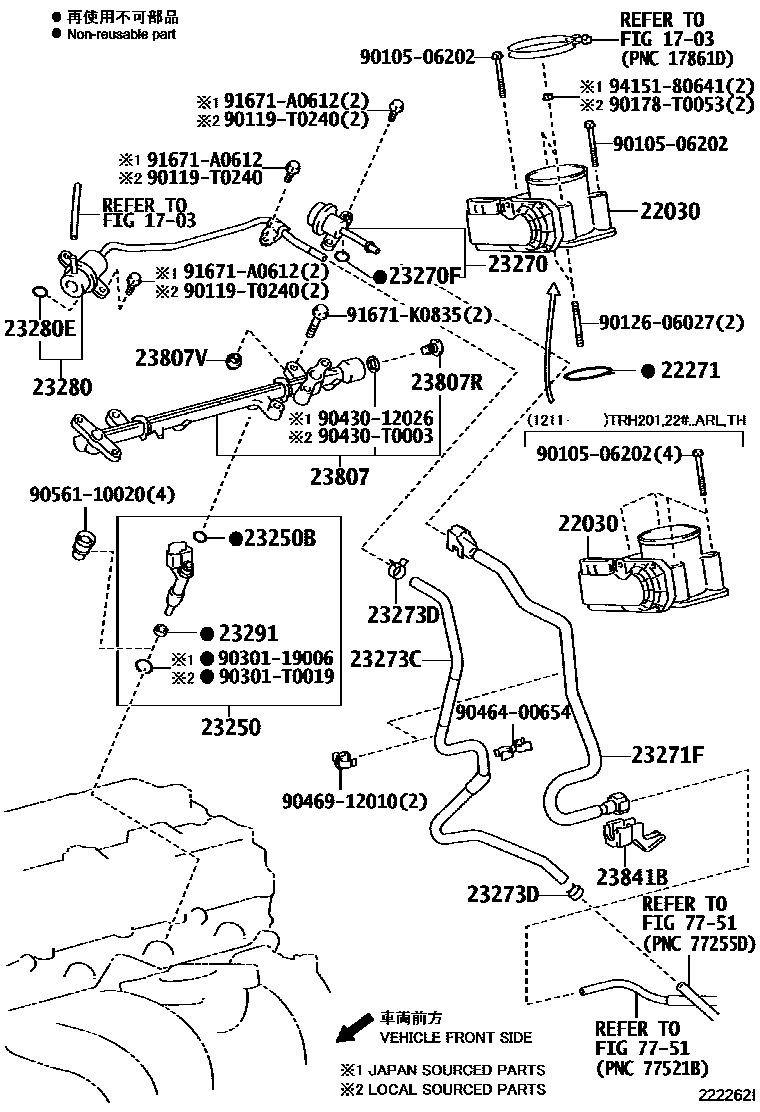

FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C020i2TRFE..TRH213..STD200508-201401

main22030-0C020i2TRFE..TRH213..LHD..STD..GEN200508-200709

VIETNAM SPEC

main22030-75010i1TRFE..TRH200201308-201312

main22030-75020i2TRFE..TRH213..LHD..STD..GEN200501-201003

VIETNAM SPEC

main22030-75020i2TRFE..TRH213..LHD..STD..GEN200501-201402

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TRH201,203,213,22#200501-201402

main22271-37010i1TRFE..TRH200201308-201312

23250INJECTOR ASSY, FUEL

main23209-09045i2TRFE..TRH213..10S..GEN200508-200709

VIETNAM SPEC

sub23209-79155

main23209-09045i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

sub23209-79155

main23209-09055i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH213..RHD..STD..GEN;2TRFE..TRH201,203..SRF..(03S,12S,15S)..GEN200501-201312

main23209-09055i2TRFE..TRH213..LHD..STD..GEN200801-201003

VIETNAM SPEC

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

CHINA(PRC) SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

CHILI SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

PERU SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

ECUADOR SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

VIETNAM SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

CENTRAL AMERICA(4COUNTRY) SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

EL SALVADOR SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

COSTA RICA SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200501-200801

MEXICO SPEC

sub23209-79205

main23209-79155i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..LHD..5F..GEN;2TRFE..TRH20#,213..LHD..(SMRF,SRF)..(03S,12S,16S)..GEN200709-200801

VENEZUERA SPEC

sub23209-79205

main23209-79155i2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA)200801-201401

*271

sub23209-79205

main23209-79155i2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA)200801-201003

CHINA(PRC) SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA)200801-201008

PERU SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA)200801-201003

VIETNAM SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA)200801-201008

CENTRAL AMERICA(4COUNTRY) SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA)200801-201003

MEXICO SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA)200801-201008

VENEZUERA SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH20#,213,22#..GCC,SA201003-201312

*272

sub23209-79205

main23209-79155i2TRFE..TRH20#,213,22#..GCC,SA201003-201005

CENTRAL AMERICA(4COUNTRY) SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH20#,213,22#..GCC,SA201003-201005

VENEZUERA SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200801-201008

CHILI SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200801-201008

ECUADOR SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200801-201008

EL SALVADOR SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN200801-201008

COSTA RICA SPEC,*271

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN201003-201008

CHILI SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN201003-201312

PERU SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN201003-201008

ECUADOR SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN201003-201008

EL SALVADOR SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH201..5D..03S..GEN201003-201008

COSTA RICA SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH201,221..5F..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,12S,14S)..5F..(ARL,CIS,GEN)201003-201312

CHINA(PRC) SPEC,*272

sub23209-79205

main23209-79155i2TRFE..TRH201,221..5F..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,12S,14S)..5F..(ARL,CIS,GEN)201003-201312

LPG CONVERSION PACKAGE,*271

sub23209-79205

main23209-79155i2TRFE..TRH201,221..5F..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,12S,14S)..5F..(ARL,CIS,GEN)201003-201312

MEXICO SPEC,*272

sub23209-79205

main23209-79186i2TRFE..TRH201,22#..4FC..ARL201205-201312

LPG CONVERSION PACKAGE,*272

main23209-79186i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..LHD..5F..GEN;2TRFE..TRH201,203,213..LHD..(SMRF,SRF)..(03S,12S,16S)..GEN201005-201312

CENTRAL AMERICA(4COUNTRY) SPEC,*272

main23209-79186i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..LHD..5F..GEN;2TRFE..TRH201,203,213..LHD..(SMRF,SRF)..(03S,12S,16S)..GEN201005-201312

VENEZUERA SPEC,*272

main23209-79186i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN201203-201312

NIGERIA SPEC,*272

main23209-79186i2TRFE..TRH223..LHD..STD..GEN201205-201312

VIETNAM SPEC,*272

main23209-79186i2TRFE..TRH223..LHD..STD..GEN201205-201312

PAKISTAN SPEC,*272

main23209-79186i2TRFE..TRH201,203,213,22#..5F..(GCC,SA)201005-201402

*272

main23209-79205i1TRFE..TRH200201308-201312

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2TRFE..TRH213..LHD..STD..GEN200501-200607

VIETNAM SPEC

main90301-07037i2TRFE..TRH201,22#..ARL201003-201312

LPG CONVERSION PACKAGE

main90301-07037i2TRFE..TRH213..LHD..(10S,16S)..GEN200607-201003

VIETNAM SPEC

main90301-07037i1TRFE,2TRFE..TRH20#,213,22#200607-201402

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75010i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

sub23270-75050

main23270-75010i1TRFE,2TRFE..TRH20#,213,22#200501-201402

sub23270-75050

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1TRFE,2TRFE..TRH20#,213,22#200501-201402

main90301-07037i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

23271FHOSE, FUEL

main23271-75190i1TRFE,2TRFE..TRH20#200501-201401

sub23271-V3010

main23271-75200i2TRFE..TRH213,22#200501-201402

sub23271-75201

23273CHOSE, FUEL, NO.2

main23273-75260i2TRFE..TRH20#200501-200902

sub23273-75261

main23273-75261i1TRFE,2TRFE..TRH20#200903-201401

main23273-75270i2TRFE..TRH213,22#200501-201402

23273DCLIP(FOR FUEL HOSE NO.2)

main96135-51100i1TRFE,2TRFE..TRH20#,213,22#200501-201402

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75040i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

sub23280-75130

main23280-75040i1TRFE,2TRFE..TRH20#,213,22#200501-201402

sub23280-75130

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

main90301-07037i1TRFE,2TRFE..TRH20#,213,22#200501-201402

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

main23291-0C010i2TRFE..TRH213..10S..GEN200508-200709

VIETNAM SPEC

main23291-73010i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402

main23291-73010i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

main23291-73010i2TRFE..TRH201,22#..ARL201003-201312

LPG CONVERSION PACKAGE

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0C010i2TRFE..TRH213..STD200508-201112

sub23807-0C012

main23807-0C010i2TRFE..TRH213..10S..GEN200508-200709

VIETNAM SPEC

sub23807-0C012

main23807-0C010i2TRFE..TRH203,213..MA,VN201112-201401

(L)

sub23807-0C012

main23807-75050i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402

sub23807-75052

main23807-75050i2TRFE..TRH203,213..MA,VN201112-201206

(J)

sub23807-75052

main23807-75050i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

sub23807-75052

23807RPLUG, FUEL DELIVARY PIPE

main90341-12030i2TRFE..TRH203,213..MA,VN200501-201402

main90341-12030i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

main90341-12030i2TRFE..TRH203,213..MA,VN201112-201206

(J)

main90341-T0008i2TRFE..TRH203,213..MA,VN200802-201401

(L)

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08036i2TRFE..TRH213..10S..GEN200501-201003

VIETNAM SPEC

main90561-08036i1TRFE,2TRFE..TRH20#,213,22#200501-201402

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1TRFE,2TRFE..TRH20#,213,22#200705-201402

main23841-28010i2TRFE..TRH20#,213,22#200501-200704

sub23841-21050

7751

9010506202

main90105-06202

90119T0240

main90119-T0240

9012606027

main90126-06027

90178T0053

main90178-T0053

9030119006

main90301-19006

90301T0019

main90301-T0019

9043012026

main90430-12026

90430T0003

main90430-T0003

9046400654

main90464-00654

9046912010

main90469-12010

9056110020

main90561-10020

91671A0612

main91671-A0612

91671K0835

main91671-K0835

9415180641

main94151-80641

32 parts on this diagram · 3 diagrams in section
