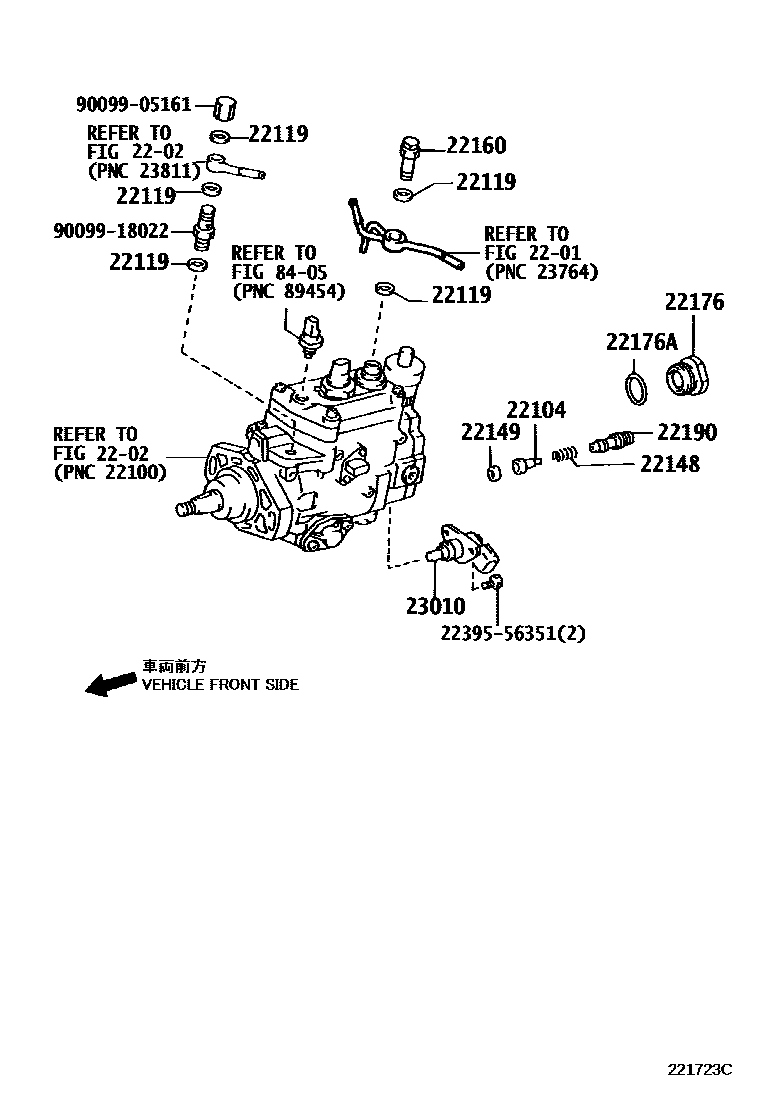

INJECTION PUMP BODY

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-6A640i5LE..LH212..10S200501-200810

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i5LE..LH212..10S200501-200810

22148SPRING, DELIVERY VALVE

main22148-54010i5LE..LH212..10S200501-200810

22149GASKET, DELIVERY VALVE

main22149-56351i5LE..LH212..10S200501-200810

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i5LE..LH212..10S200501-200810

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i5LE..LH212..10S200501-200810

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i5LE..LH212..10S200501-200810

22190VALVE SUB-ASSY, SNUBBER

main22190-5D180i5LE..LH212..10S200501-200810

23010VALVE ASSY, TIMING CONTROL

main23010-67010i5LE..LH212..10S200501-200810

8405

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

9009905161

main90099-05161

9009918022

main90099-18022

15 parts on this diagram · 1 diagram in section
