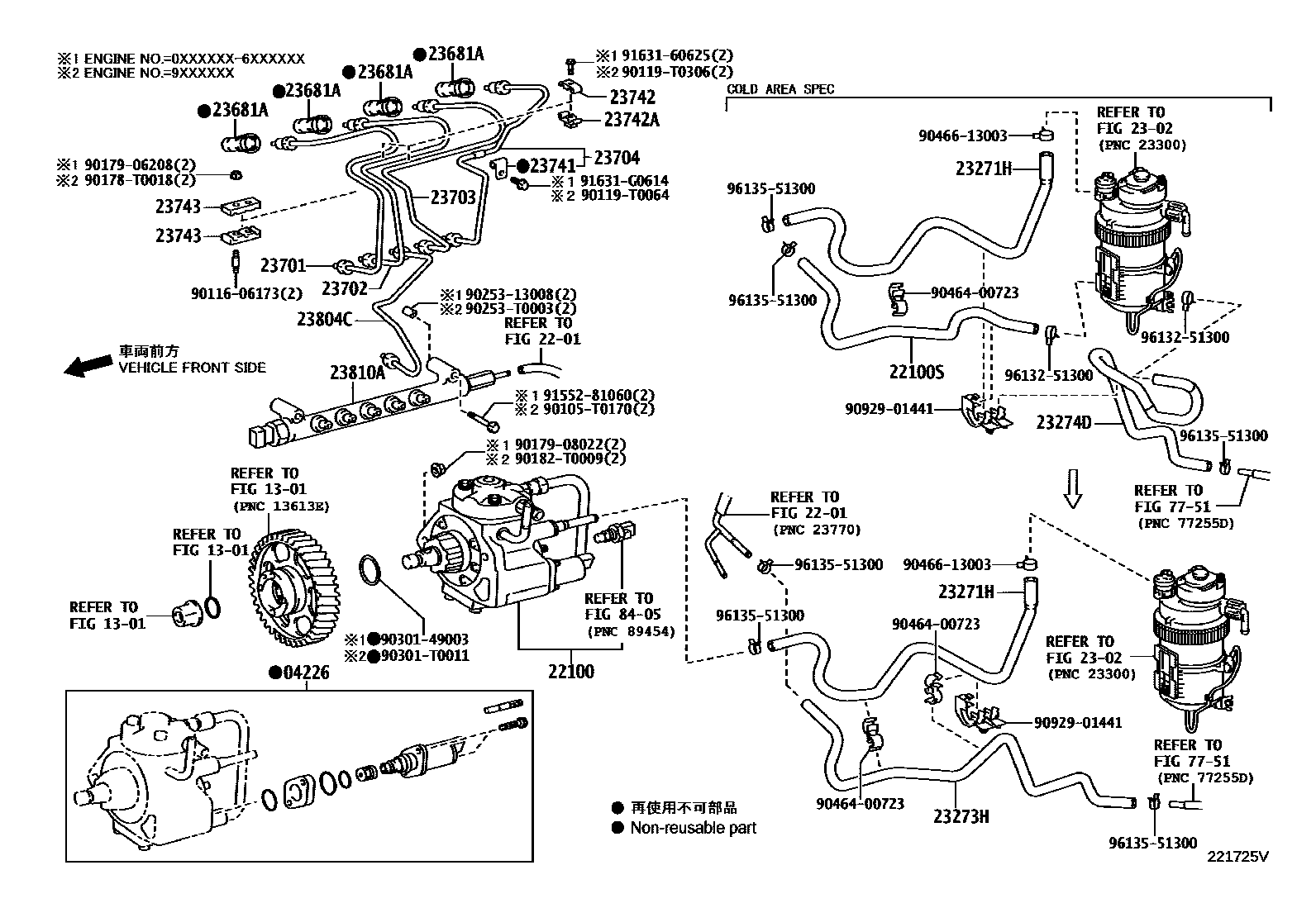

INJECTION PUMP ASSEMBLY

0001 1 0003 1 0005 1 0006 1 0009 1 0011 1 0012 1COLD SPEC

04226VALVE KIT, SUCTION CONTROL

main04226-0L010i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main04226-0L010i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(THAILAND)

main04226-0L010i2KDFTV..KDH202..HRF;2KDFTV..KDH200,202..MA200508-200705

main04226-0L010i2KDFTV..KDH212..LHD..STD..GEN200512-200705

VIETNAM SPEC

main04226-0L020i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200705-201401

main04226-0L020i2KDFTV..KDH202..TH200709-201309

WITHOUT(CKD PACKAGE)

main04226-0L020i2KDFTV..KDH200..TH200709-201205

CKD PACKAGE(THAILAND)

main04226-0L020i2KDFTV..KDH212..LHD..STD..GEN200705-200709

VIETNAM SPEC

main04226-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200705

MALAYSIA SPEC,*342

main04226-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200705

CKD PACKAGE(MALAYSIA),*342

main04226-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200709

CKD PACKAGE(THAILAND),*342

main04226-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200705

VIETNAM SPEC,*342

main04226-30010i1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223200501-201008

main04226-30020i1KDFTV..KDH223..TH200705-201402

main04226-30020i2KDFTV..KDH212..LHD..STD..GEN200705-201309

CKD PACKAGE(THAILAND),*583

main04226-30020i2KDFTV..KDH200..RHD..4D..5F..GEN200705-200910

MALAYSIA SPEC,*583

main04226-30020i2KDFTV..KDH200..RHD..4D..5F..GEN200705-200910

VIETNAM SPEC,*583

main04226-30020i2KDFTV..KDH200..RHD..4D..5F..GEN200705-200910

CKD PACKAGE(MALAYSIA),*583

main04226-30020i2KDFTV..KDH202..GL200709-201309

WITHOUT(CKD PACKAGE)

main04226-30020i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA),*583

1301

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L040i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200602-200610

CKD PACKAGE(THAILAND)

sub22100-0L050

main22100-0L040i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

sub22100-0L050

main22100-0L040i2KDFTV..KDH212..LHD..STD..GEN200512-200705

VIETNAM SPEC

sub22100-0L050

main22100-0L040i2KDFTV..KDH202..HRF;2KDFTV..KDH200,202..MA200508-200705

sub22100-0L050

main22100-0L050i1KDFTV..KDH223..TH200705-201401

main22100-0L050i2KDFTV..KDH200..TH200709-201205

CKD PACKAGE(THAILAND)

main22100-0L050i2KDFTV..KDH212..LHD..STD..GEN200705-200709

VIETNAM SPEC

main22100-0L050i2KDFTV..KDH202..TH200709-201309

WITHOUT(CKD PACKAGE)

main22100-30040i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200705

MALAYSIA SPEC

sub22100-30090

main22100-30040i2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH212..10S,11S,15S;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GEN,SA)200501-200705

CKD PACKAGE(MALAYSIA)

sub22100-30090

main22100-30040i2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH212..10S,11S,15S;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GEN,SA)200501-200709

CKD PACKAGE(THAILAND)

sub22100-30090

main22100-30040i2KDFTV..KDH212..LHD..STD..GEN200512-200705

VIETNAM SPEC

sub22100-30090

main22100-30040i1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223200501-201008

sub22100-30090

main22100-30060i2KDFTV..KDH200,202,212,222..GCC200501-200705

sub22100-30100

main22100-30090i2KDFTV..KDH212..LHD..STD..GEN200705-200910

CKD PACKAGE(MALAYSIA)

main22100-30090i2KDFTV..KDH212..LHD..STD..GEN200705-201309

CKD PACKAGE(THAILAND)

main22100-30090i2KDFTV..KDH200..RHD..4D..5F..GEN200705-200910

MALAYSIA SPEC

main22100-30090i2KDFTV..KDH200..RHD..4D..5F..GEN200705-200910

VIETNAM SPEC

main22100-30090i1KDFTV..KDH201..SP..06S200705-201402

main22100-30090i2KDFTV..KDH202..GL200709-201309

WITHOUT(CKD PACKAGE)

main22100-30090i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main22100-30100i2KDFTV..KDH200,202,212,222..GCC200705-201102

sub22100-30090

main22100-30160i1KDFTV..KDH201..SP..06S201110-201312

sub22100-30161

main22100-5D180i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-30120i2KDFTV..KDH200..03S..4FC..GEN200501-201212

COLD AREA SPEC

main23273-30140i2KDFTV..KDH212..LHD..STD..GEN200501-200610

COLD AREA SPEC

sub23273-30280

main23273-30230i1KDFTV..KDH201,203..LHD201212

COLD AREA SPEC

main23273-30280i1KDFTV..KDH223..RUS201205

2302

23271HHOSE, FUEL, NO.1

main23271-30140i1KDFTV..KDH203..TH200501

sub23271-30141

main23271-30150i1KDFTV,2KDFTV..KDH212,22#200501

sub23271-30151

main23271-54220i5LE..LH20#200501

sub23271-54221

main23271-54230i5LE..LH212..10S200501-200810

sub23271-54231

23273HHOSE, FUEL, NO.2

main23273-30110i2KDFTV..KDH200,202;1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG..GEN200501-201212

main23273-30130i1KDFTV,2KDFTV..KDH212,22#..ARL,GCC,GEN,SA,TH,VN200501

main23273-30220i1KDFTV..KDH201..SP..06S201110

main23273-54150i5LE..LH20#200501

main23273-54170i5LE..LH212..10S200501-200810

23274DHOSE, FUEL, NO.3

main23274-30030i2KDFTV..KDH212..LHD..STD..GEN200501-201312

COLD AREA SPEC

main23274-30030i1KDFTV..KDH223..RUS201205-201312

main23274-54020i5LE..LH20#200501-201312

COLD AREA SPEC

23681ASEAL, NOZZLE HOLDER

main23681-0L010i2KDFTV..KDH200..RHD..4D..5F..GEN200602-201205

CKD PACKAGE(THAILAND)

main23681-0L010i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main23681-0L010i2KDFTV..KDH202..TH200709-201309

WITHOUT(CKD PACKAGE)

main23681-0L010i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

main23681-0L010i2KDFTV..KDH212..STD200508-201401

main23681-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23681-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

CKD PACKAGE(MALAYSIA)

main23681-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-201309

CKD PACKAGE(THAILAND)

main23681-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main23681-30010i1KDFTV..KDH201..SP..06S200501-201402

main23681-30010i2KDFTV..KDH202..GL200709-201309

WITHOUT(CKD PACKAGE)

main23681-30010i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-30040i2KDFTV..KDH222..TH200501-201402

main23701-30040i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23701-30040i2KDFTV..KDH200..TH200910-201309

CKD PACKAGE(THAILAND)

main23701-30040i2KDFTV..KDH222..TH201205-201309

WITHOUT(CKD PACKAGE)

main23701-30040i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23701-30070i1KDFTV..KDH201..SP..06S200610-201401

main23701-30080i1KDFTV..KDH201,203..LHD201110-201304

sub23701-30081

main23701-30081i1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S201304-201312

main23701-54140i5LE..LH212..10S200501-200810

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-30040i2KDFTV..KDH222..TH200501-201402

main23702-30040i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23702-30040i2KDFTV..KDH200..TH200910-201309

CKD PACKAGE(THAILAND)

main23702-30040i2KDFTV..KDH222..TH201205-201309

WITHOUT(CKD PACKAGE)

main23702-30040i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23702-30070i1KDFTV..KDH201..SP..06S200610-201401

main23702-30080i1KDFTV..KDH201..SP..06S201110-201304

sub23702-30081

main23702-30081i1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S201304-201312

main23702-54140i5LE..LH212..10S200501-200810

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-30040i2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA200501-201402

main23703-30040i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23703-30040i2KDFTV..KDH200..TH200910-201309

CKD PACKAGE(THAILAND)

main23703-30040i2KDFTV..KDH222..TH201205-201309

WITHOUT(CKD PACKAGE)

main23703-30040i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23703-30070i1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S)200610-201401

main23703-30080i1KDFTV..KDH201,203..LHD201110-201304

sub23703-30081

main23703-30081i1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S201304-201312

main23703-54100i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-09030i2KDFTV..KDH212..STD200508-200810

sub23704-39045

main23704-09030i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

sub23704-39045

main23704-09030i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200810

CKD PACKAGE(THAILAND)

sub23704-39045

main23704-09030i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

sub23704-39045

main23704-09030i2KDFTV..KDH202..TH200801-200810

WITHOUT(CKD PACKAGE)

sub23704-39045

main23704-30070i1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S)200610-201401

main23704-30080i1KDFTV..KDH201,203..LHD201110-201304

sub23704-30081

main23704-30081i1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S201304-201312

main23704-39045i2KDFTV..KDH200..RHD..4D..5F..GEN200801-200910

VIETNAM SPEC

main23704-39045i2KDFTV..KDH202..TH200709-201309

WITHOUT(CKD PACKAGE)

main23704-39045i2KDFTV..KDH200..RHD..4D..5F..GEN200801-200910

MALAYSIA SPEC

main23704-39045i2KDFTV..KDH200..RHD..4D..5F..GEN200801-200910

CKD PACKAGE(MALAYSIA)

main23704-39045i2KDFTV..KDH200..RHD..4D..5F..GEN200801-201309

CKD PACKAGE(THAILAND)

main23704-39045i2KDFTV..KDH222..TH200501-201402

main23704-39045i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23704-54100i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

23741CLAMP, INJECTION PIPE, NO.1

main23741-0L010i2KDFTV..KDH212..STD200508-201401

main23741-0L010i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main23741-0L010i2KDFTV..KDH200..RHD..4D..5F..GEN200602-201205

CKD PACKAGE(THAILAND)

main23741-0L010i2KDFTV..KDH202..TH200709-201309

WITHOUT(CKD PACKAGE)

main23741-0L010i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

main23741-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

CKD PACKAGE(MALAYSIA)

main23741-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-201309

CKD PACKAGE(THAILAND)

main23741-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23741-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main23741-30010i1KDFTV..KDH201..SP..06S200501-201402

main23741-30010i2KDFTV..KDH202..GL200709-201309

WITHOUT(CKD PACKAGE)

main23741-30010i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23741-54030i5LE..LH212..10S200501-200810

23742CLAMP, INJECTION PIPE, NO.2

main23742-0L011i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

sub23742-0L090

main23742-0L011i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200602-201205

CKD PACKAGE(THAILAND)

sub23742-0L090

main23742-0L011i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

sub23742-0L090

main23742-0L011i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201210

sub23742-0L090

main23742-0L011i2KDFTV..KDH202..TH200709-201210

WITHOUT(CKD PACKAGE)

sub23742-0L090

main23742-0L090i2KDFTV..KDH202..TH201210-201309

WITHOUT(CKD PACKAGE)

main23742-0L090i2KDFTV..KDH200..MA;2KDFTV..KDH202..RHD..12S201210-201401

main23742-27010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-201309

CKD PACKAGE(THAILAND)

main23742-27010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

CKD PACKAGE(MALAYSIA)

main23742-27010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23742-27010i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main23742-27010i1KDFTV..KDH201..SP..06S200501-201402

main23742-27010i2KDFTV..KDH202..GL200709-201309

WITHOUT(CKD PACKAGE)

main23742-27010i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

23742ACLAMP, INJECTION PIPE, NO.3

main23742-0L021i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

main23742-0L021i2KDFTV..KDH212..STD200508-201210

main23742-0L021i2KDFTV..KDH202..TH200709-201210

WITHOUT(CKD PACKAGE)

main23742-0L021i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

main23742-0L021i2KDFTV..KDH200..RHD..4D..5F..GEN200602-201205

CKD PACKAGE(THAILAND)

main23742-0L100i2KDFTV..KDH202..TH201210-201309

WITHOUT(CKD PACKAGE)

main23742-0L100i2KDFTV..KDH200..MA;2KDFTV..KDH202..RHD..12S201210-201401

main23742-58020i2KDFTV..KDH200..TH;2KDFTV..KDH202..RHD..SRF..12S..GEN200501-201309

CKD PACKAGE(THAILAND)

main23742-58020i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,220..(03S,06S,10S,11S,15S)..(ARL,GCC,G200501-201402

main23742-58020i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23742-58020i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23742-58020i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

CKD PACKAGE(MALAYSIA)

main23742-58020i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main23742-58020i2KDFTV..KDH202..GL200709-201309

WITHOUT(CKD PACKAGE)

23743CLAMP, INJECTION PIPE, NO.3

main23743-0L012i2KDFTV..KDH212..VN200508-201210

sub23743-0L040

main23743-0L012i2KDFTV..KDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

sub23743-0L040

main23743-0L012i2KDFTV..KDH200..RHD..4D..5F..GEN200602-201205

CKD PACKAGE(THAILAND)

sub23743-0L040

main23743-0L012i2KDFTV..KDH212..LHD..STD..GEN200512-200709

VIETNAM SPEC

sub23743-0L040

main23743-0L012i2KDFTV..KDH202..STD..TH200709-201210

WITHOUT(CKD PACKAGE)

sub23743-0L040

main23743-0L040i2KDFTV..KDH202..TH201210-201309

WITHOUT(CKD PACKAGE)

main23743-0L040i2KDFTV..KDH200,202..MA201210

main23743-30011i2KDFTV..KDH200..RHD..4D..5F..GEN200501-201309

CKD PACKAGE(THAILAND)

main23743-30011i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23743-30011i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

CKD PACKAGE(MALAYSIA)

main23743-30011i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main23743-30011i2KDFTV..KDH200..03S..4FC..GEN200501-201205

main23743-30011i2KDFTV..KDH202..STD..TH200709-201309

WITHOUT(CKD PACKAGE)

main23743-30011i2KDFTV..KDH220,222..STD..SA200910

CKD PACKAGE(SOUTH AFRICA)

23804CPIPE SUB-ASSY, FUEL INLET

main23804-30040i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main23804-30040i2KDFTV..KDH222..TH200501-201402

main23804-30040i2KDFTV..KDH200..TH200910-201309

CKD PACKAGE(THAILAND)

main23804-30040i2KDFTV..KDH222..TH201205-201309

WITHOUT(CKD PACKAGE)

main23804-30040i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23804-39015i1KDFTV..KDH201,203,221,223200610-201008

main23804-39025i1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S)201008-201401

main23804-39035i1KDFTV..KDH201..SP..06S201110-201304

sub23804-39036

main23804-39036i1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S201304-201312

23810ARAIL ASSY, COMMON

main23810-0L010i2KDFTV..KDH202..TH200709-200712

CKD PACKAGE(THAILAND)

sub23810-0L020

main23810-0L010i2KDFTV..KDH202..TH200709-200712

WITHOUT(CKD PACKAGE)

sub23810-0L020

main23810-0L010i2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,222..(03S,10S,11S,14S,15S,16S)..(GCC,GEN,SA)200501-200701

MALAYSIA SPEC

sub23810-0L020

main23810-0L010i2KDFTV..KDH212..LHD..STD..GEN200701-200709

VIETNAM SPEC

sub23810-0L020

main23810-0L010i2KDFTV..KDH202..MA,TH;2KDFTV..KDH200..06S..GEN;2KDFTV..KDH200,212,222..ARL,MA,VN;2KDFTV..KDH202,220..RHD..HRF..(ARL,GEN)200501-200712

sub23810-0L020

main23810-0L011i2KDFTV..KDH200..RHD..4D..5F..GEN200909-200910

MALAYSIA SPEC

main23810-0L011i2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..GCC,GEN,SA200909-201402

main23810-0L011i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

main23810-0L011i2KDFTV..KDH200..RHD..4D..5F..GEN200909-200910

VIETNAM SPEC

main23810-0L011i2KDFTV..KDH200..RHD..4D..5F..GEN200909-200910

CKD PACKAGE(MALAYSIA)

main23810-0L011i2KDFTV..KDH200..RHD..4D..5F..GEN200909-201309

CKD PACKAGE(THAILAND)

main23810-0L011i2KDFTV..KDH202..GL200909-201309

WITHOUT(CKD PACKAGE)

main23810-0L020i2KDFTV..KDH212..LHD..STD..GEN200701-200909

MALAYSIA SPEC

sub23810-0L011

main23810-0L020i2KDFTV..KDH212..LHD..STD..GEN200701-200909

CKD PACKAGE(MALAYSIA)

sub23810-0L011

main23810-0L020i2KDFTV..KDH212..LHD..STD..GEN200701-200909

CKD PACKAGE(THAILAND)

sub23810-0L011

main23810-0L020i2KDFTV..KDH200..RHD..4D..5F..GEN200701-200909

VIETNAM SPEC

sub23810-0L011

main23810-0L020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200709-200909

WITHOUT(CKD PACKAGE)

sub23810-0L011

main23810-30110i1KDFTV..KDH201,203..LHD200610-201401

main23810-30130i1KDFTV..KDH201,203..LHD201110-201312

7751

8405

90105T0170

main90105-T0170

9011606173

main90116-06173

90119T0064

main90119-T0064

90119T0306

main90119-T0306

90178T0018

main90178-T0018

9017906208

main90179-06208

9017908022

main90179-08022

90182T0009

main90182-T0009

9025313008

main90253-13008

90253T0003

main90253-T0003

9030149003

main90301-49003

90301T0011

main90301-T0011

9046400723

main90464-00723

9046613003

main90466-13003

9092901441

main90929-01441

9155281060

main91552-81060

9163160625

main91631-60625

91631G0614

main91631-G0614

9613251300

main96132-51300

9613551300

main96135-51300

42 parts on this diagram · 7 diagrams in section
