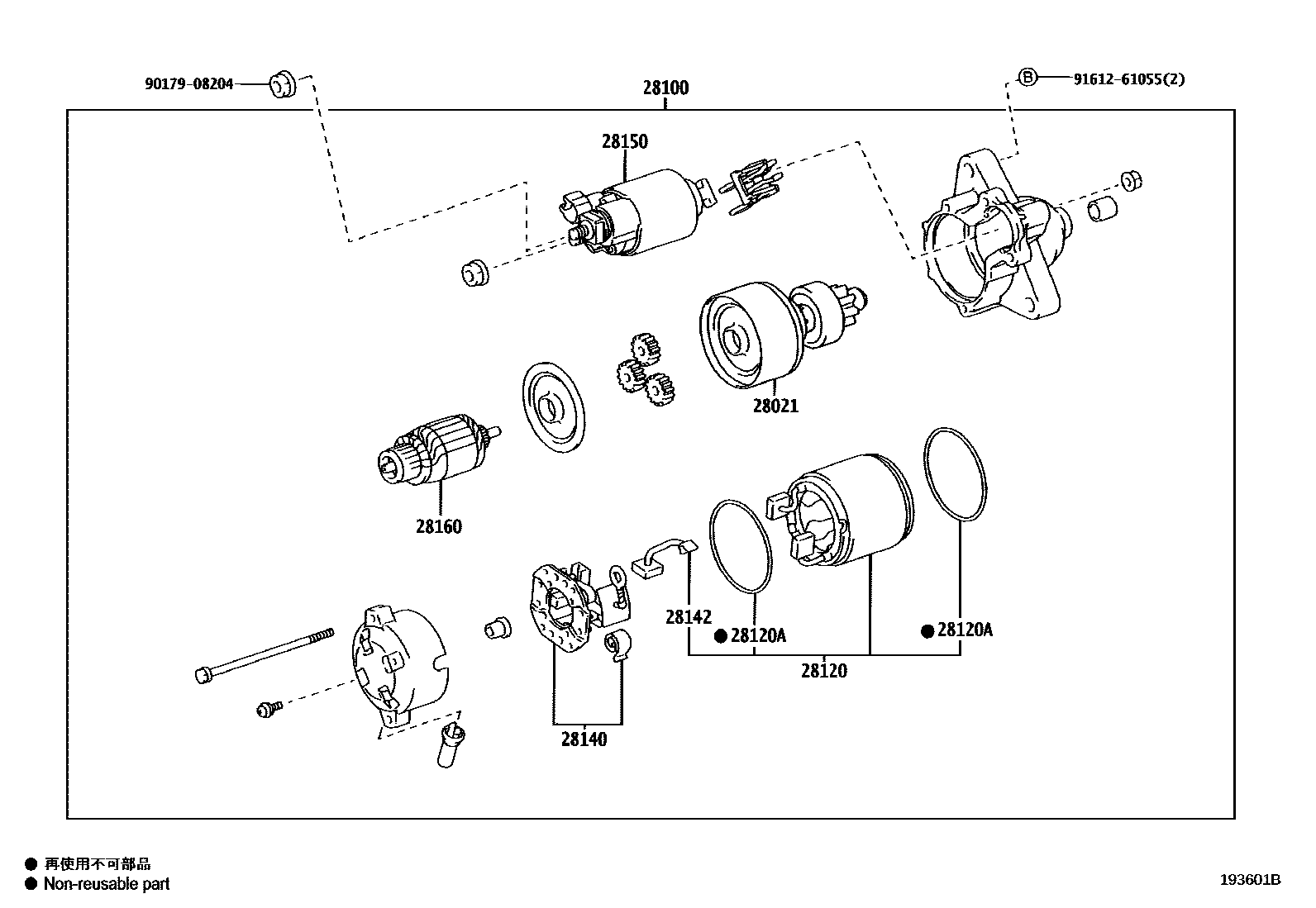

STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
12V 1.4KW
12V 2.2KW
12V 2.0KW
12V 2.7KW
12V 2.7KW,COLD AREA SPEC
12V 2.7KW
main28100-30051i1KDFTV..KDH201..SG..4FC;1KDFTV,2KDFTV..KDH200,201,212,221,223..(03S,11S,14S)..4FC¥88,300200906-201312
12V 2.7KW,COLD AREA SPEC
12V 3.0KW
12V 2.2KW
12V 2.2KW
12V 1.4KW
12V 2.0KW,CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5
12V 2.0KW
12V 1.0KW
main28100-75191i2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..GL..VN;2TRFE..TRH223..GL..SA;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..(12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,TH)¥105,000200911-201401
12V 1.6KW
28120YOKE ASSY, STARTER
sub28120-28060
main28120-67020i2KDFTV..KDH200..SG..5F..GEN;2KDFTV..KDH220..RHD..5F..(ARL,GEN);1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV..KDH200,202,222..(03S,14S,15S)..5F..(ARL,GEN200501-201312
COLD AREA SPEC
28120ARING, O(FOR STARTER YOKE)
28140HOLDER ASSY, STARTER BRUSH
main28140-54380i2KDFTV..KDH222..GL..SA;2KDFTV..KDH200,202,212,220..5F;2KDFTV..KDH222..5F..(ARL,GCC,GEN,TH)200501-201401
main28140-77090i2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,1200501-201312
COLD AREA SPEC
28142BRUSH, STARTER
NO.1
NO.2
28150SWITCH ASSY, MAGNET STARTER
main28150-30050i1KDFTV..KDH201..SG..4FC;1KDFTV..KDH201..03S..4FC;1KDFTV,2KDFTV..KDH200,202,212,22#..4FC¥15,700200501-201312
COLD AREA SPEC
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5
28160ARMATURE ASSY, STARTER
main28160-54140i2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,1¥20,000200501-201312
COLD AREA SPEC
main28160-54380i2KDFTV..KDH222..GL..SA;2KDFTV..KDH200,202,212,220..5F;2KDFTV..KDH222..5F..(ARL,GCC,GEN,TH)200501-201401
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5
9017908204
9161261055
10 parts on this diagram · 12 diagrams in section
