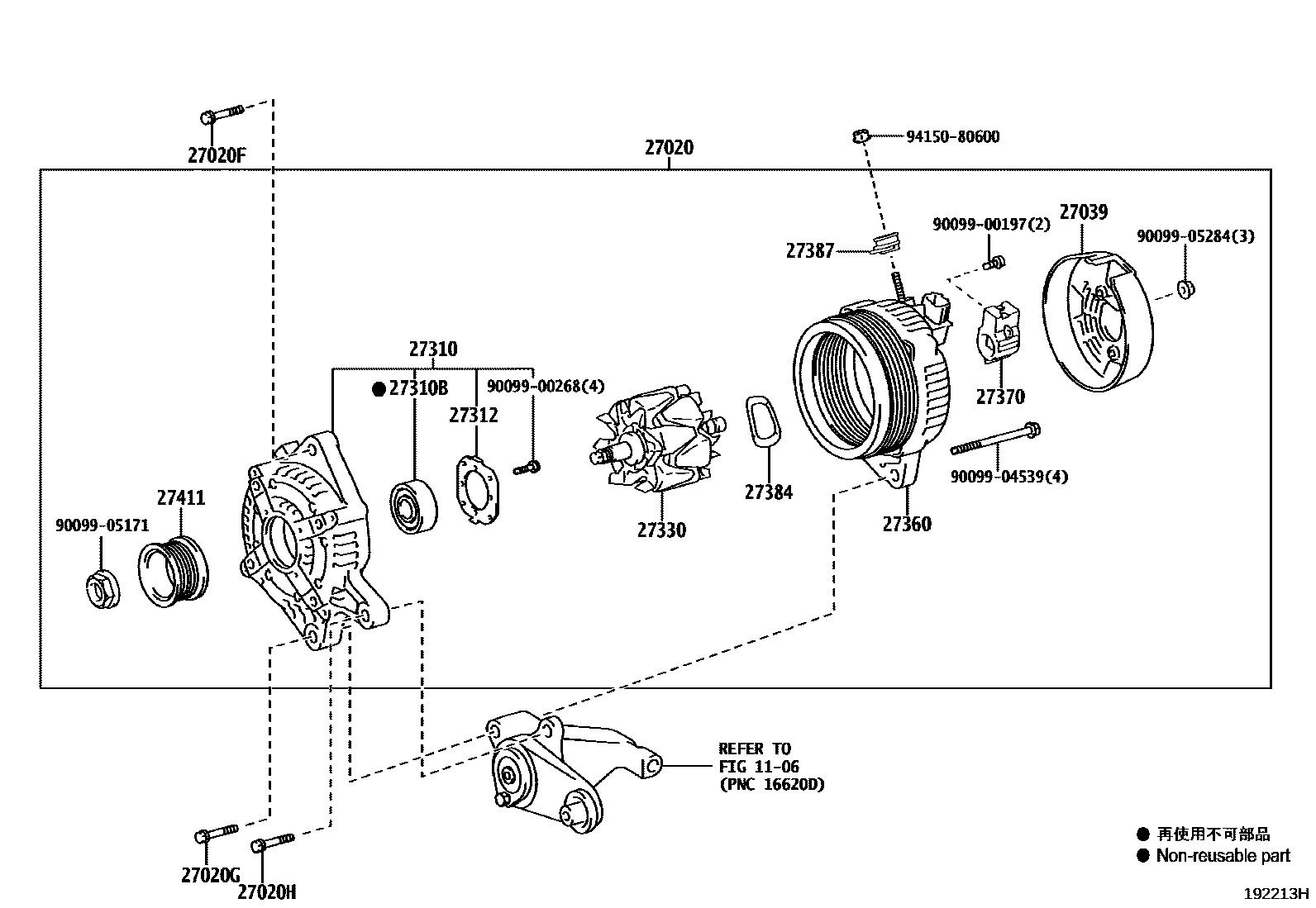

ALTERNATOR

0001 112V 130A 0002 112V 130A 0003 112V 100A,130A,150A 0004 112V 120A

1106

27020ALTERNATOR ASSY

main27040-54670i5LE..LH20#,212,222200501-201312

12V 120A

main27060-30080i2KDFTV..KDH20#,212,22#200501-200604

12V 100A

sub27060-30130

main27060-30130i2KDFTV..KDH212,222..GL..(GEN,SA)200604-201010

12V 100A

sub27060-30131

main27060-30140i2KDFTV..KDH212,222..GL..(GEN,SA)200709-201010

12V 130A,AIR CONDITIONER-DUAL AIR CONDITIONER

sub27060-30141

main27060-30140i2KDFTV..KDH212,222..GL..(GEN,SA)200709-201010

12V 130A,AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub27060-30141

main27060-30140i2KDFTV..KDH200,220..GCC,GEN,SA,TH200610-201010

12V 130A

sub27060-30141

main27060-30190i1KDFTV..KDH201..SP..06S..4FC..STD201111-201312

12V 150A,3ROOM REFRIGERATOR VAN

main27060-30210i2KDFTV..KDH222..TH201210-201309

12V 100A,AIR CONDITIONER-WITHOUT

main27060-30210i2KDFTV..KDH222..TH201011-201402

12V 100A

main27060-30220i2KDFTV..KDH202..SRF..STD201011-201312

12V 130A,AIR CONDITIONER-DUAL AIR CONDITIONER

main27060-30220i2KDFTV..KDH200,220..GCC,GEN,SA,TH201011-201312

12V 130A,AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main27060-30220i2KDFTV..KDH212,222..GL;1KDFTV..KDH201,203,221,223;2KDFTV..KDH202,212..MA,TH,VN201011-201401

12V 130A

main27060-75350i2TRFE..TRH201,203,213,22#..5F200501-201402

12V 130A

main27060-75372i1TRFE,2TRFE..TRH200,223..4FC..GEN201205-201312

12V 130A

main27060-75380i2TRFE..TRH201,213,22#..4FC200501-200605

12V 130A

sub27060-75381

main27060-75381i2TRFE..TRH201,213,22#..4FC200606-200807

12V 130A

sub27060-75382

main27060-75382i2TRFE..TRH223..4FC..GEN200808-201312

12V 130A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91553-81040i1TRFE,2TRFE..TRH20#,213,22#200501-201402

27020GBOLT, NO.2(FOR ALTERNATOR)

main91553-81085i1TRFE,2TRFE..TRH20#,213,22#200501-201402

27020HBOLT, NO.3(FOR ALTERNATOR)

main91553-81060i1TRFE,2TRFE..TRH20#,213,22#200501-201402

27039COVER, ALTERNATOR REAR END

main27039-26170i2TRFE..TRH201,213,22#..4FC200708-200906

main27039-27060i2TRFE..TRH201,213,22#..4FC200501-200906

main27039-31390i1TRFE,2TRFE..TRH20#,213,22#200906-201402

main27039-50370i1KDFTV,2KDFTV..KDH20#,212,22#200604-200707

main27039-50430i1KDFTV,2KDFTV..KDH20#,212,22#200708-201402

main27039-58460i2KDFTV..KDH20#,212,22#200501-200604

sub27039-50370

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-30080i1KDFTV,2KDFTV..KDH20#,212,22#200501-201402

main27310-75270i1TRFE,2TRFE..TRH20#,213,22#200501-201402

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i1KDFTV,2KDFTV,2TRFE..KDH20#,212,22#,TRH20#,213,22#200501-200611

sub90099-10223

main90099-10223i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#200612-201402

27312PLATE, RETAINER

main27312-72100i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#200501-201402

27330ROTOR ASSY, ALTERNATOR

main27330-11120i5LE..LH20#,212,222200501-201312

main27330-30070i2KDFTV..KDH202..SRF..(GCC,GEN,MA);2KDFTV..KDH202,222..HRF..STD..(ARL,GCC,GEN,SA);2KDFTV..KDH200,212,220..(03S,06S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH)200501-201402

main27330-30070i2KDFTV..KDH222..TH201210-201309

AIR CONDITIONER-WITHOUT

main27330-33090i2KDFTV..KDH200,220..GCC,GEN,SA,TH200709-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main27330-33090i2KDFTV..KDH212,222..(15S,16S)..STD..(GCC,GEN,SA)200709-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main27330-33090i2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202,212..TH,VN;1KDFTV,1TRFE,2TRFE..KDH201,203,221,223,TRH20#,213,22#200501-201402

main27330-58460i1KDFTV..KDH201..SP..06S..4FC..STD201111-201312

3ROOM REFRIGERATOR VAN

27360COIL ASSY, ALTERNATOR

main27360-30090i2KDFTV..KDH20#,212,22#200501-200604

main27360-30140i2KDFTV..KDH212,222..GL..(GEN,SA)200604-201011

main27360-30150i2KDFTV..KDH200,220..GCC,GEN,SA,TH200709-201011

AIR CONDITIONER-DUAL AIR CONDITIONER

main27360-30150i2KDFTV..KDH200,220..GCC,GEN,SA,TH200709-201011

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main27360-30150i2KDFTV..KDH222..GL..GCC200610-201011

main27360-30200i1KDFTV..KDH201..SP..06S..4FC..STD201111-201312

3ROOM REFRIGERATOR VAN

main27360-30220i2KDFTV..KDH220,222..STD..(GCC,GEN,SA);2KDFTV..KDH200,202,212..(SMRF,SRF)..STD..(GCC,GEN,MA,SA,TH)201011-201402

main27360-30220i2KDFTV..KDH222..TH201210-201309

AIR CONDITIONER-WITHOUT

main27360-30230i2KDFTV..KDH202..SRF..STD201011-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main27360-30230i2KDFTV..KDH222..TH201011-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main27360-30230i2KDFTV..KDH212,222..GL;1KDFTV..KDH201,203,221,223;2KDFTV..KDH202,212..MA,TH,VN201011-201401

main27360-75280i1TRFE,2TRFE..TRH200,223..4FC..GEN201205-201312

main27360-75300i2TRFE..TRH201,203,213,22#..03S,06S,09S,10S,11S,12S,14S,15S,16S200501-201402

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#200501-201402

main27370-75060i5LE..LH20#,212,222200501-201312

27384WASHER

main27384-50030i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#200501-201402

27387INSULATOR, TERMINAL

main27387-20130i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#200501-201402

27411PULLEY, ALTERNATOR

main27411-31210i2TRFE..TRH201,203,213,22#..5F200501-201402

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600

21 parts on this diagram · 4 diagrams in section
