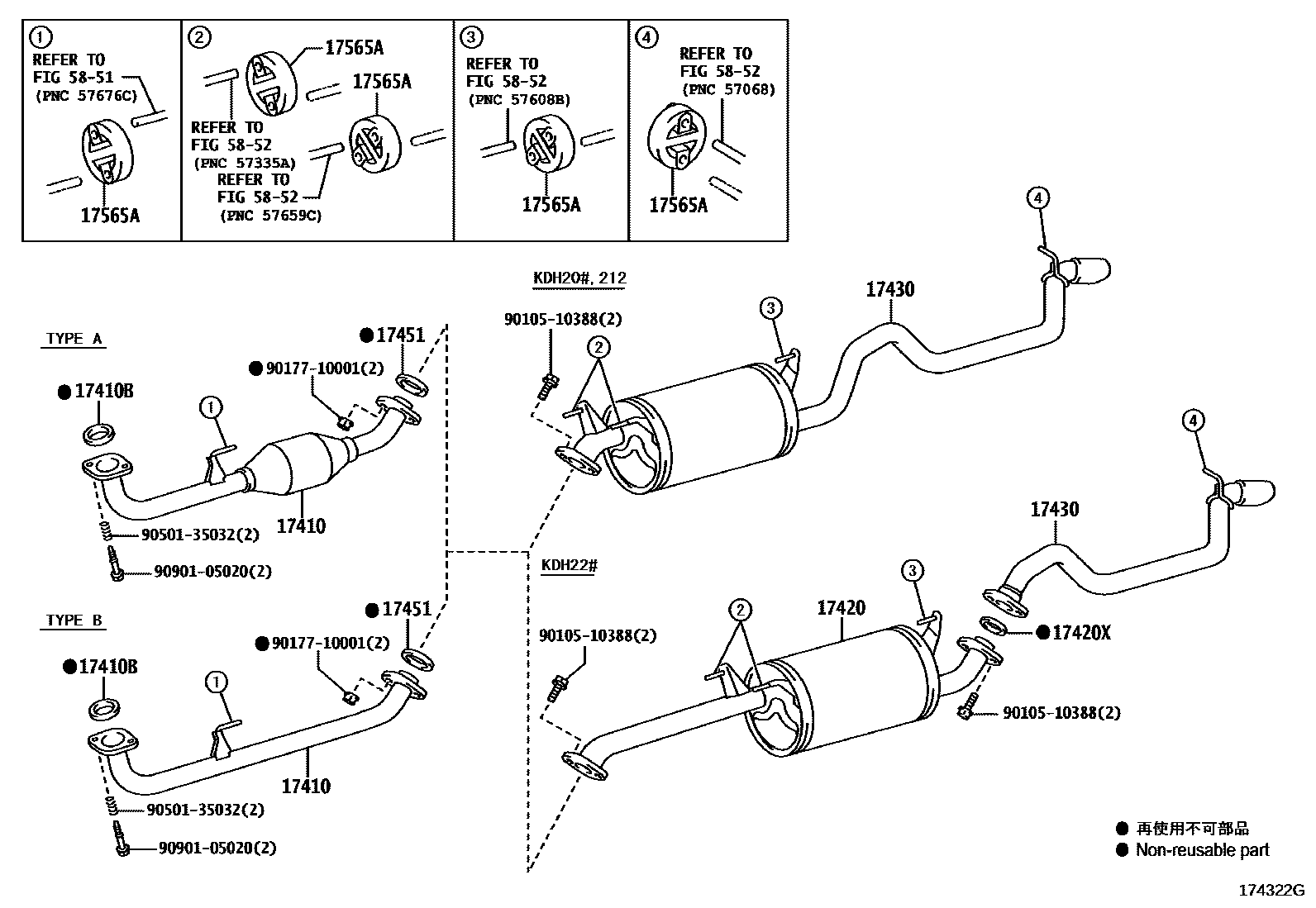

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
(L),TYPE A:REF ILL.
(L),TYPE B:REF ILL.
(L),TYPE A:REF ILL.
(L)
THAILAND SPEC,TYPE A:REFER ILLUST.
CHILI SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
CHILI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3,TYPE A:REFER ILLUST.
SINGAPORE SPEC,TYPE A:REFER ILLUST.
(J),TYPE A:REF ILL.
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3,TYPE A:REFER ILLUST.
main17410-30080i2KDFTV..KDH200..SG;2KDFTV..KDH202..HRF;2KDFTV..KDH222..ARL,GCC;2KDFTV..KDH20#,212,220..03S,11S,15S,16S;2KDFTV..KDH202,222..LHD..(12S,16S)..GEN200501-201402
TYPE B:REFER ILLUST.
(J),TYPE B:REF ILL.
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-EC STEP3,WITH(*DPFS),TYPE A:REFER ILLUST.
PERU SPEC,TYPE A:REFER ILLUST.
MEXICO SPEC,TYPE A:REFER ILLUST.
CHINA(PRC) SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
PERU SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3,TYPE A:REFER ILLUST.
CHILI SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3,TYPE A:REFER ILLUST.
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER1,TYPE A:REFER ILLUST.
CHILI SPEC,TYPE A:REFER ILLUST.
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3,TYPE A:REFER ILLUST.
SOUTH AFRICA SPEC,TYPE A:REFER ILLUST.
VIETNAM SPEC,TYPE A:REFER ILLUST.
CENTRAL AMERICA(4COUNTRY) SPEC,TYPE A:REFER ILLUST.
EL SALVADOR SPEC,TYPE A:REFER ILLUST.
COSTA RICA SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
PERU SPEC,TYPE A:REFER ILLUST.
ECUADOR SPEC,TYPE A:REFER ILLUST.
VIETNAM SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
ECUADOR SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
EL SALVADOR SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
VENEZUERA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
(J),TYPE A:REF ILL.
CENTRAL AMERICA(4COUNTRY) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
main17410-75460i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN201203-201312
NIGERIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
main17410-75470i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200501-201312
TYPE B:REFER ILLUST.
main17410-75550i2TRFE..TRH201,22#..ARL;2TRFE..TRH201..SG..06S..GEN;2TRFE..TRH201..SP..4FC..GEN200610-201401
TYPE A:REFER ILLUST.
MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5,TYPE A:REFER ILLUST.
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO4,TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-GASOLINE EURO4,TYPE A:REFER ILLUST.
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5
17410BGASKET, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
(L)
(L)
(L)
sub17430-30061
(J)
sub17430-30071
sub17430-30101
(J)
sub17430-75771
17451GASKET, EXHAUST PIPE
17565ASUPPORT, EXHAUST PIPE, NO.4
5851
5852
9010510388
main90105-10388
9017710001
main90177-10001
9050135032
main90501-35032
9090105020
main90901-05020
13 parts on this diagram · 5 diagrams in section
