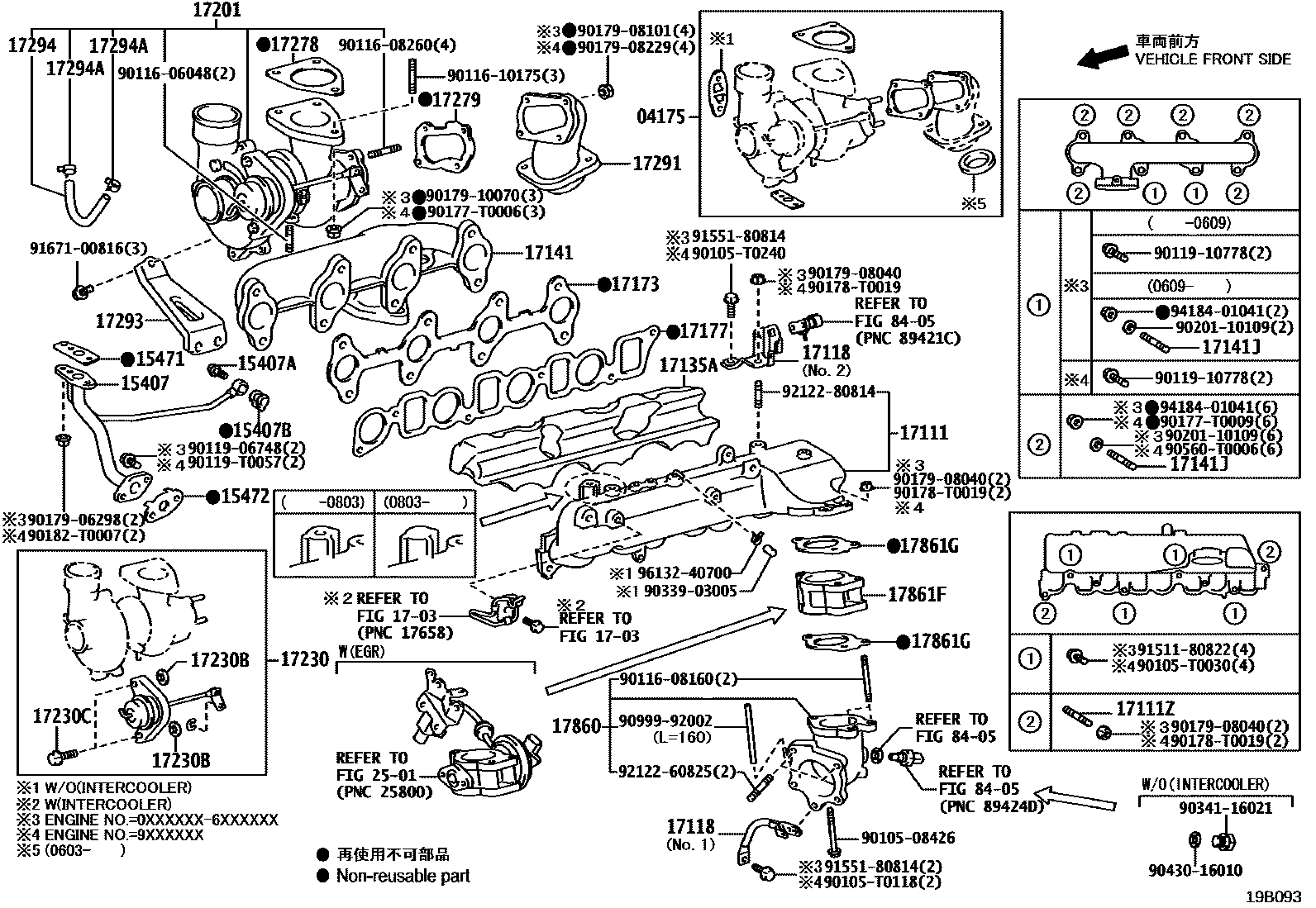

MANIFOLD

0001 1E/G NO.=0XXXXXX-6XXXXXX OR 9X0002 1E/G NO.=7XXXXXX 0003 1 0004 1 0005 1 0006 1 0009 1 0011 1 0012 1

04175GASKET KIT, TURBOCHARGER

main04175-0L110i2KDFTV..KDH212..STD200508-200603

sub04175-0L111

main04175-0L111i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200603-200904

CKD PACKAGE(THAILAND)

sub04175-0L112

main04175-0L112i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200904-201401

sub04175-0L113

main04175-0L130i1KDFTV..KDH203..TH201309-201401

sub04175-0L131

main04175-30030i2KDFTV..KDH222..RHD..GEN200709-200812

WITHOUT(CKD PACKAGE)

main04175-30030i2KDFTV..KDH222..GCC,SA;2KDFTV..KDH222..LHD..GEN;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212..ARL,GCC,GEN,SA,TH200603-200812

main04175-30050i2KDFTV..KDH22#..RHD200501-200603

sub04175-30051

main04175-30051i2KDFTV..KDH222..RHD..GEN200603-200812

sub04175-30052

main04175-30052i2KDFTV..KDH222..TH200812-201309

main04175-30060i2KDFTV..KDH22#..5F..ARL200501-200603

SOUTH AFRICA SPEC

sub04175-30030

main04175-30060i2KDFTV..KDH212..LHD..STD..GEN200512-200603

sub04175-30030

main04175-30081i2KDFTV..KDH202,222..GCC,GEN,SA;2KDFTV..KDH200,212,220..GCC,GEN,SA,TH200812-201402

sub04175-30082

main04175-30130i1KDFTV..KDH201,203,221,223200610-200701

sub04175-30131

main04175-30131i1KDFTV..KDH201,203,221,223200701-200812

sub04175-30132

main04175-30132i1KDFTV..KDH201,203,221,223200812-201008

main04175-30200i1KDFTV..KDH223..TH201008-201312

sub04175-30201

main04175-30220i1KDFTV..KDH201,203..LHD201110-201312

sub04175-30221

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-30040i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200707

MALAYSIA SPEC

sub15407-30041

main15407-30040i2KDFTV..KDH200,202,212,220,222200501-200707

CKD PACKAGE(MALAYSIA)

sub15407-30041

main15407-30040i2KDFTV..KDH200,202,212,220,222200501-200707

CKD PACKAGE(THAILAND)

sub15407-30041

main15407-30041i2KDFTV..KDH200,202,212,220,222200707-200908

MALAYSIA SPEC

sub15407-30042

main15407-30041i2KDFTV..KDH200,202,212,220,222200707-200908

VIETNAM SPEC

sub15407-30042

main15407-30041i2KDFTV..KDH200,202,212,220,222200707-200908

CKD PACKAGE(MALAYSIA)

sub15407-30042

main15407-30041i2KDFTV..KDH200,202,212,220,222200707-200908

CKD PACKAGE(THAILAND)

sub15407-30042

main15407-30042i2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..GCC,GEN,SA200908-201205

main15407-30070i1KDFTV..KDH201,203,221,223200610-201008

main15407-30080i1KDFTV..KDH203..TH201309

sub15407-30110

main15407-30110i1KDFTV..KDH223..TH201008-201310

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i1KDFTV..KDH223..TH200501-201310

main90401-T0004i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-200512

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-T0006i2KDFTV..KDH212..STD200508-200512

main90904-30004i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201310

15471GASKET, TURBO OIL INLET

main15471-0L010i2KDFTV..KDH212..STD200508-200904

sub15471-0L011

main15471-0L011i1KDFTV..KDH223..TH200904

main15471-30010i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200812

CKD PACKAGE(THAILAND)

sub15471-30011

main15471-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200812

CKD PACKAGE(MALAYSIA)

sub15471-30011

main15471-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200812

MALAYSIA SPEC

sub15471-30011

main15471-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200812

VIETNAM SPEC

sub15471-30011

main15471-30011i1KDFTV,2KDFTV..KDH202,203,222,223..ARL,GCC,GEN,RUS,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221..ARL,GCC,GEN,SA,TH200812-201310

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-0L010i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-200512

main15472-30010i1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223..RHD..(ARL,GEN)201005-201205

main15472-30010i2KDFTV..KDH220,222..STD..SA201005

CKD PACKAGE(SOUTH AFRICA)

main15472-67010i2KDFTV..KDH200..TH;2KDFTV..KDH202..RHD..SRF..12S..GEN200501-201005

CKD PACKAGE(THAILAND)

sub15472-30010

main15472-67010i2KDFTV..KDH212..LHD..STD..GEN200501-201008

sub15472-30010

1703

17111MANIFOLD, INTAKE

main17101-30020i2KDFTV..KDH200,202,212,220,222200501-200803

MALAYSIA SPEC

main17101-30021i2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..GCC,GEN,SA200803-201402

main17101-30060i1KDFTV..KDH201,203,221,223200610-201008

main17101-30100i1KDFTV..KDH201,203..LHD201008-201401

main17101-30110i1KDFTV..KDH201,203..LHD201110-201312

main17111-54113i5LE..LH212..10S200501-200810

main17120-0C010i1TRFE..TRH200201308-201312

sub17120-0C011

main17120-0C020i2TRFE..TRH201,203,213,22#200501-201402

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08220i5LE..LH212..10S200501-200810

main90116-T0011i1KDFTV..KDH223..TH200508-201401

main90126-08026i2TRFE..TRH213..LHD..STD..GEN200501-201402

main90126-08052i2KDFTV..KDH220,222..STD..SA201306-201402

CKD PACKAGE(SOUTH AFRICA)

main90126-T0003i2TRFE..TRH213..STD200508-201401

main92122-80822i1KDFTV..KDH201..SP..06S200501-201312

main92122-80822i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH202,222..(14S,15S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,220..SP.200501-201306

CKD PACKAGE(THAILAND)

17118STAY, MANIFOLD

main17118-30040i1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,212,220,221,223200501-201402

NO.1

main17118-30040i1KDFTV..KDH201,203..LHD201110-201312

main17118-30050i2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA200501-201402

NO.2

main17118-30120i1KDFTV..KDH201,203,221,223200610-201008

NO.2

main17118-30130i1KDFTV..KDH223..TH201008-201312

NO.2

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-0L010i2KDFTV..KDH200..MA;2KDFTV..KDH202..HRF..MA200509-201309

main17135-30011i2KDFTV..KDH212..STD..SA200501-201205

main17135-30011i2KDFTV..KDH202..RHD..SRF..12S..GEN200501-201309

CKD PACKAGE(THAILAND)

main17135-30030i1KDFTV..KDH201..SP..06S201110

17141MANIFOLD, EXHAUST

main17141-30050i2KDFTV..KDH222..TH200501-201402

main17141-30080i1KDFTV..KDH201,203,221,223200610-200703

main17141-30081i1KDFTV..KDH201,203..LHD200703-201401

main17141-30090i1KDFTV..KDH201..SP..06S201110-201312

main17141-54111i5LE..LH212..10S200501-200810

main17141-75101i2TRFE..TRH213..GL..VN;2TRFE..TRH213..RHD..5F;2TRFE..TRH201,213..LHD..(06S,16S)..5F;2TRFE..TRH203,223..5F..(GCC,GEN,MA,SA);2TRFE..TRH201,221..SP..03S..(GCC,GEN,SA)200501-201402

TYPE A:REFER ILLUST.

main17141-75120i2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,1200501-201401

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-10017i2KDFTV..KDH20#,22#200501-200503

MALAYSIA SPEC

main90126-10017i2KDFTV..KDH20#,22#200501-200503

CKD PACKAGE(MALAYSIA)

main90126-10017i2KDFTV..KDH20#,22#200501-200503

CKD PACKAGE(THAILAND)

main90126-10034i1KDFTV..KDH201..SP..06S200610-201401

main90126-10035i2KDFTV..KDH202,222..GCC,GEN,SA;2KDFTV..KDH200,212,220..GCC,GEN,SA,TH200910-201402

CKD PACKAGE(SOUTH AFRICA)

main90126-10035i2KDFTV..KDH212..STD200508-201401

main90126-10037i2KDFTV..KDH200..RHD..4D..5F..GEN200503-200910

CKD PACKAGE(MALAYSIA)

main90126-10037i2KDFTV..KDH200..RHD..4D..5F..GEN200503-200910

CKD PACKAGE(THAILAND)

main90126-10037i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200503-200910

MALAYSIA SPEC

main90126-10037i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main90126-10037i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200503-200610

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0C010i2TRFE..TRH213..STD200508-201401

TYPE A:REFER ILLUST.

main17173-0L010i2KDFTV..KDH212..STD200508-201112

sub17173-0L011

main17173-0L010i2KDFTV..KDH202..TH201112-201204

(L)

sub17173-0L011

main17173-0L010i2KDFTV..KDH202..TH201112-201204

CKD PACKAGE(THAILAND),(L)

sub17173-0L011

main17173-0L010i2KDFTV..KDH202..TH201112-201204

WITHOUT(CKD PACKAGE),(L)

sub17173-0L011

main17173-0L011i1KDFTV..KDH203..TH201309-201401

main17173-0L011i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201204-201401

(L)

main17173-30020i1KDFTV..KDH201..SP..06S200501-201402

main17173-30020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112-201206

(J)

main17173-54030i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main17173-75030i2TRFE..TRH213..LHD..STD..GEN200501-201402

TYPE A:REFER ILLUST.

main17173-75040i2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,1200501-201401

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0C010i1TRFE,2TRFE..TRH20#,213,22#200501-201402

main17177-0L011i2KDFTV..KDH212..STD200508-201401

main17177-30011i2KDFTV..KDH212..LHD..STD..GEN200501-201402

main17177-54021i5LE..LH212..10S200501-200810

17201TURBOCHARGER SUB-ASSY

main17201-0L060i1KDFTV..KDH203..TH201309-201401

sub17201-0L061

main17201-30070i2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN)200501-201205

main17201-30080i2KDFTV..KDH200,202,212;2KDFTV..KDH222..GCC,SA;2KDFTV..KDH222..LHD..GEN;2KDFTV..KDH220..SP..(GEN,SA)200501-201402

sub17201-0L100

main17201-30150i1KDFTV..KDH201,203,221,223200610-200904

sub17201-30180

main17201-30180i1KDFTV..KDH201,203,221,223200904-201008

sub17201-30181

main17201-30200i1KDFTV..KDH223..TH201008-201312

sub17201-30201

17230ACTUATOR ASSY, W/BRACKET

main17230-39065i2KDFTV..KDH222..RHD..GEN200501-201205

main17230-39105i2KDFTV..KDH222..RHD..GEN200501-201309

main17230-39105i2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN200501-200610

SOUTH AFRICA SPEC

17230BWASHER, PLATE(FOR REPAIR ACTUATOR SET)

main90201-06042i2KDFTV..KDH212,222..TH,VN200501-201309

T=0.5

main90201-06043i2KDFTV..KDH212..STD..SA200501-201309

T=1.0

main90201-06044i2KDFTV..KDH202..STD..TH;2KDFTV..KDH200..03S..4FC..GEN200501-201309

T=2.0

main90201-06045i2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,1200501-201309

T=3.0

17230CBOLT, W/WASHER(FOR REPAIR ACTUATOR SET)

main91551-80618i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200501-201205

main91551-80618i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200..06S..GCC200501-201309

CKD PACKAGE(THAILAND)

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-0L010i1KDFTV..KDH223..TH200508-201112

sub17278-08010

main17278-0L010i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112

(L)

sub17278-08010

main17278-67010i2KDFTV..KDH202..TH201112-201206

(J)

main17278-67010i2KDFTV..KDH202..TH201112-201206

WITHOUT(CKD PACKAGE),(J)

main17278-67010i1KDFTV..KDH223..TH200501-201310

17279GASKET, TURBINE OUTLET ELBOW

main17279-0L020i2KDFTV..KDH200..TH201112-201202

CKD PACKAGE(THAILAND),(L)

sub17279-0L021

main17279-0L020i2KDFTV..KDH212..STD200508-201112

sub17279-0L021

main17279-0L020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112-201202

(L)

sub17279-0L021

main17279-0L020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112-201202

WITHOUT(CKD PACKAGE),(L)

sub17279-0L021

main17279-0L021i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201202-201401

(L)

main17279-30020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112-201206

(J)

main17279-30020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112-201206

WITHOUT(CKD PACKAGE),(J)

main17279-30020i2KDFTV..KDH222..TH200501-201402

main17279-30030i1KDFTV..KDH201,203,221,223200610-201401

sub17279-30031

17291ELBOW, TURBINE OUTLET

main17291-30030i2KDFTV..KDH222..TH200501-201402

main17291-30120i1KDFTV..KDH201,203,221,223200610-201008

main17291-30170i1KDFTV..KDH201,203..LHD201110-201308

sub17291-30171

main17291-30171i1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S201308-201312

sub17291-30173

17293STAY, TURBOCHARGER

main17293-30030i2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA200501-201402

main17293-30060i1KDFTV..KDH201,203,221,223200610-201008

main17293-30100i1KDFTV..KDH223..TH201008-201312

main17293-30110i1KDFTV..KDH223..TH201309-201401

17294HOSE, ACTUATOR

main90445-12251i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200501-201205

main90445-12251i2KDFTV..KDH202..RHD..SRF..12S..GEN200501-201309

CKD PACKAGE(THAILAND)

17294ACLIP(FOR ACTUATOR HOSE)

main96132-51100i2KDFTV..KDH212,222..TH,VN200501-201205

main96132-51100i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200..06S..GCC200501-201309

CKD PACKAGE(THAILAND)

17860CONNECTOR ASSY, INTAKE AIR

main17860-30050i2KDFTV..KDH222..TH200501-201402

main17860-30090i1KDFTV..KDH201..SP..06S201008-201312

main17860-30110i1KDFTV..KDH203..TH201309-201401

main17861-30120i1KDFTV..KDH201,203..LHD201110-201312

17861FCONNECTOR, INTAKE AIR

main17862-30010i2KDFTV..KDH222..RHD..GEN200501-200709

main17862-30040i1KDFTV..KDH201..SP..06S201110

17861GGASKET, INTAKE AIR CONNECTOR

main25627-30040i1KDFTV..KDH201,203..LHD201008-201401

main26171-30013i2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,22#..ARL,GCC,GEN200501-200607

MALAYSIA SPEC

main26171-30013i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200501-201401

main26171-30030i1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223200607-201402

2501

8405

9010508426

main90105-08426

90105T0030

main90105-T0030

90105T0118

main90105-T0118

90105T0240

main90105-T0240

9011606048

main90116-06048

9011608160

main90116-08160

9011608260

main90116-08260

9011610175

main90116-10175

9011906748

main90119-06748

9011910778

main90119-10778

90119T0057

main90119-T0057

90177T0006

main90177-T0006

90177T0009

main90177-T0009

90178T0019

main90178-T0019

9017906298

main90179-06298

9017908040

main90179-08040

9017908101

main90179-08101

9017908229

main90179-08229

9017910070

main90179-10070

90182T0007

main90182-T0007

9020110109

main90201-10109

9033903005

main90339-03005

9034116021

main90341-16021

9043016010

main90430-16010

90560T0006

main90560-T0006

9099992002

main90999-92002

9151180822

main91511-80822

9155180814

main91551-80814

9167100816

main91671-00816

9212260825

main92122-60825

9212280814

main92122-80814

9418401041

main94184-01041

9613240700

main96132-40700

63 parts on this diagram · 9 diagrams in section
