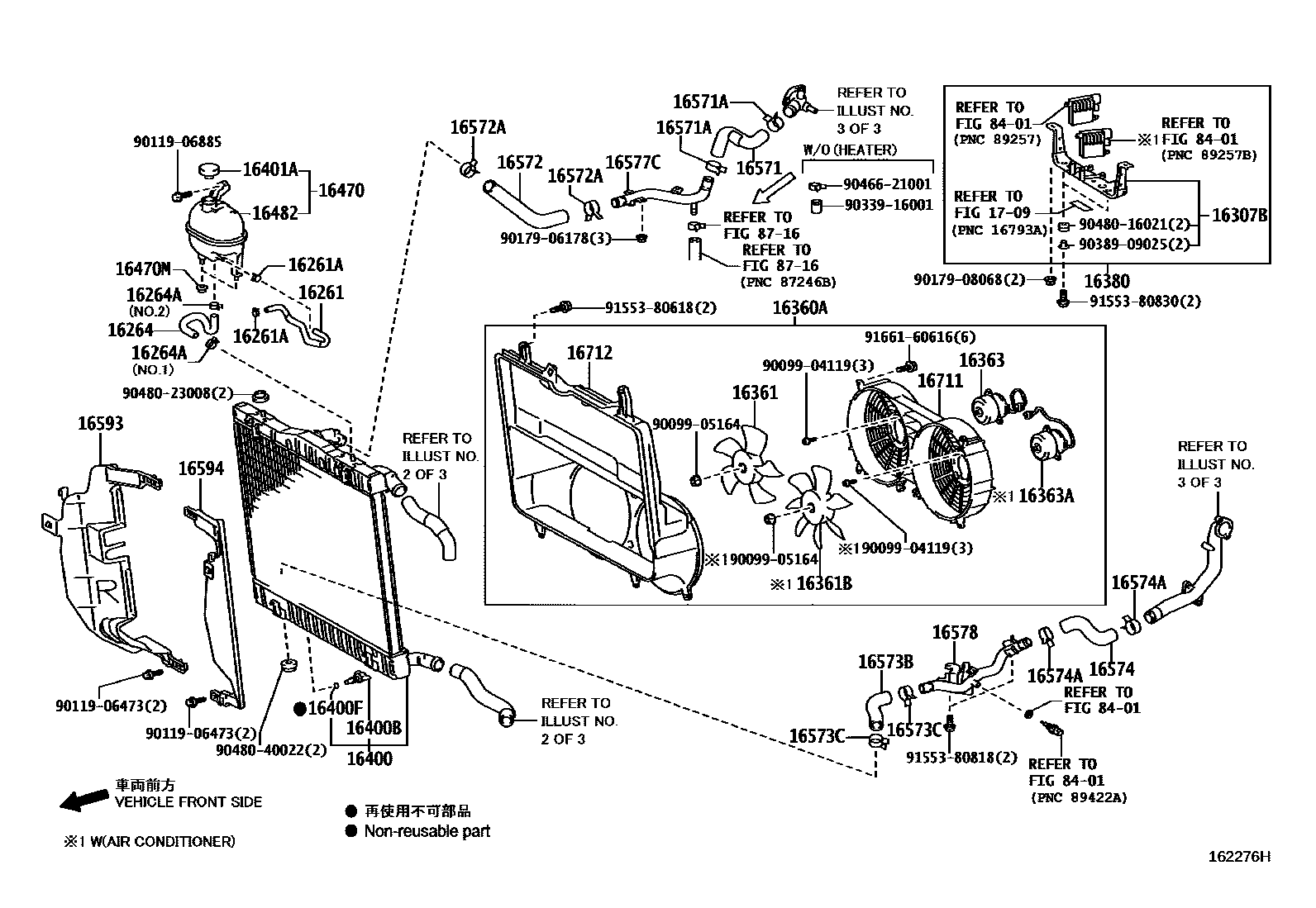

RADIATOR & WATER OUTLET

0001 1MAIN RADIATOR,W(INTERCOOLER) 0003 1MAIN RADIATOR,W(INTERCOOLER) 0004 1W(INTERCOOLER) 0005 1MAIN RADIATOR 0008 1MAIN RADIATOR 0009 1 0011 1 0012 1SUB RADIATOR 0013 1W(INTERCOOLER) 0015 1 0019 1 0020 1 0023 1 0025 1 0026 1W(INTERCOOLER) 0027 1W(INTERCOOLER) 0028 1MAIN RADIATOR 0029 1MAIN RADIATOR 0030 1 0031 1SUB RADIATOR 0032 1 0033 1W/O(AIR CONDITIONER) 0035 1W(AIR CONDITIONER) 0036 1 0037 1 0043 1 0045 1

16261HOSE, WATER BY-PASS

main16261-30170i1KDFTV..KDH201,203..LHD201008-201312

main16261-30250i2KDFTV..KDH222..LHD..GEN201205-201312

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

main16261-75150i1TRFE,2TRFE..TRH20#..RHD200501-201401

main16261-75160i2KDFTV..KDH200,202..LHD200501-201312

main16261-75170i1KDFTV,2KDFTV..KDH212,22#..RHD200501-201402

L=59

main16261-75180i2KDFTV..KDH212,220,222..LHD200501-201312

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96135-51300i1TRFE,2TRFE..TRH20#,213,22#200501-201402

16264HOSE, WATER BY-PASS, NO.2

main16264-75090i1TRFE,2TRFE..TRH20#..RHD200501-201401

main16264-75100i5LE..LH20#..LHD200501-201007

NO.1

sub16264-75101

main16264-75101i1KDFTV,2KDFTV..KDH20#..LHD201008

main16264-75101i2TRFE..TRH201,203..LHD201008-201312

NO.1

main16264-75110i5LE..LH212,222..RHD200501-201402

main16264-75120i2TRFE..TRH213,22#..LHD200501-201203

NO.1

sub16264-75121

main16264-75121i2TRFE..TRH213,22#..LHD201204-201312

NO.1

main16264-75121i2KDFTV..KDH222..LHD..GEN201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

main16264-75121i5LE..LH212,222..LHD201204

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-20011i1KDFTV,2KDFTV..KDH20#,212,22#200501-201402

NO.1

main90467-22011i5LE..LH20#,212,222200501-201009

NO.2

main96136-42501i1KDFTV,2KDFTV..KDH20#,212,22#201010-201402

NO.2

16307BBRACKET SUB-ASSY, FAN

main16307-30010i1KDFTV,2KDFTV..KDH20#,212,22#201008

main16307-75010i2TRFE..TRH223..ARL200501-200603

AIR CONDITIONER-WITHOUT

sub16307-75011

main16307-75011i2TRFE..TRH201..SP..03S;2TRFE..TRH203,213,221..03S,15S,16S;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA)200604-201402

main16307-75011i2TRFE..TRH223..TH200604-201309

AIR CONDITIONER-WITHOUT

main16307-75020i2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S200501-200603

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16307-75021

main16307-75020i2TRFE..TRH201..SP..06S;2TRFE..TRH203,213,223..(HRF,SMRF)..(09S,10S,11S,12S,13S,14S)200501-200603

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16307-75021

main16307-75020i2TRFE..TRH201..SP..06S;2TRFE..TRH203,213,223..(HRF,SMRF)..(09S,10S,11S,12S,13S,14S)200501-200603

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16307-75021

main16307-75021i1KDFTV,2KDFTV..KDH202,203..SRF..(GCC,GEN)200604-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main16307-75021i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200604-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main16307-75021i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200604-201312

AIR CONDITIONER-SINGLE AIR CONDITIONER

main16307-75021i2TRFE..TRH201..SP..06S;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,203..RHD..(06S,12S);2TRFE..TRH213,223..(09S,10S,11S,14S)..GL;2TRFE..TRH213,223..(12S,14S,16S)..(AR200604-201401

16360AFAN ASSY, W/MOTOR

main16360-75020i5LE..LH20#,212,222200501-200511

AIR CONDITIONER-WITHOUT

sub16360-75021

main16360-75021i2KDFTV..KDH222..ARL200512-201309

AIR CONDITIONER-WITHOUT

main16360-75021i2TRFE..TRH223..16S..GL200512-201402

main16360-75030i2TRFE..TRH203200501-200511

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16360-75031

main16360-75030i2TRFE..TRH203200501-200511

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16360-75031

main16360-75030i5LE..LH202200501-200511

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16360-75031

main16360-75031i5LE..LH200200512-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main16360-75031i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200512-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main16360-75031i5LE..LH200200512-201312

AIR CONDITIONER-SINGLE AIR CONDITIONER

main16360-75031i2TRFE..TRH201..SP..06S;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,203..RHD..(06S,12S);2TRFE..TRH213,223..(09S,10S,11S,14S)..GL;2TRFE..TRH213,223..(12S,14S,16S)..(AR200512-201401

16361FAN

main16361-30060i5LE..LH20#,212,222201008

main16361-75030i5LE..LH20#,212,222200501-201402

16361BFAN, NO.2

main16361-30050i2KDFTV..KDH212,222..STD..(GCC,GEN)201008-201311

AIR CONDITIONER-DUAL AIR CONDITIONER

main16361-30050i2KDFTV..KDH212,222..GL;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH202,203..RHD..12S;1KDFTV,2KDFTV..KDH200,212,223..ARL,MA,RUS,VN201008

AIR CONDITIONER-SINGLE AIR CONDITIONER

main16361-30050i2KDFTV..KDH212,222..GL;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH202,203..RHD..12S;1KDFTV,2KDFTV..KDH200,212,223..ARL,MA,RUS,VN201008

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main16361-30050i2KDFTV..KDH222..TH201212

main16361-75040i5LE..LH200200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main16361-75040i5LE..LH200200501-201312

AIR CONDITIONER-SINGLE AIR CONDITIONER

main16361-75040i1KDFTV,2KDFTV..KDH200,201..SG;1KDFTV,2KDFTV..KDH200,201,220,221..03S..(ARL,GCC,GEN,SA,TH)200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main16361-75040i2TRFE..TRH223..16S..5F..GL200501-201401

16363MOTOR, COOLING FAN

main16363-20390i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER,RH

sub16363-75020

main16363-20390i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200501-201008

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16363-75020

main16363-20390i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200501-201008

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16363-75020

main16363-20390i5LE..LH200200501-201008

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16363-75020

main16363-20390i2TRFE..TRH223..ARL200501-201309

AIR CONDITIONER-WITHOUT

sub16363-75020

main16363-20390i2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S200501-201312

AIR CONDITIONER-SINGLE AIR CONDITIONER,RH

sub16363-75020

main16363-20390i2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),RH

sub16363-75020

main16363-20390i2TRFE..TRH201..SP..06S;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,203..RHD..(06S,12S);2TRFE..TRH213,223..(09S,10S,11S,14S)..GL;2TRFE..TRH213,223..(12S,14S,16S)..(AR200501-201401

RH

sub16363-75020

main16363-20390i2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA)200501-201402

sub16363-75020

main16363-30040i5LE..LH20#,212,222201008-201104

sub16363-30041

main16363-30041i5LE..LH20#,212,222201105-201402

main16363-75030i2TRFE..TRH213,22#..SG..(03S,15S,16S)..STD..(GCC,GEN,SA)200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER,LH

sub16363-75040

main16363-75030i2TRFE..TRH213,22#..SG..(03S,15S,16S)..STD..(GCC,GEN,SA)200501-201312

AIR CONDITIONER-SINGLE AIR CONDITIONER,LH

sub16363-75040

main16363-75030i2TRFE..TRH213,22#..SG..(03S,15S,16S)..STD..(GCC,GEN,SA)200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),LH

sub16363-75040

main16363-75030i2TRFE..TRH201..SP..06S;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,203..RHD..(06S,12S);2TRFE..TRH213,223..(09S,10S,11S,14S)..GL;2TRFE..TRH213,223..(12S,14S,16S)..(AR200501-201401

LH

sub16363-75040

16363AMOTOR, COOLING FAN, NO.2

main16363-30040i5LE..LH200201008-201104

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16363-30041

main16363-30040i1KDFTV,2KDFTV..KDH20#,212,22#201008-201104

AIR CONDITIONER-WITHOUT

sub16363-30041

main16363-30040i1KDFTV,2KDFTV..KDH20#,212,22#201008-201104

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16363-30041

main16363-30040i1KDFTV,2KDFTV..KDH20#,212,22#201008-201104

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16363-30041

main16363-30041i1KDFTV..KDH223..ARL201105-201312

AIR CONDITIONER-SINGLE AIR CONDITIONER

main16363-30041i1KDFTV..KDH223..ARL201105-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main16363-30041i5LE..LH202201105-201312

AIR CONDITIONER-WITHOUT

main16363-30041i5LE..LH202201105-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main16363-30041i2KDFTV..KDH200,212,222..TH,VN201105-201205

main16363-75030i1KDFTV,2KDFTV..KDH200,201..SG;1KDFTV,2KDFTV..KDH200,201,220,221..03S..(ARL,GCC,GEN,SA,TH)200501-201008

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16363-75040

main16363-75030i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200501-201008

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16363-75040

main16363-75030i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,200501-201008

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16363-75040

16380BRACKET ASSY, FAN

main16380-75010i2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)200501-200603

AIR CONDITIONER-WITHOUT

sub16380-75011

main16380-75011i2KDFTV..KDH202..4FC;2KDFTV..KDH200..06S..GCC;2KDFTV..KDH202..RHD..SRF..12S..GEN200604-201205

sub16380-75012

main16380-75011i2KDFTV..KDH220;2KDFTV..KDH200..ARL;2KDFTV..KDH200..SG..GEN200604-200610

AIR CONDITIONER-WITHOUT

sub16380-75012

main16380-75012i2TRFE..TRH223..TH201212-201309

AIR CONDITIONER-WITHOUT

sub16380-75013

main16380-75012i2TRFE..TRH201..SP..03S;2TRFE..TRH203,213,221..03S,15S,16S;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA)201205-201402

sub16380-75013

main16380-75021i2KDFTV..KDH212,222..16S200501-200603

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16380-75022

main16380-75021i2KDFTV..KDH212,222..16S200501-200603

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16380-75022

main16380-75021i2KDFTV..KDH212,222..16S200501-200603

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16380-75022

main16380-75022i2TRFE..TRH223..16S..GL200604-201205

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16380-75023

main16380-75022i2KDFTV..KDH222..ARL;2KDFTV..KDH200..SP..06S200604-201205

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16380-75023

main16380-75022i2KDFTV..KDH202..MA;2KDFTV..KDH202..HRF200604-201205

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16380-75023

main16380-75022i2TRFE..TRH223..16S..5F..GL201008-201205

sub16380-75023

main16380-75023i2TRFE..TRH213,22#..SG..STD..(GCC,GEN)201205-201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16380-75024

main16380-75023i2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S201205-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16380-75024

main16380-75023i2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S201205-201312

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16380-75024

main16380-75023i2TRFE..TRH223..GL;2TRFE..TRH223..ARL;2TRFE..TRH201..SP..06S;1TRFE,2TRFE..TRH200,203,213..06S,10S,11S,12S201205-201401

sub16380-75024

16400RADIATOR ASSY

main16400-30160i1KDFTV,2KDFTV..KDH20#,212,22#..5F200501-200901

sub16400-30161

main16400-30161i1KDFTV,2KDFTV..KDH20#,212,22#..5F200902-201008

main16400-30162i1KDFTV,2KDFTV..KDH20#,212,22#..5F..(ARL,GCC,GEN,MA,SA,TH,VN)201008-201402

main16400-30170i1KDFTV,2KDFTV..KDH200,201,202,212,22#..4FC200501-200901

sub16400-30171

main16400-30171i1KDFTV,2KDFTV..KDH200,201,212,221,223..4FC200902-201008

main16400-30172i1KDFTV,2KDFTV..KDH201,212,221,223..4FC201008-201312

main16400-30260i1KDFTV..KDH223..RUS201205-201312

main16400-54A00i5LE..LH20#,212,222200501-200901

sub16400-54A01

main16400-54A01i5LE..LH20#,212,222200902-201008

main16400-75470i2TRFE..TRH213..GL..GEN200709-200901

MEXICO SPEC

sub16400-75471

main16400-75470i2TRFE..TRH213..GL..GEN200709-200901

VENEZUERA SPEC

sub16400-75471

main16400-75470i2TRFE..TRH213..10S..GEN200604-200709

VIETNAM SPEC

sub16400-75471

main16400-75470i2TRFE..TRH213,223..10S,12S200501-200901

sub16400-75471

main16400-75471i2TRFE..TRH213..GL..GEN200902-201008

MEXICO SPEC

main16400-75471i2TRFE..TRH213..GL..GEN200902-201008

VENEZUERA SPEC

main16400-75471i5LE..LH20#,212,222200902-201402

main16400-75480i2TRFE..TRH201,213,22#..RHD..4FC200501-200901

sub16400-75481

main16400-75481i1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC200902-201312

main16400-75530i2TRFE..TRH213,223..(10S,12S)..(CIS,GEN)200604-200903

CHINA(PRC) SPEC

sub16400-75531

main16400-75531i2TRFE..TRH223..5F..GL..GEN200904-201008

CHINA(PRC) SPEC

main16400-75531i2TRFE..TRH223..CIS200904-201312

main16400-75540i2TRFE..TRH223..4FC..GEN200604-200903

sub16400-75541

main16400-75541i2TRFE..TRH223..4FC..GEN200904-201008

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i1TRFE,2TRFE..TRH20#,213,22#200501-201402

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1KDFTV,2KDFTV..KDH20#,212,22#200501-201402

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-75120i2TRFE..TRH20#,213,22#200501-200803

sub16475-51010

main16475-37010i1KDFTV..KDH223..RUS201205

TYPE B:REFER ILLUST.

sub16475-28140

main16475-37010i1KDFTV..KDH223..RUS201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

sub16475-28140

main16475-37010i1TRFE,2TRFE..TRH20#,213,22#201205-201402

sub16475-28140

main16475-51010i2TRFE..TRH20#,213,22#200804-201205

TYPE A:REFER ILLUST.

sub16475-28140

16470TANK ASSY, RADIATOR RESERVE

main16470-75121i1KDFTV,2KDFTV..KDH20#,212,22#200501-201205

PNC 16401A=TYPE A

sub16470-75122

main16470-75122i2KDFTV..KDH222..LHD..GEN201205

PNC 16401A=TYPE B

sub16470-75123

main16470-75122i2KDFTV..KDH222..LHD..GEN201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

sub16470-75123

main16470-75122i1TRFE,2TRFE..TRH20#,213,22#201205-201402

sub16470-75123

16470MGROMMET

main90480-15023i1KDFTV,2KDFTV..KDH20#,212,22#200501-201402

16482TANK SUB-ASSY, RADIATOR RESERVE

main16480-75070i1KDFTV,2KDFTV..KDH20#,212,22#200501-201402

16571HOSE, RADIATOR, INLET

main16571-30070i1KDFTV,2KDFTV..KDH20#,212,22#200501

main16571-54640i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-41007i1KDFTV,2KDFTV..KDH20#,212,22#200501

main90467-37005i1TRFE,2TRFE..TRH20#,213,22#200501-201402

16572HOSE, RADIATOR, OUTLET

main16572-30060i2KDFTV..KDH20#,212;2KDFTV..KDH222..LHD200501-200609

SOUTH AFRICA SPEC

sub16058-30010

main16572-30061i2KDFTV..KDH222..RHD..GEN200610

main16572-75270i2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN)200501-201309

main16572-75270i2KDFTV..KDH222..LHD..GEN201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41007i1TRFE,2TRFE..TRH20#,213,22#200501-201402

16573BHOSE, RADIATOR, NO.3

main16573-30010i1KDFTV,2KDFTV..KDH20#200501

main16573-30020i2KDFTV..KDH222..LHD..GEN201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

main16573-30020i2KDFTV..KDH22#..5F..ARL200501-200610

SOUTH AFRICA SPEC

main16573-30020i1KDFTV,2KDFTV..KDH212,22#200501

main16573-75060i1TRFE,2TRFE..TRH20#200501-201401

main16573-75070i5LE..LH212..10S200501-201402

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-41007i5LE..LH212..10S200501-201402

16574HOSE, RADIATOR, NO.4

main16574-30010i1KDFTV,2KDFTV..KDH20#200501

main16574-30020i1KDFTV,2KDFTV..KDH212,22#200501

main16574-54020i5LE..LH20#200501

main16574-54030i5LE..LH212..10S200501-200810

main16574-75030i1TRFE,2TRFE..TRH20#200501-201401

main16574-75050i2TRFE..TRH213,22#200501-201402

16574ACLIP, RADIATOR HOSE, NO.4

main90466-41007i1KDFTV,2KDFTV..KDH20#,212,22#200501-200810

main90466-41007i1TRFE,2TRFE..TRH20#,213,22#200501-201402

NO.1

main90467-37005i1TRFE,2TRFE..TRH20#,213,22#200501-201402

NO.2

16577PIPE, RADIATOR, NO.7

main16577-30040i2KDFTV..KDH222..GCC,SA;2KDFTV..KDH222..LHD..GEN;1KDFTV,2KDFTV..KDH20#,212,220,221,223200610

16577CPIPE, RADIATOR

main16577-30020i2KDFTV..KDH22#..5F..ARL200501-200610

SOUTH AFRICA SPEC

main16577-30020i2KDFTV..KDH222..GCC,SA;2KDFTV..KDH222..LHD..GEN;2KDFTV..KDH220..SP..(GEN,SA);1KDFTV,2KDFTV..KDH20#,212,221,223200501-200709

main16577-30021i2KDFTV..KDH222..GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200709

main16577-30030i2KDFTV..KDH222..RHD..GEN200501-201309

main16577-30030i2KDFTV..KDH222..LHD..GEN201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

main16577-54260i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main16577-75040i1TRFE,2TRFE..TRH20#,213,22#200501-201402

16578PIPE, RADIATOR, NO.2

main16578-30010i1KDFTV,2KDFTV..KDH20#,212,22#200501-200612

sub16578-30011

main16578-30011i1KDFTV,2KDFTV..KDH20#,212,22#200701

main16578-54011i5LE..LH212..10S200501-201008

main16578-75011i5LE..LH20#,212,222200501-201402

16593GUIDE, RADIATOR AIR, NO.1

main16593-75010i2TRFE..TRH213,22#200501-201204

sub16593-75011

main16593-75011i5LE..LH212,222201205-201402

16594GUIDE, RADIATOR AIR, NO.2

main16594-75010i5LE..LH212,222200501-201402

16711SHROUD, FAN

main16711-30080i1KDFTV..KDH201..SG;1KDFTV,2KDFTV..KDH200,201,220,221..03S..(ARL,GCC,GEN,SA,TH)201008-201205

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16711-30081

main16711-30080i2KDFTV..KDH212,222..GL;1KDFTV..KDH201..SP..06S;2KDFTV..KDH202..RHD..12S;1KDFTV,2KDFTV..KDH200,212,223..ARL,MA,VN201008-201205

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16711-30081

main16711-30080i2KDFTV..KDH212,222..GL;1KDFTV..KDH201..SP..06S;2KDFTV..KDH202..RHD..12S;1KDFTV,2KDFTV..KDH200,212,223..ARL,MA,VN201008-201205

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16711-30081

main16711-30081i2KDFTV..KDH212,222..GL;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH202,203..RHD..12S;1KDFTV,2KDFTV..KDH200,223..ARL,MA,RUS201205-201311

AIR CONDITIONER-DUAL AIR CONDITIONER

sub16711-30082

main16711-30081i1KDFTV,2KDFTV..KDH202,203..SRF..STD201205

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

sub16711-30082

main16711-30081i1KDFTV,2KDFTV..KDH202,203..SRF..STD201205

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub16711-30082

main16711-30081i1KDFTV..KDH223..TH201212

sub16711-30082

main16711-30110i5LE..LH20#,212,222201008-201205

sub16711-30111

main16711-30111i5LE..LH20#,212,222201205-201311

sub16711-30112

main16711-30111i2KDFTV..KDH222..TH201212-201309

AIR CONDITIONER-WITHOUT

sub16711-30112

main16711-75230i2KDFTV..KDH212..GCC,VN;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH212,220..5D..(GEN,SA);2KDFTV..KDH200,202,222..MA,SA,TH;1KDFTV,2KDFTV..KDH201,203,212,221,223..RHD200501-201402

16712SHROUD, FAN, NO.2

main16712-75120i2KDFTV..KDH20#,212,22#200501-200512

sub16712-75121

main16712-75121i1KDFTV,2KDFTV..KDH20#,212,22#200512-201402

1709

8401

8716

9009904119

main90099-04119

9009905164

main90099-05164

9011906473

main90119-06473

9011906885

main90119-06885

9017906178

main90179-06178

9017908068

main90179-08068

9033916001

main90339-16001

9038909025

main90389-09025

9046621001

main90466-21001

9048016021

main90480-16021

9048023008

main90480-23008

9048040022

main90480-40022

9155380618

main91553-80618

9155380818

main91553-80818

9155380830

main91553-80830

9166160616

main91661-60616

52 parts on this diagram · 27 diagrams in section
