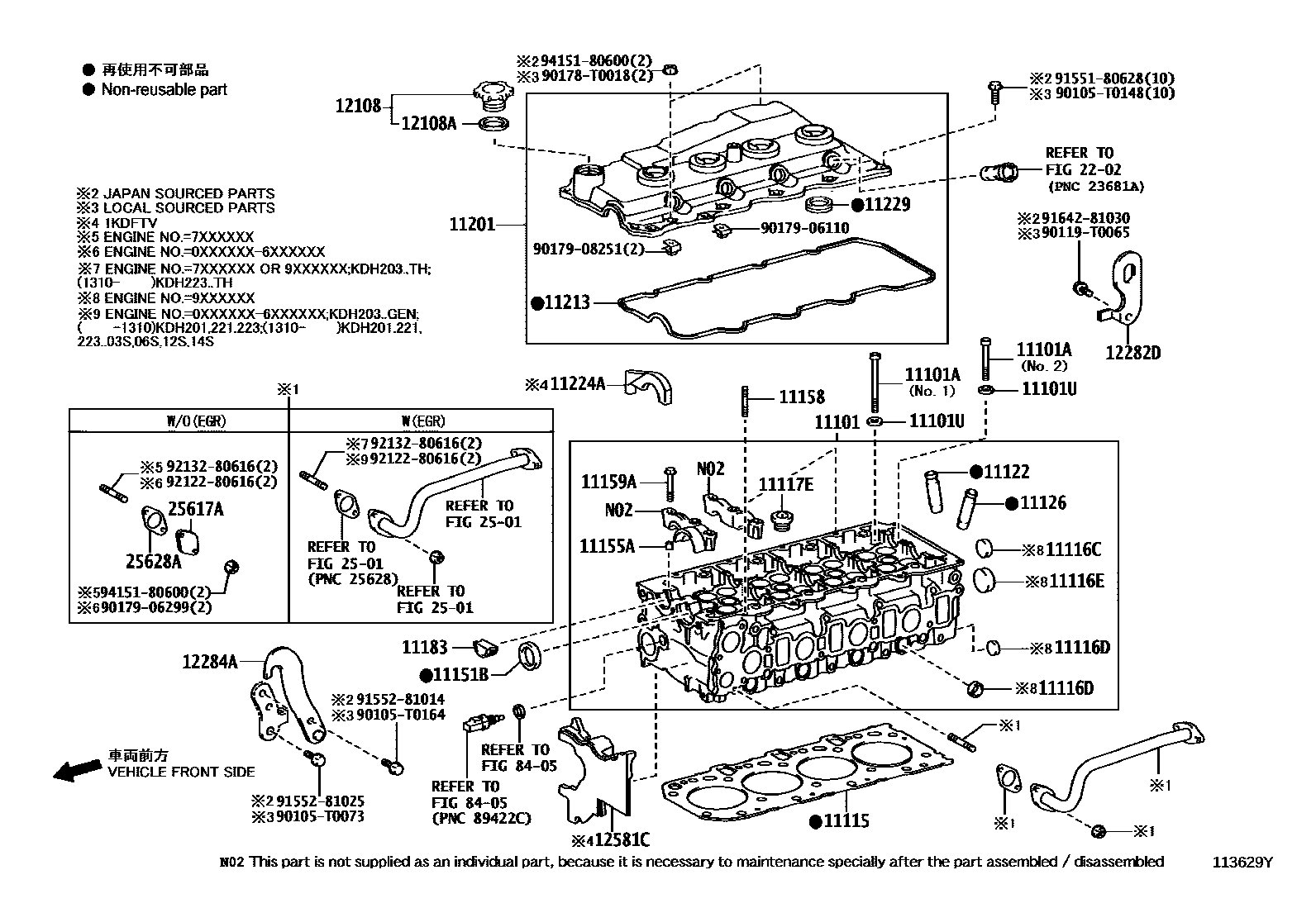

CYLINDER HEAD

0001 1 0005 1 0007 1 0008 1 0011 1 0013 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0C030i2TRFE..TRH213..STD200508-200512

sub11101-0C031

main11101-0C030i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200608-201401

(L)

sub11101-0C031

main11101-0C030i2TRFE..TRH203..HRF200508-200608

VIETNAM SPEC

sub11101-0C031

main11101-0L050i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200906

(L)

sub11101-0L051

main11101-0L050i2KDFTV..KDH212..STD200508-200906

sub11101-0L051

main11101-0L051i2KDFTV..KDH212,222..GCC,GEN,SA;2KDFTV..KDH200,202,220..STD..(GCC,GEN,SA,TH)201008-201402

CKD PACKAGE(SOUTH AFRICA),(L)

sub11101-30071¥85,700

main11101-0L051i2KDFTV..KDH220,222..STD..SA201008-201402

(L)

sub11101-30071¥85,700

main11101-0L051i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200906-201401

sub11101-30071¥85,700

main11101-0L060i1KDFTV..KDH223..TH201309-201401

sub11101-30081¥94,200

main11101-30051i1KDFTV..KDH201,203..LHD¥104,000201110-201312

sub11101-30081¥94,200

main11101-30060i2KDFTV..KDH212..LHD..STD..GEN¥136,000200501-200910

(J)

sub11101-30071¥85,700

main11101-30060i2KDFTV..KDH212..LHD..STD..GEN¥136,000200512-200910

VIETNAM SPEC,(J)

sub11101-30071¥85,700

main11101-30060i2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)¥136,000200501-200910

MALAYSIA SPEC,(J)

sub11101-30071¥85,700

main11101-30060i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)¥136,000200501-200910

CKD PACKAGE(MALAYSIA),(J)

sub11101-30071¥85,700

main11101-30060i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)¥136,000200501-200910

CKD PACKAGE(THAILAND),(J)

sub11101-30071¥85,700

main11101-30071i2KDFTV..KDH200..TH¥85,700200910-201008

CKD PACKAGE(THAILAND)

main11101-30071i2KDFTV..KDH222..TH¥85,700201008-201402

(J)

main11101-30071i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH¥85,700200910-201008

WITHOUT(CKD PACKAGE)

main11101-30071i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH¥85,700200910-201008

CKD PACKAGE(SOUTH AFRICA)

main11101-30090i1KDFTV..KDH201,203,221,223200610-201007

sub11101-30091

main11101-30091i1KDFTV..KDH201,203,221,223201007-201008

main11101-30101i1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)¥104,000201008-201312

sub11101-30081¥94,200

main11101-54150i5LE..LH20#,212,222..03S,12S,15S,16S¥84,800200501-200810

main11101-75150i2TRFE..TRH201,221..5D..03S..GEN¥169,000200501-200709

MEXICO SPEC,*271

sub11101-75151¥117,000

main11101-75150i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)¥169,000200501-200709

*271

sub11101-75151¥117,000

main11101-75150i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)¥169,000200501-200709

CHILI SPEC,*271

sub11101-75151¥117,000

main11101-75150i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)¥169,000200501-200709

VIETNAM SPEC,*271

sub11101-75151¥117,000

main11101-75150i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)¥169,000200501-200709

LPG CONVERSION PACKAGE,*271

sub11101-75151¥117,000

main11101-75150i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)¥169,000200501-200709

WITHOUT(IMMOBILIZER),*271

sub11101-75151¥117,000

main11101-75150i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)¥169,000200501-200709

VIETNAM SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,*271

sub11101-75151¥117,000

main11101-75160i1TRFE..TRH200¥141,000201308-201312

*271

sub11101-75161¥96,900

main11101-75170i2TRFE..TRH201,213..SG..GCC;2TRFE..TRH213..RHD..(10S,16S);2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(CIS,GCC,GEN,SA);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC¥169,000200501-200710

sub11101-75171¥117,000

main11101-75170i2TRFE..TRH213..LHD..STD..GEN¥169,000200512-200709

VIETNAM SPEC

sub11101-75171¥117,000

main11101-75180i2TRFE..TRH223..TH¥169,000200610-201401

sub11101-75181

main11101-75200i2TRFE..TRH213..VN;2TRFE..TRH203..HRF¥169,000200608-201401

(J)

sub11101-75201

main11101-75200i2TRFE..TRH213..RHD..(10S,16S);2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..5F..(GCC,GEN);2TRFE..TRH201,203..SR¥169,000200709-201401

sub11101-75201

main11101-75240i2TRFE..TRH213..LHD..STD..GEN¥169,000200709-201312

LPG CONVERSION PACKAGE,*272

sub11101-75241¥141,000

main11101-75240i2TRFE..TRH201,221..5D..03S..GEN¥169,000200709-201312

MEXICO SPEC,*272

sub11101-75241¥141,000

main11101-75240i2TRFE..TRH213..LHD..STD..GEN¥169,000200709-201312

PERU SPEC,*272

sub11101-75241¥141,000

main11101-75240i2TRFE..TRH213..LHD..STD..GEN¥169,000200709-201312

*272

sub11101-75241¥141,000

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02080i5LE..LH20#,212,222..03S,12S,15S,16S¥430200501-200810

NO.1,L=127

main90910-02081i5LE..LH20#,212,222..03S,12S,15S,16S¥380200501-200810

NO.2,L=107

main90910-02091i2TRFE..TRH20#,213,22#¥390200501-201303

sub90910-02187¥240

main90910-02145i2KDFTV..KDH222..TH¥410200501-201310

NO.2

main90910-02146i2KDFTV..KDH222..TH¥490200501-201310

NO.1

main90910-02187i1TRFE,2TRFE..TRH20#,213,22#¥240201303-201402

main90910-T2005i1KDFTV..KDH223..TH200508-200512

NO.2

main90910-T2006i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-200512

NO.1

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023i1KDFTV..KDH223..TH¥180200501-201310

main90560-T0005i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-200512

11115GASKET, CYLINDER HEAD

main11115-0C020i2TRFE..TRH213..STD200508-200712

sub11115-0C021

main11115-0C021i2TRFE..TRH203,213..MA,VN200712-201401

main11115-0C030i1TRFE..TRH200201308-201312

(L)

main11115-0L010-A0i2KDFTV..KDH212..STD200508-201201

MARK A,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-B0i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201201

MARK B,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-C0i2KDFTV..KDH212..STD200508-201201

MARK C,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-D0i2KDFTV..KDH212..STD200508-201201

MARK D,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-E0i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201201

MARK E,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L011-A0i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201201

MARK A,REFER REPAIR MANUAL

main11115-0L011-B0i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201201

MARK B,REFER REPAIR MANUAL

main11115-0L011-C0i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201201

MARK C,REFER REPAIR MANUAL

main11115-0L011-D0i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201201

MARK D,REFER REPAIR MANUAL

main11115-0L011-E0i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201201

MARK E,REFER REPAIR MANUAL

main11115-0L021-A0i1KDFTV..KDH203..TH201309

MARK A,REFER REPAIR MANUAL

main11115-0L021-B0i1KDFTV..KDH223..TH201309

MARK B,REFER REPAIR MANUAL

main11115-0L021-C0i1KDFTV..KDH223..TH201309

MARK C,REFER REPAIR MANUAL

main11115-0L021-D0i1KDFTV..KDH223..TH201309

MARK D,REFER REPAIR MANUAL

main11115-0L021-E0i1KDFTV..KDH223..TH201309

MARK E,REFER REPAIR MANUAL

main11115-30031-A0i1KDFTV..KDH201,203,221,223200610-201007

MARK A,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-B0i1KDFTV..KDH201,203,221,223200610-201007

MARK B,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-C0i1KDFTV..KDH201,203,221,223200610-201007

MARK C,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-D0i1KDFTV..KDH201,203,221,223200610-201007

MARK D,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-E0i1KDFTV..KDH201,203,221,223200610-201007

MARK E,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30032-A0i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S201007-201310

MARK A,REFER REPAIR MANUAL

main11115-30032-B0i1KDFTV..KDH223..TH201007-201310

MARK B,REFER REPAIR MANUAL

main11115-30032-C0i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S201007-201310

MARK C,REFER REPAIR MANUAL

main11115-30032-D0i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S201007-201310

MARK D,REFER REPAIR MANUAL

main11115-30032-E0i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S201007-201310

MARK E,REFER REPAIR MANUAL

main11115-30040-A0i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200702

CKD PACKAGE(THAILAND),MARK A,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-A0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

CKD PACKAGE(MALAYSIA),MARK A,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-A0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

MALAYSIA SPEC,MARK A,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-A0i2KDFTV..KDH212..LHD..STD..GEN200501-200702

MARK A,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-A0i2KDFTV..KDH212..LHD..STD..GEN200512-200702

VIETNAM SPEC,MARK A,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-B0i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200702

CKD PACKAGE(THAILAND),MARK B,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-B0i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200702

MARK B,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-B0i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200702

MALAYSIA SPEC,MARK B,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-B0i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200702

CKD PACKAGE(MALAYSIA),MARK B,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-B0i2KDFTV..KDH212..LHD..STD..GEN200512-200702

VIETNAM SPEC,MARK B,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-C0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

MARK C,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-C0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

MALAYSIA SPEC,MARK C,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-C0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

CKD PACKAGE(MALAYSIA),MARK C,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-C0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

CKD PACKAGE(THAILAND),MARK C,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-C0i2KDFTV..KDH212..LHD..STD..GEN200512-200702

VIETNAM SPEC,MARK C,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-D0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

MARK D,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-D0i2KDFTV..KDH212..LHD..STD..GEN200512-200702

VIETNAM SPEC,MARK D,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-D0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

CKD PACKAGE(THAILAND),MARK D,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-D0i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200702

CKD PACKAGE(MALAYSIA),MARK D,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-D0i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200702

MALAYSIA SPEC,MARK D,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-E0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

MALAYSIA SPEC,MARK E,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-E0i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200702

CKD PACKAGE(THAILAND),MARK E,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-E0i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200702

MARK E,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-E0i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200702

CKD PACKAGE(MALAYSIA),MARK E,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-E0i2KDFTV..KDH212..LHD..STD..GEN200512-200702

VIETNAM SPEC,MARK E,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30041-A0i2KDFTV..KDH222..GCC,GEN,SA;2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,220..GCC,GEN,SA,TH200702-201205

MARKA,REFER REPAIR MANUAL

main11115-30041-B0i2KDFTV..KDH222..GCC,GEN,SA;2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,220..GCC,GEN,SA,TH200702-201205

MARKB,REFER REPAIR MANUAL

main11115-30041-C0i2KDFTV..KDH222..TH200702-201205

MARKC,REFER REPAIR MANUAL

main11115-30041-D0i2KDFTV..KDH222..GCC,GEN,SA;2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,220..GCC,GEN,SA,TH200702-201205

MARKD,REFER REPAIR MANUAL

main11115-30041-E0i2KDFTV..KDH222..TH200702-201205

MARKE,REFER REPAIR MANUAL

main11115-54130-B0i5LE..LH212..10S200501-200810

MARK B

sub11115-54130¥6,700

main11115-54130-D0i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

MARK D

sub11115-54130¥6,700

main11115-54130-F0i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

MARK F

sub11115-54130¥6,700

main11115-75050i2TRFE..TRH213..LHD..STD..GEN¥10,100200501-200710

VIETNAM SPEC

sub11115-75051¥10,100

main11115-75051i2TRFE..TRH201,203,213,22#..ARL,CIS,GCC,GEN,SA,TH¥10,100200710-201402

sub11115-75052¥6,300

main11115-75070i1TRFE..TRH200¥4,380201308-201312

(J)

11116CPLUG, TIGHT, NO.3

main90331-T0004i2KDFTV..KDH202..MA;2KDFTV..KDH202..HRF200508-201309

main90331-T0004i2KDFTV..KDH200..TH201008-201309

CKD PACKAGE(THAILAND)

main90331-T0004i2KDFTV..KDH220,222..STD..SA201008

CKD PACKAGE(SOUTH AFRICA)

main96411-63000i5LE..LH20#,212,222..03S,12S,15S,16S¥210200501-200810

11116DPLUG, TIGHT, NO.4

main90331-T0003i2KDFTV..KDH200..TH201008-201309

CKD PACKAGE(THAILAND)

main90331-T0003i2KDFTV..KDH212..STD200508-201309

main90331-T0003i2KDFTV..KDH222..GL;2KDFTV..KDH222..STD..(GCC,GEN);2KDFTV..KDH200,202,212,220..GCC,GEN,SA201008

CKD PACKAGE(SOUTH AFRICA)

main96411-64500i5LE..LH212..10S¥280200501-200810

11116EPLUG, TIGHT, NO.5

main90331-T0005i2KDFTV..KDH212..VN200508-201309

main90331-T0005i2KDFTV..KDH200..TH201008-201309

CKD PACKAGE(THAILAND)

main90331-T0005i2KDFTV..KDH222..GL;2KDFTV..KDH222..STD..(GCC,GEN);2KDFTV..KDH200,202,212,220..GCC,GEN,SA201008

CKD PACKAGE(SOUTH AFRICA)

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015i2KDFTV..KDH222..GL;2KDFTV..KDH212..GCC,GEN,SA;2KDFTV..KDH222..STD..(GCC,GEN);2KDFTV..KDH200,202,220..STD..(GCC,GEN,SA,TH)¥120200501-201402

(J)

main90341-14015i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).¥120200501-200910

CKD PACKAGE(MALAYSIA),(J)

main90341-14015i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).¥120200501-200910

CKD PACKAGE(THAILAND),(J)

main90341-14015i2KDFTV..KDH212..LHD..STD..GEN¥120200512-200910

VIETNAM SPEC,(J)

main90341-14015i2KDFTV..KDH202,212,220..GCC,GEN,SA;2KDFTV..KDH200,222..5F..(GCC,GEN,SA,TH)¥120200910-201008

CKD PACKAGE(THAILAND)

main90341-14015i2KDFTV..KDH202,212,220..GCC,GEN,SA;2KDFTV..KDH200,222..5F..(GCC,GEN,SA,TH)¥120200910-201008

WITHOUT(CKD PACKAGE)

main90341-14015i2KDFTV..KDH202,212,220..GCC,GEN,SA;2KDFTV..KDH200,222..5F..(GCC,GEN,SA,TH)¥120200910-201008

CKD PACKAGE(SOUTH AFRICA)

main90341-14015i1KDFTV..KDH223..TH¥120200610-201312

main90341-20002i1TRFE,2TRFE..TRH20#,213,22#¥180200501-201402

main90341-T0005i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200906

MALAYSIA SPEC,(L)

main90341-T0005i2KDFTV..KDH212..LHD..STD..GEN200501-201402

(L)

main90341-T0005i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main90341-T0005i2KDFTV..KDH222..GL;2KDFTV..KDH212..GCC,GEN,SA;2KDFTV..KDH222..STD..(GCC,GEN);2KDFTV..KDH200,202,220..STD..(GCC,GEN,SA,TH)201008-201402

CKD PACKAGE(SOUTH AFRICA),(L)

11122BUSH, INTAKE VALVE GUIDE

main11122-30020i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223¥550200501-201205

O/S 0.05

main11122-54020i5LE..LH212..10S¥550200501-200810

STD

sub11122-17020¥550

main11122-75020i1TRFE,2TRFE..TRH20#,213,22#¥550200501-201402

STD

main11123-30020i2KDFTV..KDH222..TH¥550200501-201205

STD

main11123-54020i5LE..LH20#,212,222..03S,12S,15S,16S¥550200501-200810

O/S 0.05

sub11123-17020¥550

main11123-75020i1TRFE,2TRFE..TRH20#,213,22#¥550200501-201402

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223¥550200501-201205

O/S 0.05

main11122-54020i5LE..LH20#,212,222..03S,12S,15S,16S¥550200501-200810

STD

sub11122-17020¥550

main11122-75020i1TRFE,2TRFE..TRH20#,213,22#¥550200501-201402

STD

main11123-30020i2KDFTV..KDH222..TH¥550200501-201205

STD

main11123-54020i5LE..LH212..10S¥550200501-200810

O/S 0.05

sub11123-17020¥550

main11123-75020i1TRFE,2TRFE..TRH20#,213,22#¥550200501-201402

O/S 0.05

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90080-31097i1KDFTV..KDH223..TH200508-201401

main90311-32019i2KDFTV..KDH222..TH¥350200501-201402

main90311-32025i1KDFTV..KDH223..TH¥350201008-201310

11155APIN, RING W/HEAD

main90253-10004i2KDFTV..KDH202..TH¥120200910-201008

CKD PACKAGE(THAILAND)

main90253-10004i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).¥120200501-201402

(J)

main90253-10004i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).¥120200501-200910

CKD PACKAGE(MALAYSIA),(J)

main90253-10004i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).¥120200501-200910

CKD PACKAGE(THAILAND),(J)

main90253-10004i2KDFTV..KDH212..LHD..STD..GEN¥120200512-200910

VIETNAM SPEC,(J)

main90253-10004i2KDFTV..KDH202,212,220..GCC,GEN,SA;2KDFTV..KDH200,222..5F..(GCC,GEN,SA,TH)¥120200910-201008

WITHOUT(CKD PACKAGE)

main90253-10004i2KDFTV..KDH202,212,220..GCC,GEN,SA;2KDFTV..KDH200,222..5F..(GCC,GEN,SA,TH)¥120200910-201008

CKD PACKAGE(SOUTH AFRICA)

main90253-10004i1KDFTV..KDH223..TH¥120200610-201312

main90253-T0001i2KDFTV..KDH222..TH200501-201402

(L)

main90253-T0001i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).200501-200906

MALAYSIA SPEC,(L)

main90253-T0001i2KDFTV..KDH222..GL;2KDFTV..KDH212..GCC,GEN,SA;2KDFTV..KDH222..STD..(GCC,GEN);2KDFTV..KDH200,202,220..STD..(GCC,GEN,SA,TH)201008-201402

CKD PACKAGE(SOUTH AFRICA),(L)

main90253-T0001i2KDFTV..KDH212..STD200508-201401

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06149i2KDFTV..KDH222..TH¥90200501-201205

S=9 & 16,L=37

main92122-80616i5LE..LH20#,212,222..03S,12S,15S,16S¥80200501-200810

S=9 & 9,L=25

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i5LE..LH20#,212,222..03S,12S,15S,16S¥90200501-200810

main90119-07011i2KDFTV..KDH222..TH¥90200501-201402

main90119-07013i1TRFE,2TRFE..TRH20#,213,22#¥100200501-201402

11183PLUG, SEMICIRCULAR

main11183-0L010i1KDFTV..KDH223..TH¥490201201-201401

(L)

main11183-0L010i2KDFTV..KDH212..STD¥490200508-201201

main11183-54020i5LE..LH20#,212,222..03S,12S,15S,16S¥430200501-200810

main11183-67020i1KDFTV,2KDFTV..KDH203,212..TH,VN¥490201201-201401

(J)

main11183-67020i2KDFTV..KDH222..TH¥490200501-201402

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0C010i2TRFE..TRH213..STD200508-201009

sub11201-0C011

main11201-0C011i2TRFE..TRH203,213..MA,VN201009-201401

sub11201-0C012

main11201-75051i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)¥15,500200501-200908

VIETNAM SPEC

sub11201-75052¥15,500

main11201-75052i2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH¥15,500200908-201108

sub11201-75053¥15,500

main11201-75053i2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH¥15,500201108-201203

sub11201-75054¥15,500

main11201-75054i1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH¥15,500201203-201310

sub11201-75055¥9,800

main11201-75055i1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH¥9,800201310-201402

main11210-30081i2KDFTV..KDH200..RHD..4D..5F..GEN¥18,000200501-200906

MALAYSIA SPEC

sub11210-30082¥14,900

main11210-30082i1KDFTV..KDH201,203..LHD¥14,900200906-201402

sub11210-30083¥11,300

main11210-30140i1KDFTV..KDH201..SP..06S¥11,300201110-201312

main11210-54051i5LE..LH212..10S¥8,500200501-200810

11213GASKET, CYLINDER HEAD COVER

main11213-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF¥1,950200508-201401

sub11213-0C011

main11213-30020i2KDFTV..KDH200..RHD..4D..5F..GEN¥1,450200501-200906

MALAYSIA SPEC

sub11213-30021¥900

main11213-30021i1KDFTV..KDH201,203..LHD¥900200906-201402

main11213-30040i1KDFTV..KDH201,203..LHD¥1,000201110-201312

main11213-54050i5LE..LH20#,212,222..03S,12S,15S,16S¥1,470200501-200810

main11213-75040i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)¥1,610200501-200808

VIETNAM SPEC

sub11213-75041¥1,010

main11213-75041i1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH¥1,010200808-201402

11224ASILENCER, CYLINDER HEAD COVER, NO.1

main11224-30010i1KDFTV..KDH201,203,221,223¥650200610-200911

sub11224-30020¥540

main11224-30020i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S¥540200911-201310

main11224-30030i1KDFTV..KDH203..TH201309-201401

11229GASKET, CYLINDER HEAD COVER, NO.3

main23682-30020i1KDFTV..KDH201,203..LHD¥490200501-201402

main23682-30040i1KDFTV..KDH201..SP..06S¥940201110-201312

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

main12180-21010i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)¥1,020200501-200701

VIETNAM SPEC

main12180-21010i2TRFE..TRH213..LHD..STD..GEN¥1,020200512-200612

main12180-28010i2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#..ARL,CIS,GCC,GEN,SA,TH¥640200701-200910

main12180-38010i1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH¥640200911-201402

main12180-55010i2KDFTV..KDH222..TH¥630200501-201205

main12180-73011i5LE..LH20#,212,222..03S,12S,15S,16S¥650200501-200810

12108AGASKET(FOR OIL FILLER CAP)

main12195-73010i5LE..LH20#,212,222..03S,12S,15S,16S¥310200501-200810

main90080-43027i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

(L)

main90430-35001i1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH¥120200911-201402

main90430-37004i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223¥130200501-201205

main90430-37140i2TRFE..TRH213..10S..GEN¥210200501-200701

VIETNAM SPEC

12282DHANGER, ENGINE, NO.2

main12281-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

main12281-75050i2TRFE..TRH213..LHD..STD..GEN¥1,170200501-201402

main12282-54060i5LE..LH20#,212,222..03S,12S,15S,16S¥1,320200501-200810

main12282-67030i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,20¥3,710200501-201401

12284AHANGER, ENGINE, NO.1 UPPER

main12284-30020i2KDFTV..KDH202..TH;2KDFTV..KDH202..HRF..MA;2KDFTV..KDH200,212..MA,VN¥1,550200501-201205

main12284-30060i2KDFTV..KDH200..TH200909-200911

WITHOUT(CKD PACKAGE)

main12284-30060i2KDFTV..KDH202..TH200909-200911

CKD PACKAGE(THAILAND)

12581CINSULATOR, CYLINDER BLOCK

main12581-0L010i1KDFTV..KDH203..TH201309-201401

main12581-30010i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S¥1,700200610-201310

2501

25617APLATE, EGR HOLE COVER, NO.2

main25617-30010i2KDFTV..KDH200..06S..GCC¥1,180200501-200709

25628AGASKET, EGR HOLE COVER PLATE, NO.2

main25628-30010i2KDFTV..KDH200..RHD..4D..5F..GEN¥320200501-200910

THAILAND SPEC&CKD PACKAGE(THAILAND)

main25628-30010i2KDFTV..KDH212..LHD..STD..GEN¥320200512-200910

VIETNAM SPEC

main25628-30010i2KDFTV..KDH200..RHD..4D..5F..GEN¥320200501-200910

MALAYSIA SPEC&CKD PACKAGE(MALAYSIA)

main25628-30010i2KDFTV..KDH200..RHD..4D..5F..GEN¥320200501-200910

MALAYSIA SPEC

main25628-30010i2KDFTV..KDH200..06S..GCC¥320200501-200910

main25628-30020i2KDFTV..KDH200,202,212,220,222..(03S,12S,15S,16S)..5F..(GCC,GEN)¥250200910

8405

90105T0073

main90105-T0073

90105T0148

main90105-T0148

90105T0164

main90105-T0164

90119T0065

main90119-T0065

90178T0018

main90178-T0018¥70

9017906110

main90179-06110¥90

9017906299

main90179-06299¥70

9017908251

main90179-08251¥190

9155180628

main91551-80628¥60

9155281014

main91552-81014¥80

9155281025

main91552-81025¥100

9164281030

main91642-81030¥170

9212280616

main92122-80616¥80

9213280616

main92132-80616¥80

9415180600

main94151-80600¥60

43 parts on this diagram · 6 diagrams in section
