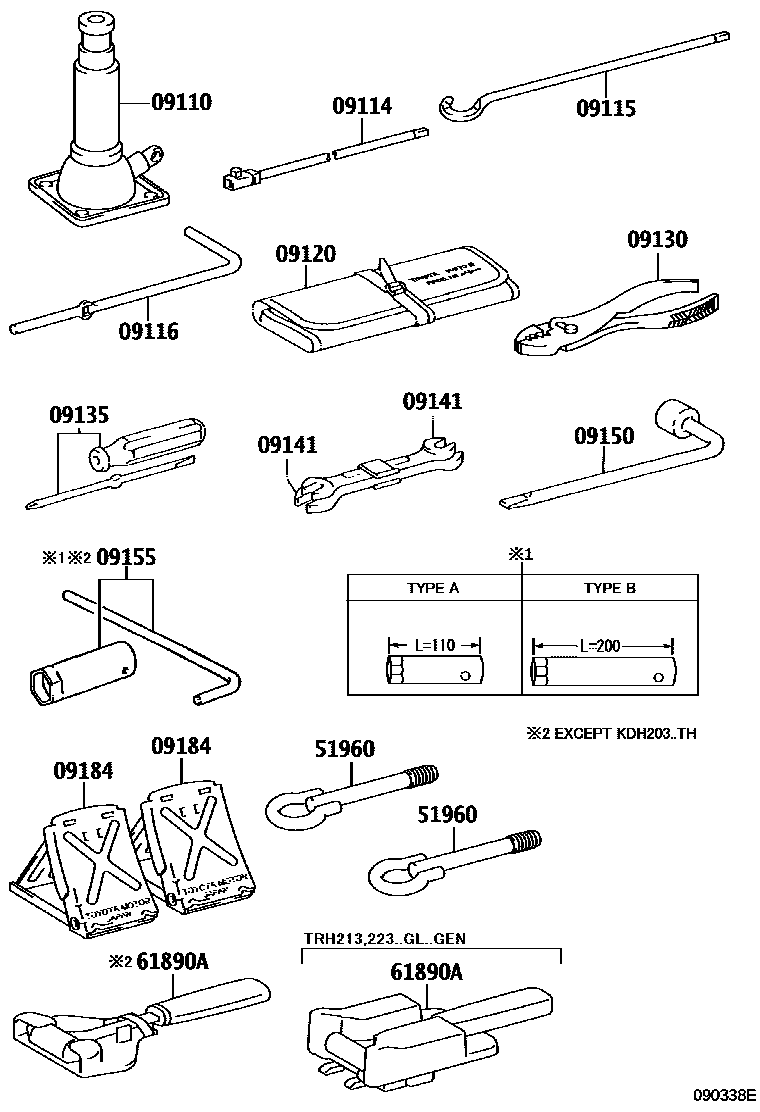

STANDARD TOOL
09114EXTENSION SUB-ASSY, JACK HANDLE
09115ROD SUB-ASSY, JACK HANDLE
09116LEVER, JACK HANDLE
09120BAG, TOOL
09130PLIERS
main99913-11500iTRH201..SP..03S;KDH200,201,222,223,TRH201,223..SG..(CIS,GCC,GEN,RUS,SA,TH);KDH20#,212,220,221,LH20#,212,222,TRH203,213,221..03S,09S,10S,11S,12S,14S,15S,16S200501-201402
09135DRIVER, SCREW
main99915-10700iTRH201..SP..03S;KDH200,201,222,223,TRH201,223..SG..(CIS,GCC,GEN,RUS,SA,TH);KDH20#,212,220,221,LH20#,212,222,TRH203,213,221..03S,09S,10S,11S,12S,14S,15S,16S200501-201402
09141SPANNER
main99914-10810iTRH201..SP..03S;KDH200,201,222,223,TRH201,223..SG..(CIS,GCC,GEN,RUS,SA,TH);KDH20#,212,220,221,LH20#,212,222,TRH203,213,221..03S,09S,10S,11S,12S,14S,15S,16S200501-201402
8 X 10
main99914-11214iTRH201..SP..03S;KDH200,201,222,223,TRH201,223..SG..(CIS,GCC,GEN,RUS,SA,TH);KDH20#,212,220,221,LH20#,212,222,TRH203,213,221..03S,09S,10S,11S,12S,14S,15S,16S200501-201402
12 X 14
09150WRENCH, HUB NUT BOX
09155WRENCH, SPARK PLUG
main09155-41010iTRH221..SP..GEN;TRH223..5F..GEN;TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200501-201205
TYPE A:REFER ILLUST.
main09155-74010iTRH221..SP..GEN;TRH223..5F..GEN;TRH201,203,213..(SMRF,SRF)..(03S,15S,16S)..GEN201205-201312
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
VIETNAM SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE B:REFER ILLUST.
CENTRAL AMERICA(4COUNTRY) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE B:REFER ILLUST.
PERU SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3,TYPE B:REFER ILLUST.
VENEZUERA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE B:REFER ILLUST.
MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5,TYPE B:REFER ILLUST.
NIGERIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE B:REFER ILLUST.
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5,TYPE B:REFER ILLUST.
09184STOPPER, WHEEL
61890AHAMMER ASSY, BACK WINDOW GLASS
REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)
MEXICO SPEC
VENEZUERA SPEC
VENEZUERA SPEC
MEXICO SPEC
REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)
CHINA(PRC) SPEC
13 parts on this diagram · 1 diagram in section
