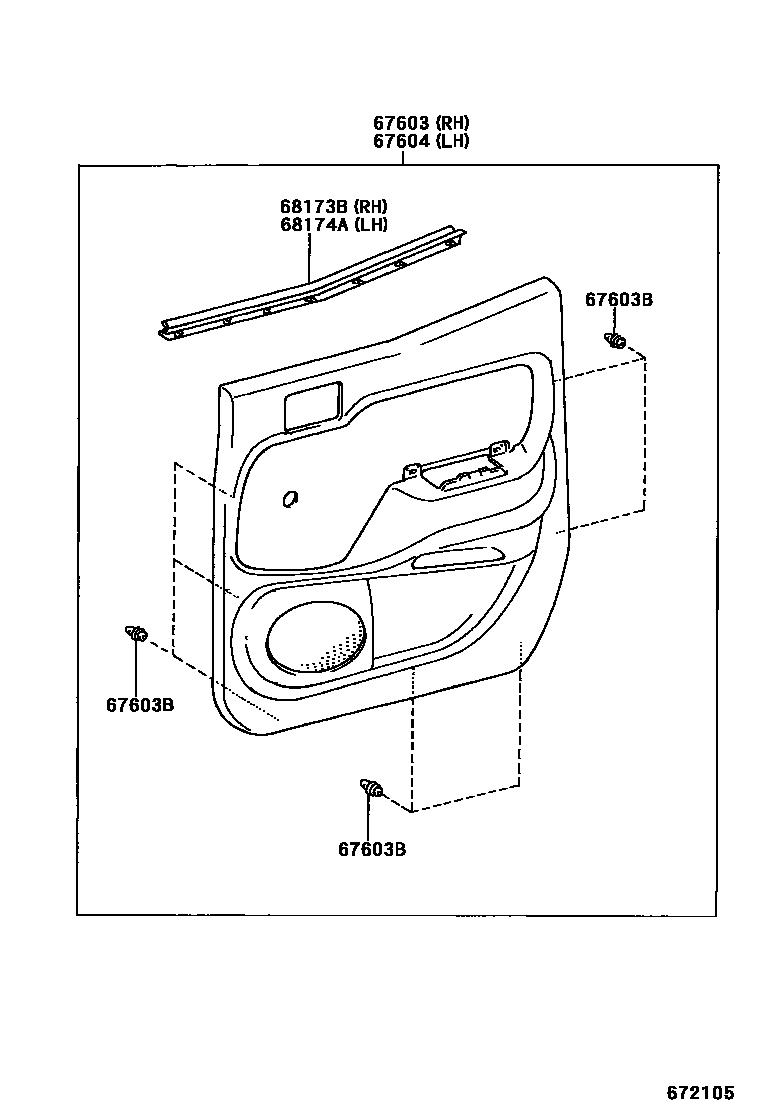

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-04010-B1iRZN196,VZN195..DCB200009-200409

DK.CHARCOAL,TRIM1#

main67630-04010-E1iRZN196,VZN195..DCB200009-200409

OAK,TRIM4#

main67630-04020-B1iRZN196,VZN195..DCB200009-200409

W(POWER WINDOW),DK.CHARCOAL,TRIM1#

main67630-04020-E1iRZN196,VZN195..DCB200009-200409

W(POWER WINDOW),OAK,TRIM4#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90080-46313iRZN196,VZN195..DCB200009

sub90467-09206

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-04010-B1iRZN196,VZN195..DCB200009-200409

DK.CHARCOAL,TRIM1#

main67640-04010-E1iRZN196,VZN195..DCB200009-200409

OAK,TRIM4#

main67640-04020-B1iRZN196,VZN195..DCB200009-200409

W(POWER WINDOW),DK.CHARCOAL,TRIM1#

main67640-04020-E1iRZN196,VZN195..DCB200009-200409

W(POWER WINDOW),OAK,TRIM4#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-35030iRZN196,VZN195..DCB200009-200409

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-35020iRZN196,VZN195..DCB200009-200409

5 parts on this diagram · 2 diagrams in section
