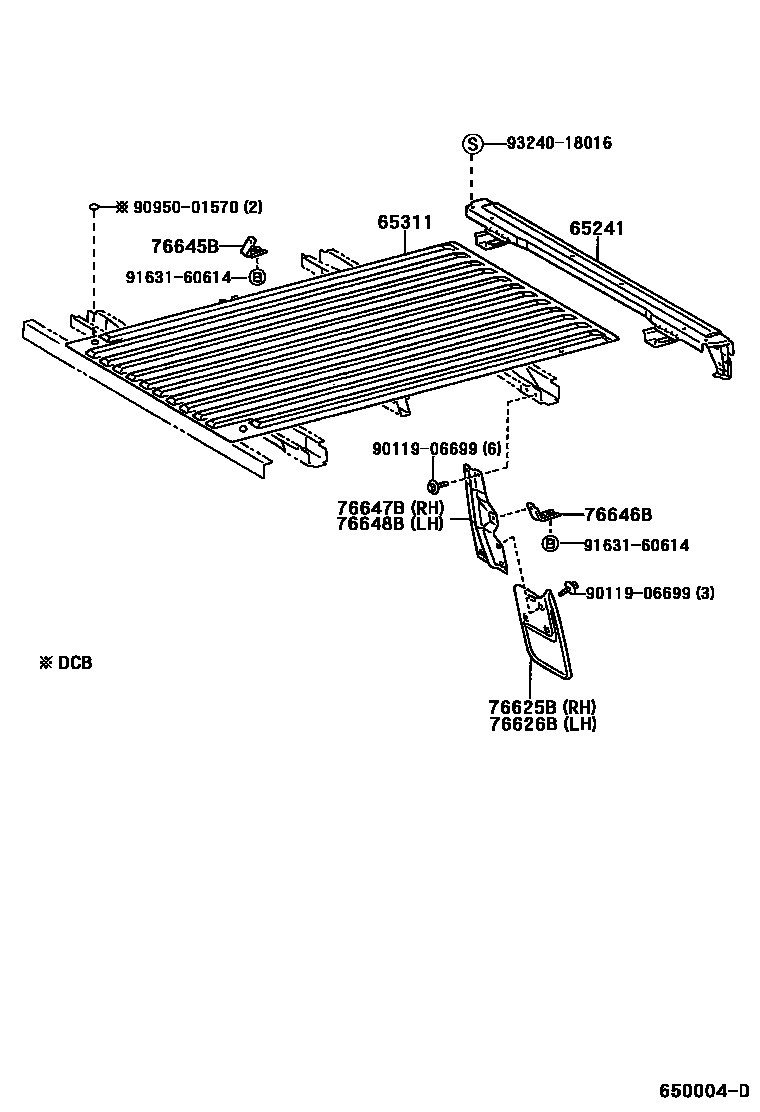

REAR BODY FLOOR & FENDER

65241SILL, REAR CROSS

main65240-04040iRZN140,150,19#,VZN150,195199501-200009

main65240-04090iRZN196,VZN195..DCB200009

main65240-04130iRZN140,150,19#,VZN150,195..RCB,XTR200009-200309

W(STEP SIDE DECK)

main65240-YY010iRZN140,150,19#,VZN150,195199912-200009

W(STEP SIDE DECK)

sub65240-04130

65311PANEL, FLOOR, CENTER

main65311-04020iRZN140,150,19#,VZN150,195..RCB,XTR199501-200009

main65311-04070iRZN196,VZN195..DCB200009

76625BMUDGUARD, REAR BODY, RH

main76625-04020iRZN140,150,VZN150199501-200009

main76625-04050iRZN19#,VZN195199802-200009

main76625-04060iRZN191200009-200309

W(STEP SIDE DECK)

main76625-04060iRZN196,VZN195..XTR199802-200309

OFF ROAD PACKAGE

main76625-04080iRZN19#,VZN195200009

W(OVER FENDER)

76626BMUDGUARD, REAR BODY, LH

main76626-04020iRZN140,150,VZN150199501-200009

main76626-04050iRZN19#,VZN195199802-200009

main76626-04060iRZN196,VZN195..XTR200009-200309

W(STEP SIDE DECK)

main76626-04060iRZN196,VZN195199802-200309

OFF ROAD PACKAGE

main76626-04080iRZN19#,VZN195200009

W(OVER FENDER)

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-04010iRZN140,150,19#,VZN150,195199501-200409

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-04010iRZN140,150,19#,VZN150,195199501-200409

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-04030iRZN140,150,VZN150199501-200009

main76647-04040iRZN19#,VZN195199802-200009

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-04030iRZN140,150,VZN150199501-200009

main76648-04040iRZN19#,VZN195199802-200009

9011906699

main90119-06699

9095001570

main90950-01570

9163160614

main91631-60614

9324018016

main93240-18016

12 parts on this diagram · 1 diagram in section
