INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-04030-B0iRZN140,150,VZN150199501-199706

BLUISH GRAY,TRIM1#

main62111-04030-B1iRZN140,150,19#,VZN150,195199706-200009

MD.MOON MIST,TRIM1#

main62111-04030-B2iRZN140,150,19#,VZN150,195200009-200409

MD.CHARCOAL,TRIM1#

main62111-04030-E0iRZN140,150,19#,VZN150,195199501-200009

OAK,TRIM4#

main62111-04030-E1iRZN140,150,19#,VZN150,195200009-200409

MD.OAK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-04030-B0iRZN140,150,VZN150199501-199706

BLUISH GRAY,TRIM1#

sub62112-04050

main62112-04030-B1iRZN140,150,19#,VZN150,195199706-200009

MD.MOON MIST,TRIM1#

sub62112-04050

main62112-04030-B2iRZN140,150,19#,VZN150,195200009-200301

MD.CHARCOAL,TRIM1#

sub62112-04050

main62112-04030-E0iRZN140,150,19#,VZN150,195199501-200009

OAK,TRIM4#

sub62112-04050

main62112-04030-E1iRZN140,150,19#,VZN150,195200009-200301

MD.OAK,TRIM4#

sub62112-04050

main62112-04050-B0iRZN140,150,19#,VZN150,195200301-200409

MD.CHARCOAL,TRIM1#

main62112-04050-E0iRZN140,150,19#,VZN150,195200301-200409

MD.OAK,TRIM4#

62135ARETAINER, COWL SIDE COVER

main62135-35010iRZN140,150,19#,VZN150,195199501-200009

62211GARNISH, FRONT PILLAR, RH

main62211-04020-B0iRZN140199501-199706

BLUISH GRAY,TRIM1#

main62211-04020-E0iRZN140199501-199706

OAK,TRIM4#

main62211-04040-B0iRZN150,VZN150199501-199706

W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main62211-04040-B0iRZN150,VZN150199501-199706

BLUISH GRAY,TRIM1#

main62211-04040-B1iRZN150,VZN150199706-200009

MD.MOON MIST,TRIM1#

main62211-04040-B1iRZN150,VZN150199706-200009

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

main62211-04040-E0iRZN150,VZN150199501-200009

OAK,TRIM4#

main62211-04040-E0iRZN150,VZN150199501-200009

W(SEPARATE SEAT),OAK,TRIM4#

main62211-04050-B1iRZN19#,VZN195199802-200009

MD.MOON MIST,TRIM1#

main62211-04050-E0iRZN19#,VZN195199802-200009

OAK,TRIM4#

main62211-04070-B0iRZN140,150,19#,VZN150,195200009-200409

MD.CHARCOAL,TRIM1#

main62211-04070-E0iRZN140,150,19#,VZN150,195200009-200409

MD.OAK,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-04020-B0iRZN140199501-199706

BLUISH GRAY,TRIM1#

main62212-04020-E0iRZN140199501-199706

OAK,TRIM4#

main62212-04040-B0iRZN150,VZN150199501-199706

BLUISH GRAY,TRIM1#

main62212-04040-B0iRZN150,VZN150199501-199706

W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main62212-04040-B1iRZN150,VZN150199706-200009

MD.MOON MIST,TRIM1#

main62212-04040-B1iRZN150,VZN150199706-200009

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

main62212-04040-E0iRZN150,VZN150199501-200009

OAK,TRIM4#

main62212-04040-E0iRZN150,VZN150199501-200009

W(SEPARATE SEAT),OAK,TRIM4#

main62212-04050-B1iRZN19#,VZN195199802-200009

MD.MOON MIST,TRIM1#

main62212-04050-E0iRZN19#,VZN195199802-200009

OAK,TRIM4#

main62212-04070-B0iRZN140,150,19#,VZN150,195200009-200109

MD.CHARCOAL,TRIM1#

main62212-04070-E0iRZN140,150,19#,VZN150,195200009-200109

MD.OAK,TRIM4#

main62212-04080-B0iRZN140,150,19#,VZN150,195200109-200409

MD.CHARCOAL,TRIM1#

main62212-04080-E0iRZN140,150,19#,VZN150,195200109-200409

MD.OAK,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-04010iRZN140,150,19#,VZN150,195199501-200009

main62311-04020iRZN140,150,19#,VZN150,195200009

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62311-04010iRZN140,150,VZN150199501-199706

main62312-04020iRZN140,150,19#,VZN150,195199706-200009

main62312-04030iRZN140,150,19#,VZN150,195200009

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-04010-B0iRZN140199501-199706

BLUISH GRAY,TRIM1#

main62511-04010-E0iRZN140199501-199706

OAK,TRIM4#

main62511-04020-B0iRZN150,VZN150199501-199706

BLUISH GRAY,TRIM1#

main62511-04020-B1iRZN150,196,VZN150,195199706-200009

MD.MOON MIST,TRIM1#

main62511-04020-E0iRZN150,196,VZN150,195199501-200009

OAK,TRIM4#

main62511-04030-B0iRZN140199501-199706

W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main62511-04030-B1iRZN140,191199706-200009

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

main62511-04030-E0iRZN140,191199501-200009

W(SEPARATE SEAT),OAK,TRIM4#

main62511-04040-B0iRZN140,191199706-200009

MD.MOON MIST,TRIM1#

main62511-04040-E0iRZN140,191199706-200009

OAK,TRIM4#

main62511-04070-B0iRZN196,VZN195..DCB200009-200409

MD.CHARCOAL,TRIM1#

main62511-04070-E0iRZN196,VZN195..DCB200009-200409

MD.OAK,TRIM4#

main62511-04080-B0iRZN140,191200009-200409

MD.CHARCOAL,TRIM1#

main62511-04080-E0iRZN140,191200009-200409

MD.OAK,TRIM4#

main62511-04090-B0iRZN150,196,VZN150,195..XTR200009-200409

MD.CHARCOAL,TRIM1#

main62511-04090-E0iRZN150,196,VZN150,195..XTR200009-200409

MD.OAK,TRIM4#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-04010-B0iRZN140199501-199706

BLUISH GRAY,TRIM1#

main62512-04010-E0iRZN140199501-199706

OAK,TRIM4#

main62512-04020-B0iRZN150,VZN150199501-199706

BLUISH GRAY,TRIM1#

main62512-04020-B1iRZN150,196,VZN150,195199706-200009

MD.MOON MIST,TRIM1#

main62512-04020-E0iRZN150,196,VZN150,195199501-200009

OAK,TRIM4#

main62512-04030-B0iRZN140199501-199706

W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main62512-04030-B1iRZN140,191199706-200009

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

main62512-04030-E0iRZN140,191199501-200009

W(SEPARATE SEAT),OAK,TRIM4#

main62512-04040-B0iRZN140,191199706-200009

MD.MOON MIST,TRIM1#

main62512-04040-E0iRZN140,191199706-200009

OAK,TRIM4#

main62512-04070-B0iRZN196,VZN195..DCB200009-200409

MD.CHARCOAL,TRIM1#

main62512-04070-E0iRZN196,VZN195..DCB200009-200409

MD.OAK,TRIM4#

main62512-04080-B0iRZN140,191200009-200409

MD.CHARCOAL,TRIM1#

main62512-04080-E0iRZN140,191200009-200409

MD.OAK,TRIM4#

main62512-04090-B0iRZN150,196,VZN150,195..XTR200009-200409

MD.CHARCOAL,TRIM1#

main62512-04090-E0iRZN150,196,VZN150,195..XTR200009-200409

MD.OAK,TRIM4#

64261CGARNISH, BACK PANEL, UPPER

main64261-04020-B0iRZN150,VZN150199501-199706

BLUISH GRAY,TRIM1#

main64261-04020-B1iRZN150,196,VZN150,195199706-200009

MD.MOON MIST,TRIM1#

main64261-04020-E0iRZN150,196,VZN150,195199501-200009

OAK,TRIM4#

main64261-04050-B0iRZN150,196,VZN150,195..XTR200009-200409

MD.CHARCOAL,TRIM1#

main64261-04050-E0iRZN150,196,VZN150,195..XTR200009-200409

MD.OAK,TRIM4#

main64261-35020-B0iRZN140199508-199706

BLUISH GRAY,TRIM1#

sub64261-35020

main64261-35020-B0iRZN140199501-199508

W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

sub64261-35020

main64261-35020-B1iRZN140,191199706-200009

MD.MOON MIST,TRIM1#

sub64261-35020

main64261-35020-B2iRZN140,19#,VZN195..DCB,RCB200009-200409

MD.CHARCOAL,TRIM1#

sub64261-35020

main64261-35020-E0iRZN140,191199508-200009

OAK,TRIM4#

sub64261-35020

main64261-35020-E0iRZN140199501-199508

W(SEPARATE SEAT),OAK,TRIM4#

sub64261-35020

main64261-35020-E1iRZN140,19#,VZN195..DCB,RCB200009-200409

MD.OAK,TRIM4#

sub64261-35020

64271CTRIM, BACK PANEL

main64271-04010-B1iRZN140199501-199706

BLUISH GRAY,TRIM1#

main64271-04010-B2iRZN140,191199706-200009

MEDIUM MOONMIST,TRIM1#

main64271-04010-E1iRZN140,191199501-200009

OAK,TRIM4#

main64271-04080-B0iRZN196,VZN195..DCB200009-200409

MEDIUM CHARCOAL,TRIM1#

main64271-04080-E0iRZN196,VZN195..DCB200009-200409

MEDIUM OAK,TRIM4#

main64271-04090-B0iRZN140,191200009-200409

W(SPEAKER),MEDIUM CHARCOAL,TRIM1#

main64271-04090-E0iRZN140,191200009-200409

W(SPEAKER),MEDIUM OAK,TRIM4#

main64271-04100-B0iRZN140,191200009-200409

MEDIUM CHARCOAL,TRIM1#

main64271-04100-E0iRZN140,191200009-200409

MEDIUM OAK,TRIM4#

64271DCLIP(FOR BACK PANEL TRIM)

main90467-06150-B1iRZN140,191199706-200009

MD.MOON MIST,TRIM1#

main90467-06150-B2iRZN140,191200009-200409

MD.CHARCOAL,TRIM1#

main90467-06150-C0iRZN140199501-199706

BLACK,TRIM1#,4#

main90467-06150-E1iRZN140,191199706-200009

OAK,TRIM4#

main90467-06150-E2iRZN140,191200009-200409

MD.OAK,TRIM4#

9008046136

main90080-46136

9008046199

main90080-46199

9046805047

main90468-05047

9046805076

main90468-05076

9356015012

main93560-15012

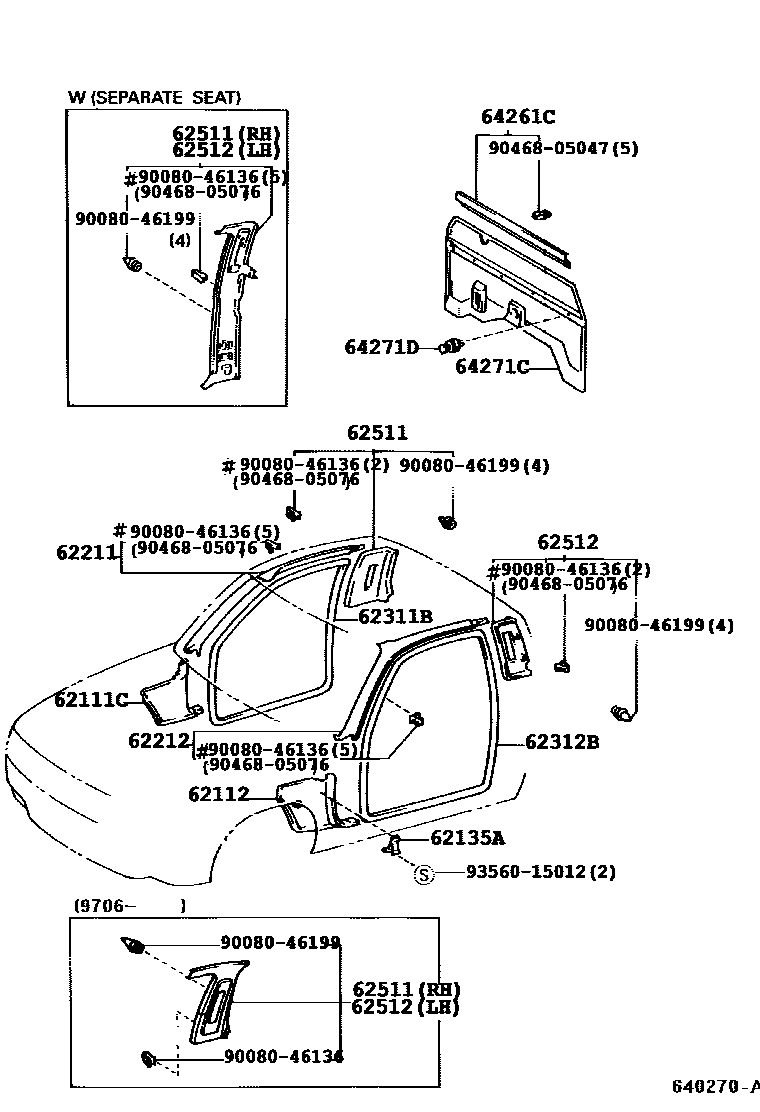

17 parts on this diagram · 5 diagrams in section
