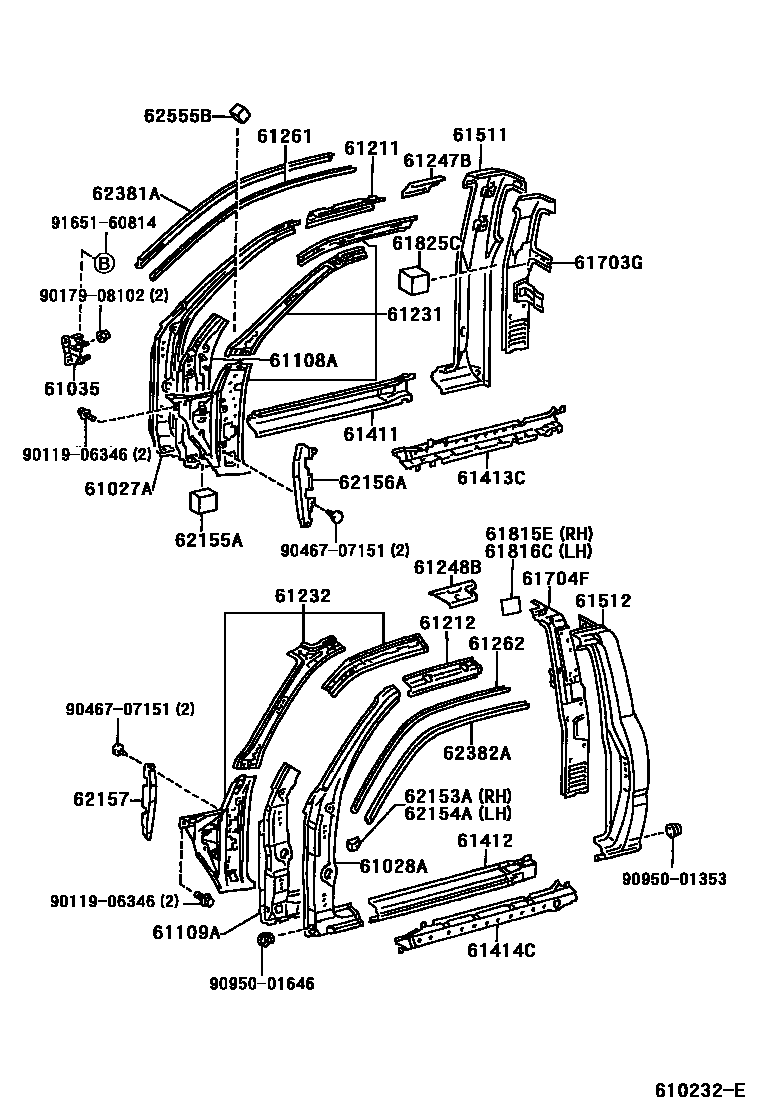

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61131-04020iRZN140,150,19#,VZN150,195199501-200009

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61132-04020iRZN140,150,19#,VZN150,195199501-200009

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-04010iRZN140,150,19#,VZN150,195199706-200409

main61035-35010iRZN140,150,VZN150199501-199706

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-04010iRZN140,150,19#,VZN150,195199501-200103

sub61108-04011

main61108-04011iRZN140,150,19#,VZN150,195200103-200109

sub61108-04012

main61108-04012iRZN140,150,19#,VZN150,195200109-200409

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-04010iRZN140,150,19#,VZN150,195199501-200103

sub61109-04011

main61109-04011iRZN140,150,19#,VZN150,195200103-200109

sub61109-04012

main61109-04012iRZN140,150,19#,VZN150,195200109-200409

61211RAIL, ROOF SIDE, OUTER RH

main61211-04010iRZN140,150,19#,VZN150,195199501-200009

61212RAIL, ROOF SIDE, OUTER LH

main61212-04010iRZN140,150,19#,VZN150,195199501-200009

61231RAIL, ROOF SIDE, INNER RH

main61161-04900iRZN140,150,VZN150199501-199706

sub61161-04902

main61161-04901iRZN150,VZN150199501-199706

W(MOON ROOF)

sub61161-04903

main61161-04902iRZN140,150,19#,VZN150,195199706-199907

sub61161-04904

sub90152-50027

main61161-04903iRZN150,196,VZN150,195199706-199907

W(MOON ROOF)

sub61161-04905

sub90152-50027

main61161-04904iRZN140,150,19#,VZN150,195199907-200009

sub61161-04905

main61161-04905iRZN150,196,VZN150,195199907-200009

W(MOON ROOF)

main61231-35130iRZN140,150,19#,VZN150,195..RCB,XTR200009-200409

main61231-35140iRZN196,VZN195..XTR200009-200309

W(MOON ROOF)

61232RAIL, ROOF SIDE, INNER LH

main61162-04900iRZN140,150,VZN150199501-199706

sub61162-04902

main61162-04901iRZN150,VZN150199501-199706

W(MOON ROOF)

sub61162-04903

main61162-04902iRZN140,150,19#,VZN150,195199706-199907

sub61162-04904

sub90152-50027

main61162-04903iRZN150,196,VZN150,195199706-199907

W(MOON ROOF)

sub61162-04905

sub90152-50027

main61162-04904iRZN140,150,19#,VZN150,195199907-200009

sub61162-04905

main61162-04905iRZN150,196,VZN150,195199907-200009

W(MOON ROOF)

main61232-35072iRZN196,VZN195..XTR200009-200309

W(MOON ROOF)

main61232-35082iRZN140,150,19#,VZN150,195..RCB,XTR200009-200409

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-35010iRZN140,150,19#,VZN150,195199705-199910

sub61247-35011

main61247-35011iRZN140,150,19#,VZN150,195199910-200409

61248REINFORCEMENT, CENTER DOOR PILLAR, UPPER REAR

main61248-35011iRZN196,VZN195..DCB200009

61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH

main61248-35010iRZN140,150,19#,VZN150,195199705-199910

sub61248-35011

main61248-35011iRZN140,150,19#,VZN150,195199910-200409

61261CHANNEL, ROOF DRIP, RH

main61261-04010iRZN140,150,19#,VZN150,195199706-200409

(L)

main61261-35010iRZN140,150,19#,VZN150,195199706-200409

(J)

main61261-35010iRZN140,150,VZN150199501-199706

61262CHANNEL, ROOF DRIP, LH

main61262-04010iRZN140,150,19#,VZN150,195199706-200409

(L)

main61262-35010iRZN140,150,19#,VZN150,195199706-200409

(J)

main61262-35010iRZN140,150,VZN150199501-199706

61411PANEL, ROCKER, OUTER RH

main61411-04030iRZN140,150,19#,VZN150,195199501-199908

sub61411-04031

main61411-04031iRZN140,150,19#,VZN150,195199908-200009

61412PANEL, ROCKER, OUTER LH

main61412-04030iRZN140,150,19#,VZN150,195199501-199908

sub61412-04031

main61412-04031iRZN140,150,19#,VZN150,195199908-200009

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-04010iRZN140,150,19#,VZN150,195199703-199908

sub61413-04011

main61413-04011iRZN140,150,19#,VZN150,195199908-199909

sub61413-04012

main61413-04012iRZN140,150,19#,VZN150,195199909-200409

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-04010iRZN140,150,19#,VZN150,195199703-199908

sub61414-04011

main61414-04011iRZN140,150,19#,VZN150,195199908-199909

sub61414-04012

main61414-04012iRZN140,150,19#,VZN150,195199909-200409

61511PILLAR, QUARTER LOCK, RH

main61501-04030iRZN140,191199501-200409

main61501-04904iRZN196,VZN195..DCB200009-200409

61512PILLAR, QUARTER LOCK, LH

main61502-04030iRZN140,191199501-200409

main61502-04904iRZN196,VZN195..DCB200009-200409

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-04010iRZN140199501-199808

sub61703-04021

main61703-04011iRZN140,191199808-200009

sub61703-04021

main61703-04020iRZN140199501-199808

W(SEPARATE SEAT)

sub61703-04021

main61703-04021iRZN140,191199808-200409

W(SEPARATE SEAT)

main61703-04040iRZN196,VZN195..DCB200009-200409

61704FPANEL SUB-ASSY, QUARTER, INNER FRONT LH

main61704-04010iRZN140199501-199708

sub61704-04021

main61704-04011iRZN140,191199708-200009

sub61704-04021

main61704-04020iRZN140199501-199708

W(SEPARATE SEAT)

sub61704-04021

main61704-04021iRZN140,191199708-200009

W(SEPARATE SEAT)

main61704-04040iRZN196,VZN195..DCB200009

61815ECOVER, ROOF SIDE, INNER UPPER RH

main61815-04010iRZN150,196,VZN150,195199610-200009

NO.2

main61815-04020iRZN150,196,VZN150,195199610-200009

NO.1

main61815-04030iRZN196,VZN195..DCB200009

NO.2

61816CCOVER, ROOF SIDE, INNER UPPER LH

main61815-04020iRZN140,191199610-200009

NO.1

main61816-04010iRZN150,196,VZN150,195..XTR199610-200009

NO.2

main61816-04020iRZN196,VZN195..DCB200009

NO.2

61825CPAD, NOISE SHUTTER, NO.2

main61825-04010iRZN140,150,19#,VZN150,195199501-200009

62153APAD, COWL SIDE SILENCER, UPPER RH

main62153-35010iRZN150,VZN150199709-200009

62154APAD, COWL SIDE SILENCER, UPPER LH

main62154-35010iRZN140,150,19#,VZN150,195199709-200009

62155APAD, COWL SIDE LOWER SILENCER

main62155-04010iRZN140,150,19#,VZN150,195199501-200007

sub62155-04011

main62155-04011iRZN140,150,19#,VZN150,195200007-200009

62156AINSULATOR, COWL SIDE, RH

main62156-35010iRZN140,150,VZN150199501-199710

sub62156-35020

main62156-35020iRZN140,150,19#,VZN150,195199710-200009

62157INSULATOR, COWL SIDE, LH

main62157-35010iRZN140,150,VZN150199501-199710

sub62157-35020

main62157-35020iRZN140,150,19#,VZN150,195199710-200009

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-04020iRZN140,150,VZN150199501-199509

sub62381-04030

main62381-04030iRZN140,150,19#,VZN150,195199509-200009

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-04020iRZN140,150,VZN150199501-199509

sub62382-04030

main62382-04030iRZN140,150,19#,VZN150,195199509-200009

62555BPAD, PILLAR, NO.5

main62555-04010iRZN140,150,19#,VZN150,195199501-200009

9011906346

main90119-06346

9017908102

main90179-08102

9046707151

main90467-07151

9095001353

main90950-01353

9095001646

main90950-01646

9165160814

main91651-60814

39 parts on this diagram · 5 diagrams in section
