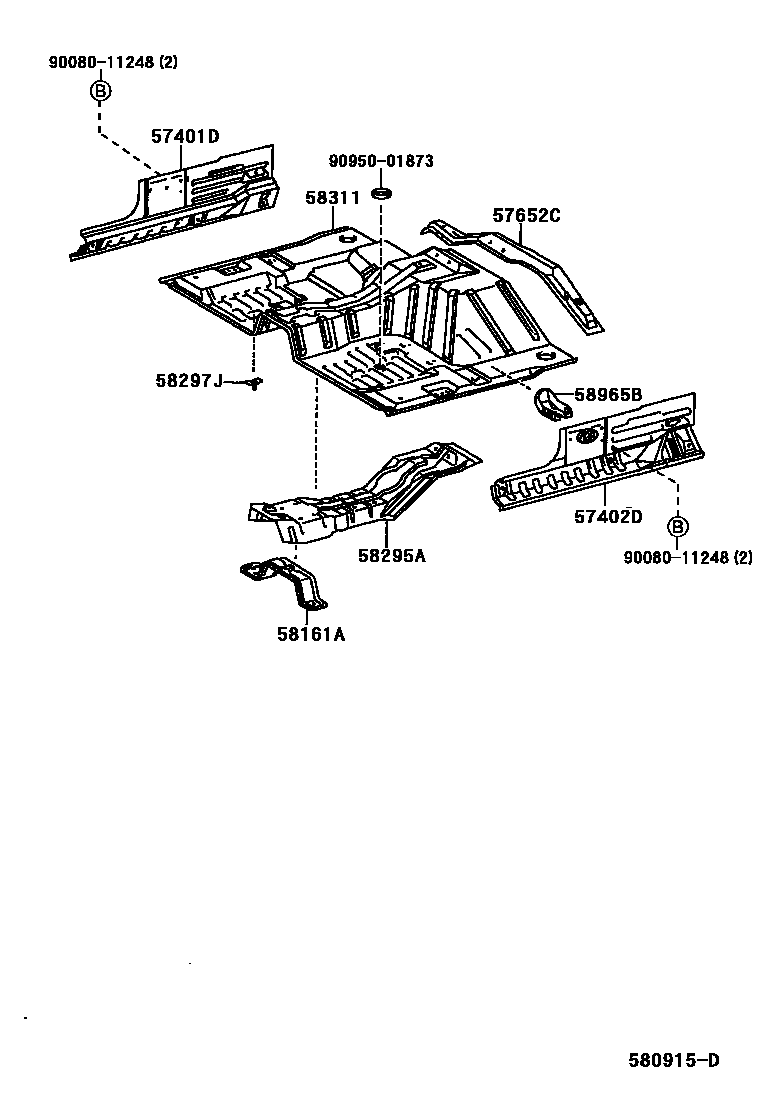

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57401DMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-04901iRZN150,196,VZN150,195199501-199808

sub57401-04903

main57401-04903iRZN150,196,VZN150,195199808-200009

57402DMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-04901iRZN150,196,VZN150,195199501-199910

sub57402-04902

main57402-04902iRZN150,196,VZN150,195..XTR199910-200009

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57606-35060iRZN196,VZN195..DCB200009-200209

NO.2

main57606-35070iRZN196,VZN195..DCB200209

NO.2

main57652-04040iRZN150,196,VZN150,195199501-199906

sub57652-04041

main57652-04041iRZN150,196,VZN150,195199906-200009

main57652-04070iRZN196,VZN195..DCB200009

NO.1

58161AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58161-35020iRZN150,196,VZN150,195199606-200005

W(FRONT SEPARATE SEAT)

sub58161-35021

main58161-35021iRZN150,196,VZN150,195200005-200009

W(FRONT SEPARATE SEAT)

main58161-35030iRZN150,196,VZN150,195199501-200005

sub58161-35031

main58161-35031iRZN150,196,VZN195..XTR200005-200009

58295AREINFORCEMENT, SEAT BELT ANCHOR FLOOR

main58295-04020iRZN150,196,VZN150,195199501-199909

sub58295-04021

main58295-04021iRZN150,196,VZN150,195199909-200009

58297JRETAINER, FLOOR CLAMP

main58297-35010iRZN150,196,VZN150,195..XTR199501-200009

58311PAN, REAR FLOOR

main58311-04010iRZN150,196,VZN150,195199701-200006

sub58311-04011

main58311-04011iRZN150,196,VZN150,195200006-200009

main58311-04900iRZN196,VZN195..DCB200009-200209

main58311-04901iRZN196,VZN195..DCB200209

main58311-35030iRZN150,VZN150199501-199701

sub58311-04010

58965BHOLDER, JACK

main58965-35010iRZN150,196,VZN150,195199501-200009

9008011248

main90080-11248

9095001873

main90950-01873

10 parts on this diagram · 2 diagrams in section
