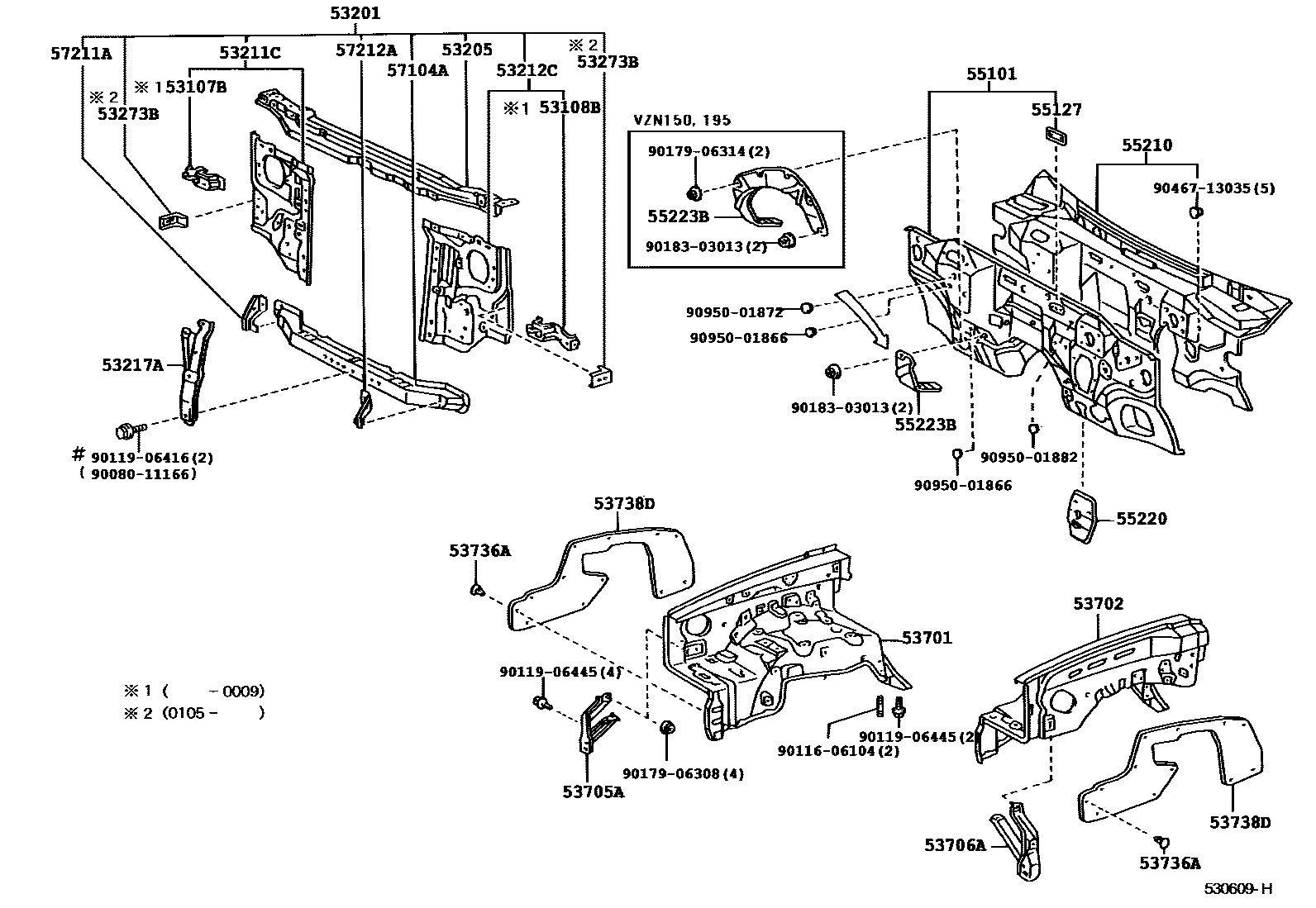

FRONT FENDER APRON & DASH PANEL

53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH

main53107-04010iRZN140,150,19#,VZN150,195199612-200009

(L)

main53107-35010iRZN140,150,VZN150199501-199609

main53107-35010iRZN140,150,19#,VZN150,195199609-200009

(J)

53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH

main53108-04010iRZN140,150,19#,VZN150,195199612-200009

(L)

main53108-35010iRZN140,150,VZN150199501-199609

main53108-35010iRZN140,150,19#,VZN150,195199609-200009

(J)

53201SUPPORT SUB-ASSY, RADIATOR

main53201-04050iRZN140,150,VZN150199501-199609

main53201-04060iRZN140,150,19#,VZN150,195199609-200009

main53201-04080iRZN140,150,19#,VZN150,195200009-200105

main53201-04081iRZN140,150,19#,VZN150,195200105

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-04020iRZN140,150,VZN150199501-199609

sub53216-04021

main53216-04021iRZN140,150,19#,VZN150,195199609-199909

sub53216-04022

main53216-04022iRZN140,150,19#,VZN150,195199909-200009

53211CSUPPORT, RADIATOR, RH

main53211-04900iRZN140,150,VZN150199501-199609

main53211-04901iRZN140,150,19#,VZN150,195199609-199909

sub53211-04902

main53211-04902iRZN140,150,19#,VZN150,195199909-200009

main53211-04903iRZN140,150,19#,VZN150,195200009-200105

main53211-04904iRZN140,150,19#,VZN150,195200105-200409

53212CSUPPORT, RADIATOR, LH

main53212-04900iRZN140,150,VZN150199501-199609

main53212-04901iRZN140,150,19#,VZN150,195199609-199909

sub53212-04902

main53212-04902iRZN140,150,19#,VZN150,195199909-200009

main53212-04903iRZN140,150,19#,VZN150,195200009-200105

main53212-04904iRZN140,150,19#,VZN150,195200105-200409

53217ABRACE, HOOD LOCK SUPPORT

main53217-35020iRZN140,150,19#,VZN150,195199501-200009

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-35060iRZN140,150,19#,VZN150,195200105-200409

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-04120iRZN140,150,196,VZN150,195199501-199808

W(*66)

main53701-04121iRZN140,150,196,VZN150,195199808-200009

W(CRUISE CONTROL)

sub53701-04220

sub90174-06020

main53701-04121iRZN191199808-200009

W(*66)

sub53701-04220

sub90174-06020

main53701-04140iRZN140,150,VZN150199501-199609

W(CRUISE CONTROL)

sub53701-04141

main53701-04141iRZN140,150199509-199808

W(COLD AREA PACKAGE)

main53701-04141iRZN196,VZN150,195199609-199808

W(CRUISE CONTROL)

main53701-04142iRZN140,150,19#,VZN150,195199808-200009

sub53701-04220

sub90174-06020

main53701-04150iRZN140,150199501-199706

main53701-04220iRZN140,150,19#,VZN150,195200009

W(CRUISE CONTROL & *66)

main53701-04230iRZN140,150,19#,VZN150,195200009-200209

W(CRUISE CONTROL)

main53701-04240iRZN140,150,19#,VZN150,195200009-200209

sub53701-04230

main53701-04250iRZN140,150,19#,VZN150,195200009

W(*66)

sub53701-04220

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-04200iRZN140,150,196,VZN150,195199609-199808

sub53702-04201

main53702-04201iRZN140,150,19#,VZN150,195199808-200109

main53702-04240iRZN140,150199501-199706

sub53702-04322

main53702-04320iRZN140,150,19#,VZN150,195200109-200309

sub53702-04322

main53702-04322iRZN140,150,19#,VZN150,195200309

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53705-35010iRZN140,150,VZN150199501-200002

main53705-35020iRZN140,150,VZN150..5F;RZN19#,VZN195..RCB,XTR199912-200409

W(STEP SIDE DECK)

main53705-35020iRZN19#,VZN195199802-199912

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-35010iRZN140,150,VZN150..5F;RZN19#,VZN195..RCB,XTR199912-200409

W(STEP SIDE DECK)

main53706-35010iRZN19#,VZN195199802-199912

main53706-35020iRZN140,150,VZN150199501-200002

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90080-46219iRZN140,150,VZN150199603-200104

(L)

main90080-46327iRZN140,150,VZN150200104

main90467-10173iRZN140,150,VZN150199511-200104

(J)

main90467-10173iRZN140,150,VZN150199501-199511

53738DSEAL, FRONT FENDER APRON TO FRAME, FRONT

main53738-04010iRZN140,150,VZN150200001-200009

main53738-04020iRZN19#,VZN195200001-200009

LH

main53738-04030iRZN19#,VZN195200001-200009

RH(REAR)

main53738-04040iRZN19#,VZN195200001-200009

RH(FRONT)

main53738-AD010iRZN140,150,VZN150199501-200001

main53738-AD020iRZN19#,VZN195199802-200001

LH

main53738-AD030iRZN19#,VZN195199802-200001

RH(REAR)

main53738-AD050iRZN19#,VZN195199802-200001

RH(FRONT)

55101PANEL SUB-ASSY, DASH

main55101-04902iRZN140,150..W199501-199706

main55101-04903iRZN140,150..4HC199501-199706

main55101-04908iVZN150..R199501-199706

main55101-04909iVZN150..4HC199501-199706

main55101-04912iRZN140,150..W199706-200009

sub55101-04922

sub82819-04020

main55101-04913iRZN140,150..4HC199706-200009

sub55101-04928

sub82819-04020

main55101-04915iVZN195199802-200009

sub55101-04924

sub82819-04020

main55101-04917iRZN19#199802-200009

sub55101-04926

sub82819-04020

main55101-04918iVZN150..R199706-200009

sub55101-04927

sub82819-04020

main55101-04919iVZN150..4HC199706-200009

sub55101-04929

sub82819-04020

main55101-04922iRZN140,150..W200009

main55101-04924iVZN195200009

main55101-04926iRZN140,150,19#..4FC200009

main55101-04927iVZN150200009

main55101-04931iVZN195200309

W(VSC)

55127REINFORCEMENT, PARKING BRAKE

main55127-34010iRZN140,150,19#,VZN150,195199501-200009

55210INSULATOR ASSY, DASH PANEL

main55210-04050iRZN140,150,19#,VZN150,195199501-200009

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-AD010iRZN140,150,VZN150199501-200009

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-04040iVZN150,195199609-200009

(L)

main55225-04050iRZN140,150,19#199609-200009

(L)

main55225-35030iVZN150,195199501-200009

(J)

main55225-35040iRZN140,150,19#199501-200009

(J)

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-35020iRZN140,150,19#,VZN150,195199501-200009

57211ABRACKET, BODY MOUNTING, NO.1 RH

main57211-04010iRZN140,150,19#,VZN150,195199501-200009

57212ABRACKET, BODY MOUNTING, NO.1 LH

main57212-04010iRZN140,150,19#,VZN150,195199501-200009

9008011166

main90080-11166

9011606104

main90116-06104

9011906416

main90119-06416

9011906445

main90119-06445

9017906308

main90179-06308

9017906314

main90179-06314

9018303013

main90183-03013

9046713035

main90467-13035

9095001866

main90950-01866

9095001872

main90950-01872

9095001882

main90950-01882

33 parts on this diagram · 1 diagram in section
