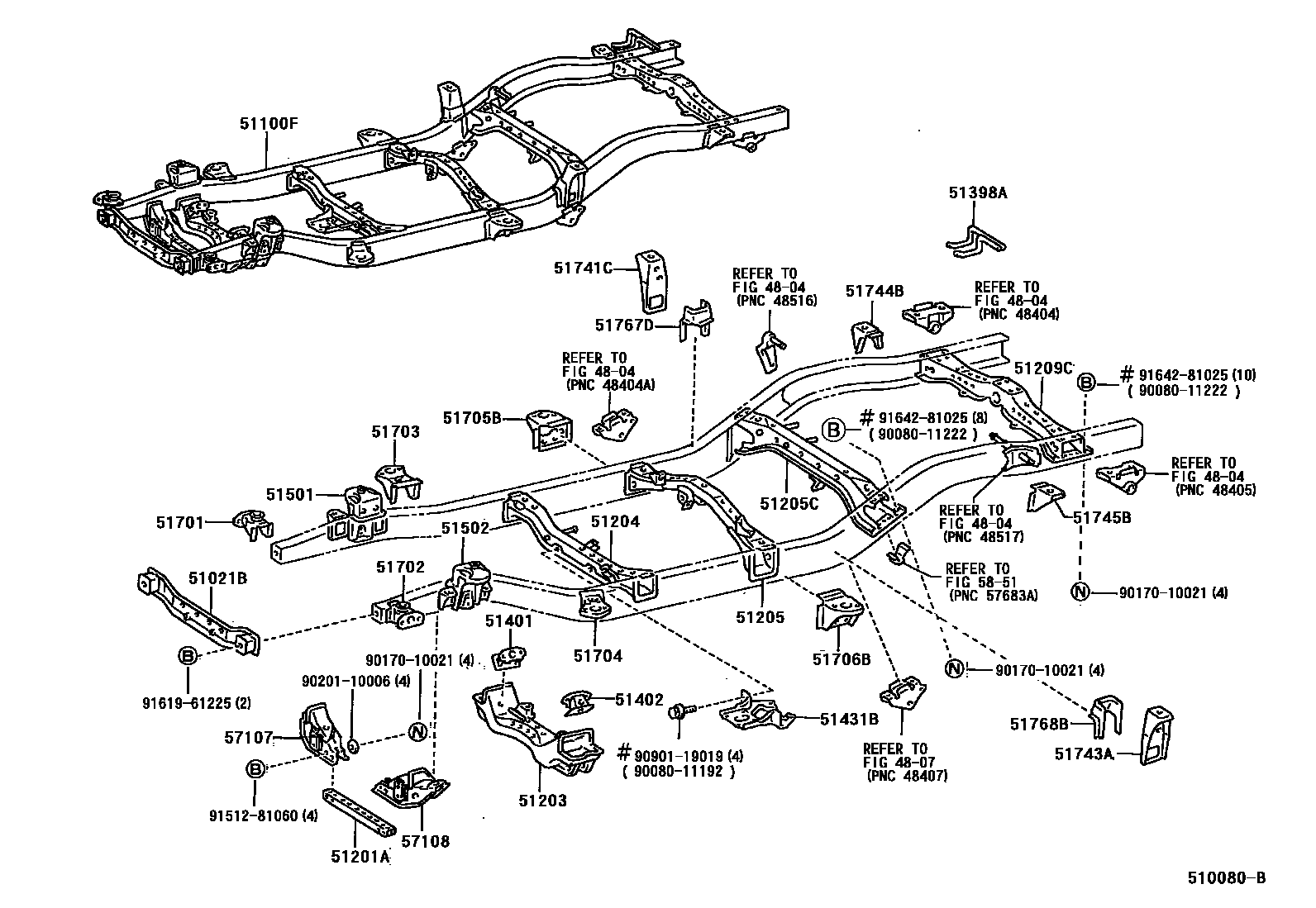

FRAME
4804
4807
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51100FFRAME SUB-ASSY
sub51001-04011
sub51001-04021
sub51001-04031
sub51001-04041
sub51001-04051
sub51001-04121
sub51001-04131
sub51001-04141
sub51001-04151
sub51001-04161
sub51001-04182
sub51001-04212
sub51001-04222
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51398ABRACKET, EXHAUST PIPE CLAMP, NO.4
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51431BBRACKET, ENGINE REAR MOUNTING
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51741CBRACKET, REAR BODY MOUNTING, NO.2 RH
51743ABRACKET, REAR BODY MOUNTING, NO.2 LH
51744BBRACKET, REAR BODY MOUNTING, NO.3 RH
51745BBRACKET, REAR BODY MOUNTING, NO.3 LH
51767DREINFORCEMENT, BODY SUPPORT BRACKET, RH
51768BREINFORCEMENT, BODY SUPPORT BRACKET, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
5851
9008011192
main90080-11192
9008011222
main90080-11222
9017010021
main90170-10021
9020110006
main90201-10006
9090119019
main90901-19019
9151281060
main91512-81060
9161961225
main91619-61225
9164281025
main91642-81025
39 parts on this diagram · 5 diagrams in section
