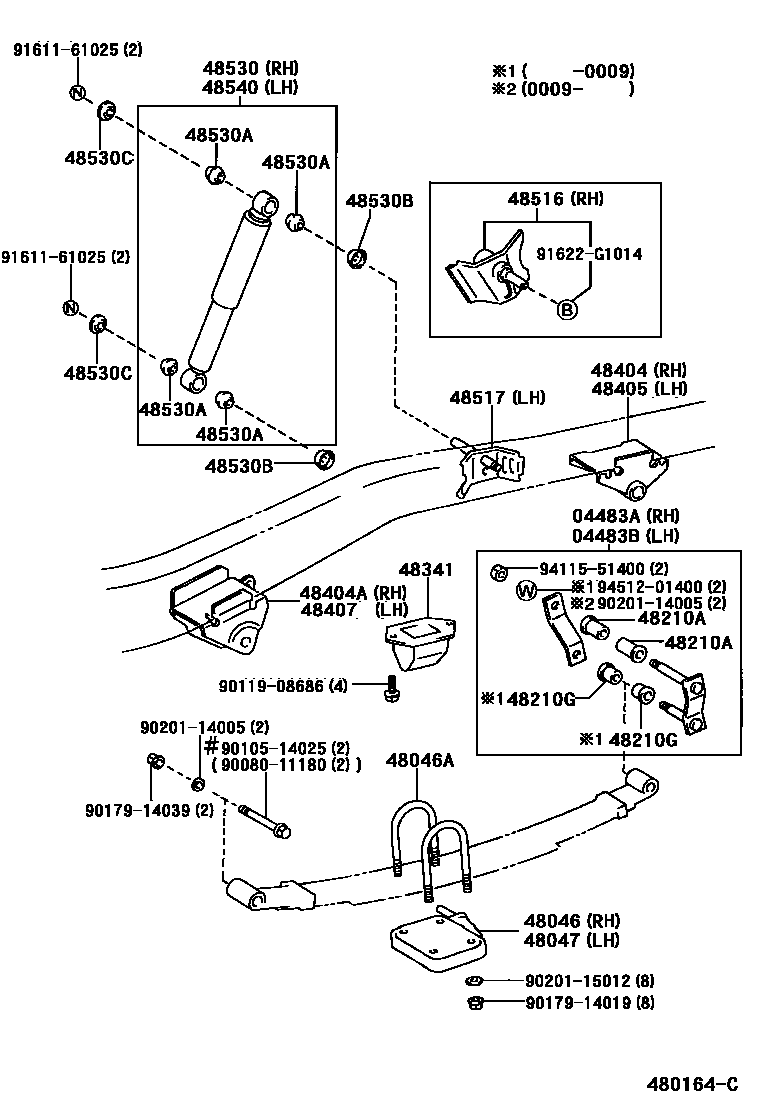

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 13-LEAF 0004 13-LEAF 0005 14-LEAF 0006 1 0007 1

04483ASHACKLE KIT, REAR SPRING, RH

main04483-04030iRZN140,150,VZN150199501-200009

main04483-04040iRZN19#,VZN195199802-200009

main04483-04050iRZN140,150,VZN150200009-200409

main04483-04060iRZN19#,VZN195200009-200409

04483BSHACKLE KIT, REAR SPRING, LH

main04483-04030iRZN140,150,VZN150199501-200009

main04483-04040iRZN19#,VZN195199802-200009

main04483-04050iRZN140,150,VZN150200009-200409

main04483-04060iRZN19#,VZN195200009-200409

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35210iRZN19#,VZN195199802-200009

main48046-35220iRZN140,150,VZN150199501-200009

48046ABOLT, U(FOR REAR SPRING)

main90117-14008iRZN19#,VZN195199802-200009

L=155

main90117-14039iRZN140,150,VZN150199501-200009

L=139

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35210iRZN19#,VZN195199802-200009

main48046-35220iRZN140,150,VZN150199501-200009

48210SPRING ASSY, REAR RH

main48210-04031iRZN140199501-199601

2-LEAF

sub48210-04H00

main48210-04032iRZN140199601-199706

2-LEAF

main48210-04041iRZN150,VZN150199501-199601

3-LEAF

sub48210-04H01

main48210-04042iRZN150,VZN150199601-199706

3-LEAF

main48210-04090iRZN140199706-200009

3-LEAF

main48210-04100iRZN150,VZN150199706-200009

3-LEAF

main48210-04110iRZN191199808-200009

4-LEAF

main48210-04120iRZN140,150,VZN150199706-200009

3-LEAF,HEAVY DUTY SUSPENSION

main48210-04130iVZN195199802-200009

4-LEAF,OFF ROAD PACKAGE

main48210-04130iVZN195199802-200009

4-LEAF

main48210-04140iRZN19#,VZN195199802-200009

3-LEAF

main48210-04180iRZN196199802-200009

4-LEAF

main48210-04210iRZN140200009

3-LEAF

main48210-04240iRZN196199802-200009

4-LEAF,W(CASTER WEDGE)

main48210-04240iRZN196199802-200009

4-LEAF,OFF ROAD PACKAGE & W(CASTER WEDGE)

main48210-04310iRZN150200009

3-LEAF

main48210-04330iRZN196,VZN195..XTR200009

4-LEAF

main48210-04340iRZN19#,VZN195..RCB,XTR200009-200212

4-LEAF,HEAVY DUTY SPRING

main48210-04360iRZN19#,VZN195..DCB,RCB200009

4-LEAF

main48210-AD010iVZN150200009

3-LEAF

sub48210-AD040

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90080-38024iRZN140,150,19#,VZN150,195199706-200009

main90385-18017iRZN140,150,VZN150199501-199706

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18016iRZN140,150,VZN150199501-200009

48341BUMPER, REAR SPRING

main48306-04010iRZN19#199802-200009

main48306-04040iRZN19#,VZN195200009

main48306-35200iRZN196,VZN195199802-200009

OFF ROAD PACKAGE

main48341-04020iRZN140,150,VZN150199501-200009

main48341-04050iRZN140,150,VZN150200009

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48405-35030iRZN140,150,VZN150199501-199706

main48405-35040iRZN140,150,19#,VZN150,195199706-200009

48404ABRACKET SUB-ASSY, SPRING, NO.3 RH

main48404-35030iRZN140,150,VZN150199501-199706

main48404-35040iRZN140,150,19#,VZN150,195199706-200009

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48405-35030iRZN140,150,VZN150199501-199706

main48406-35020iRZN140,150,19#,VZN150,195199706-200009

48407BRACKET SUB-ASSY, SPRING, NO.3 LH

main48407-35020iRZN140,150,VZN150199501-199706

main48407-35030iRZN140,150,19#,VZN150,195199706-200009

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35050iRZN19#,VZN195199802-200009

main48505-35060iRZN140,150,VZN150199501-200009

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-35040iRZN19#,VZN195199802-200009

main48506-35050iRZN140,150,VZN150199501-200009

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09030iRZN140,150,VZN150199501-199601

MARK 48531-04030

sub48531-09031

main48531-09031iRZN140,150,VZN150199601-199607

MARK 48531-04031

sub48531-09032

main48531-09032iRZN140,150,VZN150199607-199706

MARK 48531-04031

main48531-09090iRZN140,150,VZN150199706-200009

MARK 48531-04090

main48531-09100iRZN19#199802-200009

MARK 48531-04100

main48531-80694iRZN140200009-200409

MARK 48531-3D040

main48531-80695iRZN19#,VZN195..RCB,XTR200009-200409

MARK 48531-3D150

main48531-80696iRZN196,VZN195..DCB200009-200409

MARK 48531-3D240

sub48531-A9040

main48531-80697iRZN150200009-200409

MARK 48531-3D250

main48531-A9020iRZN196,VZN195199802-200409

MARK 48531-AD010,OFF ROAD PACKAGE

main48531-A9030iVZN150200009-200409

MARK 48531-AD020

main48531-A9040iRZN196,VZN195..DCB200009-200409

MARK 48531-AD030,OFF ROAD PACKAGE

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16012iRZN140,150,VZN150199501-200009

main90385-19002iRZN19#,VZN195199802-200009

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iRZN140,150,VZN150199501-200009

main90948-03011iRZN19#,VZN195199802-200009

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012iRZN140,150,VZN150199501-200009

main90948-03020iRZN19#,VZN195199802-200009

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09030iRZN140,150,VZN150199501-199601

MARK 48531-04030

sub48531-09031

main48531-09031iRZN140,150,VZN150199601-199607

MARK 48531-04031

sub48531-09032

main48531-09032iRZN140,150,VZN150199607-199706

MARK 48531-04031

main48531-09090iRZN140,150,VZN150199706-200009

MARK 48531-04090

main48531-80694iRZN140200009-200409

MARK 48531-3D040

main48531-80697iRZN150200009-200409

MARK 48531-3D250

main48531-A9030iVZN150200009-200409

MARK 48531-AD020

main48541-09030iRZN19#199802-200009

MARK 48541-04040

main48541-39335iRZN19#,VZN195..RCB,XTR200009-200409

MARK 48541-35260

main48541-39345iRZN196,VZN195..DCB200009-200409

MARK 48541-35270

sub48541-A9020

main48541-A9010iRZN196,VZN195199802-200409

MARK 48541-AD010,OFF ROAD PACKAGE

main48541-A9020iRZN196,VZN195..DCB200009-200409

MARK 48541-AD020,OFF ROAD PACKAGE

9008011180

main90080-11180

9010514025

main90105-14025

9011908686

main90119-08686

9017914019

main90179-14019

9017914039

main90179-14039

9020114005

main90201-14005

9020115012

main90201-15012

9161161025

main91611-61025

91622G1014

main91622-G1014

9411551400

main94115-51400

9451201400

main94512-01400
