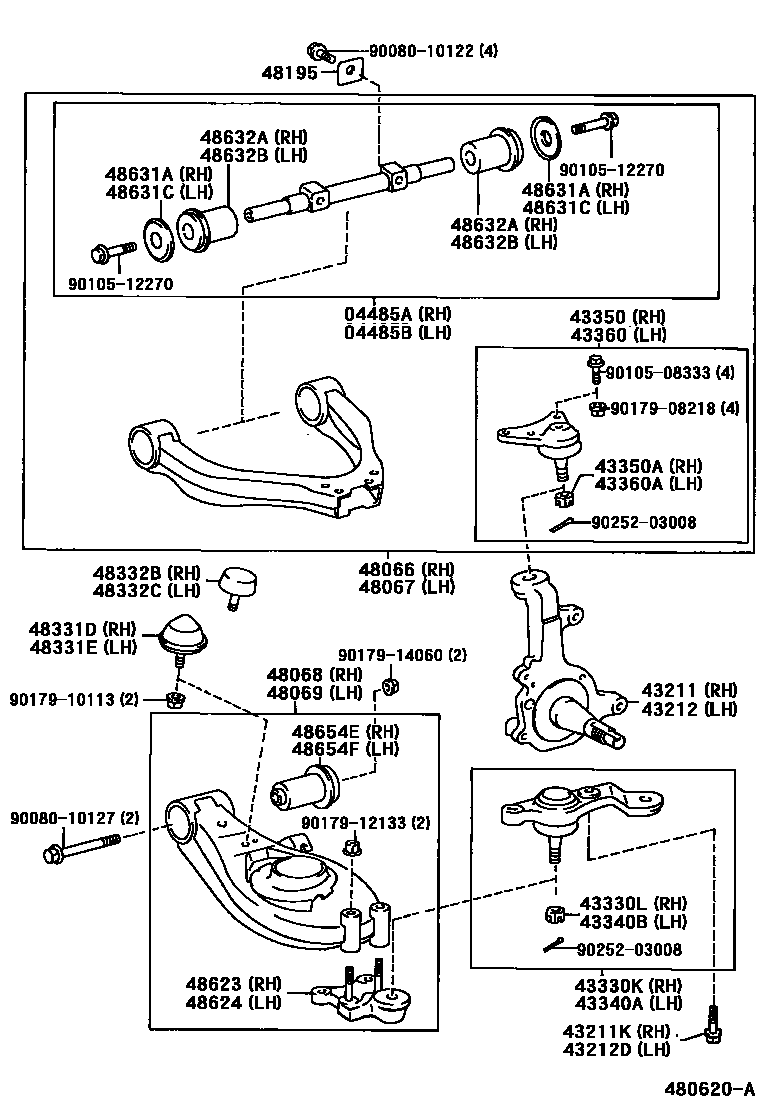

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35070iRZN140,150,VZN150199501-200409

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35070iRZN140,150,VZN150199501-200409

43211KNUCKLE, STEERING, RH

main43201-35070iRZN19#,VZN195199802-200105

sub43201-35071

main43201-35071iRZN19#,VZN195200105-200209

main43201-35080iRZN19#,VZN195199802-200105

W(4WHEEL*66)

sub43201-35081

main43201-35081iRZN19#,VZN195200105

W(4WHEEL*66)

main43211-35180iRZN140,150,VZN150199501-200209

main43211-35190iRZN140,150,VZN150199501-200009

W(4WHEEL*66)

43211KBOLT (FOR STEERING KNUCKLE RH)

main90080-10123iRZN140,150,VZN150199711-200009

OD=12

main90105-12280iRZN140,150,VZN150199501-199711

OD=12

43212KNUCKLE, STEERING, LH

main43202-35060iRZN19#,VZN195199802-200105

sub43202-35061

main43202-35061iRZN19#,VZN195200105-200209

main43202-35070iRZN19#,VZN195199802-200105

W(4WHEEL*66)

sub43202-35071

main43202-35071iRZN19#,VZN195200105

W(4WHEEL*66)

main43212-35140iRZN140,150,VZN150199501-200209

main43212-35150iRZN140,150,VZN150199501-200009

W(4WHEEL*66)

43212DBOLT (FOR STEERING KNUCKLE LH)

main90080-10123iRZN140,150,VZN150199711-200009

OD=12

main90105-12280iRZN140,150,VZN150199501-199711

OD=12

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39355iRZN140,150,VZN150199501-200009

sub43330-39565

main43330-39366iRZN19#,VZN195199802-200009

sub43330-39367

main43330-39555iRZN19#,VZN195200009-200102

sub43330-39556

main43330-39556iRZN19#,VZN195200102-200409

main43330-39565iRZN140,150,VZN150200009-200409

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14002iRZN140,150,VZN150199501-200009

main90171-16050iRZN19#,VZN195199802-200009

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39275iRZN140,150,VZN150199501-200009

sub43340-39445

main43340-39286iRZN19#,VZN195199802-200009

sub43340-39287

main43340-39435iRZN19#,VZN195200009-200102

sub43340-39436

main43340-39436iRZN19#,VZN195200102

main43340-39445iRZN140,150,VZN150200009

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14002iRZN140,150,VZN150199501-200009

main90171-16050iRZN19#,VZN195199802-200009

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-39016iRZN19#,VZN195199802-200409

main43350-39105iRZN140,150,VZN150199501-200409

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-14002iRZN140,150,VZN150199501-200009

main90171-14010iRZN19#,VZN195199802-200009

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-39016iRZN19#,VZN195199802-200409

main43360-39095iRZN140,150,VZN150199501-200409

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-14002iRZN140,150,VZN150199501-200009

main90171-14010iRZN19#,VZN195199802-200009

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35120iRZN140,150,VZN150199501-200009

main48066-35140iRZN140,150200009

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-35050iRZN140,150,VZN150199501-200009

main48067-35070iRZN140,150200009

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-04011iRZN19#,VZN195..RCB,XTR200005-200009

(L)

sub48068-35120

main48068-04011iRZN19#,VZN195199802-200005

sub48068-35120

main48068-35070iRZN140,150,VZN150199501-200009

main48068-35110iRZN140,150,VZN150200009

main48068-35120iRZN19#,VZN195..RCB,XTR200005-200009

(J)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-04011iRZN19#,VZN195200005-200009

(L)

sub48069-35120

main48069-04011iRZN19#,VZN195199802-200005

sub48069-35120

main48069-35070iRZN140,150,VZN150199501-200009

main48069-35110iRZN140,150,VZN150200009

main48069-35120iRZN19#,VZN195..RCB,XTR200005-200009

(J)

48195SHIM, CAMBER ADJUST

main90565-12010iRZN140,150,VZN150199501-200009

T=4.0

main90565-12011iRZN140,150,VZN150199501-200009

T=1.6

main90565-12012iRZN140,150,VZN150199501-200009

T=1.2

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-04030iRZN140,150,VZN150199501-200009

main48304-04080iRZN140,150,VZN150200009

main48304-35150iRZN19#,VZN195199802-200009

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-04030iRZN140,150,VZN150199501-200009

main48304-04080iRZN140,150,VZN150200009

main48304-35150iRZN19#,VZN195199802-200009

48332BBUMPER, FRONT SPRING, NO.2 RH

main48305-35040iRZN19#,VZN195199802-200009

main48332-04030iRZN140,150,VZN150199501-200009

48332CBUMPER, FRONT SPRING, NO.2 LH

main48305-35040iRZN19#,VZN195199802-200009

main48332-04030iRZN140,150,VZN150199501-200009

48623ARM, FRONT SUSPENSION, LOWER NO.2 RH

main48627-35030iRZN140,150,VZN150199501-200009

main48627-35040iRZN140,150,VZN150200009

48624ARM, FRONT SUSPENSION, LOWER NO.2 LH

main48627-35030iRZN140,150,VZN150199501-200009

main48627-35040iRZN140,150,VZN150200009

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02162iRZN140,150,VZN150199501-200009

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02162iRZN140,150,VZN150199501-200009

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-35070iRZN140,150,VZN150199501-200009

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-35070iRZN140,150,VZN150199501-200009

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-35040iRZN19#,VZN195199802-200009

FRONT

main48061-35050iRZN19#,VZN195199802-200009

REAR

main48654-35080iRZN140,150,VZN150199501-200009

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-35040iRZN19#,VZN195199802-200009

FRONT

main48061-35050iRZN19#,VZN195199802-200009

REAR

main48654-35080iRZN140,150,VZN150199501-200009

9008010122

main90080-10122

9008010127

main90080-10127

9010508333

main90105-08333

9010512270

main90105-12270

9017908218

main90179-08218

9017910113

main90179-10113

9017912133

main90179-12133

9017914060

main90179-14060

9025203008

main90252-03008
