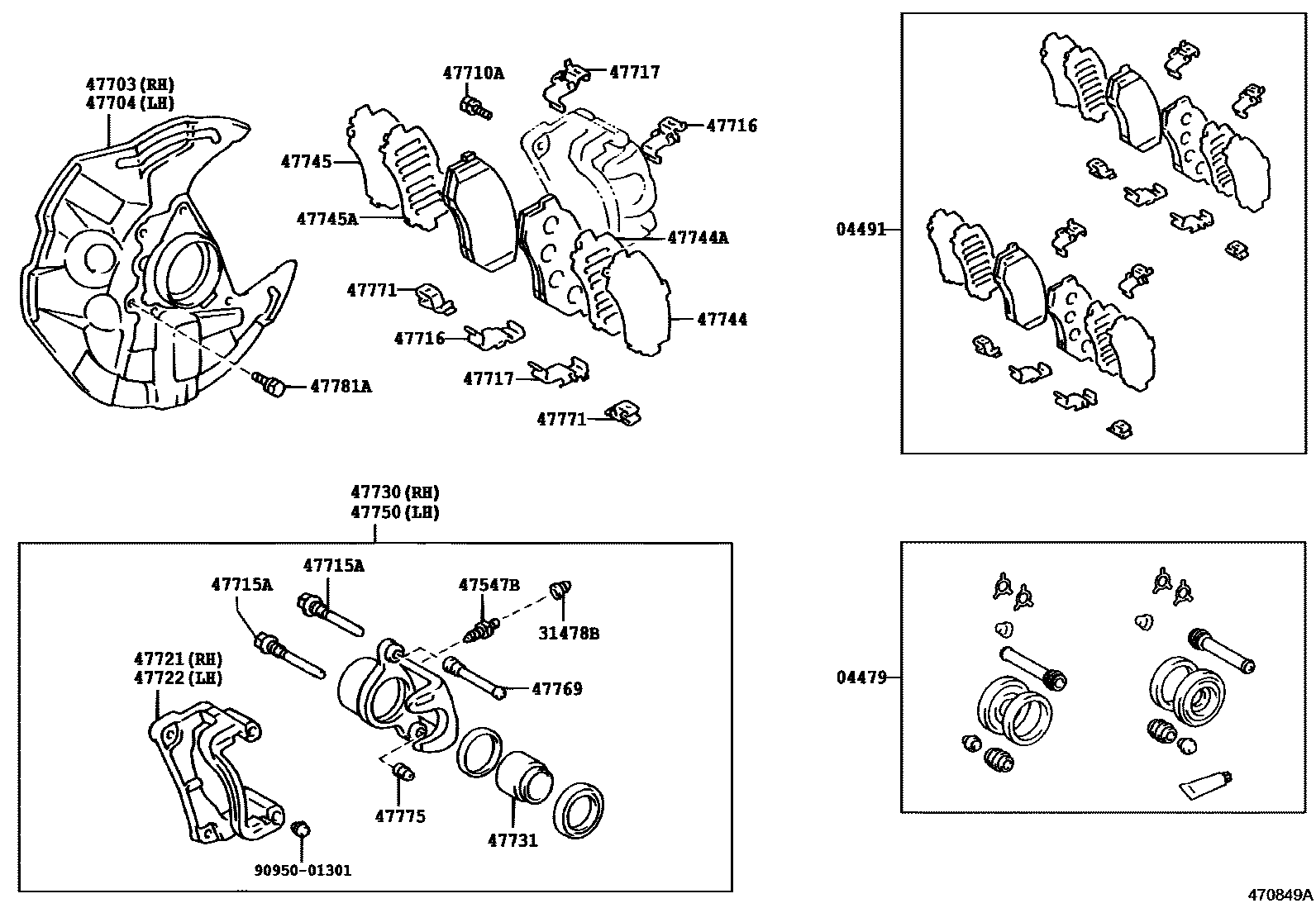

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1W(VSC)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-04021iRZN19#,VZN195199807-200409

main04479-04021iRZN196,VZN195199802-199807

(L)

main04479-35021iRZN196,VZN195199802-199807

(J)

main04479-35030iRZN140,150,VZN150199501-199608

sub04479-35031

main04479-35031iRZN140,150,VZN150199608-200409

main04479-35040iVZN195200309-200409

W(VSC)

04491PAD KIT, DISC BRAKE, FRONT

main04491-35270iRZN140,150,VZN150199501-199505

sub04465-35070

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRZN140,150,196,VZN150,195199501-200409

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-04010iRZN140,150,VZN150199501-200009

main47547-20030iVZN195200309

W(VSC)

main47547-20030iRZN196,VZN195199802-199807

(J)

main90080-93012iRZN196,VZN195199802-199807

(L)

sub47547-20030

main90080-93012iRZN19#,VZN195199807-200009

sub47547-20030

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-04010iRZN140,150,VZN150199706-200205

(L)

sub47703-04011

main47703-04011iRZN140,150,VZN150200205-200209

main47703-04020iRZN140,150,VZN150199706-200205

W(ABS),(L)

sub47703-04021

main47703-04021iRZN140,150,VZN150200205-200409

W(ABS)

main47703-04021iRZN140,150,VZN150200209

main47703-04030iRZN19#,VZN195199802-200409

(L)

main47703-35070iRZN140,150,VZN150199706-200205

(J)

main47703-35070iRZN140,150,VZN150199501-199706

main47703-35080iRZN140,150,VZN150199706-200205

W(ABS),(J)

main47703-35080iRZN140,150,VZN150199501-199706

W(ABS)

main47703-35091iRZN19#,VZN195199802-200409

(J)

main47703-35101iVZN195200309-200409

W(VSC)

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-04010iRZN140,150,VZN150199706-200205

(L)

sub47704-04011

main47704-04011iRZN140,150,VZN150200205-200209

main47704-04020iRZN140,150,VZN150199706-200205

W(ABS),(L)

sub47704-04021

main47704-04021iRZN140,150,VZN150200209

main47704-04021iRZN140,150,VZN150200205-200409

W(ABS)

main47704-04030iRZN19#,VZN195199802-200409

(L)

main47704-35070iRZN140,150,VZN150199501-199706

main47704-35070iRZN140,150,VZN150199706-200205

(J)

main47704-35080iRZN140,150,VZN150199706-200205

W(ABS),(J)

main47704-35080iRZN140,150,VZN150199501-199706

W(ABS)

main47704-35091iRZN19#,VZN195199802-200409

(J)

main47704-35101iVZN195200309-200409

W(VSC)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10129iRZN19#,VZN195199802-200409

*12-1.25PX35-27

sub90080-10213

main90080-11297iRZN140,150,VZN150199912-200409

*12-1.25PX31-20,(L)

sub90119-12058

main90119-12058iRZN140,150,VZN150199912-200409

*12-1.25PX31-20,(J)

main90119-12058iRZN140,150,VZN150199501-199912

*12-1.25PX31-20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22010iRZN140,150,VZN150199501-200009

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-35010iRZN140,150,VZN150199501-200009

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-35010iRZN140,150,VZN150199501-200009

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-04030iRZN140,150,VZN150199501-200009

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-04030iRZN140,150,VZN150199501-200009

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-04030iRZN140,150,VZN150199501-200009

main47730-04040iRZN19#,VZN195199802-200009

main47730-35120iVZN195200309

W(VSC)

47731PISTON, FRONT DISC BRAKE

main47731-04030iRZN140,150,VZN150199501-200012

main47731-04040iRZN19#,VZN195199807-200009

main47731-04040iRZN196,VZN195199802-199807

(L)

main47731-04060iRZN140,150,VZN150200012

main47731-14110iRZN196,VZN195199802-199807

(J)

main47731-35040iVZN195200309

W(VSC)

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-35030iRZN140,150,VZN150199501-199706

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-35030iRZN140,150,VZN150199501-199706

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35030iRZN140,150,VZN150199501-199706

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-35030iRZN140,150,VZN150199501-199706

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-04030iRZN140,150,VZN150199501-200009

main47750-04040iRZN19#,VZN195199802-200009

main47750-35120iVZN195200309

W(VSC)

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-35010iRZN140,150,VZN150199501-200009

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22050iRZN140,150,VZN150199501-200009

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-35010iRZN140,150,VZN150199706-200009

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429iRZN140,150,VZN150199812-200009

(L)

main90080-11429iRZN140,150,VZN150200009-200409

main90119-06227iRZN140,150,VZN150199501-199812

main90119-08571iRZN19#,VZN195199802-200409

main90148-60028iRZN140,150,VZN150199812-200009

(J)

9095001301

main90950-01301

24 parts on this diagram · 4 diagrams in section
