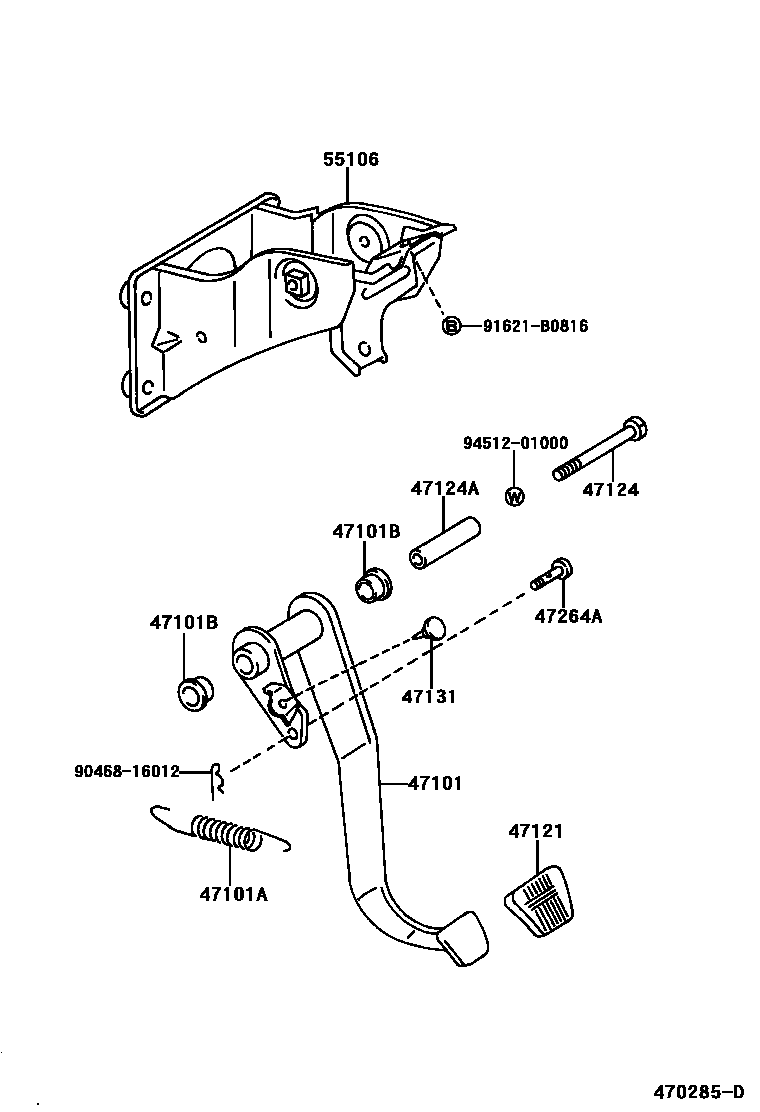

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1W(VSC)

47101PEDAL SUB-ASSY, BRAKE

main47101-35310iRZN140,150,VZN150..5F199501-200009

main47101-35320iRZN140,150,19#,VZN150,195..ATM199501-200009

main47101-35321iVZN195200309

W(VSC)

main47101-35380iRZN140,150,VZN150..5F200009

main47101-35390iRZN140,150,19#,VZN195..4FC200009

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-18031iRZN140,150,VZN150199501-199706

main90905-07020iRZN140,150,19#,VZN150,195199706-200009

main90905-07020iVZN195200309

W(VSC)

main90905-07028iRZN140,150,19#,VZN150,195200009

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iRZN140,150,19#,VZN150,195199704-200009

main90386-13015iVZN195200309

W(VSC)

main90386-13020iRZN140,150,VZN150199501-199704

main90386-14015iRZN140,150,19#,VZN150,195200009

47121PAD, BRAKE PEDAL

main31321-14020iRZN140,150,VZN150..5F199501-200009

main31321-52010iRZN140,150,VZN150..5F200009

main47121-12011iRZN140,150,19#,VZN150,195..ATM199501-200009

sub47121-12020

main47121-52010iRZN140,150,19#,VZN195..4FC200009

47124SHAFT, BRAKE PEDAL

main90080-10101iRZN140,150,19#,VZN150,195200001-200009

(L)

main90101-10480iRZN140,150,19#,VZN150,195200001-200009

(J)

sub91552-81090

main90101-10480iRZN140,150,19#,VZN150,195199501-200001

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iRZN140,150,19#,VZN150,195199501-200009

main47144-35030iVZN195200309

W(VSC)

main47144-60010iRZN140,150,19#,VZN150,195200009

47131CUSHION(FOR STOP LAMP SWITCH)

main47131-34010iRZN140,150,19#,VZN150,195200009

NO.2

main90541-06036iRZN140,150,19#,VZN150,195199501-200009

main90541-06036iRZN140,150,19#,VZN150,195200009

NO.1

47264APIN(FOR PUSH ROD)

main47148-35010iRZN140,150,19#,VZN150,195199501-200009

main47148-35010iVZN195200309

W(VSC)

main90240-06023iRZN140,150,19#,VZN150,195200009

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35090iRZN140,150,19#,VZN150,195199501-200009

main55106-35090iVZN195200309-200409

W(VSC)

main55106-35140iRZN140,150,19#,VZN150,195200009-200409

9046816012

main90468-16012

91621B0816

main91621-B0816

9451201000

main94512-01000

12 parts on this diagram · 3 diagrams in section
