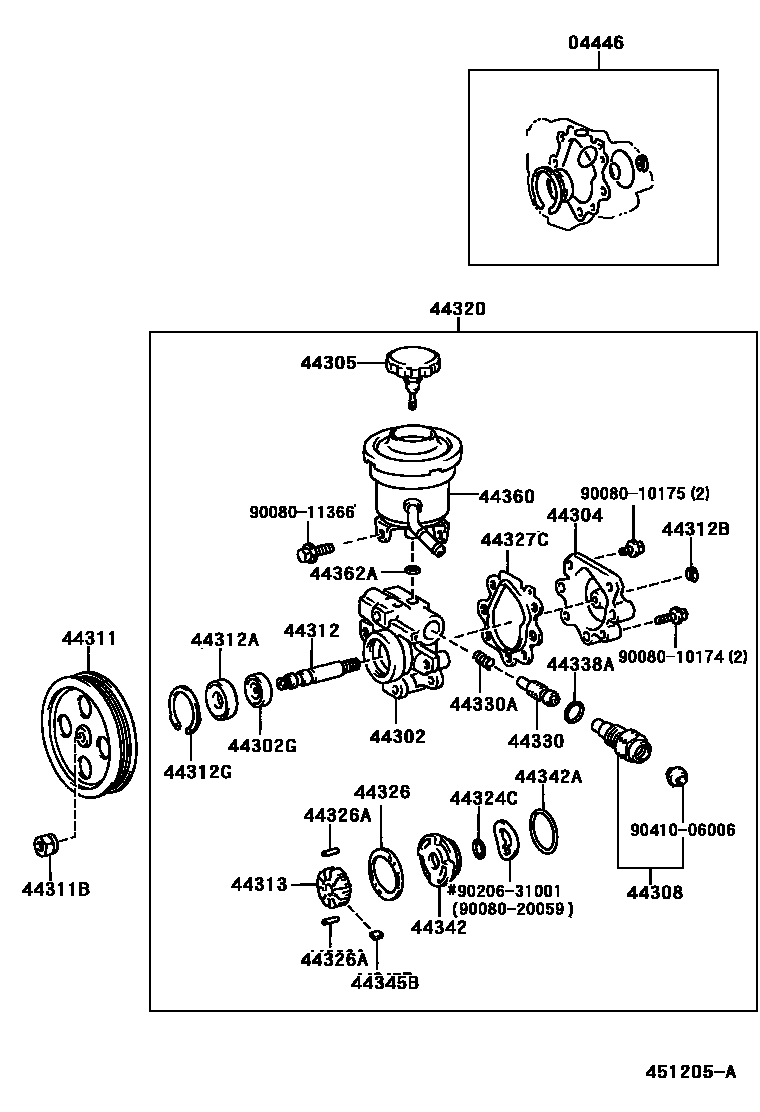

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-04010iVZN150,195199501-200409

sub04446-06040

main04446-04020iRZN140,150,19#199504-200109

main04446-04030iRZN140,150,19#200109-200409

main04446-06040iVZN195200408-200409

main04446-30120iRZN140,150199501-199504

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-04010iRZN140,150,19#199501-200109

main44302-04020iVZN150,195199501-200009

main44302-04060iRZN140,150,19#200109

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90080-31020iRZN140,150199501-200409

main90080-31040iRZN140,150,19#199504-200109

sub90311-17007

main90311-17007iRZN140,150199501-199504

main90311-18012iRZN19#200109-200409

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44324-04010iRZN140,150,19#199501-200009

main44324-04020iVZN150,195199501-200009

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iRZN140,150,19#199501-200009

sub44305-22060

main44305-50010iVZN150,195199501-200009

sub44305-50020

44308UNION SUB-ASSY, PRESSURE PORT

main44308-32141iRZN140,150,VZN150199501-200009

main44338-04010iRZN19#,VZN195199802-200009

44311PULLEY, VANE PUMP

main44311-04010iRZN140,150199501-199510

sub44311-04011

main44311-04011iRZN140,150,19#199510-200109

main44311-04021iVZN150,195199510-200009

main44311-34030iVZN150199501-199510

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iRZN140,150,19#,VZN150,195199804-200109

main90179-12022iRZN140,150,196,VZN150,195199501-199804

44312SHAFT, VANE PUMP

main44312-02060iRZN140,150,19#199801-200109

main44312-04010iRZN140,150199510-199801

sub44312-02050

main44312-06010iVZN150,195199706-200009

main44312-06020iVZN150199510-199706

sub44312-06010

main44312-26020iRZN140,150199501-199510

main44312-32020iVZN150199501-199510

44312ABEARING(FOR VANE PUMP SHAFT)

main90080-36084iRZN140,150199504-199712

sub90080-36085

main90080-36085iRZN140,150,19#199712-200109

main90363-17015iRZN140,150199501-199504

sub90363-17008

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90080-52033iVZN150,195199501-200409

main90080-52070iRZN140,150,19#199504-200109

main90520-15001iRZN140,150199501-199504

sub90520-15005

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90080-52071iRZN140,150,19#199504-200109

main90521-44002iRZN140,150199501-199504

44313ROTOR, VANE PUMP

main44313-06010iRZN140,150,19#,VZN150,195199504-200009

NO MARK

main44313-06020iRZN140,150,19#,VZN150,195199504-200009

MARK 1

main44313-06030iRZN140,150,19#,VZN150,195199504-200009

MARK 2

main44313-06040iRZN140,150,19#,VZN150,195199504-200009

MARK 3

main44313-06050iRZN140,150,19#,VZN150,195199504-200009

MARK 4

main44313-26060iRZN140,150,VZN150199501-199504

NO MARK

main44313-26070iRZN140,150,VZN150199501-199504

MARK 1

main44313-26080iRZN140,150,VZN150199501-199504

MARK 2

main44313-26090iRZN140,150,VZN150199501-199504

MARK 3

main44313-26100iRZN140,150,VZN150199501-199504

MARK 4

44320PUMP ASSY, VANE

main44320-04020iRZN140,150199501-200109

main44320-04030iVZN150199501-200009

main44320-04043iRZN19#199802-200109

main44320-04052iVZN195199802-200009

44324CRING, O(FOR PUMP HOUSING REAR)

main90080-30031iRZN140,150,19#199510-200409

main90301-18007iRZN140,150,VZN150199501-199510

44326RING, CAM(FOR VANE PUMP)

main44325-06010iRZN140,150,19#,VZN150,195199504-200009

NO MARK

main44325-06020iRZN140,150,19#,VZN150,195199504-200009

MARK 1

main44325-06030iRZN140,150,19#,VZN150,195199504-200009

MARK 2

main44325-06040iRZN140,150,19#,VZN150,195199504-200009

MARK 3

main44325-06050iRZN140,150,19#,VZN150,195199504-200009

MARK 4

main44325-32270iRZN140,150,VZN150199501-199504

NO MARK

main44325-32280iRZN140,150,VZN150199501-199504

MARK 1

main44325-32290iRZN140,150,VZN150199501-199504

MARK 2

main44325-32300iRZN140,150,VZN150199501-199504

MARK 3

main44325-32310iRZN140,150,VZN150199501-199504

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90080-25024iRZN140,150,19#,VZN150,195199712-200009

L=23.3,OD=4.0

main90250-04071iRZN140,150,VZN150199501-199712

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-04010iRZN140,150,19#,VZN150,195199803-200009

main44327-26010iRZN140,150,196,VZN150,195199501-199803

44330VALVE ASSY, FLOW CONTROL

main44330-06190iRZN140,150,19#,VZN150,195200009

MARK A

main44330-06200iRZN140,150,19#,VZN150,195200009

MARK B

main44330-06210iRZN140,150,19#,VZN150,195200009

MARK C

main44330-06220iRZN140,150,19#,VZN150,195200009

MARK D

main44330-06230iRZN140,150,19#,VZN150,195200009

MARK E

main44330-06240iRZN140,150,19#,VZN150,195200009

MARK F

main44330-26071iRZN140,150,19#,VZN150,195199501-200009

MARK A

main44330-26081iRZN140,150,19#,VZN150,195199501-200009

MARK B

main44330-26091iRZN140,150,19#,VZN150,195199501-200009

MARK C

main44330-26101iRZN140,150,19#,VZN150,195199501-200009

MARK D

main44330-26111iRZN140,150,19#,VZN150,195199501-200009

MARK E

main44330-26121iRZN140,150,19#,VZN150,195199501-200009

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50221iRZN140,150,19#,VZN150,195199712-200409

main90501-13034iRZN140,150,VZN150199501-199712

44338ARING, O(FOR PRESSURE PORT UNION)

main90080-30035iRZN140,150,19#,VZN150,195199606-200409

main90301-19003iRZN140,150,VZN150199501-199606

ID=19.5,OD=22.5

sub90301-19013

44342PLATE, VANE PUMP SIDE, REAR

main44342-06010iRZN140,150,19#,VZN150,195199501-200009

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90080-30032iVZN150,195199510-200409

main90301-47001iRZN140,150,VZN150199501-199510

44345BPLATE, VANE PUMP

main44345-04010iRZN140,150,19#,VZN150,195199803-200009

L=15.000

main44345-04020iRZN140,150,19#,VZN150,195199803-200009

L=14.008

main44345-04030iRZN140,150,19#,VZN150,195199803-200009

L=14.006

main44345-04040iRZN140,150,19#,VZN150,195199803-200009

L=14.004

main44345-04050iRZN140,150,19#,VZN150,195199803-200009

L=14.002

main44345-26010iRZN140,150,196,VZN150,195199501-199803

L=15.000

main44345-26020iRZN140,150,196,VZN150,195199501-199803

L=14.998

main44345-26030iRZN140,150,196,VZN150,195199501-199803

L=14.996

main44345-26040iRZN140,150,196,VZN150,195199501-199803

L=14.994

main44345-26050iRZN140,150,196,VZN150,195199501-199803

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-04010iRZN140,150200009

(L)

main44306-04010iRZN140,150199606-200009

main44306-04020iRZN19#199802-200009

main44306-04020iRZN19#200009

(L)

main44306-34020iRZN140,150200009

(J)

main44306-34020iRZN140,150199501-199606

main44306-35240iVZN150,195199501-200009

main44306-35250iRZN19#200009

(J)

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90080-30034iRZN140,150,19#,VZN150,195199606-200409

main90301-11010iRZN140,150,VZN150199501-199606

sub90301-11016

9008010174

main90080-10174

9008010175

main90080-10175

9008011366

main90080-11366

9008020059

main90080-20059

9020631001

main90206-31001

9041006006

main90410-06006

32 parts on this diagram · 3 diagrams in section
