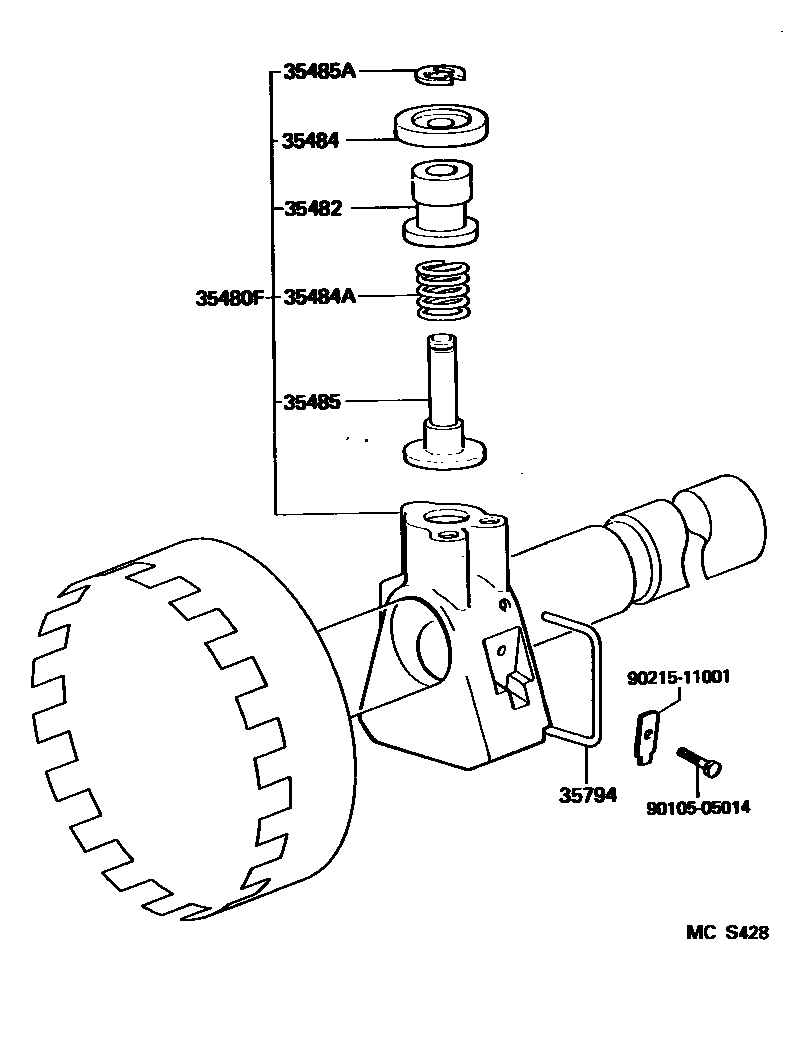

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A43D 0002 1A44D

35480FBODY ASSY, GOVERNOR

main35480-26020iRZN140,150..4HC199501-200009

main35480-28010iRZN140,150..4FC200009-200409

35482VALVE, GOVERNOR

main35482-20010iRZN140,150..4HC199501-200009

main35482-28010iRZN140,150..4FC200009-200409

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iRZN140,150..4HC199501-200009

main35484-22010iRZN140,150..4FC200009-200409

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-08051iRZN140,150..4FC200009-200409

OUTER

main90501-08052iRZN140,150..4FC200009-200409

INNER

main90501-09673iRZN140,150..4HC199501-200009

35485SHAFT, GOVERNOR VALVE

main35485-14010iRZN140,150..4FC200009-200409

main35485-22010iRZN140,150..4HC199501-200009

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRZN140,150..4HC199501-200409

35794RING, GOVERNOR RETAINING

main35794-22010iRZN140,150..4HC199501-200409

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 2 diagrams in section
