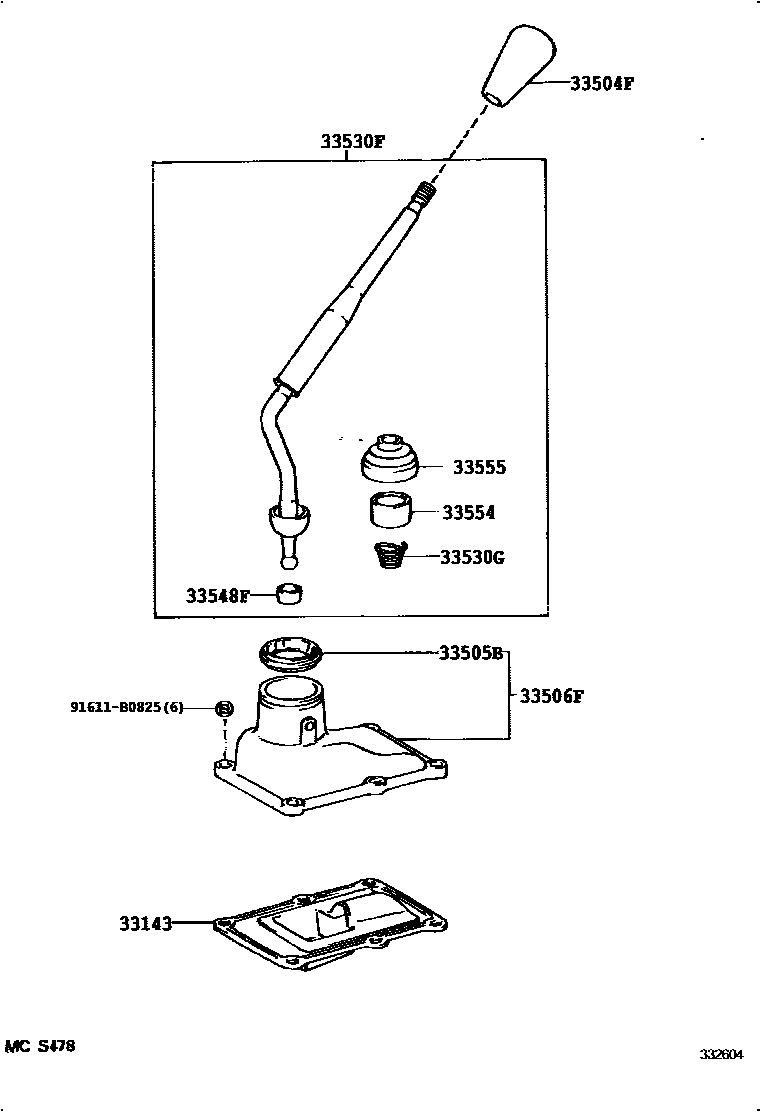

SHIFT LEVER & RETAINER

0001 1W59 0002 1R150 0003 1 0004 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-35050iRZN140,150..W¥2,620199501-200409

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14050-B2iRZN140,150,VZN150..5F199501-199706

BLUISH GRAY,TRIM1#

sub33504-14050¥3,000

sub33504-14070¥2,730

main33504-14050-C0iRZN140,150,VZN150..5F199501-199706

BLACK,TRIM1#,4#

sub33504-14050¥3,000

sub33504-14070¥2,730

main33504-14050-E2iRZN140,150,VZN150..5F199501-199706

OAK,TRIM4#

sub33504-14050¥3,000

sub33504-14070¥2,730

main33504-20100-B1iRZN140,150,VZN150..5F199706-200009

MD.MOON MIST,TRIM1#

sub33504-24010¥1,710

sub33504-20100¥2,980

main33504-20100-B2iRZN140,150..W200009-200409

DK.CHARCOAL,TRIM1#

sub33504-24010¥1,710

sub33504-20100¥2,980

main33504-20100-E0iRZN140,150,VZN150..5F199706-200409

OAK,TRIM4#

sub33504-24010¥1,710

sub33504-20100¥2,980

main33504-22140-B3iVZN150200009-200409

DK.CHARCOAL,TRIM1#

sub33504-22140¥7,400

main33504-22140-E3iVZN150200009-200409

OAK,TRIM4#

sub33504-22140¥7,400

main33542-35140-B1iRZN19#,VZN195199802-200009

MD.MOON MIST,TRIM1#

sub33542-35140¥3,610

main33542-35140-B2iRZN140,150,19#,VZN195..4FC200009-200409

DK.CHARCOAL,TRIM1#

sub33542-35140¥3,610

main33542-35140-E0iRZN140,150,19#,VZN195..4FC199802-200409

OAK,TRIM4#

sub33542-35140¥3,610

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iRZN140,150,VZN150..5F¥510199501-200409

main33505-35030iVZN150¥1,380199505-200409

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-34010iRZN140,150..W¥4,980199501-200409

main33570-35080iVZN150..R¥4,970199501-200409

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35240iVZN150..R¥8,800199501-200009

main33530-35260iRZN140,150..W¥9,100199501-200009

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26005iVZN150..R¥240199501-200009

main90502-26007iRZN140,150..W¥220199501-200009

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iRZN140,150,VZN150..5F¥270199501-200009

33554CAP, SHIFT LEVER

main33554-30012iRZN140,150,VZN150..5F¥750199501-200009

33555BOOT, SHIFT LEVER

main33555-35040iRZN140,150,VZN150..5F¥580199501-200009

main33555-35160iRZN19#,VZN195¥740199802-200009

main33555-35220iRZN140,150..4FC¥820200009

91611B0825

main91611-B0825¥160

10 parts on this diagram · 4 diagrams in section
