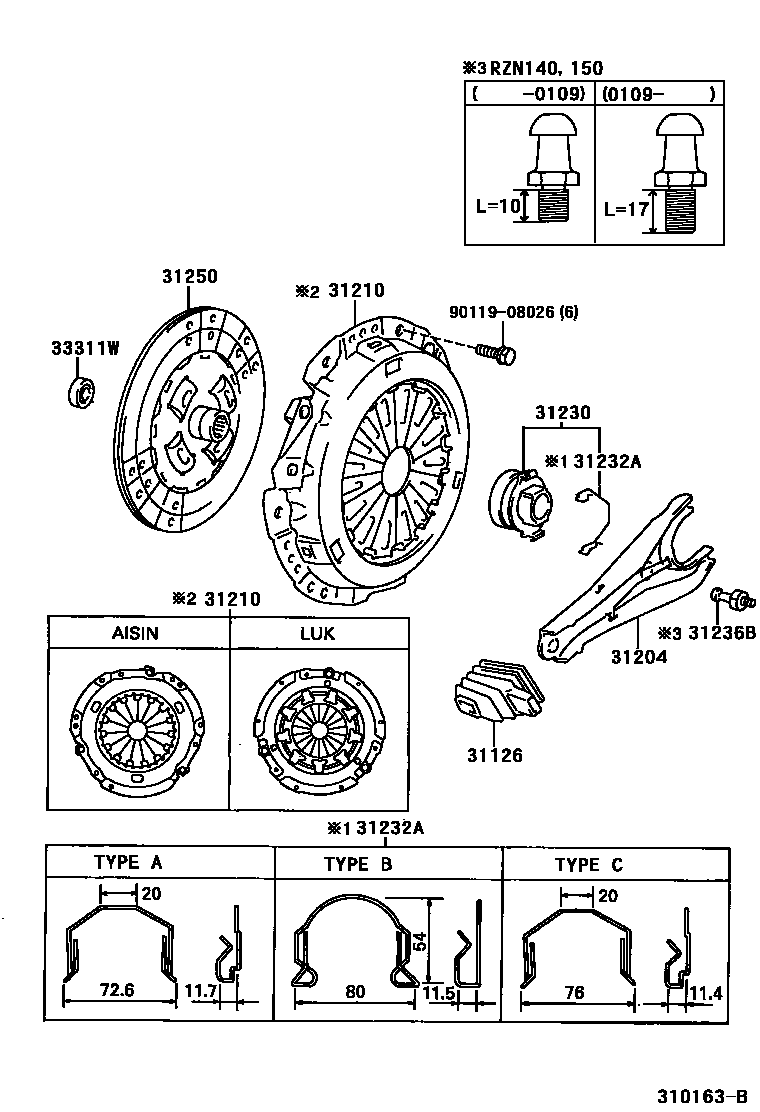

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iRZN140,150..W199501-200409

main31126-34010iVZN150..R199501-200409

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZN140,150..W199501-200409

main31204-35031iVZN150199501-200409

31210COVER ASSY, CLUTCH

main31210-04030iRZN140,150..W199609-200409

LUK

sub31210-35281

sub31250-26200

main31210-30240iRZN140,150..W199609-200409

AISIN

sub31210-30241

main31210-30240iRZN140,150..W199501-199609

sub31210-30241

main31210-35210iVZN150..R199501-200409

sub31210-35290

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iRZN140,150..W199501-200009

sub31230-35091

main31230-35091iRZN140,150..W200009-200409

main31230-35110iVZN150199501-200409

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRZN140,150,VZN150..5F199501-200009

TYPE A:REFER TO ILLUSTRATION

main31232-35020iRZN140,150,VZN150..5F200009-200409

TYPE A

main31232-35030iVZN150..R199501-200009

TYPE B:REFER TO ILLUSTRATION

main31232-35030iVZN150200304-200409

TYPE B

main31232-35040iRZN140,150..W200009-200409

TYPE C

main31232-35040iRZN140,150..W199501-200009

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-26010iRZN140,150..W200109-200409

main31236-30060iRZN140,150..W199501-200109

main31236-35030iVZN150..R199501-200409

31250DISC ASSY, CLUTCH

main31250-04030iRZN140,150..W199708-200009

main31250-04030iRZN140,150..W199609-200409

LUK

main31250-35321iRZN140,150..W199609-199708

AISIN

sub31250-35380

main31250-35321iRZN140,150..W199501-199609

sub31250-35380

main31250-35350iVZN150..R199501-199703

sub31250-35351

main31250-35351iVZN150..R199703-199805

sub31250-35352

main31250-35352iVZN150..R199805-200409

sub31250-35353

main31250-35381iRZN140,150..W200009-200409

AISIN

sub31250-35382

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRZN140,150,VZN150..5F199501-200409

sub90363-12024

main90363-12018iRZN140,150..W200006-200409

NSK

main90363-12020iRZN140,150..W200006-200009

NACHI

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
