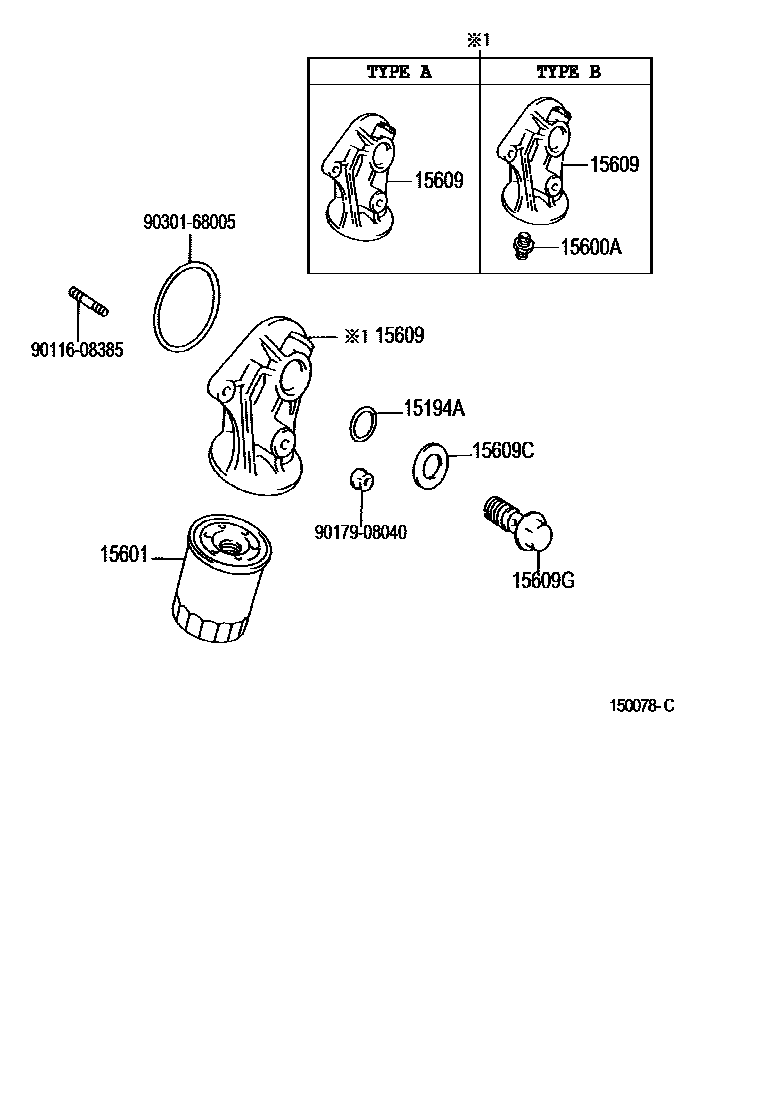

OIL FILTER

0001 1 0002 1 0003 1 0004 1

15194ARING, O

main96721-24016i2RZFE..RZN140,150¥240199501-200409

main96721-24018i3RZFE..RZN19#¥400199802-200409

15600AUNION(FOR OIL FILTER)

main90404-19013i5VZFE..VZN150,195¥510199501-200409

main90404-19015i2RZFE..RZN140,150¥410200311-200409

TYPE B:REFER ILLUST.

main90404-19017i3RZFE..RZN19#¥400199802-200409

15601FILTER SUB-ASSY, OIL

main90915-20001i2RZFE,3RZFE..RZN140,150,19#¥1,470199501-199908

sub90915-20003¥1,470

main90915-20003i5VZFE..VZN150,195¥1,470199908-200409

sub90915-20005¥1,470

15609BRACKET SUB-ASSY, OIL FILTER

main15609-75010i2RZFE..RZN140,150199501-200311

sub15609-75050¥10,400

sub90404-19015¥410

main15609-75010i2RZFE..RZN140,150200311-200409

TYPE A

sub15609-75050¥10,400

sub90404-19015¥410

main15609-75020i3RZFE..RZN19#200109-200409

main15609-75030i3RZFE..RZN19#199802-200109

main15609-75050i2RZFE..RZN140,150¥10,400200311-200409

TYPE B

15609CGASKET(FOR OIL FILTER BRACKET UNION)

main90430-28004i2RZFE..RZN140,150¥120199501-200409

15609GBOLT, UNION(FOR OIL FILTER BRACKET)

main90401-19005i2RZFE..RZN140,150¥670199501-200409

9011608385

main90116-08385¥160

9017908040

main90179-08040¥100

9030168005

main90301-68005¥200

9 parts on this diagram · 4 diagrams in section
