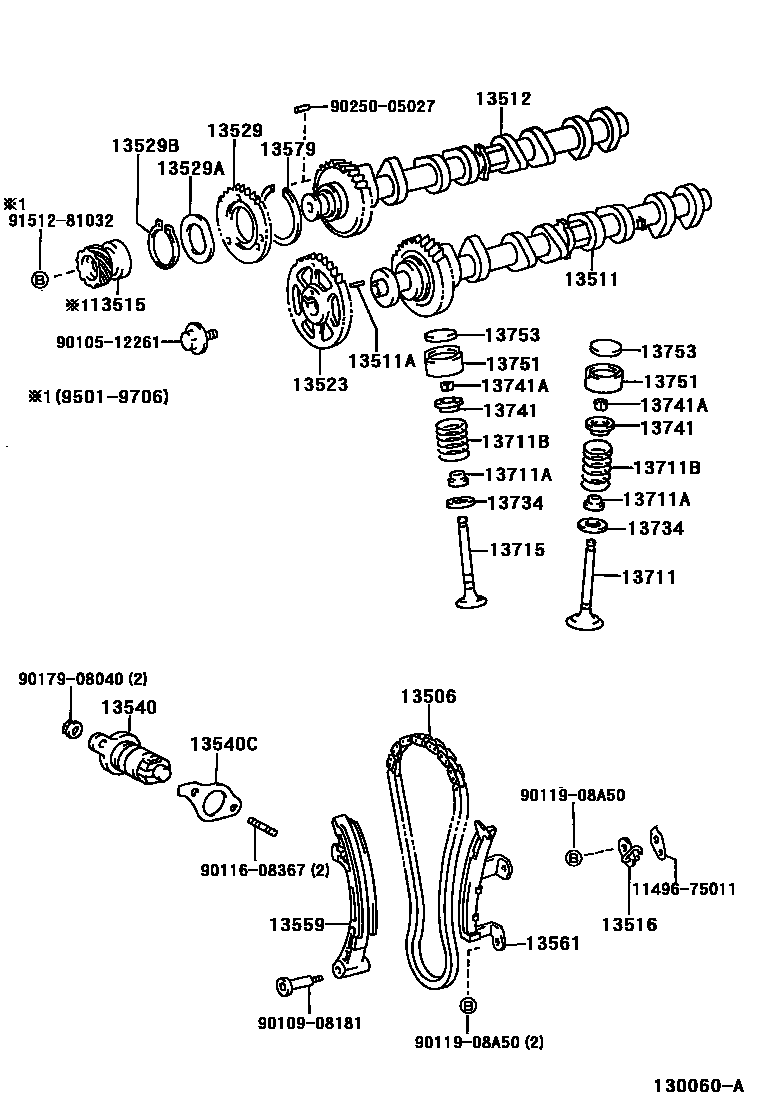

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13506CHAIN SUB-ASSY

main13506-75010i2RZFE..RZN140,150199501-200409

main13506-75020i3RZFE..RZN19#199802-200409

13511CAMSHAFT

main13501-62050i5VZFE..VZN150,195199501-200409

main13501-75030i2RZFE,3RZFE..RZN140,150,19#199501-200009

sub13501-75903

main13501-75040i2RZFE,3RZFE..RZN140,150,196199908-200409

CALIFORNIA(LEV) SPEC

sub13501-75902

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i5VZFE..VZN150,195199501-200409

L=15,OD=5

main90250-06068i2RZFE,3RZFE..RZN140,150,19#199501-200409

L=11,OD=6

13512CAMSHAFT, NO.2

main13502-62030i5VZFE..VZN150,195199501-200409

main13502-75010i2RZFE,3RZFE..RZN140,150,19#199501-200409

sub13502-75901

13515GEAR, DISTRIBUTOR DRIVE

main13515-75020i2RZFE..RZN140,150199501-199706

13516JET, OIL

main13516-75020i2RZFE..RZN140,150199501-200409

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-75010i3RZFE..RZN19#199802-200409

main13523-75020i2RZFE..RZN140,150199501-200409

13529GEAR, CAMSHAFT SUB

main13529-62901i5VZFE..VZN150,195199501-200409

main13529-74900i2RZFE,3RZFE..RZN140,150,19#199501-200409

13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)

main90206-42001i2RZFE,3RZFE..RZN140,150,19#199501-200409

13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)

main90520-41004i2RZFE,3RZFE..RZN140,150,19#199501-200409

13540TENSIONER ASSY, CHAIN, NO.1

main13540-62021i5VZFE..VZN150,195199501-200409

main13540-75020i2RZFE,3RZFE..RZN140,150,19#199501-200409

13540CGASKET(FOR CHAIN TENSIONER)

main13552-75010i2RZFE,3RZFE..RZN140,150,19#199501-200409

13559SLIPPER, CHAIN TENSIONER

main13559-75020i3RZFE..RZN19#199802-200409

main13559-76010i2RZFE..RZN140,150199501-200409

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-75020i3RZFE..RZN19#199802-200409

main13561-76020i2RZFE..RZN140,150199501-200409

13579WASHER, CAMSHAFT TIMING GEAR BOLT

main13579-62010i5VZFE..VZN150,195199501-200409

sub13579-50020

main13579-74010i2RZFE,3RZFE..RZN140,150,19#199501-200409

13711VALVE, INTAKE

main13711-62030i5VZFE..VZN150,195199501-200409

main13711-75060i2RZFE,3RZFE..RZN140,150,19#199501-200409

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02090i2RZFE,3RZFE..RZN140,150,19#199501-200409

FOR INTAKE VALVE

main90913-02095i5VZFE..VZN150,195199501-200409

FOR INTAKE VALVE

main90913-02103i2RZFE,3RZFE..RZN140,150,19#199501-200409

FOR EXHAUST VALVE

13711BSPRING, COMPRESSION(FOR INNER)

main90501-31013i5VZFE..VZN150,195199501-200409

main90501-31017i2RZFE,3RZFE..RZN140,150,19#199608-200409

main90501-36002i2RZFE..RZN140,150199501-199608

sub90501-31017

13715VALVE, EXHAUST

main13715-62050i5VZFE..VZN150,195199501-200409

main13715-75050i2RZFE,3RZFE..RZN140,150,19#199501-200409

13734SEAT, VALVE SPRING

main13734-62020i5VZFE..VZN150,195199501-200409

main90201-18015i2RZFE,3RZFE..RZN140,150,19#199501-200409

13741RETAINER, VALVE SPRING

main13741-46020i2RZFE,3RZFE..RZN140,150,19#199501-200409

main13741-62010i5VZFE..VZN150,195199501-200409

sub13741-46020

13741ALOCK, VALVE SPRING RETAINER

main90913-03021i2RZFE,3RZFE..RZN140,150,19#199501-200409

13751LIFTER, VALVE

main13751-74020i2RZFE,3RZFE..RZN140,150,19#199501-200409

13753SHIM, VALVE ADJUSTING

main13753-74010i5VZFE..VZN150,195199501-200409

T=2.50

main13753-74030i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=2.55

main13753-74050i5VZFE..VZN150,195199501-200409

T=2.60

main13753-74070i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=2.65

main13753-74090i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=2.70

main13753-74110i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=2.75

main13753-74130i5VZFE..VZN150,195199501-200409

T=2.80

main13753-74150i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=2.85

main13753-74170i5VZFE..VZN150,195199501-200409

T=2.90

main13753-74190i5VZFE..VZN150,195199501-200409

T=2.95

main13753-74210i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=3.00

main13753-74230i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=3.05

main13753-74250i5VZFE..VZN150,195199501-200409

T=3.10

main13753-74270i5VZFE..VZN150,195199501-200409

T=3.15

main13753-74290i5VZFE..VZN150,195199501-200409

T=3.20

main13753-74310i5VZFE..VZN150,195199501-200409

T=3.25

main13753-74330i2RZFE,3RZFE..RZN140,150,19#199501-200409

T=3.30

1149675011GASKET, OIL HOLE COVER PLATE

main11496-75011

9010512261

main90105-12261

9010908181

main90109-08181

9011608367

main90116-08367

9011908A50

main90119-08A50

9017908040

main90179-08040

9025005027

main90250-05027

9151281032

main91512-81032
