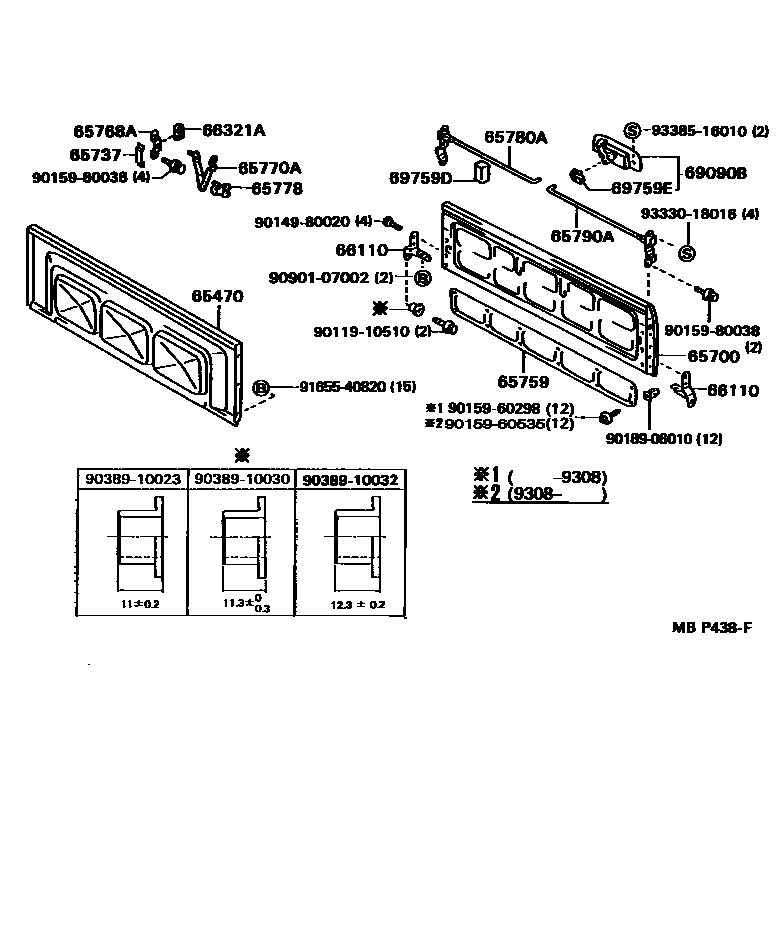

REAR BODY GUARD FRAME & TAIL GATE

65470BOARD ASSY, HEADER

main65405-89104iRN80,90199109-199501

65700GATE ASSY, REAR BODY TAIL

main65700-89151iRN80,90199109-199501

65737STOP, TAIL GATE

main65737-89105iRN80,90199109-199501

65759COVER, TAIL GATE SERVICE HOLE

main65759-89105iRN80,90199109-199501

65768ASTRIKER, TAIL GATE LOCK

main65768-89102iRN80,90199109-199501

65770ASTAY ASSY, TAIL GATE

main65770-89103iRN80,90199109-199501

65778STOPPER, TAIL GATE STAY

main65778-89105iRN80,90199109-199501

65780ALOCK ASSY, TAIL GATE, RH

main65780-89105iRN80,90199109-199501

65790ALOCK ASSY, TAIL GATE, LH

main65790-89107iRN80,90199109-199501

66110HINGE ASSY, TAIL GATE

main66110-89108iRN80,90199109-199501

RH

main66120-89102iRN80,90199109-199501

LH

66321ABUMPER, GATE RUBBER

main66321-04010iRN80,90199109-199501

69090BHANDLE ASSY, TAIL GATE

main69090-89102iRN80,90199109-199501

69759DSILENCER, TAIL GATE LOCK LINK

main69759-04010iRN80,90199109-199501

69759ESNAP, TAIL GATE LOCK LINK

main69759-20100iRN80,90199109-199501

RH

main69759-20110iRN80,90199109-199501

LH

9011910510

main90119-10510

9014980020

main90149-80020

9015960298

main90159-60298

9015960535

main90159-60535

9015980038

main90159-80038

9018906010

main90189-06010

9038910023

main90389-10023

9038910030

main90389-10030

9038910032

main90389-10032

9090107002

main90901-07002

9165540820

main91655-40820

9333018016

main93330-18016

9338516010

main93385-16010

27 parts on this diagram · 1 diagram in section
