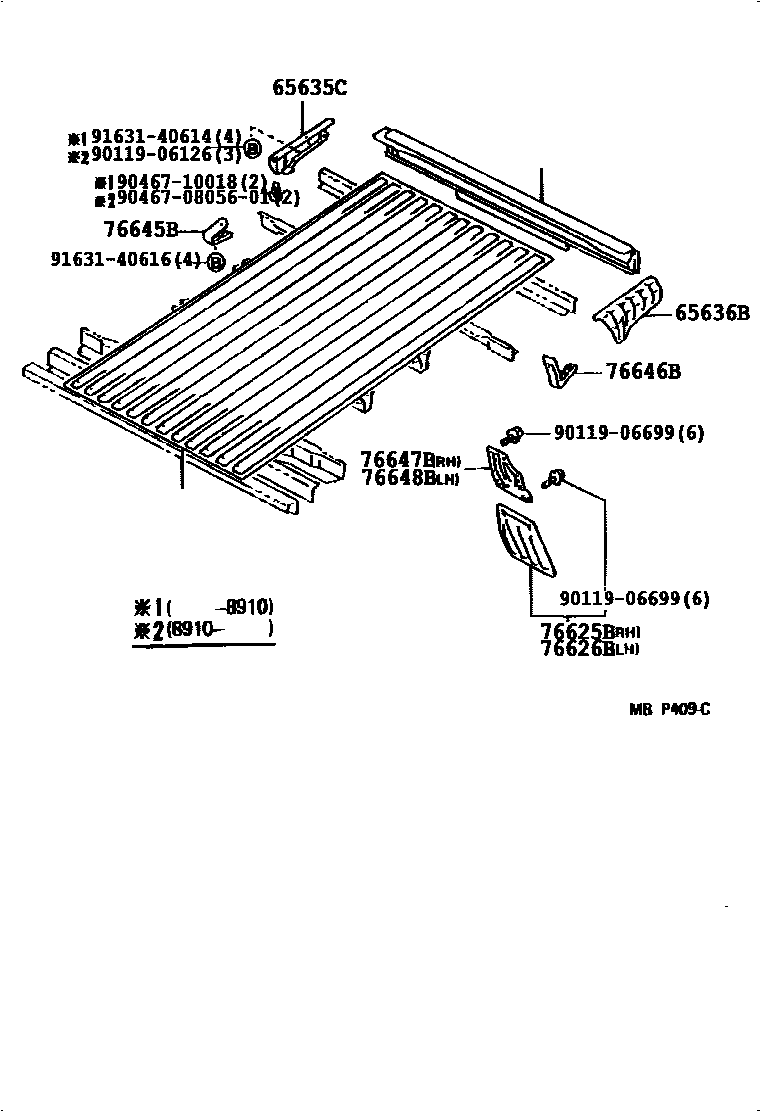

REAR BODY FLOOR & FENDER

65635CPLATE, REAR WHEEL HOUSE, REAR RH

main65635-89112iRN80,90199109-199501

65636BPLATE, REAR WHEEL HOUSE, REAR LH

main65636-89111iRN80,90199109-199501

76625BMUDGUARD, REAR BODY, RH

main76625-09050iRN80199109-199501

76626BMUDGUARD, REAR BODY, LH

main76626-09050iRN80199109-199501

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-89101iRN80,90199109-199501

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-89101iRN80,90199109-199501

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-04010iRN80,90199109-199501

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-04010iRN80,90199109-199501

9011906126

main90119-06126

9011906699

main90119-06699

904670805601

main90467-0805601

9046710018

main90467-10018

9163140614

main91631-40614

9163140616

main91631-40616

14 parts on this diagram · 1 diagram in section
