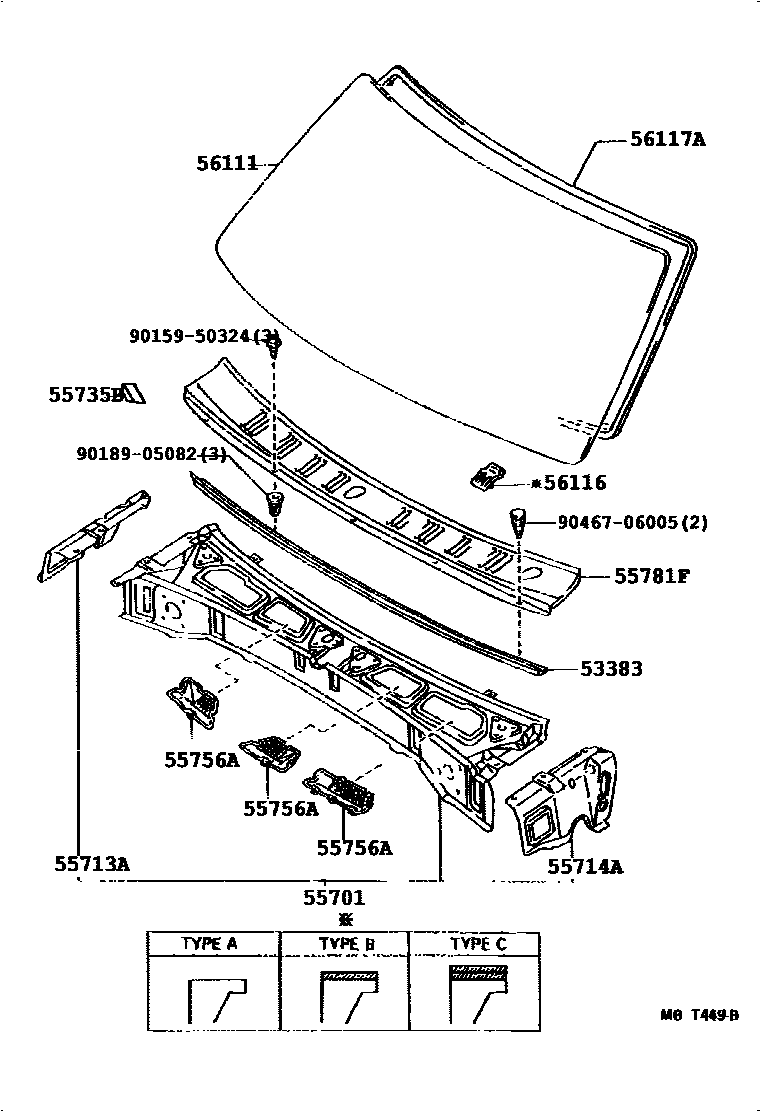

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-04010iRN80,90199109-199501

55701PANEL SUB-ASSY, COWL

main55700-04140iRN80,90199109-199501

55713APANEL, COWL TOP SIDE, RH

main55713-89105iRN80,90199109-199501

55714APANEL, COWL TOP SIDE, LH

main55714-89106iRN80,90199109-199501

55735BSEAL, FRONT AIR SHUTTER

main55735-89101iRN80,90199109-199501

55756ASCREEN, HEATER AIR DUCT

main55756-89108iRN80,90199109-199501

LH

main55756-89109iRN80,90199109-199501

CENTER

main55756-89111iRN80,90199109-199501

RH

55781FLOUVER, COWL TOP VENTILATOR

main55781-89103iRN80,90199109-199501

56111GLASS, WINDSHIELD

main56111-04030iRN80199109-199501

*LAM,T=5.3

main56111-04040iRN80,90..DLX199209-199501

*LAM,T=5.3,GREEN

main56111-04040iRN80199109-199501

*LAM,T=5.3,GREEN,W(TOP SHADE)

56116SPACER, WINDSHIELD GLASS

main56116-89104iRN80,90199109-199501

TYPE A

main56116-89105iRN80,90199109-199501

TYPE B

main56116-89106iRN80,90199109-199501

TYPE C

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010iRN80,90199202-199501

main56117-89104iRN80199109-199202

9015950324

main90159-50324

9018905082

main90189-05082

9046706005

main90467-06005

13 parts on this diagram · 1 diagram in section
