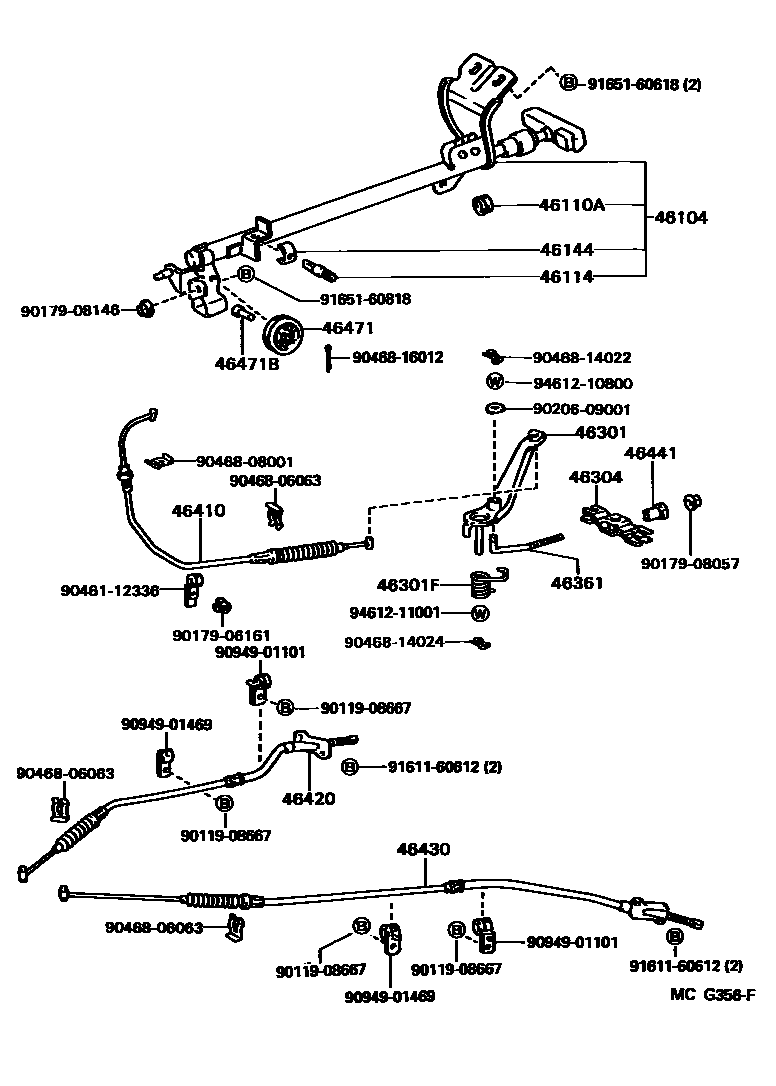

PARKING BRAKE & CABLE

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-35010iRN80,90199109-199306

sub46104-35030

main46104-35030iRN80,90199306-199501

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iRN80,90199109-199501

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iRN80,90199109-199501

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iRN80,90199109-199501

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35170iRN80,90199109-199501

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32018iRN80,90199109-199501

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iRN80,90199109-199501

46361ROD, PARKING BRAKE PULL

main46361-35070iRN80,90199109-199501

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35710iRN80,90199109-199501

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35340iRN80199109-199501

main46420-35370iRN90199303-199501

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35250iRN80199109-199501

main46430-35280iRN90199303-199501

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iRN80,90199109-199501

46471PULLEY, WIRE

main46471-20010iRN80,90199109-199501

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iRN80,90199109-199501

9011908667

main90119-08667

9017906161

main90179-06161

9017908057

main90179-08057

9017908146

main90179-08146

9020609001

main90206-09001

9046112336

main90461-12336

9046806063

main90468-06063

9046808001

main90468-08001

9046814022

main90468-14022

9046814024

main90468-14024

9046816012

main90468-16012

9094901101

main90949-01101

9094901469

main90949-01469

9161160612

main91611-60612

9165160618

main91651-60618

9165160818

main91651-60818

9461210800

main94612-10800

9461211001

main94612-11001

32 parts on this diagram · 1 diagram in section
