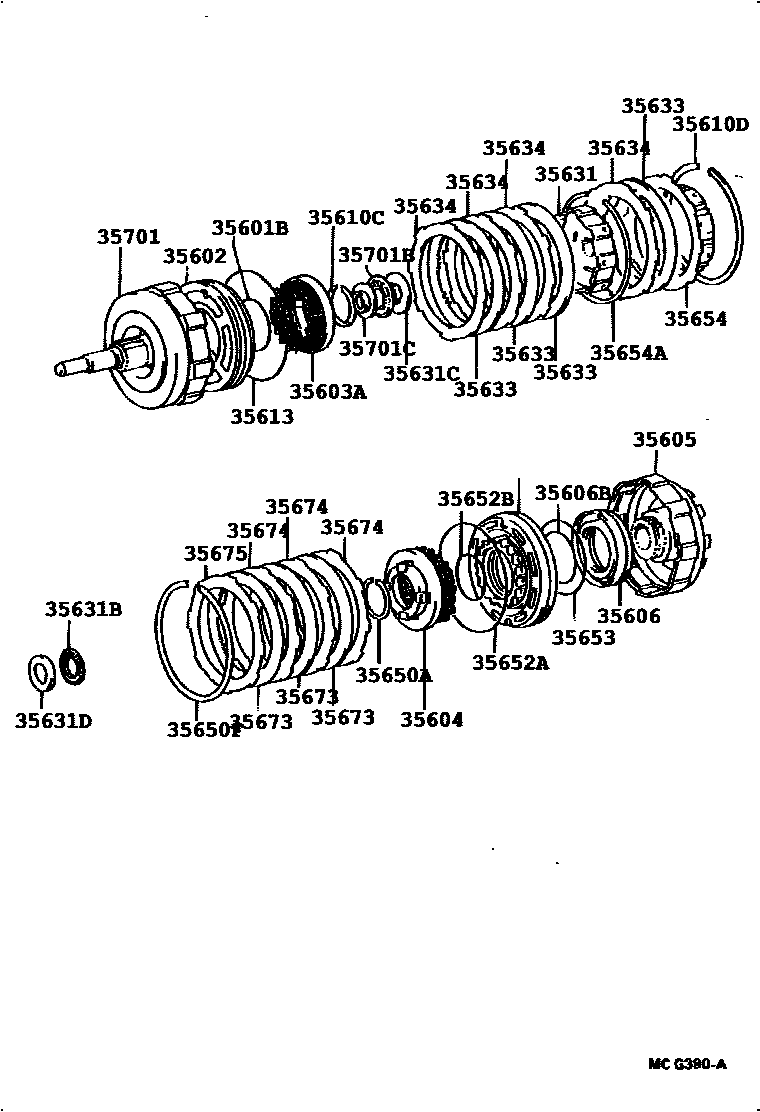

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601BRING, O (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
35606PISTON SUB-ASSY, REAR CLUTCH
35606BRING (FOR REAR CLUTCH PISTON INNER)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
sub35677-30160
35634PLATE, FRONT CLUTCH
T=1.8
T=2.0
35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35650FRING, SHAFT SNAP
35652ARING (FOR REAR CLUTCH OUTER)
35652BRING (FOR REAR CLUTCH PISTON INNER)
35653RING, REAR CLUTCH OIL SEAL, OUTER
sub90301-83001
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35673DISC, REAR CLUTCH
sub35677-30160
35674PLATE, REAR CLUTCH
35675FLANGE, REAR CLUTCH
35701SHAFT SUB-ASSY, INPUT
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
29 parts on this diagram · 1 diagram in section
