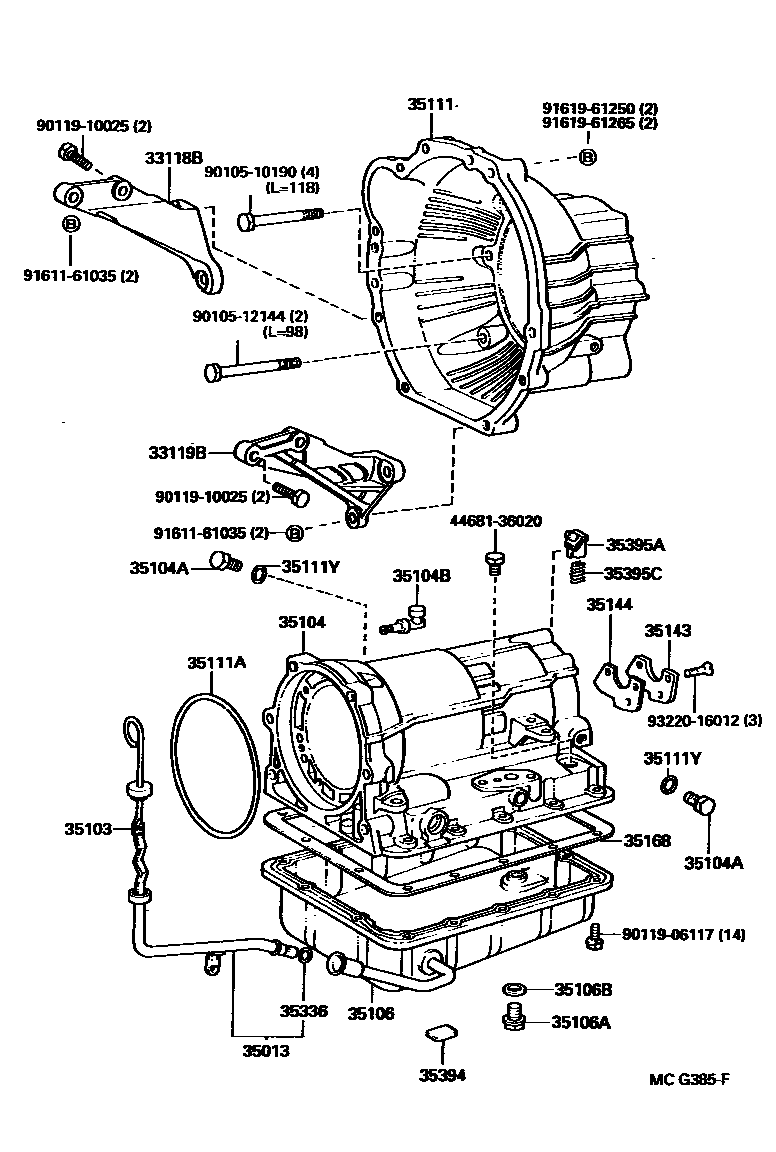

TRANSMISSION CASE & OIL PAN (ATM)

33118BPLATE, STIFFENER, RH(ATM)

main33118-22030iRN80..4HC199109-199501

33119BPLATE, STIFFENER, LH(ATM)

main33119-22022iRN80..4HC199109-199501

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-35161iRN80..4HC199109-199501

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-35090iRN80..4HC199109-199501

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iRN80..4HC199109-199501

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iRN80..4HC199109-199501

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iRN80..4HC199109-199501

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30061iRN80..4HC199109-199501

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iRN80..4HC199109-199501

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iRN80..4HC199109-199501

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35022iRN80..4HC199109-199501

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iRN80..4HC199109-199501

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iRN80..4HC199109-199501

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iRN80..4HC199109-199501

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iRN80..4HC199109-199501

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iRN80..4HC199109-199501

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iRN80..4HC199109-199501

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iRN80..4HC199109-199501

35395ASTRAINER, GOVERNOR OIL

main35395-40010iRN80..4HC199109-199501

35395CSPRING, COMPRESSION (FOR GOVERNOR STRAINGER)

main90501-03005iRN80..4HC199109-199501

4468136020PLUG, BOOSTER

main44681-36020

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011910025

main90119-10025

9161161035

main91611-61035

9161961250

main91619-61250

9161961265

main91619-61265

9322016012

main93220-16012

29 parts on this diagram · 1 diagram in section
