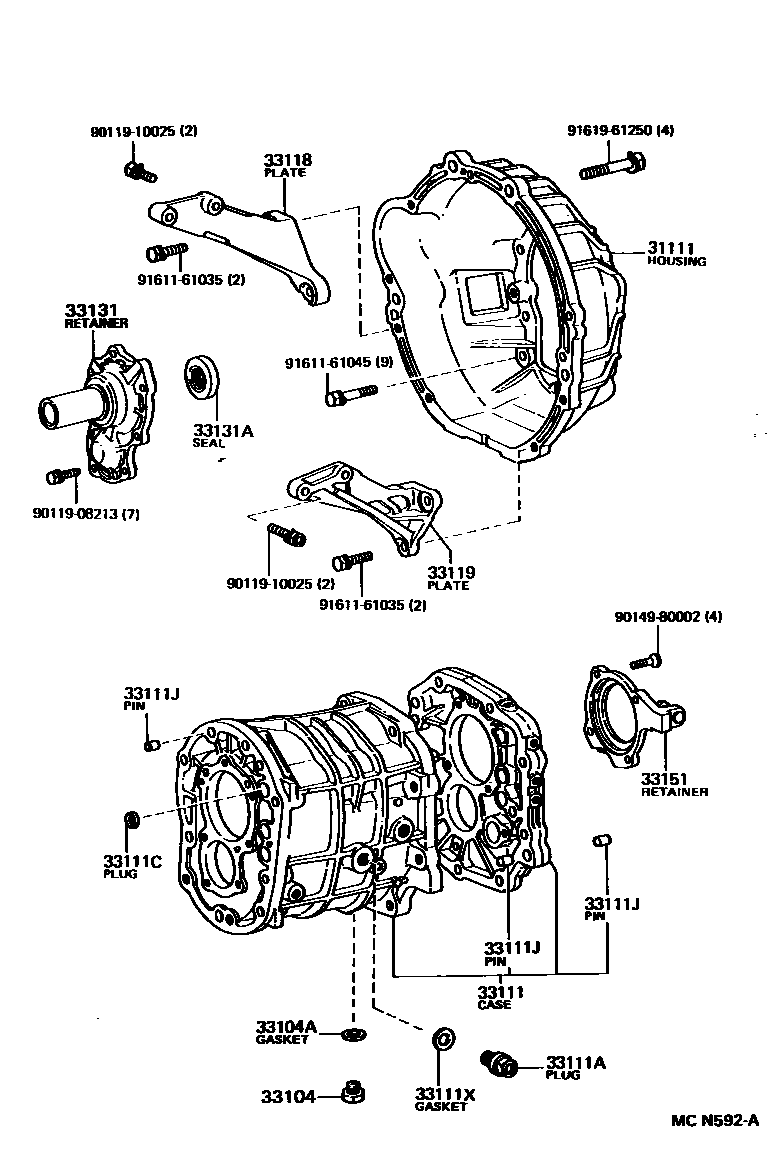

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W46,W55 0002 1W55

31111HOUSING, CLUTCH

main31111-20171iRN80,90..W199109-199501

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iRN80,90..W199408-199501

main90341-18057iRN80,90..W199109-199408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRN80,90..W199109-199501

33111CASE, MANUAL TRANSMISSION

main33101-30070iRN80,90..W199109-199411

main33101-30071iRN80,90..W199411-199501

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRN80,90..W199109-199408

main90341-18006iRN80,90..W199408-199501

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iRN80..W199109-199110

OD=14,OD=14

main90331-17004iRN80..W199109-199110

OD=17,OD=17

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iRN80,90..W199109-199501

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iRN80,90..W199109-199501

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRN80,90..W199109-199501

33119PLATE, STIFFENER, LH(MTM)

main33119-22022iRN80,90..W199109-199501

33131RETAINER, BEARING, FRONT(MTM)

main33131-22021iRN80..W199109-199110

main33131-30080iRN80,90..W199110-199501

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iRN80,90..W199110-199501

main90311-30115iRN80..W199109-199110

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iRN80..W199109-199110

main33107-30020iRN80,90..W199110-199501

9011908213

main90119-08213

9011910025

main90119-10025

9014980002

main90149-80002

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

19 parts on this diagram · 2 diagrams in section
